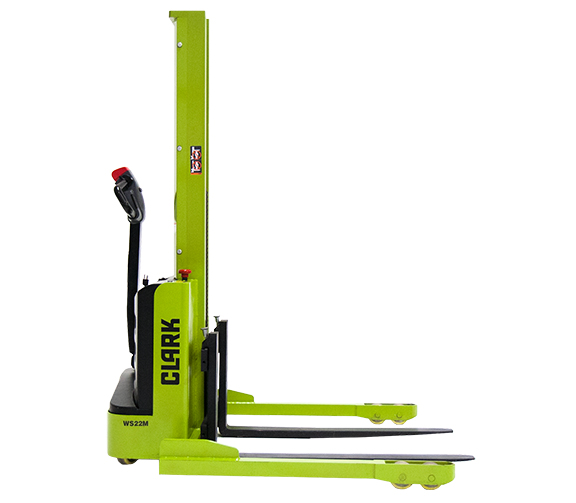

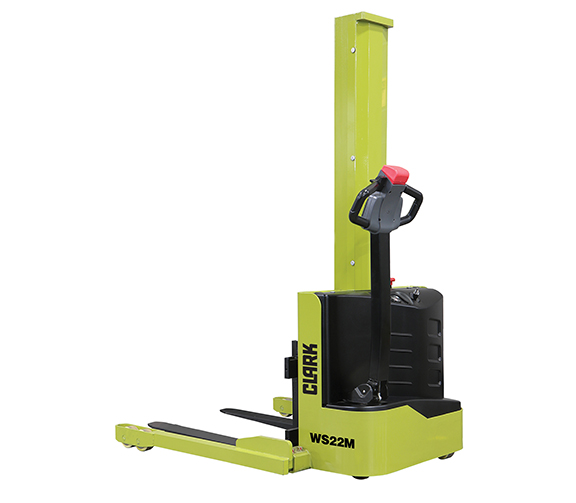

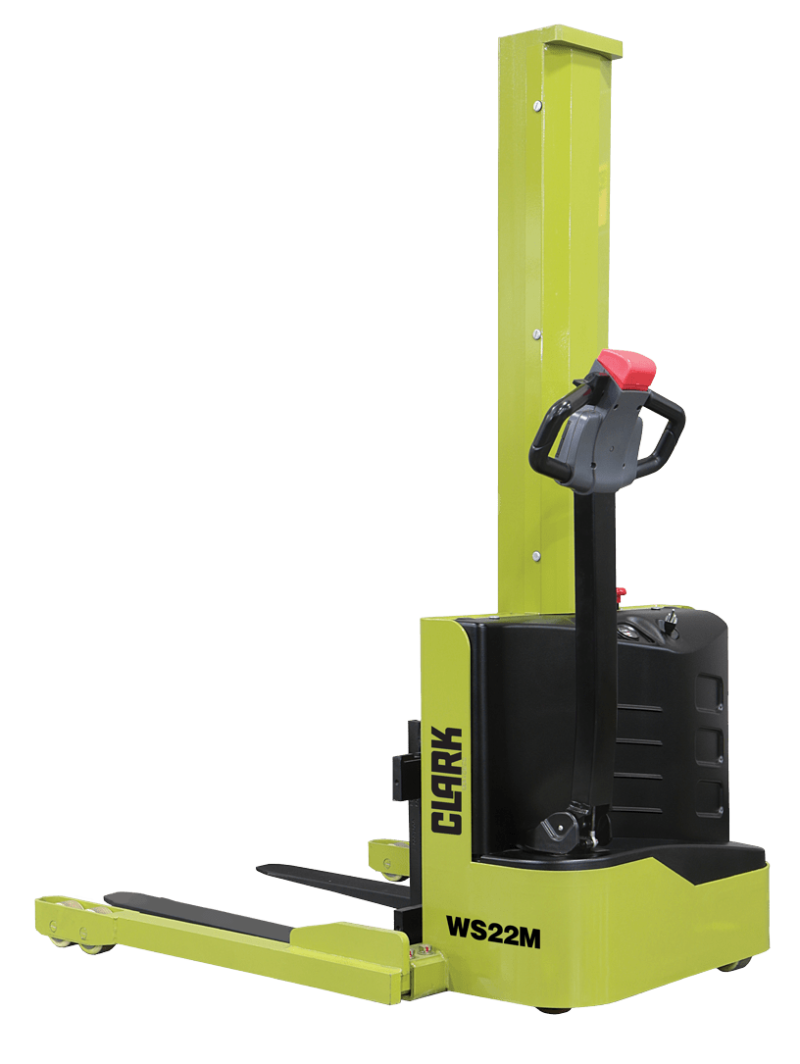

CLARK Walkie Stacker

2,200 lb. Capacity
62″ Lift Height
24-Volt Permanent Magnet DC Drive Motor
All Steel Construction Welded Chassis
Electromagnetic Brakes
Maintenance-Free Battery Option

Documents

Product Documents

CLARK WS22M Walkie Stacker Spec Sheet

Financing Information

Product Description

Looking for a light-duty stacker to navigate narrow spaces without sacrificing functionality? Look no further than the CLARK WS22M powered drive straddle narrow aisle stacker for work positioning in tight areas.

Model Numbers: WS22M

Equipment Details

Forklift Type	Electric Pallet Jacks & Stackers
Brand	CLARK
Capacity	2,200 lbs.
Condition	New
Fuel Type	Electric/Battery, 24 Volt

24-Volt permanent magnet DC drive motor with rare earth neodymium magnets in-creases efficiency and duty cycle
Electromagnetic disc brake provides safe and secure stops under all conditions
Offset steering arm provides excellent line of sight for operators
All steel construction welded rigid steel chassis for added durability
Adjustable forks on pin style carriage

Offset steering arm provides excellent line of sight for operators
Right angle stacking in aisles as narrow as 60”
Travel, lift, and lower functions are located in the ergonomic operator handle
All operator controls are accessible without having to lift the hand from the handle
Angle grips are designed to allow easy operation with either hand
Wrap around guard, reversing switch, thumb control, and horn are standard
Low mounted tiller arm offers excellent operator comfort and minimum steering effort

24-volt permanent DC drive motor
- Drive motor with rare earth neodymium magnets increases efficiency and duty cycle
- Travel control provides smooth step less travel
- Quick disconnect power cut off and battery discharge indicator are standard equipment
- Optional battery upgrade to 85AH maintenance-free batteries available
Hydraulics
- Lift cylinder is hard chrome for greater longevity
- Permanent magnet pump motor and chrome plated lift cylinder provides smooth lifting and lowering
- Pump unit includes DC motor, solenoid, and gear pump
Brakes and Axle
- Electronic neutral braking function provides smooth and safe control
- Electromagnetic disc brake provides safe and secure stops under all conditions
- Fully enclosed wheel guard and flush mounted axles prevent wheel and axle damage during normal use
Frame and Mast
- All steel construction welded rigid steel chassis for added durability
- Non-telescoping mono mast with single lifting chain, adjustable mast rollers
- Chrome plated lift cylinder provides smooth lift/lower operation and long life
Straddle Legs and Forks
- Adjustable forks on pin style carriage
- Forks are adjustable from 8” ID to 27.5” OD
- Standard fork is 42” long x 3.5” wide x 1.25” thick
- Three-inch-wide adjustable straddle legs for ease of operation in racked aisles
- Four position adjustment allows for preset outrigger dimensions to fit various sized pallets
- Straddle leg inside dimension (ID) can be set at 38” to 50” in 4” increments
