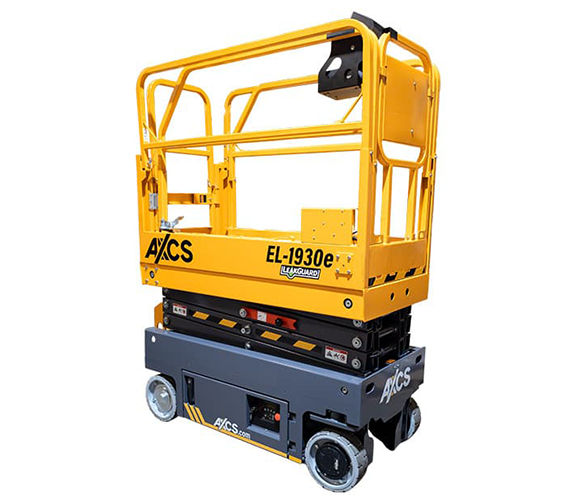

EL-1930e-Cutout

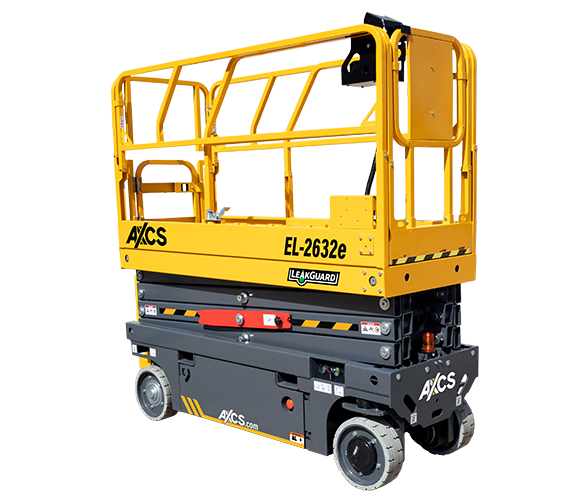

EL-2632e Cutout Stowed
EL-3245e Cutout Stowed

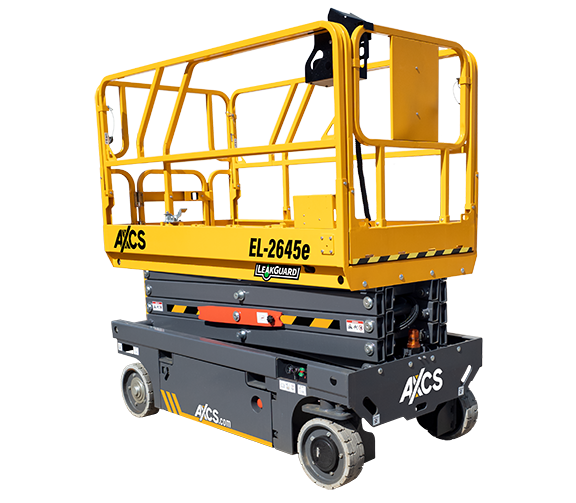

EL-2645e Cutout Stowed

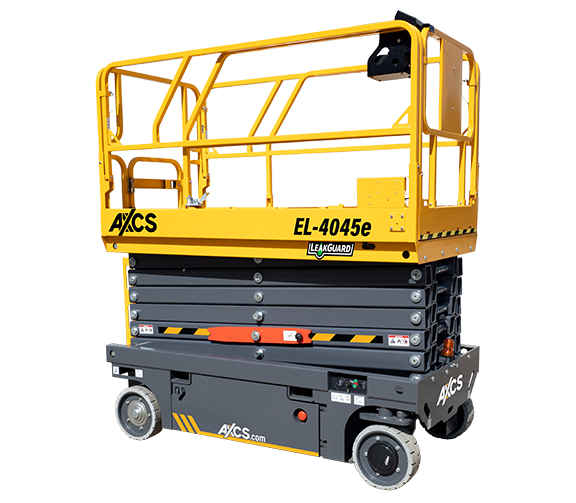

EL-4045e Cutout Stowed

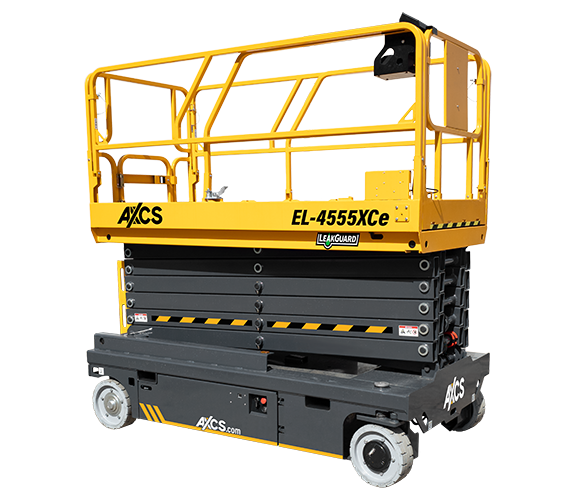

EL-4555XCe Cutout Stowed

AXCS EL Series Scissor Lift

  • Electric Drive
  • Up to 51.6 ft Working Height
  • LeakGuard® Hydraulic Containment
  • Drive-at-Full-Height (Select Models)
  • 25% Gradeability
Request a Quote

Documents

Product Documents

The AXCS EL Series electric scissor lifts deliver reliable indoor and outdoor performance with zero emissions and whisper-quiet operation. Built with LeakGuard® hydraulic protection, proportional controls, and a non-slip deck, these lifts are designed to keep your crew safe and productive.

With working heights ranging from 24 to 51 feet and optional features like perimeter lighting and pipe racks, there’s a model to fit nearly any facility. Plus, easy onboard diagnostics and dual maintenance bars simplify servicing and reduce downtime. As an authorized dealer, we’re here to help you choose the right lift for your application and keep it running smoothly.

Models: EL-1930e | EL-2632e | EL-2645e | EL-3245e | EL-4045e | EL-4555XCe

Additional Information

Brand

AXCS
Condition

New
Power

Electric
Working Height

20 – 29 ft., 30 – 39 ft., 40 – 49 ft., 50 – 59 ft.
MEWP Type

Scissor Lift
  • Electric drive system reduces emissions and operating noise
  • LeakGuard® technology protects against hydraulic fluid leaks
  • Drive-at-full-height functionality increases productivity indoors and outdoors (select models)
  • Standard indoor/outdoor capability with ANSI A92.20 compliance
  • Wide range of platform heights from 18.4 ft to 45.1 ft, suitable for multiple applications
  • Slide-out extension deck increases workspace without repositioning the lift
  • Multiple platform widths to suit tight or open work areas
  • Electric drive
  • LeakGuard® hydraulic containment system
  • Indoor & outdoor operation settings
  • 110V power-to-platform outlet
  • Proportional controls for smooth movement
  • 30A onboard charger
  • Non-slip platform deck
  • All motion alarm & flashing beacon
  • Removable platform controls
  • Self-locking gate
  • Liftable by forklift or crane
  • Dual maintenance bars for added safety during servicing
  • Onboard diagnostic system
  • Manual descent cable
  • Active tilt alarm
  • Automatic pothole protection
  • Non-marking tires
  • Horn
  • CAN communication protocol
  • 2-year parts & labor warranty
  • 5-year structural warranty
  • Perimeter Lights
  • Pipe Rack
  • Slide-out extension deck offers additional working area without moving the base
  • Removable platform controls for user flexibility
  • Low stowed height allows easier entry and exit
  • Proportional drive and lift controls offer smooth operation
  • ANSI A92.20 compliance ensures adherence to current safety standards
  • Active tilt alarm alerts operators to unsafe conditions
  • All motion alarm warns bystanders of movement
  • Flashing beacon enhances visibility in busy environments
  • Automatic pothole protection stabilizes the lift on uneven surfaces
  • Manual descent cable provides emergency lowering capability
  • Dual maintenance bars enhance technician safety during service
  • Platform capacities range from 507 lbs (EL-1930e) to 992 lbs (EL-2645e)
  • Drive speeds up to 2.8 mph when lowered
  • Lift speeds vary from 25 to 77 seconds depending on the model
  • Gradeability of 25% across all models
  • Working slopes of 2° lateral and 3° longitudinal
  • Tight turning radius, including 0 in inside turn on most models
  • Battery power from 4 x 6V or 12V cells depending on the model
  • Onboard diagnostics simplify troubleshooting
  • CAN communication protocol enables reliable and efficient system monitoring
  • Accessible design allows lifts to be moved via forklift or crane
  • Dual maintenance bars ensure safe technician access during service
  • Warehousing and logistics
  • Facilities maintenance
  • Commercial construction
  • Retail and storefront fit-outs
  • Manufacturing and industrial plants
  • Indoor installation services (lighting, signage, HVAC)
