CLARK Core Electric Forklift

4,000 – 6,500 lb. Capacity
100% AC Technology
Quiet, Non-Polluting Operation
Large Instrument Dash Display
Adjustable Steering Pylon

Documents

Product Documents

Financing Information

Forklift Leasing: The Ultimate Guide

Forklift Information

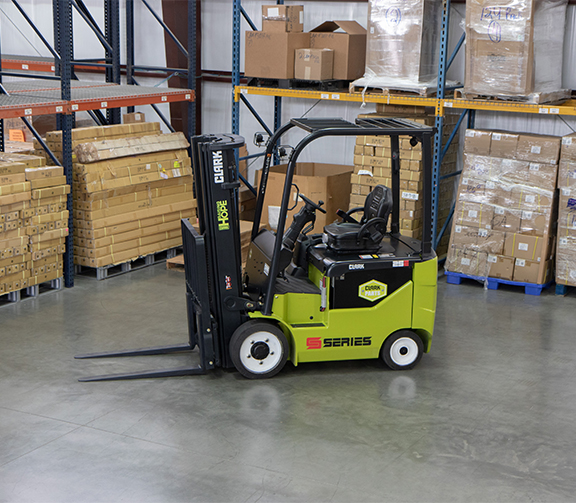

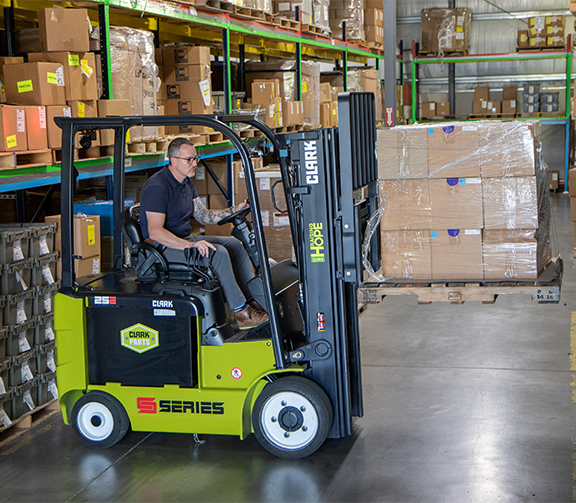

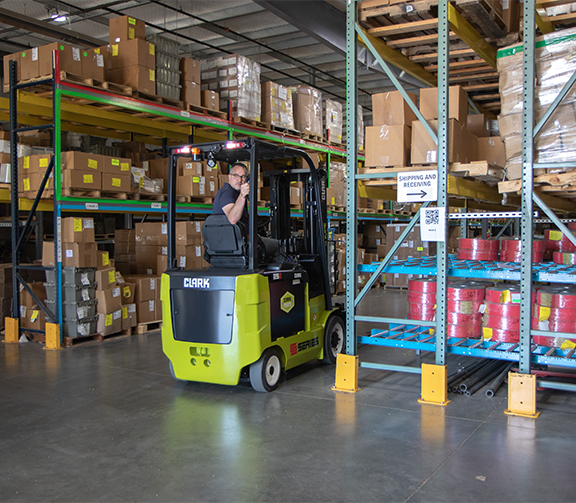

The CLARK ECX series of electric lift trucks is the ideal choice for demanding manufacturing and distribution applications. Superior ergonomic design, operator comfort, safety and outstanding truck performance are backed by the oldest name in lift trucks.

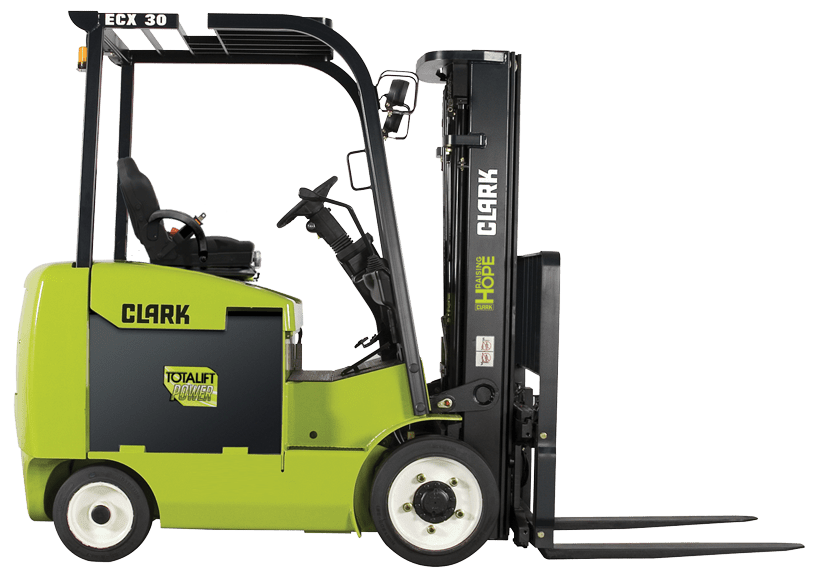

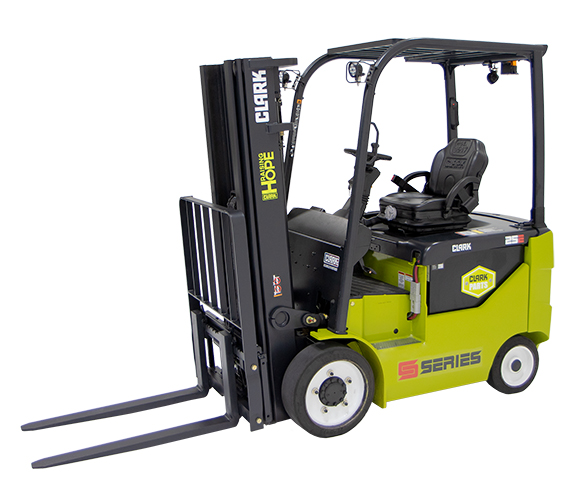

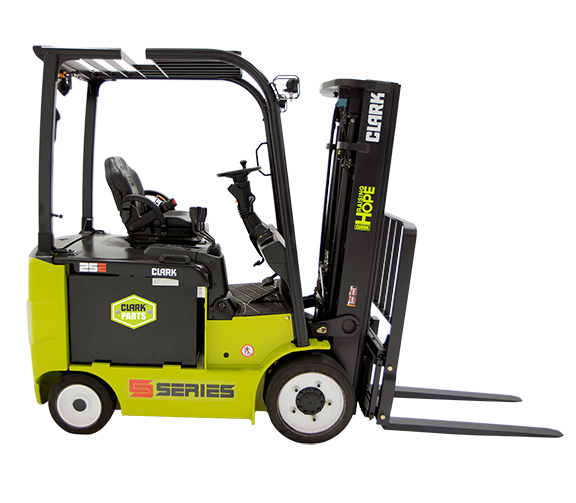

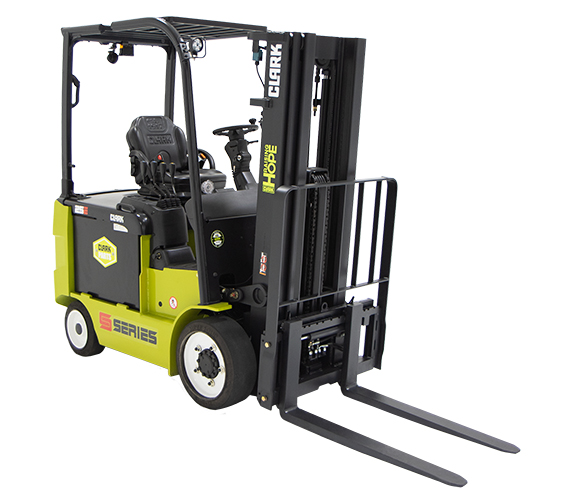

Model Numbers: ECX20 | ECX25 | ECX30 | ECX32

Equipment Details

Forklift Type	Electric Motor Riders
Brand	CLARK
Condition	New
Capacity	4,000 lbs., 5,000 lbs., 6,500 lbs., 6,000 lbs.
Fuel Type	Electric/Battery, 36 Volt, Electric/Battery, 48 Volt

100% AC system means fewer parts and minimum wear for less downtime and higher ROI
Advanced ergonomics with cowl mounted hydraulic controls, thick molded floor mat, and fully adjustable seat
Maximum visibility with nested I-channel which allow space for cylinders, hoses, and chains
Flexibility with fully customizable parameters to meet operator’s preference, including acceleration rate, deceleration rate, and separate FW/RV max speed

Fully adjustable seat molded for support with non-cinching, retractable seat belt
Tilt steering column adjusts to suit operator and provides easier entry/exit
Cowl mounted hydraulic controls located and sized for ease of use
Thick molded floor mat reduces vibration and noise level to improve operator comfort

100% AC electric system
- Enclosed, brushless smart lift lock out
- Controlled descent: When the controller senses movement but no accelerator pedal input, it signals the drive motors to apply counter torque allowing the truck to slowly descend an incline in a controlled manner
- Added torque eliminates roll back when starting on an incline
- Maximum travel speed can be programmed to your requirements and if necessary, forward and reverse can be set independently
- Up to 20 performance parameter settings such as acceleration, creep speed and regen braking rate can be adjusted to meet your requirements
- 10-segments used to display remaining charge and programmed speed
- Thermal and stall protection
- One motor for both steering and hydraulics
- Produces twice the draw bar pull of some competitors
- Climbs grades previously limited to IC trucks
Hydraulic System
- Fully programmable standard hydraulic pump control
- Lift speed is fully proportional to lift lever position
- Tilt and auxiliary functions run at programmable fixed speeds
Upright
- Nested I-channel mast allows space for cylinders, hoses and chains for maximum visibility
- Hydraulic cushioning valve allows for silent staging and reduces shock and vibration
- Carriage has 6 shimmable, sealed, and canted rollers to maximize load distribution and reduce free play

Maintenance-free AC motors
No brushes to change or commutator to turn – ever
Fewer parts and minimum wear = less downtime = higher ROI

Parking brake reminder sounds alarm if operator does not set parking brake
Maximum travel speed can be programmed to your requirements and if necessary, forward and reverse can be set independently
When the controller senses movement but no accelerator pedal input, it signals the drive motors to apply counter torque allowing the truck to slowly descend an incline in a controlled manner
Added torque eliminates roll back when starting on an incline
Variety of lights, alarms, and other options are available

Heavy duty, high torque drive move
Rugged cast steer axle fitted with dual action steer cylinder and fittings that are protected
Drive axle in one-piece housing reduces the possibility of leaks
Enclosed motors
Advanced thermal protection for all motors and controls
