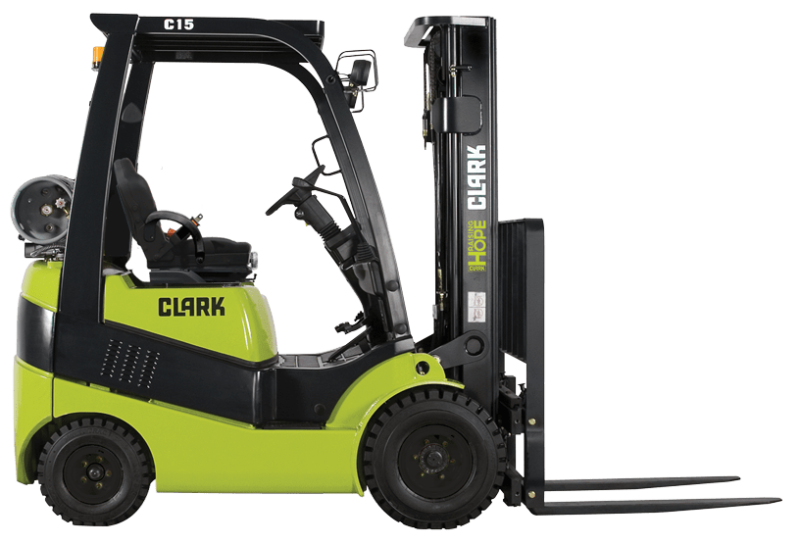

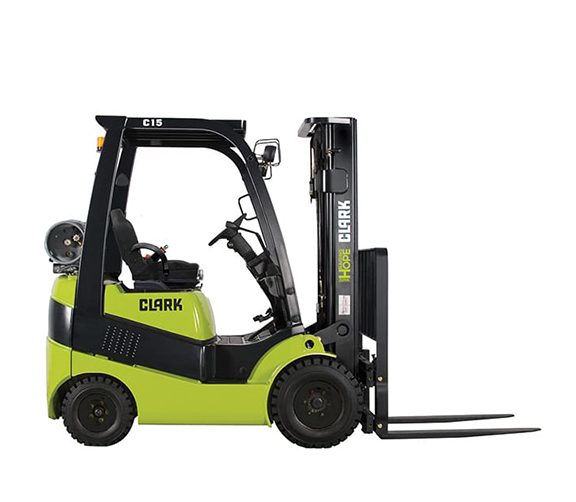

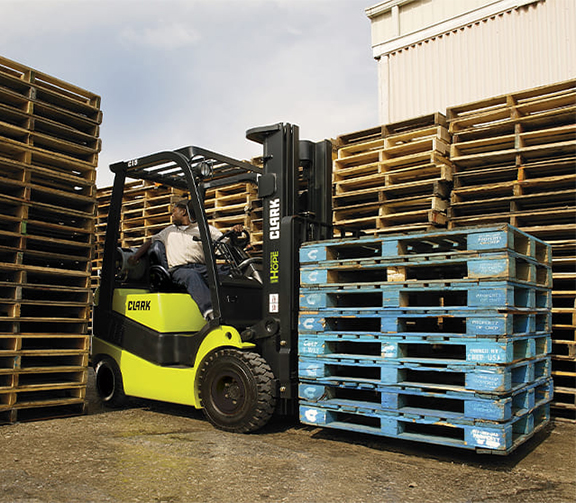

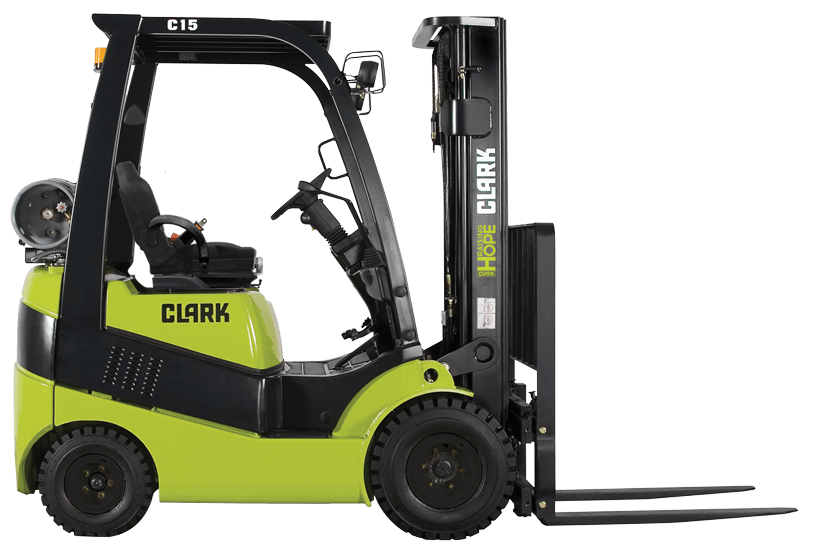

CLARK C15 core IC pneumatic forklift

CLARK Core IC Pneumatic Forklift

  • 3,000 – 7,000 lb. Capacity
  • LPG, Dual Fuel, and Diesel Power Sources
  • One-Piece Heavy Duty Steel Frame
  • Password Protected Engine Start Through Dash

Documents

Product Documents

Financing Information

Request a Quote

Product Description

Take on the most demanding jobs in harsh, heavy conditions with the CLARK Core IC Pneumatic forklift. With a variety of powerful LPG, dual fuel, and diesel engines and combined with a rugged frame, you’ll be ready to get stuff done.

Model Numbers: C15 | C18 | C20s | S20D | S25D | S30D | S35D | S20L | S25L | S30L | S35L | GTS20L | GTS25L | GTS30L | GTS33L

Equipment Details

Forklift Type

Internal Combustion – Pneumatic Tire
Brand

CLARK
Capacity

3,500 lbs., 3,000 lbs., 4,000 lbs., 5,000 lbs., 6,000 lbs., 6,600 lbs., 7,000 lbs.
Condition

New
Fuel Type

Diesel, Duel Fuel, Gas & LPG, LPG
  • Rugged built with heavy duty one-piece frame and “Double Shear” steer axle designed to resist impacts
  • Superior longevity with advanced microprocessor and LED display monitors that monitor and alert you to any issues

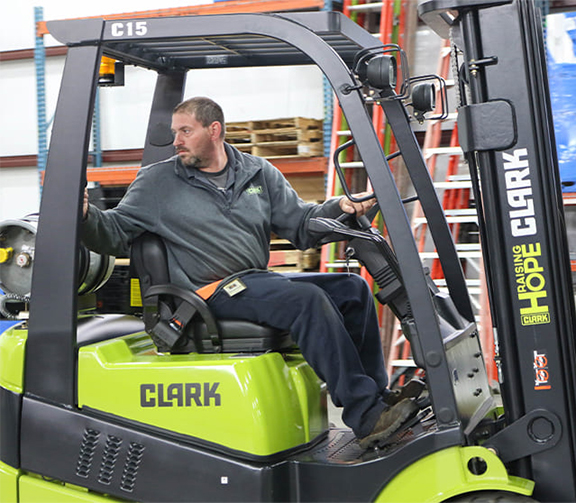

  • Excellent operator ergonomics with fully adjustable suspension seat, tilting steering column, and ergonomically-mounted hydraulic controls
  • Low cost of ownership with 500-hour oil service interval on Ford and Isuzu engines, and 2,000-hour oil service interval on transmission
  • Reduced fuel consumption with superior engine efficiency and optimized hydraulic operating pressure
  • Optional fully adjustable, full suspension seat molded for support with non-cinching, retractable seat belt
  • Tilt steering column adjusts to suit operator and provides easier entry/exit
  • Cowl- or hood-mounted hydraulic control levers with low input force located and sized for ease of use
  • Thick molded floor mat reduces vibration and noise level to improve operator comfort
  • Minimal vibration and noise to the operator via a balanced engine and isolated transmission
  • Large floor board improves leg room and boot clearance
  • Small diameter steering wheel with low steering effort
  • Reduced brake and inching pedal effort
  • Optimized step height
  • Drink holder
  • Convenience console
  • Power steering
  • Hyundai Theta LPG engine (C15/18/20s Series)
    • 4-cylinder, dual overhead cam engine
    • Produces 52 HP and 114 ft-lbs of torque @ 1500 rpm
    • Internal, self-lubricating chain-driven cams and automatic chain tensioner provide long-life and protection from debris
    • Raised air intake
    • High capacity cooling system
  • 4TNV88 Yanmar diesel engine (C15/18/20s Series)
    • EPA-compliant
    • Standard vertical exhaust
    • Durable, easy to start, easy to service, excellent fuel economy

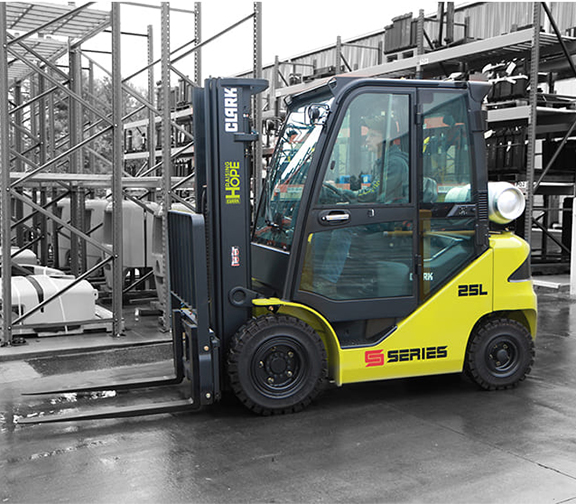

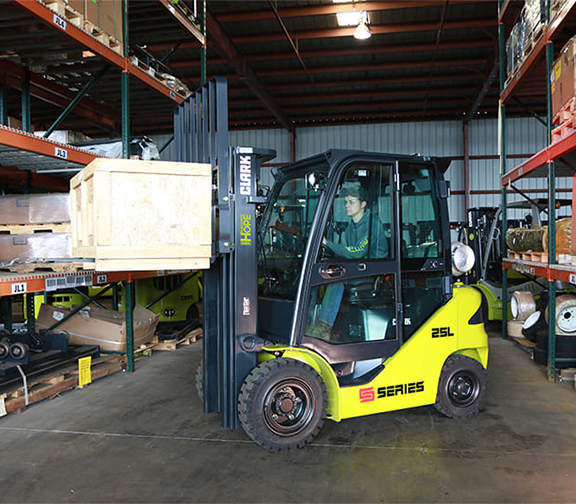

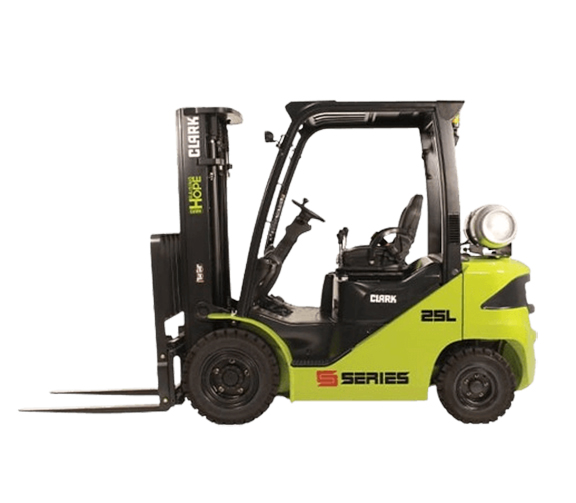

  • Ford 2.5L LPG Tier-4 engine (S20/25/30/35 Series)
    • Balanced engine
    • 4-cylinder dual overhead cam design
    • VVT (Variable Valve Timing)
    • Sequential multi-port fuel injection
    • Timing chain-driven camshaft
    • Automatic belt tensioners
  • Isuzu 4LE2X 2.2L diesel Tier-4 engine (S20/25/30/35 Series)
    • Turbo-charged
    • High-pressure multi-stage injection
    • DOC (Diesel Oxidation Catalyst)
    • No regeneration (burn-off) cycles necessary
    • No UREA additives

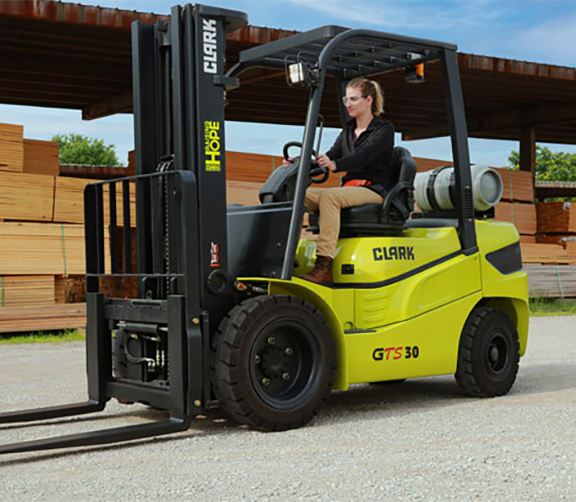

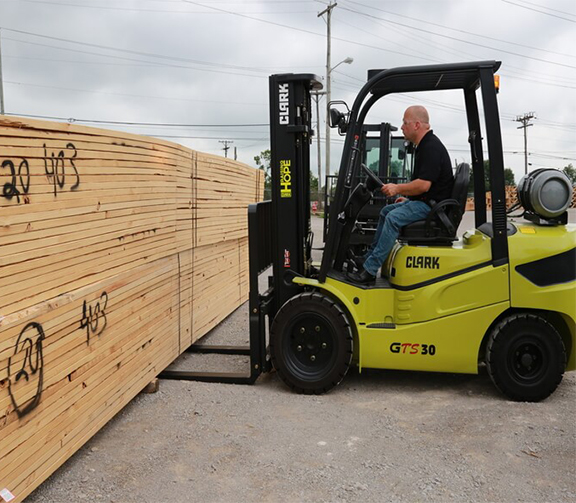

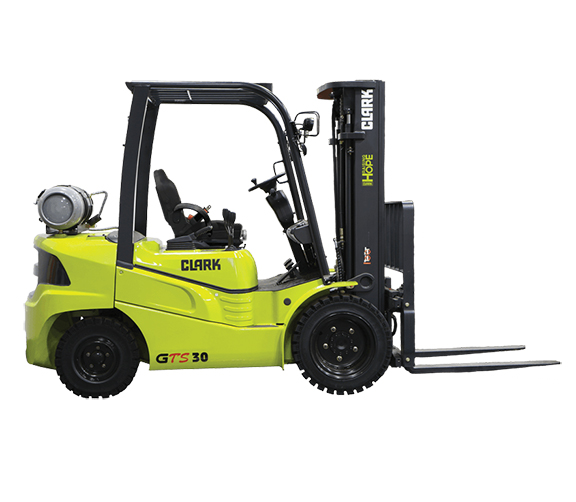

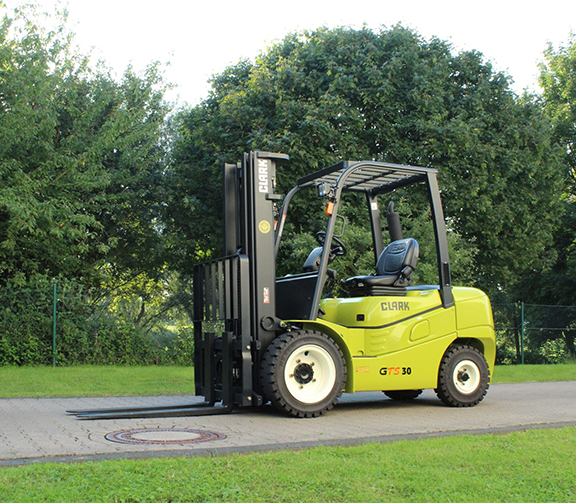

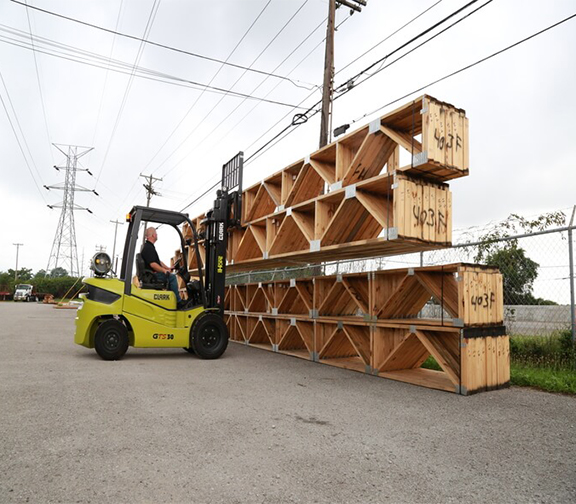

  • PSI 2.4L balanced engine (GTS20/25/30/33 Series)
    • EPA-compliant LPG fuel system
    • Single speed powershift transmission
  • Hydraulic System
    • Hydraulic system uses load-sensing flow control valve to reduce heat build-up for maximum horsepower
    • Main hydraulic valve incorporates adjustable flow controls for tilt and auxiliary functions for optimum performance of attachments
    • Sectional design of hydraulic valve allows for easy addition of extra functions
    • Upright mounted load lowering valve controls lowering independent of engine speed
    • Hood mounted control levers for ease-of-use
  • Braking and Steering
    • Force-cooled wet disc brakes for less pedal effort
    • Automatically-applied parking brake
    • Power steering
  • Upright
    • Standard, Triple and Hi-Lo Uprights and Quad uprights
    • Full range of lift heights
    • Nested mast I-channel allows space for cylinders, hoses, and chains without sacrificing visibility
    • Carriage has 6 shimmable, sealed, and canted rollers to maximize load distribution and reduce free play
    • Hydraulic cushion valves allow for silent staging to reduce shock and vibration
  • Sectional design of hydraulic valve simplifies service
  • Microprocessor monitors the lift truck’s condition and controls function of truck systems
  • Separate transmission and axle simplify servicing
  • 5″ smart LCD dash with LED lights features:
    • On-board diagnostics
    • Hour meter and maintenance intervals
    • Transmission temperature
    • Engine oil pressure
    • Alternator charge
    • Fuel system malfunction
    • Park brake applied
    • Maintenance required
    • Seat belt
  • Designed with optimal center-of-gravity to enhance truck stability
  • Automatically applied parking brake
  • Rear handle with horn button
  • Static vinyl safety seat
  • High-visibility orange seat belt
  • Traction disable seat switch
  • Operator presence system
  • Automatic engine shutdown system
  • Speed limit control
  • Optional rear-view camera
  • Overhead guard mounted LED headlights
  • Heavy duty, welded & formed one piece steel frame protects from impact damage and extends the life of the truck
  • Integral hydraulic sump, with remote breather provides cooling for hydraulics in tough applications
  • Rugged “Double Shear” steering axle design withstands impact without loosening or breaking
  • High capacity cooling system
  • Manufacturing
  • Warehousing
  • Recycling

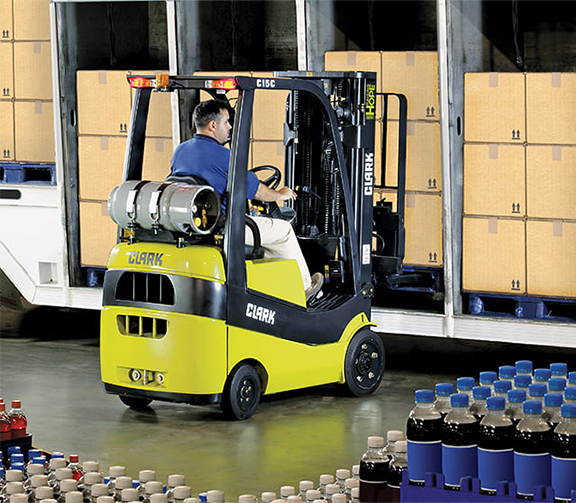

  • Beverage/Bottling
  • Trucking
  • Building Materials Handling
  • Distribution
