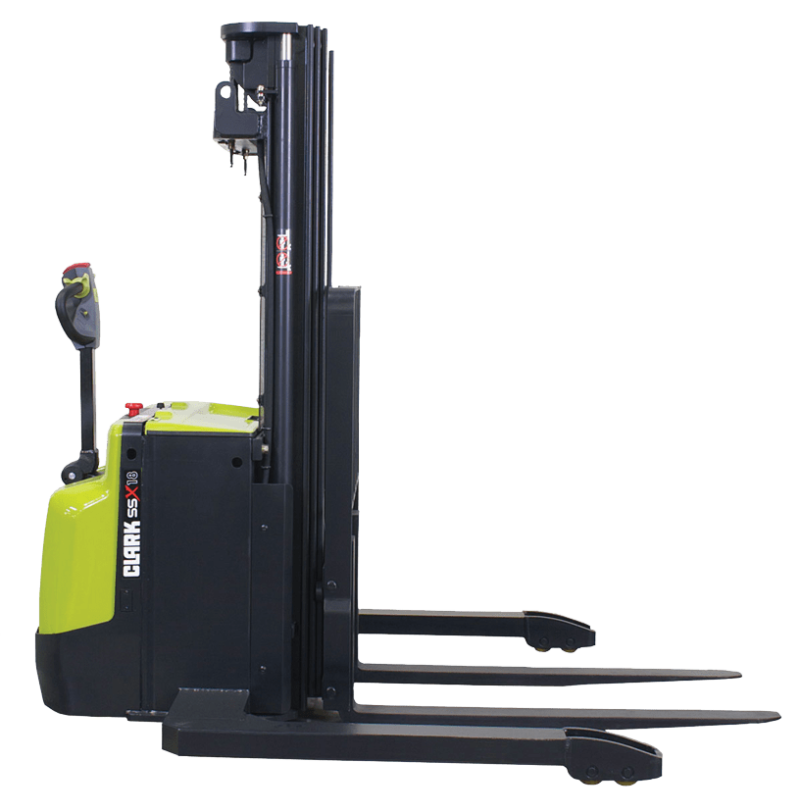

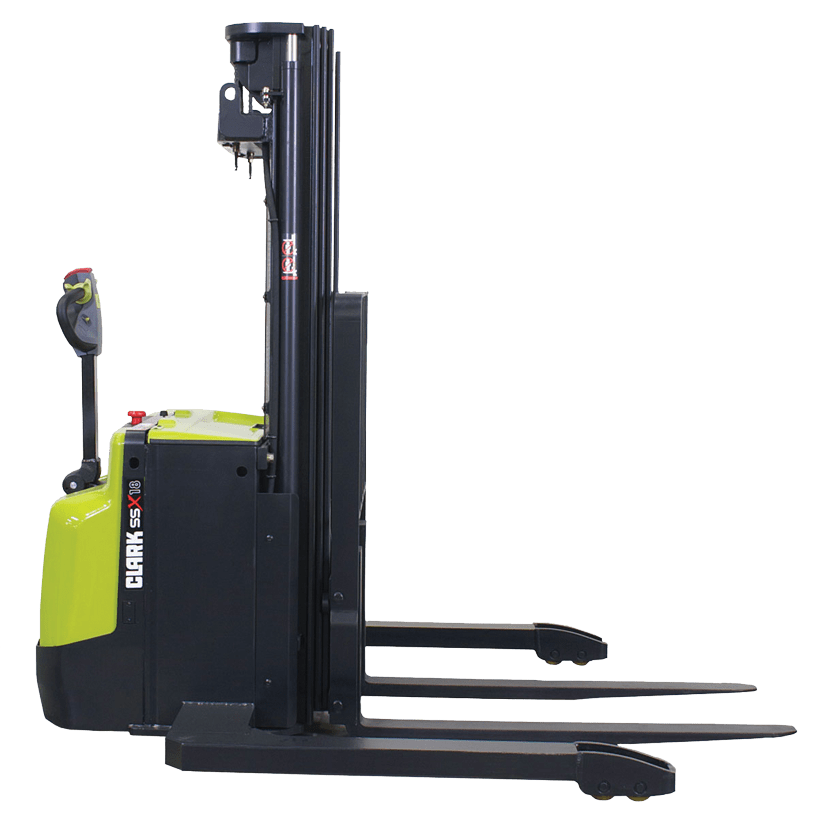

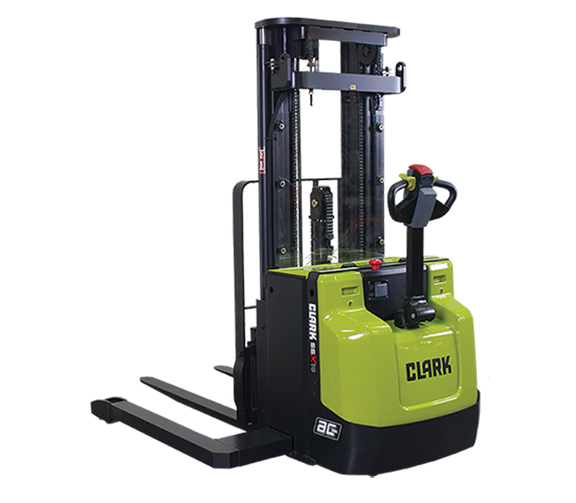

CLARK Industrial Walkie Stacker

2,500 – 4,000 lb. Capacity
Up to 120 in. Lift Height
Electromagnetic Brake
AC Drive Motor
Adjustable Outriggers

Documents

Product Documents

CLARK SSX12/16/18 Industrial Walkie Stacker Spec Sheet

Financing Information

Product Description

Rugged and reliable the new CLARK SSX stacker series forklift trucks offer superior controllability and excellent visibility. Offering high-speed operation to help increase productivity and profit while at the same time helping to improve operator safety. Now maintenance has been made easier than ever with fewer components. For increased performance, count on the new SSX stacker from CLARK.

Model Numbers: SSX12 | SSX16| SSX18

Equipment Details

Forklift Type	Electric Pallet Jacks & Stackers
Brand	CLARK
Capacity	2,500 lbs., 3,500 lbs., 4,000 lbs.
Condition	New
Fuel Type	Electric/Battery, 24 Volt

Brushless AC drive motor provides high torque with little maintenance
Electromagnetic brake has no master cylinder, seals, or hydraulic fluid to eliminate leaks
Ergonomic control handle designed with operators in mind
Cylinder and hose routing design provides open field of vision improving operator confidence
Adjustable outriggers to fit custom load widths
Low maintenance design with fewer components

Ergonomically designed operator handle features high strength plastic to protect against impact damage
Optional key pad with 4 digit passcode for operator access

100% AC electric system
- 24-volt AC travel control with matching drive motor provide high performance throughout the entire speed range
- Drive motor has no brushes to change, reducing operating costs
- Motor is fully enclosed to keep out dust and contaminants
- Motor has thermal protection built in which will reduce performance if over heating were to occur
Hydraulics
- The Integral Power Pack inclusive of pump motor, hydraulic tank and valve, keeps the system compact and reduces services requirements
Brakes
- No master cylinder, no seals, no hydraulic fluids mean no leaks
- Brake engages with handle in the up or down position
- Parking brake automatically applied when the truck is at rest
Upright
- Silent-staging upright helps to reduce shock and vibration
- Nested I-beam rails provide strength and rigidity
- Cylinder and hose routing design provides open field of vision improving operator confidence

Standard Equipment
- Adjustable outriggers
- Electromagnetic brake
- Load back rest
- Hour meter
- Safety plexiglass guard
- AC drive motor
Optional Equipment
- Side shifter
- Smart travel alarm
- Creep speed switch
- Key pad with user code
- Wire mesh mast guard
- Welded outriggers
