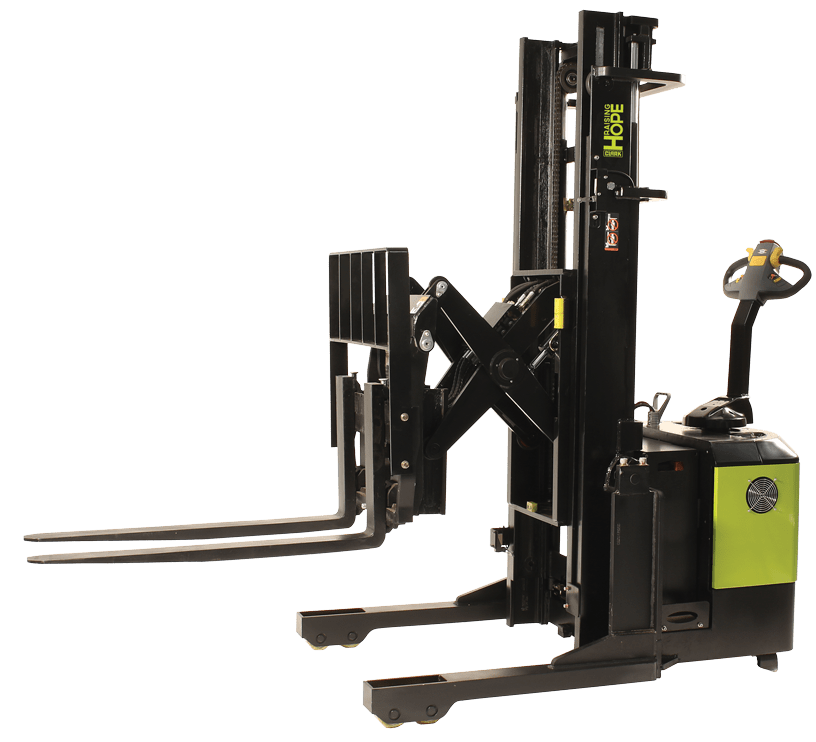

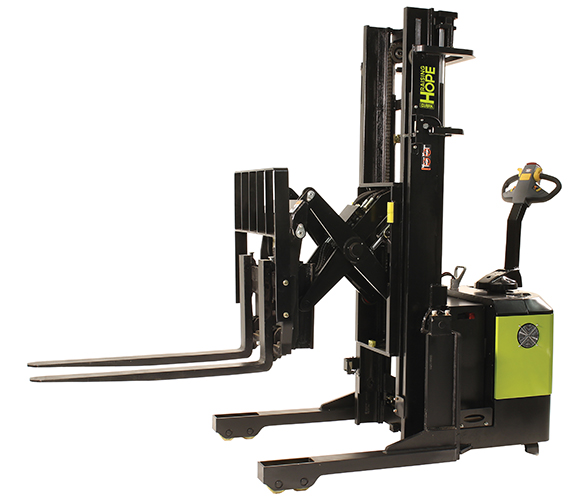

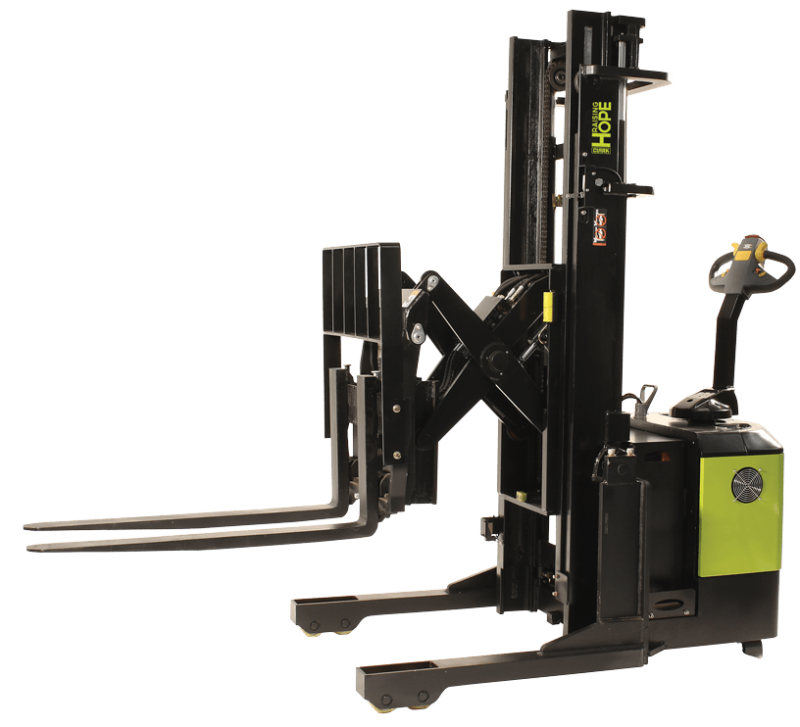

CLARK Walkie Reach Truck

3,000 lb. Capacity
34″ or 42″ Fixed Straddle Legs
Up to 189 in. Lift Height
Regenerative Electromechanical Brake
Gas-Assisted Spring Handle

Documents

Product Documents

CLARK WSRX30 Walkie Reach Truck Spec Sheet

Financing Information

Product Description

Need to lift and reach but don’t have the need for a full-on reach truck? Then the CLARK WSRX30 Walkie Reach Truck is just what you need. Featuring a powerful 24-volt ZAPI travel controller, integral tilt and sideshift, and ergonomic controls, you’ll be able to maneuver, lift, and reach with ease.

Model Numbers: WSRX30

Additional Information

Forklift Type	Electric Pallet Jacks & Stackers
Brand	CLARK
Capacity	3,000 lbs.
Condition	New
Fuel Type	Electric/Battery, 24 Volt

24-Volt ZAPI Combi-ACx, travel control with matching drive motor provide high performance throughout the entire speed range
Regenerative braking with top-mounted electromagnetic brake offer greater efficiency and control
Ergonomic control handle is designed to allow operation with either hand

Travel, lift, and lower functions are located in the ergonomic operator handle
All operator controls are accessible without having to lift the hand from the handle
Angle grips are designed to allow easy operation with either hand
Wrap around guard, reversing switch, thumb control, and horn are standard
Top mounted tiller arm offers excellent operator comfort and minimum steering effort
Gas assisted spring gently returns handle to vertical position

Electrical
- 24-volt ZAPI Combi-ACx travel control with matching drive motor provide high performance throughout the entire speed range
- Travel speed remains constant relative to throttle position regardless of load
- Separately fused power control circuits, quick disconnect EPD power cut off, and hour meter /battery discharge indicator combination gauge complete the system
- Power configurations and diagnostic features are displayed with a ZAPI handheld console
Hydraulics
- Lift cylinder has hard chrome plated rods for greater longevity
- Pump unit including motor, solenoid, and gear pump
- Pressure compensated lowering valve is mounted high in the power compartment for ease of service
Brakes
- Regenerative electromagnetic brake is mounted on the motor armature shaft multiplying the braking power through the transmission
- Brake is applied when the control arm is in the vertical or horizontal handle position
- Travel speed is reduced when forks are above 12” fork height
- Neutral braking resists roll back on ramps
Transmission
- Vertically mounted drive motor is direct mounted to gear housing
- Oil bathed ZF GK10 hypoid bevel gear drive-train transfers power to axle
- State of the art optimized gear technology supplies advantages such as minimal envelope circle, zero maintenance, low noise level, high efficiency and high performance
Mast and Pantograph
- I-beam mast with dual lifting chains
- Pantograph stroke extends the fork carriage beyond the units straddle legs, with integral tilt and sideshift
Straddle Legs and Forks
- Fixed straddle leg inside dimensions (ID) available at 34” or 42” resulting in a 42” or 50” outside dimension (OD)
- Class 2 ITA fork carriage with 36” tall load back rest and 42” Forks spacing is adjustable
