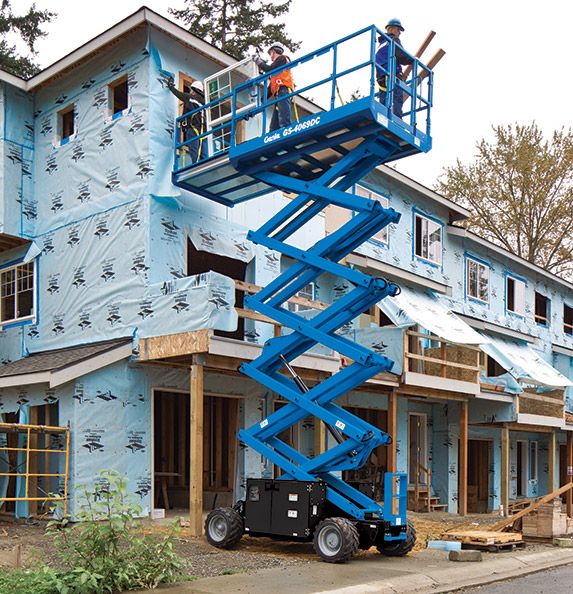

Genie GS-4069 DC Scissor Lift

46 ft Working Height

Capacity: 800 lbs.
Machine Width: 63 in.
Machine Length: 110 in.
Machine Weight: 10,856 lbs.

The electric Genie GS-4069 DC, offers the same range of lifting capacities of its rough-terrain counterpart – the Genie GS-4069 RT – such as a full drive height feature, along with an increase in stowed drive speed plus a larger work platform and an extension deck for workers.

Equipped with a patented full-time oscillating axle, the Genie GS-4069 DC electric-powered scissor lift automatically adjusts based on ground conditions. Rough-terrain tires come standard for moving through dirt, sand and mud. This scissor lift is excellent for outdoor and indoor applications with firm, level surfaces.

Additional Information

MEWP Type	Scissor Lift

Front-wheel drive for excellent maneuverability in tight spaces
Full-drive working height
On-board diagnostics help operators troubleshoot on the fly and make adjustments in the field to increase uptime
Swing-out battery box and power module trays allow easy access to engine components for convenient service
Quiet, convenient electric power for sound-sensitive environments
Outdoor functionality on firm, level surfaces providing accessibility for a wide variety of applications
Easily driven through dirt, sand and mud between tasks

Drive at full height
Rough terrain capable
AC sealed drive motors
110 x 63 in (2.79 x 1.6m) steel frame platform with replaceable aluminum diamond plate deck
60 in (1.52 m) extension deck (ANSI)
Folding guardrails
SmartLink™ – proportional lift and drive
Platform control with battery charge indicator and diagnostic display
On-board diagnostic system
AC power to platform
Full height swing gate
2WD
Front oscillating axle
Positive traction control
Regenerative braking
Non-marking rough terrain tires 12 x 26 in (30 x 66 cm)
Tilt level sensor with audible alarm
Descent alarm
Horn
315 Ah batteries
