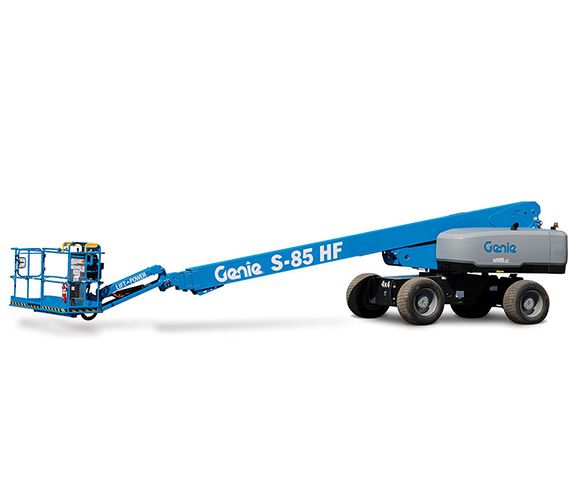

Genie S-80 HF & S-85 HF Boom Lift
Genie S-80 HF & Genie S-85 HF
Genie S-80 HF & Genie S-85 HF

Genie S-80 HF & S-85 HF Boom Lift

  • 86 – 91 ft. Working Height
  • 660 lbs. Unrestricted Capacity
  • 1,000 lbs. Restricted Capacity
  • 72 ft. 6 in. Maximum Horizontal Reach
  • 35,500 – 38,000 lbs. Machine Weight

Documents

Product Documents

  • Genie Boom Lift Full Line Brochure
  • Genie S-80 HF Boom Lift Spec Sheet
Request a Quote
  • Description
  • Advantages
  • Standard Features
  • Popular Options

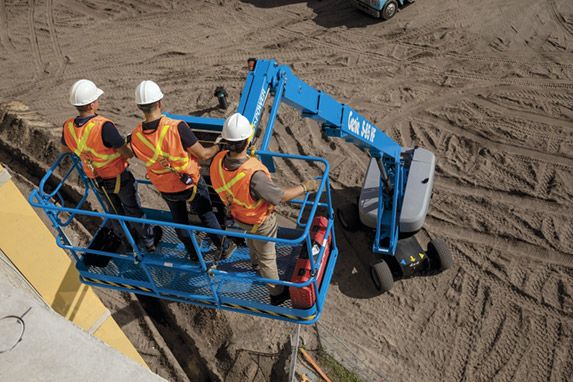

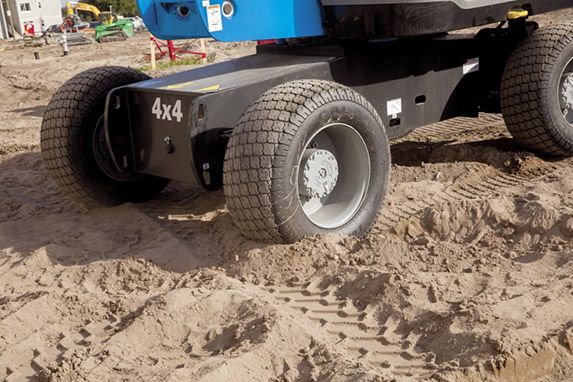

The Genie S-80 HF and S-85 HF high float telescopic booms are designed to perform heavy-lifting tasks in sensitive turf conditions, such as sand and turf ground conditions. Engineered to “float” on soft or delicate surfaces, the Genie S-80 and S-85 HF booms protect softer surfaces during operation that could be damaged by the more aggressive tread on regular rough terrain tires.

This new generation of Genie HF booms retain the productivity features that enhance your ability to get work done quickly. A virtual pivot primary boom aligns the machine’s center of gravity for lower machine weight. 4-Wheel drive and positive traction drive maintains equal power to all drive wheels. Plus, 45% gradeability (stowed) for driving on slopes.

  • Virtual pivot primary boom aligns the machine’s center of gravity for lower machine weight
  • 4WD and positive traction drive maintains equal power to all drive wheels
  • 45% gradeability (stowed) for driving on slopes
  • 160˚ platform rotation and 360˚ continuous rotation turntable for quick, precision positioning
  • Self-leveling platform
  • 160° hydraulic platform rotation
  • Proportional joystick controls
  • Drive enable
  • AC power cord to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Descent alarm
  • 360° continuous turntable rotation
  • Positive traction four wheel drive
  • Two speed wheel motors
  • Telematics ready connector
  • Platform load sense system
  • Entry toeboard
  • Hydraulic oil cooler
  • Alarm package
  • Work tray
  • Lift Guard Contact Alarm
  • 12V DC auxiliary power
  • Anti-restart engine protection
  • Auto engine fault shutdown
  • Half mesh platform inserts
  • Platform top auxiliary rail
  • Air line to platform
  • Specialty hydraulic oil (cold weather, fire resistant, or biodegradable)
  • Hostile environment kit
  • Deluxe hostile environment kit
  • Aircraft protection package (6 ft. platform only)
  • Thumb rockersteer
  • Panel cradle package
  • Lockable platform control box covers
  • Tow package
  • Work light package
  • Operator Protective Structure
  • Fall Arrest Bar
  • Cold weather package
  • Diesel scrubber/muffler
  • Intake air pre-cleaner

Related products

  • Genie GS-2632 Scissor Lift

    Genie GS-2632 Scissor Lift

    View Details
  • Genie GS-3369 RT Scissor Lift

    Genie GS-3369 RT Scissor Lift

    View Details
  • Genie GS-3246 Scissor Lift

    Genie GS-3246 Scissor Lift

    View Details

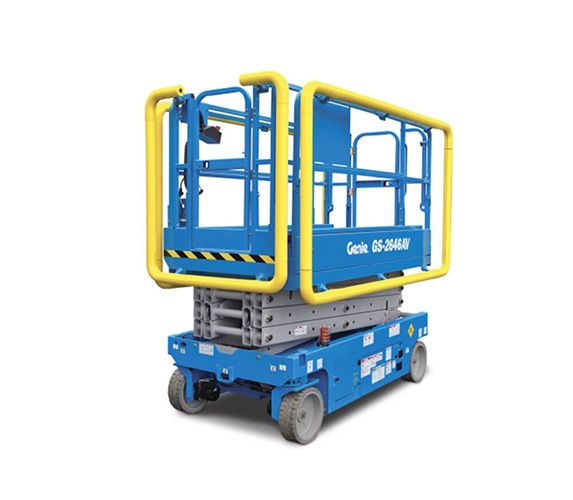

  • Genie GS-2646 Scissor Lift
