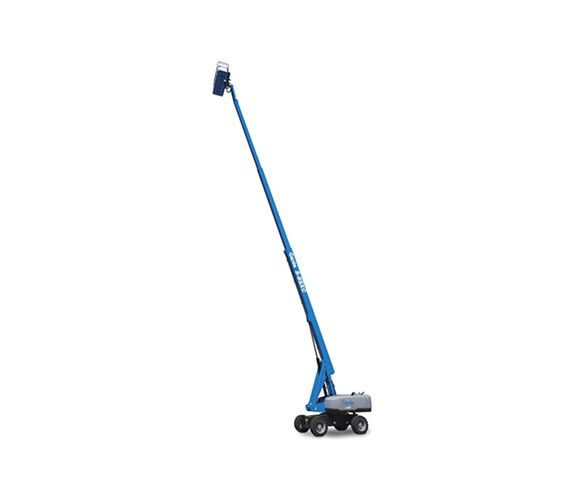

Genie S-80 XC & S-85 XC Telescopic Boom Lift
Genie S-85 XC Boom Lift
Genie S-85 XC boom lift

Genie S-80 XC & S-85 XC Boom Lift

  • 86 – 91 ft. Working Height
  • 660 lbs. Unrestricted Capacity
  • 1,000 lbs. Restricted Capacity
  • 74 ft. 6 in. Maximum Horizontal Reach
  • 37,000 – 39,500 lbs. Machine Weight

Documents

Product Documents

  • Genie Boom Lift Full Line Brochure
  • Genie S-80 XC & S-85 XC Spec Sheet
Request a Quote
  • Description
  • Advantages
  • Standard Features
  • Popular Options

Genie S-80 XC and S-85 XC telescopic booms offer a dual lift capacity of 660 lbs. unrestricted and 1,000 lbs. restricted to perform a wider range of heavier lift tasks on construction and industrial job sites. And, the Genie Xtra Capacity (XC) feature lets up to three people work on-board while still leaving room for tools and job site materials.

In addition, new design standards require boom lifts to have a load sense system which continuously monitors the weight in the platform. Genie XC booms make this simple with a load sense cell that continuously checks the weight in the platform and adjusts the allowable range of motion to match the load chart. This increases performance, decreases calibration time and improves overall productivity, with zero-load field calibration.

  • Maximum capacity with a robust jib design to handle increased loads
  • Load sense technology for accurate load weighing and zero-field calibration
  • Chassis tilt sensor technology maximizes access to hard to reach work areas
  • On-board diagnostics maximizes serviceability
  • Self-leveling platform
  • 160° hydraulic platform rotation
  • Proportional joystick controls
  • Drive enable
  • AC power cord to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Descent alarm
  • 360° continuous turntable rotation
  • Positive traction four wheel drive
  • Two speed wheel motors
  • Telematics ready connector
  • Platform load sense system
  • Entry toeboard
  • Hydraulic oil cooler
  • Alarm package
  • Work tray
  • Lift Guard Contact Alarm
  • Active oscillation
  • 12V DC auxiliary power
  • Anti-restart engine protection
  • Auto engine fault shutdown
  • Half mesh platform inserts
  • Platform top auxiliary rail
  • Air line to platform
  • Specialty hydraulic oil (cold weather, fire resistant, or biodegradable)
  • Hostile environment kit
  • Deluxe hostile environment kit
  • Aircraft protection package (6 ft. platform only)
  • Thumb rockersteer
  • Panel cradle package
  • Lockable platform control box covers
  • Tow package
  • Work light package
  • Operator Protective Structure
  • Fall Arrest Bar
  • Cold weather packages
  • Diesel scrubber/muffler
  • Intake air pre-cleaner
