Genie Z 30/20 N Boom Lift

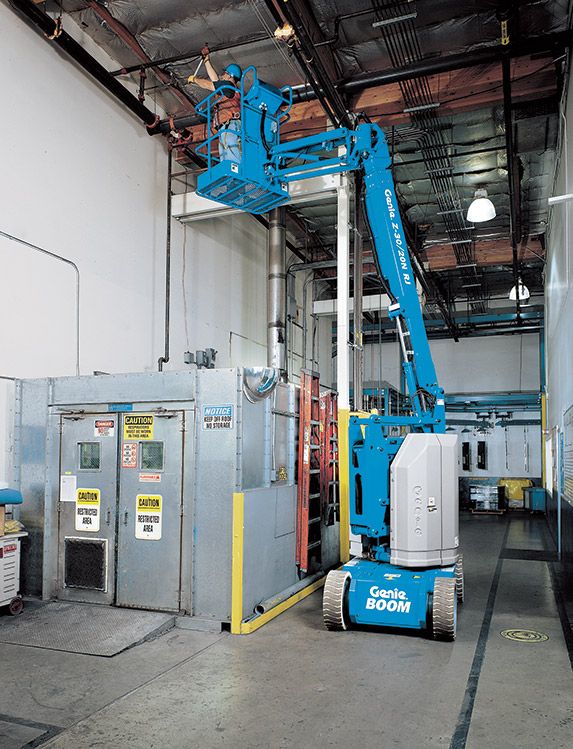

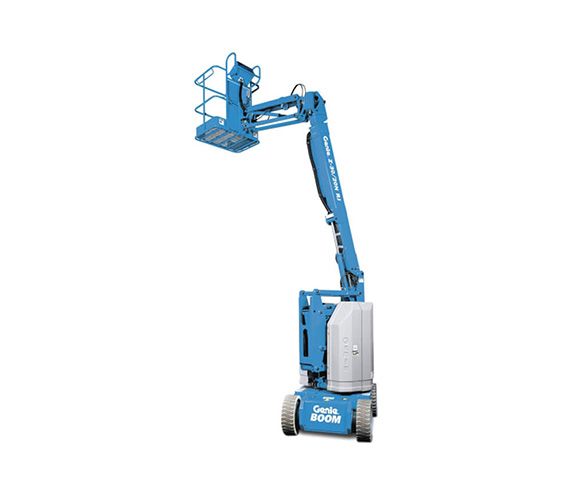

Genie Z-30/20 N boom lift

Genie Z-30/20 N Boom Lift

  • 36 ft. Working Height
  • 500 lbs. Capacity
  • 21 ft. 5 in. Horizontal Reach
  • 12 ft. 8 in. Up and Over Clearance
  • 14,170 lbs. Machine Weight

Documents

Product Documents

  • Genie Boom Lift Full Line Brochure
  • Genie Z-30/20 N Boom Lift Spec Sheet
Request a Quote
  • Description
  • Advantages
  • Standard Features
  • Popular Options

With a Bi-Energy system that combines the benefits of a DC machine and the versatility of a diesel-powered generator, the Genie Z-30/20 N narrow access articulating boom lift can travel significant distances. Plus the Z-30/20 N offers quiet, emission-free operation in the most sensitive work environments.

The self-leveling platform rotates 90° to either side, while the jib boom moves 130° to 139° vertically, depending on the model. The 4 ft (1.22 m) jib moves horizontally 180° on rotating jib (RJ) models for extra working range. Proportional controls allow you to control the speed of each function and make smooth, precise adjustments in tight areas.

  • Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
  • Compact chassis for narrow aisle access
  • Jib boom has 139-degree range of motion allowing precise positioning above or below
  • 4 ft (1.22 m) jib boom with 139° working range
  • Self-leveling platform
  • Hydraulic platform rotation
  • Proportional joystick controls
  • Thumb rocker steer
  • Drive enable
  • AC power cord to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Descent & travel alarms
  • Zero tailswing and front arm swing
  • 355° non-continuous turntable rotation
  • Telematics ready connector
  • 48 V DC deep cycle battery pack
  • 24 V DC auxiliary power
  • Universal 30A battery smart charger
  • Platform swing gate
  • Half-mesh platform inserts with swing gate
  • Platform top auxiliary rail
  • Air line to platform
  • Biodegradable hydraulic oil
  • Fire resistant hydraulic oil
  • Aircraft protection package (Not available on RJ model)*
  • Hostile environment kit
  • Fluorescent tube caddy
  • Pipe cradle (pair)
  • Flashing beacon
  • Light package
  • Lockable platform control box cover
  • AGM batteries
  • EE UL583 Fire Protection rating
  • Battery charge indicator (BCI)
  • Low voltage interrupt with BCI
  • 800 watt 120VAC power inverter
