You are here: Home / Equipment / Aerial Lifts / Genie ZX-135/70 Boom Lift

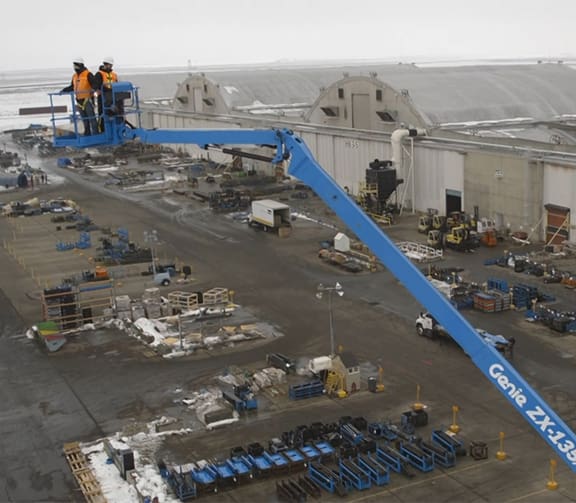

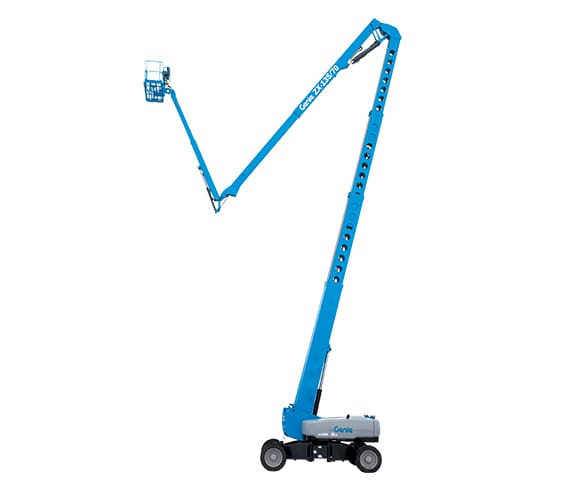

ZX-13570-Extended
ZX-13570-above
ZX-13570-Operators-Loading

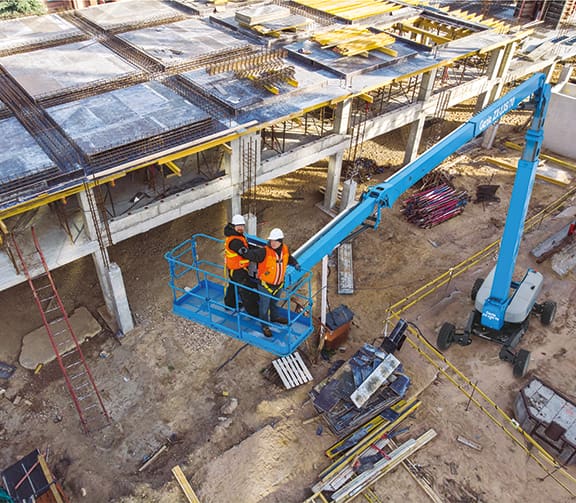

ZX135-ConstructionSite
Outdoor-Above

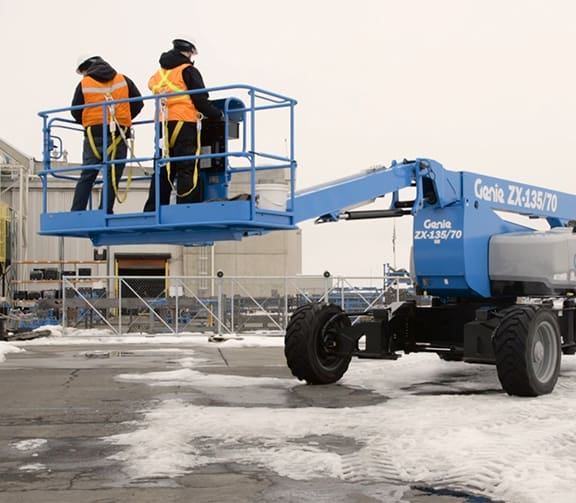

ZX-13570-Operators

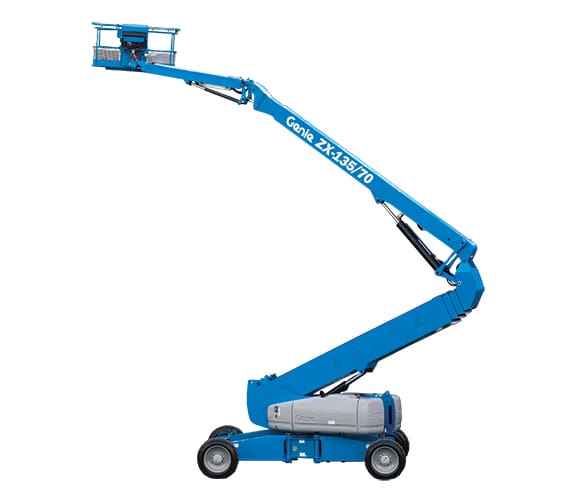

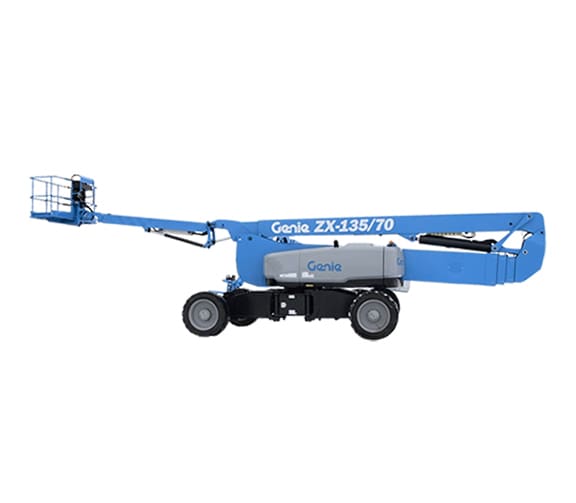

Genie ZX-135/70 Boom Lift

  • 141 ft. Working Height
  • 600 lbs. Capacity
  • 69 ft. 9 in. Horizontal Reach
  • 75 ft. 6 in. Up and Over Clearance
  • 19 ft. 3 in. Below Ground Reach
  • 46,500 lbs. Machine Weight
Request a Quote

Documents

Product Documents

  • Genie Boom Lift Full Line Brochure
  • Genie ZX-135/70 Boom Lift Spec Sheet
  • Description
  • Specifications
  • Advantages
  • Standard Features
  • Popular Options
  • Sales Terms & Conditions

The Genie ZX-135/70 articulating boom lift delivers access to applications inaccessible by a traditional jib. With 4-wheel drive and full-time positive traction, this engine-powered boom can handle rough job site ground conditions with ease.

Expect an outstanding range of motion — with features like a telescoping jib and 360˚ continuous turntable rotation. Powerful engine options, plus four-wheel drive and four-wheel steer take you to the work area efficiently, even over rough terrain.

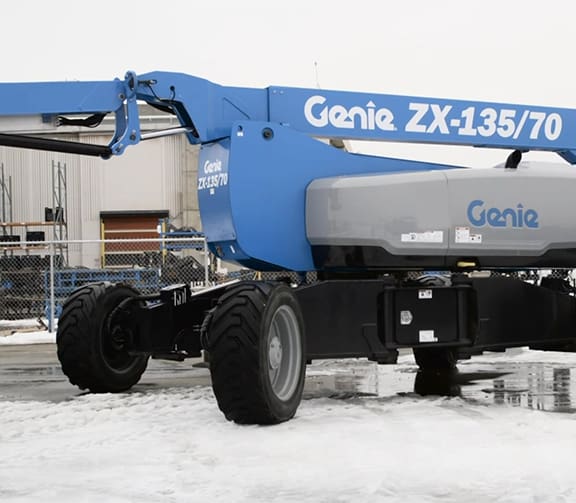

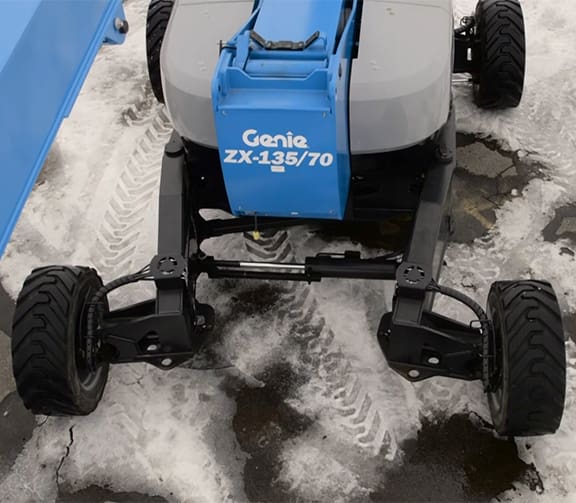

The XChassis™ expanding axle revolutionizes the mechanism for extending and retracting the axles to and from the stowed position. It combines stability with the flexibility for easy transport.

Model Number: ZX-135/70

Additional Information

Brand

Genie

Condition

New

MEWP Type

Boom Lift, Articulated

Power

Engine

Working Height

140 – 149 ft.

  • Mini Genie XChassis system extends and retracts to provide both stability on the job
  • Narrow profile for transport
  • Telescoping jib-extend provides a 110˚ vertical range of motion
  • 360-degree continuous rotation turntable and 160-degree platform for fast, easy positioning
  • Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional maneuverability
  • XChassis™ extendable axles
  • 12 to 20 ft (3.66 to 6.1 m) Jib-Extend™
  • 160° Hydraulic platform rotation
  • Proportional joystick controls
  • Hydraulic oil cooler
  • Drive enable
  • AC power cord to the platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Descent alarm
  • 360° continuous turntable rotation
  • Positive traction 4WD
  • Two speed wheel motors
  • Four wheel high angle steer
  • Four steering modes: front, rear, crab and coordinated
  • Four wheel brakes

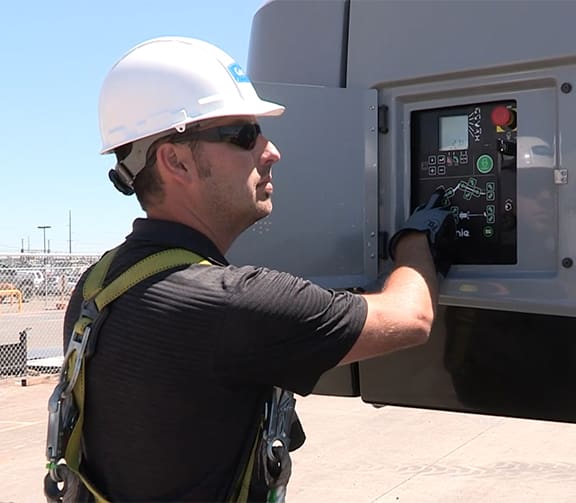

  • On board full diagnostics and engine monitoring display
  • Configurable controls to limit lift height to 91 ft (27.74 m)
  • Telematics ready connector
  • 12 V DC auxiliary power
  • Auto engine fault protection
  • Swing out engine tray
  • Half-mesh platform inserts with swing gate
  • Platform top auxiliary rail
  • Welder package
  • Welder Ready package
  • Biodegradable hydraulic oil
  • Hostile environment kit
  • Thumb rocker steer
  • Light package
  • Pipe cradle (pair)**
  • Alarm package
  • Panel cradle package
  • Lockable platform control box cover
  • Operator Protective Structure
  • Lift Guard™ Contact Alarm
  • Fall Arrest Bar
  • 12 kW welder ready AC generator 208 V / 110 V / 60 Hz
  • 7.5 kW welder ready AC generator – 208 V / 120 V / 60 Hz
  • 3 kW AC generator – 110 V / 60 Hz
  • Cold weather kit
  • Diesel scrubber/catalytic muffler
  • Intake air pre-cleaner
