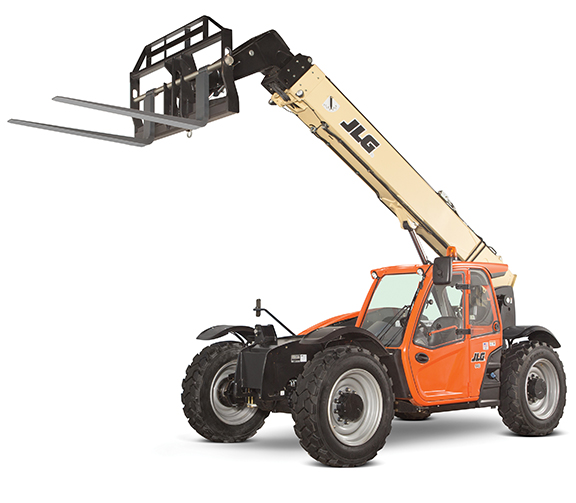

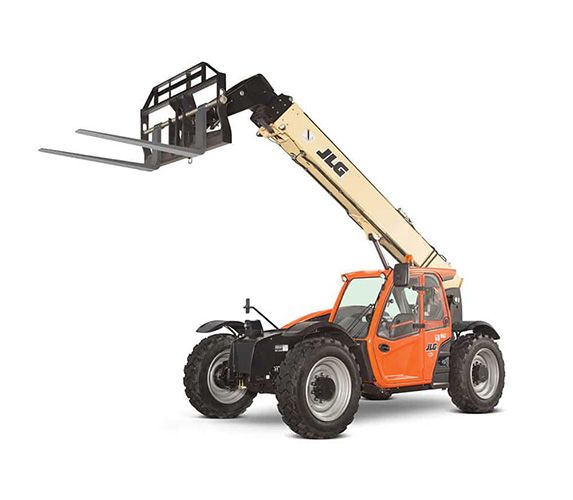

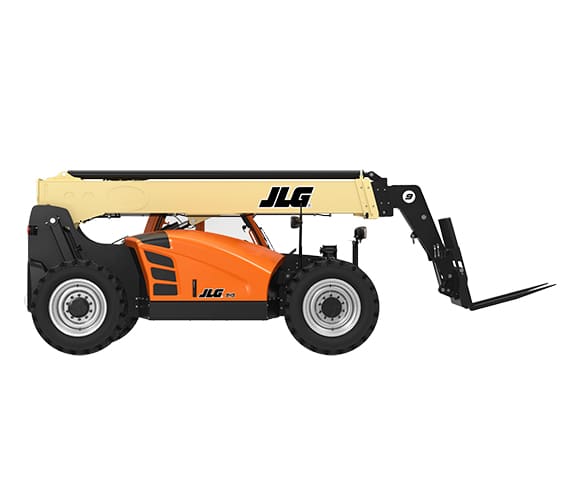

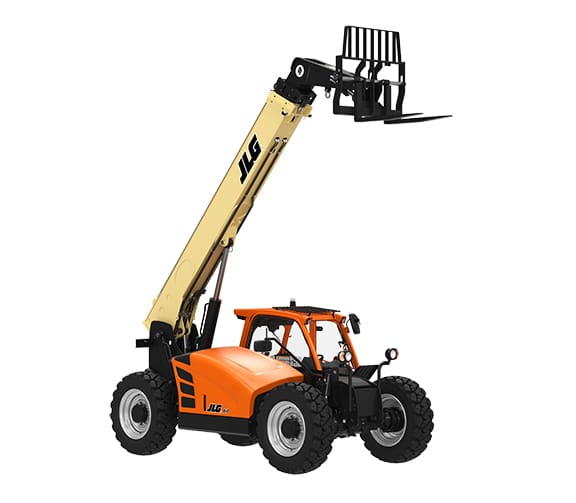

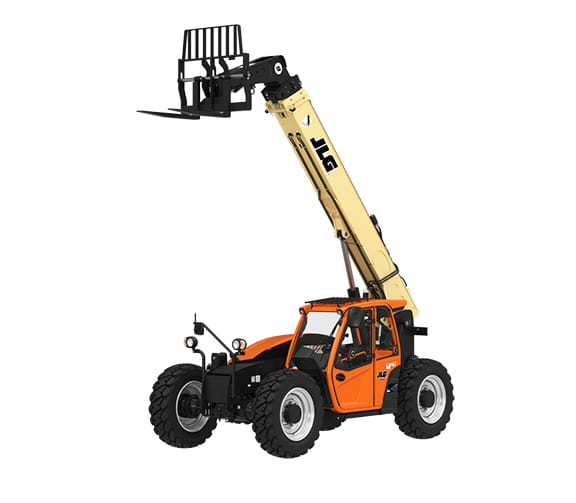

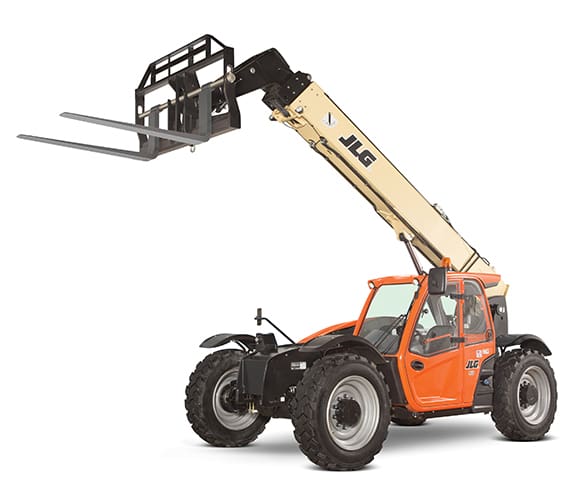

JLG 943 Telehandler

9,000-lb rated capacity
43-ft maximum lift height
30-ft 5-in maximum forward reach
7,000-lb capacity at maximum lift height
Cummins F3.8L 110 hp diesel engine

Documents

Product Documents

Videos

Tour the JLG Telehandlers

The JLG 943 is a high-capacity telehandler built for demanding construction and material handling work. It offers a 9,000-lb rated capacity, 43-ft maximum lift height, and 30-ft 5-in maximum forward reach, with 7,000 lb of capacity available at maximum lift height. A Cummins F3.8L diesel engine, powershift transmission, selectable steering modes, and 25 gpm auxiliary hydraulic flow help support heavy loads and attachment-driven work.

The spacious cab, adjustable suspension seat, single joystick, and integrated armrest are designed to improve operator comfort, while available visibility and stability systems help support confident operation on busy jobsites.

Model Number: 943

Additional Information

Condition	New
Brand	JLG
MEWP Type	Telehandler
Power	Engine
MEWP Lift Height	41 – 60ft
MEWP Capacity	Over 2,000 lbs

9,000-lb rated capacity with 43-ft maximum lift height for demanding jobsite material handling.
30-ft 5-in maximum forward reach helps operators place loads farther into the work area.
Spacious cab, single joystick, and integrated armrest are designed to support operator comfort and confidence.
Standard ClearSky Smart Fleet hardware and LED motion/amber beacon support fleet visibility and jobsite awareness.
Extended service intervals and durable, easy-to-access parts help support serviceability.

9,000-lb rated capacity with 7,000-lb capacity at maximum lift height.
Cummins F3.8L 4-cylinder diesel engine with 110 hp and 348 lb-ft of torque.
Powershift transmission with 4 forward speeds and 3 reverse speeds.
Operator-selectable 4-wheel circle, 4-wheel crab, and 2-wheel front steering modes.
10 degrees of frame leveling.
Single joystick controls with tilt on joystick.
ClearSky Smart Fleet hardware and LED motion/amber beacon.
Adjustable suspension seat, integrated armrest, horn, anti-theft, and certified ROPS/FOPS structure.

74 hp engine option that does not require Diesel Exhaust Fluid and meets Tier 4 Final regulations.
Enclosed cab, air conditioning, Arctic Package, and wiper package.
Hydraulic coupler for attachment changes.
Load Stability Indication and Seatbelt Engagement and Operator Presence systems.
Multifunction display with multi-reverse camera system.
Reverse sensing system, white noise back-up alarm, road light package, and LED worklight package.

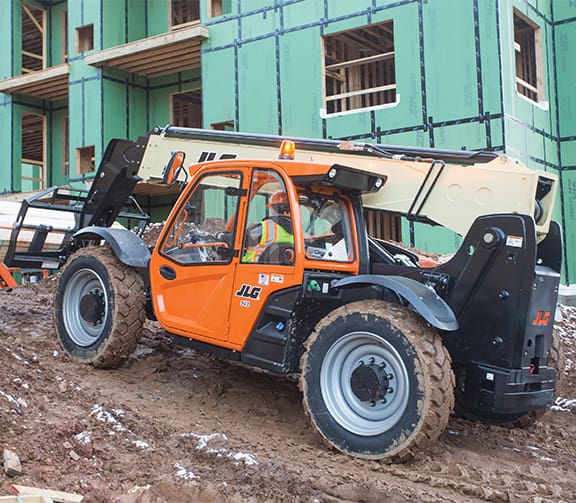

Ride Control, auxiliary electrics, boom prop, brick guards, fenders, and air shut-off valve.

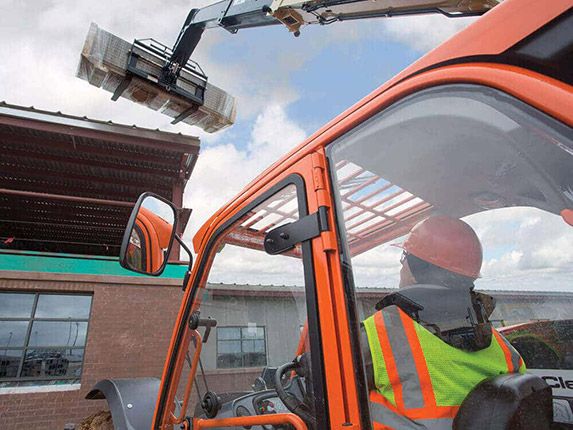

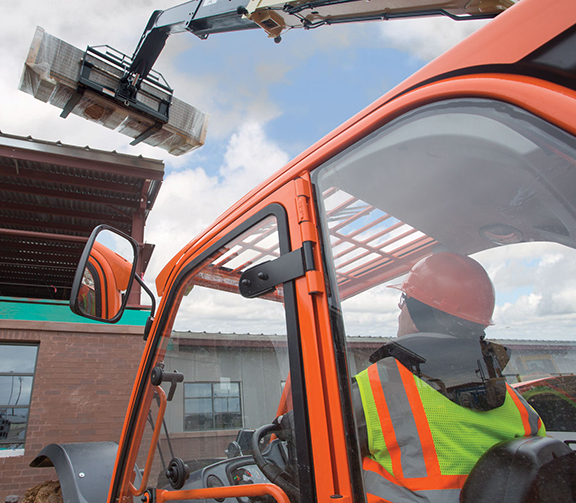

Spacious cab is designed to enhance operator comfort during long work periods.
Adjustable suspension seat supports a more comfortable operating position.
Integrated armrest and single joystick controls help keep key machine functions within easy reach.
Greater visibility, available reverse sensing, and available reversing camera help support operator confidence around the jobsite.
Joystick-controlled tilt supports more intuitive attachment positioning.

Certified ROPS/FOPS structure.
Stabil-Trak rear axle stabilization helps support machine stability during operation.
Precision gravity lowering system supports controlled boom lowering.
Available Load Stability Indication helps operators monitor load stability conditions.
Available Seatbelt Engagement and Operator Presence system supports proper operator positioning before machine operation.
Service brakes use inboard wet disc brakes on the front and rear axles.
Parking brakes are wet disc, spring-applied, hydraulic release brakes on the front axle.

9,000-lb rated capacity for heavy jobsite material handling.
7,000-lb capacity at maximum lift height and 1,200-lb capacity at maximum reach.
43-ft maximum lift height and 30-ft 5-in maximum forward reach.
19 mph top travel speed.
10 degrees of frame leveling for positioning on uneven terrain.
25 gpm maximum auxiliary flow to the boom head.
22,751-lb loaded drawbar pull.

Extended service intervals help reduce routine maintenance frequency.
Durable, easy-to-access parts are designed to require less maintenance.
DEF gauge, engine oil pressure gauge, fuel gauge, hour meter, temperature gauge, and volt meter help operators monitor machine status.
Load sense piston pump supports hydraulic system operation.
Warranty coverage includes one full year on the machine, two years or 2,000 hours on the drivetrain, and five years on specified major structural components.

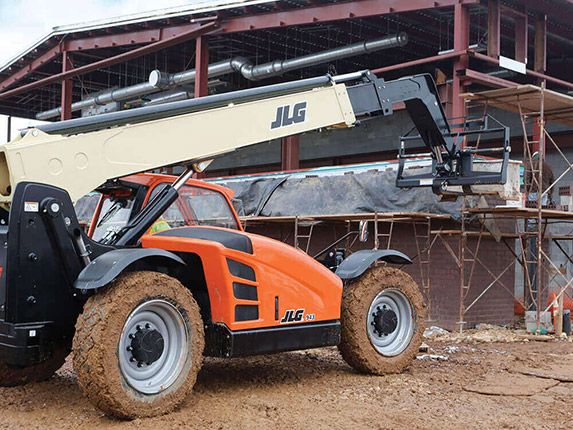

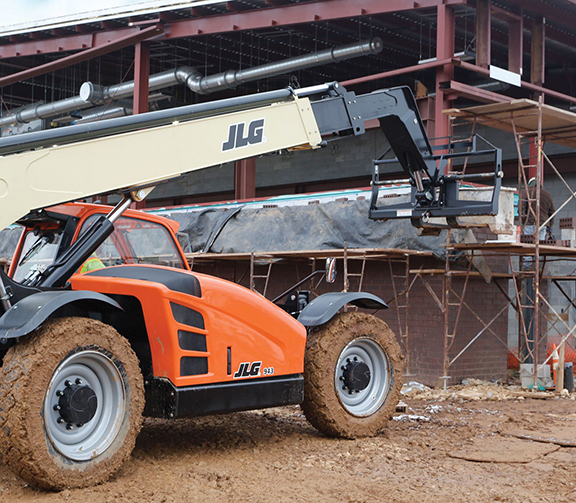

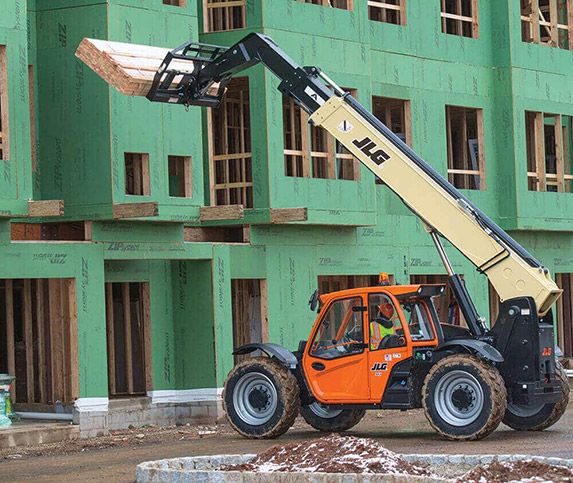

Construction jobsites that need high lift height, forward reach, and heavy load capacity.

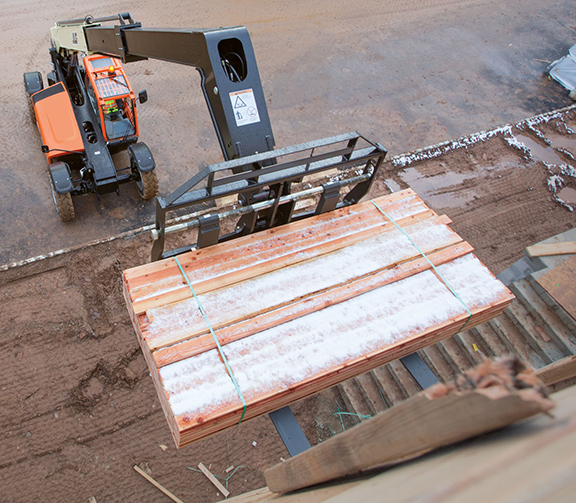

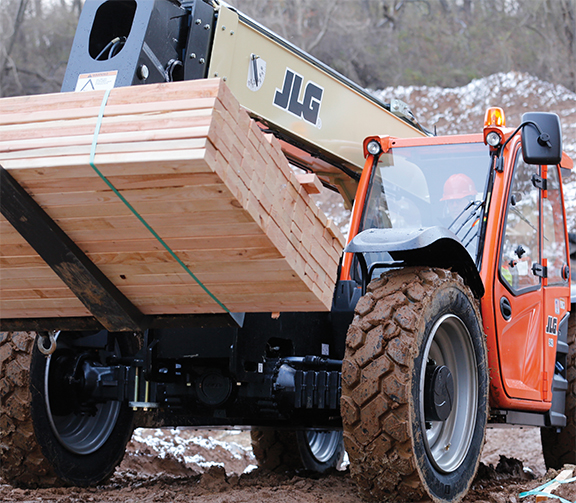

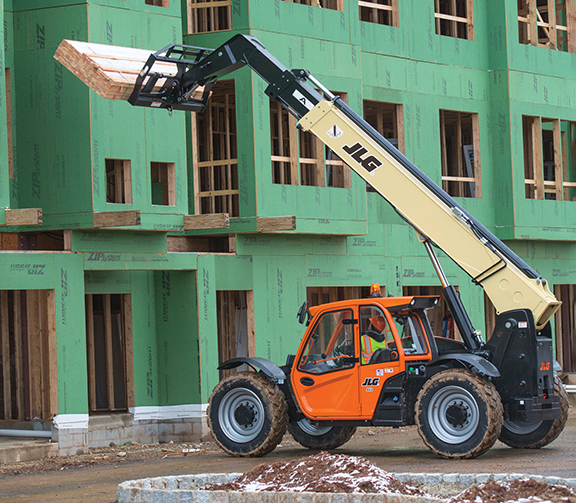

Framing, truss setting, and post-frame building applications supported by truss boom and fork-mounted extendable truss attachments.

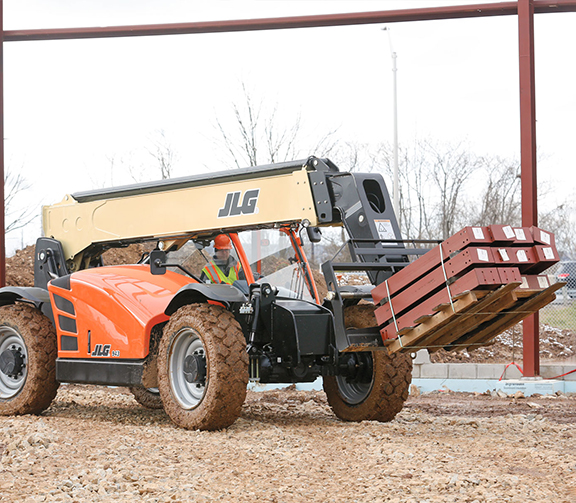

Masonry and block handling supported by cubing forks and pallet fork options.

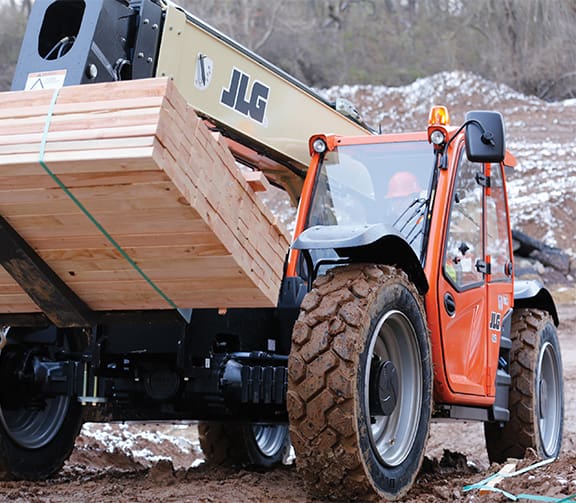

General material handling applications using carriages, forks, buckets, lifting hooks, and sheet material handlers.
