JLG X1000AJ Compact Crawler Boom Lift

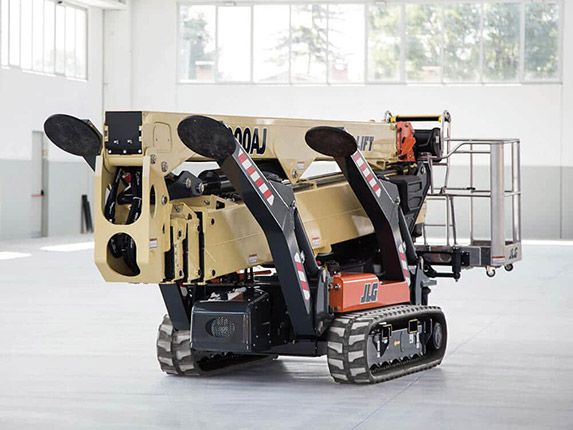

JLG X1000AJ compact crawler stowed

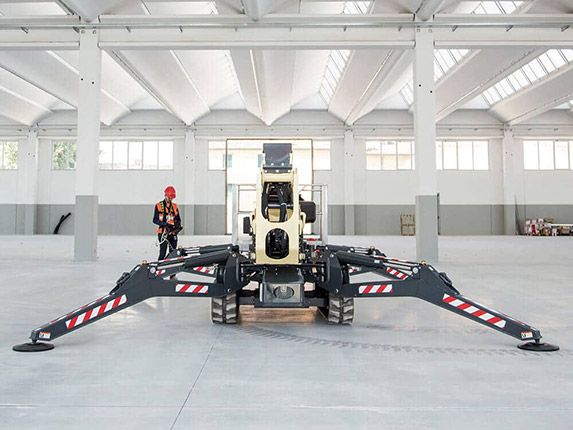

JLG X1000AJ outriggers

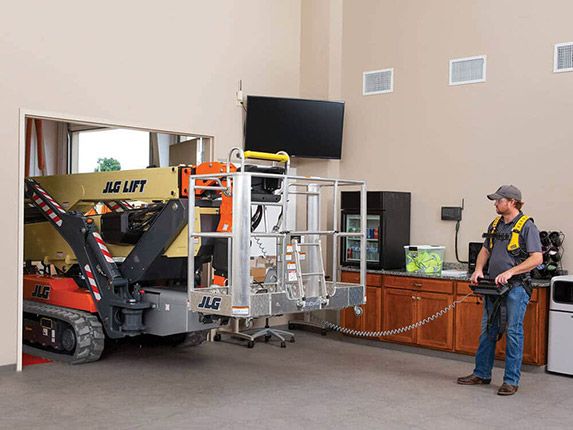

JLG X1000AJ crawler in doorway

JLG X1000AJ Compact Crawler Boom Lift

106 ft. Working Height

Capacity: 500 lbs.
Horizontal Reach: 54 ft. 2 in.
Up and Over Reach: 56 ft. 5 in.
Machine Weight: 16,790 – 17,064 lbs.

Request a Quote
Product added to Quote successfully!
View Quote
  • Description
  • Advantages
  • Standard Features
  • Popular Options
  • Documents

The JLG X1000AJ compact crawler boom gives you a 106-foot working height and over 56 feet up and over reach, with an industry-leading 500 lb unrestricted platform capacity.

The articulated column design allows for a maximum working envelope to access tight, hard to reach indoor and outdoor applications – even below grade. The small footprint allows for compact storage and efficient shipping to and from sites. Plus that compact design means it can fit through a double doorway.

The new JLG X1000AJ let’s you experience more. More access. More capacity. More stability.

  • Track widening capability allows you to expand for greater stability when traversing sloped ground and retract to a narrow width for travelling through doorways or narrow aisles
  • Multi-position outriggers offer dual stabilization capabilities for us in standard and narrow work spaces
  • One-touch self-leveling outriggers stabilize and level machine on up to a 30-degree slope
  • Fork lifting pockets and heavy duty lifting hooks provide options for transporting the machine to and around job sites
  • Multi-position outriggers
  • Below grade capability
  • On-board diagnostics
  • One-touch outrigger leveling
  • 110V-AC receptacle in platform
  • Standard air/water line
  • Patented quick disconnect platform
  • Large teflon outrigger pads
  • Fork pockets and lifting hooks
  • Caster platform wheels
  • Fully synthetic biodegradable hydraulic fluid
  • QuikStik
  • SkyGuard
  • Flashing amber beacon
  • Single-person 31 x 24 in platform
  • Black deep-tread tracks
  • Brochure
  • Spec Sheet
