TB126J - Studio

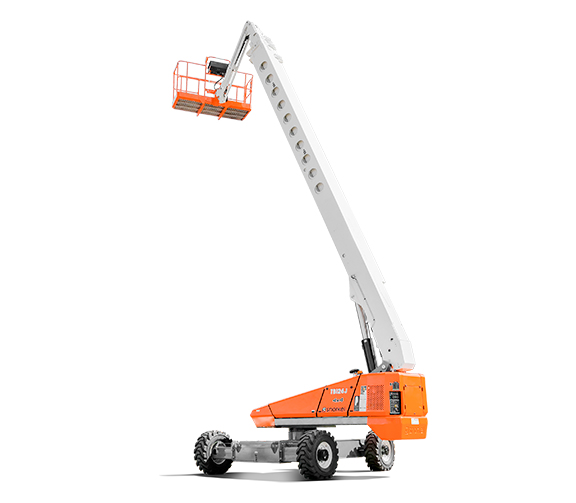

Snorkel TB126J Large Telescopic Boom Lift

  • 126 ft. Platform Height
  • 500 lbs. Capacity (SWL)
  • 62 ft. 11 in. Max Horizontal Reach
  • 41,800 lbs. Machine Weight
Request a Quote

Documents

Product Documents

The Snorkel TB126J telescopic boom lift delivers exceptional height and reach, making it the second-largest model in Snorkel’s lineup. With a remarkable 132-ft working height and a jib for enhanced outreach, it’s ideal for demanding construction applications. Powered by a robust diesel engine, the TB126J comes equipped with a fixed front axle and extendable rear axle for superior stability and performance on challenging terrains.

Model Number: TB126J

Additional Information

Brand

Snorkel
Condition

New
Power

Engine
Working Height

130 – 139 ft.
MEWP Type

Boom Lift, Telescopic
  • Reliable and robust diesel telescopic boom lift
  • Equipped with a 6 ft 6 in jib boom for added flexibility
  • Powerful 4-wheel drive for superior performance on rough terrain
  • Simple to operate and maintain
  • Designed for construction applications
  • Snorkel Guard™ secondary guarding system
  • 6 ft 6 in 135º jib for enhanced maneuverability (TB126J only)
  • 4-wheel drive, braking, and fixed front steering
  • Hydraulic platform rotation
  • 360º continuous turntable rotation
  • Hydraulically extended rear axles with boom interlocks
  • Built-in jack for raising the chassis
  • Foam-filled tires
  • Proportional controls for drive, boom lift, swing, extend, and jib
  • 3.5º tilt alarm and cut-out system
  • Dual lanyard attachment points
  • Power line to platform
  • 2-year parts & labor warranty
  • 5-year structural warranty
  • ANSI compliant
  • Special paint colors
  • Airline to platform
  • Non-marking tires
  • AC generator 110V/2.5kW
  • Cold weather and extreme cold weather packages
  • Extreme environment package
  • Light package
  • Glazier and utility packages
  • 12kW generator and generator/welder packages
  • Tow kit
  • Environmental hydraulic oil
  • Tool tray
  • Personal fall arrest system
  • Proportional joystick controls for smooth and precise operation
  • Built-in jack for easy chassis adjustments
  • Snorkel Guard™ secondary guarding system for enhanced operator protection
  • 3.5º tilt alarm with cut-out system
  • Dual lanyard attachment points for fall protection
  • Max working height: 132 ft
  • Max platform height: 126 ft
  • Max horizontal reach: 62 ft 11 in
  • Platform capacity: 500 lbs
  • Gradeability: 30%
  • Max drive speed (stowed): 2.9 mph
  • Max drive speed (elevated): 0.15 mph
  • Raise/lower time: 208/215 seconds
  • Jib length: 6 ft 6 in
  • Jib working arc: 135º
  • Tailswing (axles retracted): 80.5 in
  • Tailswing (axles extended): 54.25 in
  • Hydraulically extended rear axles with boom interlocks for easier maintenance
  • Built-in jack for quick chassis lifting
  • Durable components reduce service frequency
  • Construction
  • Maintenance
  • Utilities
  • Industrial applications
