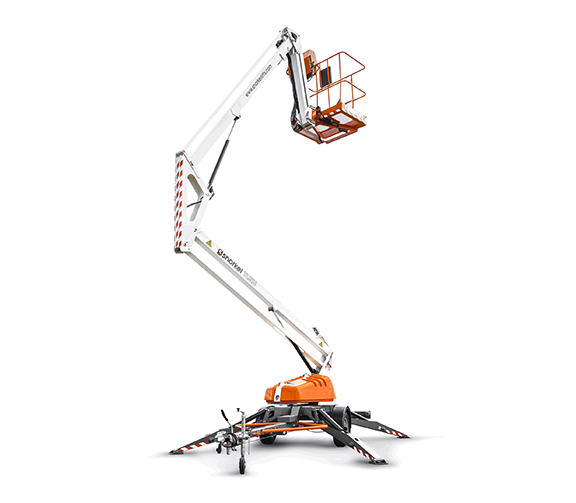

TL37J - Studio 1

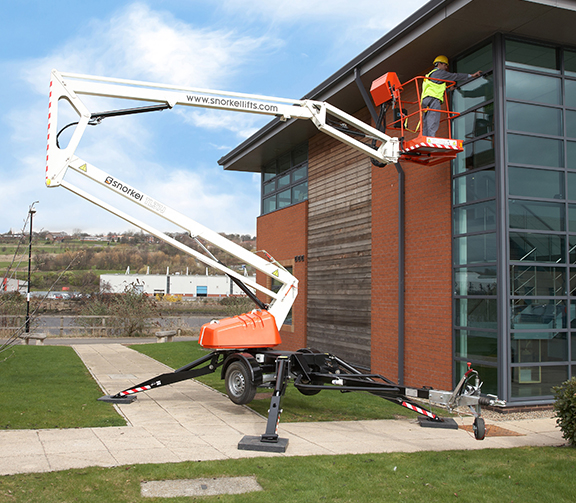

Snorkel TL37J - Application 1

Snorkel TL37J Towable Boom Lift

  • 35 ft. 9 in. Platform Height
  • 475 lbs. Platform Capacity
  • 18 ft. 5 in. Horizontal Reach
  • 3,498 lbs. Machine Weight
Request a Quote

Documents

Product Documents

The Snorkel TL37J is a high-specification, trailer-mounted boom lift designed for versatility and ease of use. This highly maneuverable towable lift features fully proportional hydraulics and up-and-over access for precise positioning. Standard powered platform rotation and auto-leveling outriggers enhance stability and efficiency on the job. For added flexibility, the TL37J offers a bi-energy option, allowing for clean, quiet operation indoors while maintaining powerful performance outdoors.
Model Number: TL37J

Additional Information

Brand

Snorkel
Condition

New
MEWP Type

Boom Lift, Trailer-Mounted
Power

Bi-Energy
Working Height

40 – 49 ft.
  • High-specification towable boom lift for easy transport
  • Excellent working envelope with a jib boom for added flexibility
  • Hydraulic stabilizers for fast and simple setup
  • Proportional controls for smooth and precise operation
  • Multiple power source options for enhanced versatility
  • 4 ft 3 in jib with 130° arc for increased maneuverability
  • In-line boom design for maximum rigidity
  • Hydraulic stabilizers for easy leveling on uneven surfaces
  • Hand pump emergency lowering system from platform
  • Lock valves on all hydraulic cylinders for safety
  • Proportional live hydraulic controls for smooth operation
  • Power line to platform for tool connectivity
  • Dual lanyard attachment points for operator fall protection
  • 2-year parts & labor, 5-year structural warranty
  • ANSI & DOT compliant for safe operation and road transport
  • Special paint colors for branding or visibility
  • Work lights in platform for enhanced visibility
  • Flashing amber light for safety awareness
  • Nylon spreader pads (set of 4) for stability on soft ground
  • 110V/220V AC power for additional energy options
  • Gasoline power option for alternative fuel sources
  • Bi-energy (gasoline + batteries) for extended runtime
  • Environmental hydraulic oil for eco-friendly operation
  • Friction drive assist package for improved towing
  • Proportional hydraulic controls for smooth handling
  • Jib boom with 130° arc for flexible positioning
  • Compact towing dimensions for easy transport
  • Hydraulic stabilizers for secure leveling on uneven terrain
  • Hand pump emergency lowering feature
  • Lock valves on all hydraulic cylinders for stability
  • Dual lanyard attachment points for enhanced fall protection
  • ANSI & DOT compliance for safe operation and road transport
  • Max working height: 41 ft 9 in
  • Max platform height: 35 ft 9 in
  • Max horizontal reach: 18 ft 5 in
  • Platform width: 3 ft 9 in
  • Platform depth: 2 ft 4 in
  • Stabilizer footprint: 12 ft 9 in x 10 ft 10 in
  • Towing length: 20 ft 11 in
  • Towing width: 5 ft 3 in
  • Stowed height: 6 ft 11 in
  • Platform capacity: 475 lbs
  • Max wind speed: 28 mph
  • Jib length: 4 ft 3 in
  • Jib arc: 130°
  • Platform rotation: 160°
  • Superstructure rotation (non-continuous): 640°
  • Wheels: 185R14C
  • Controls: Hydraulic proportional
  • Standard power source: 24V DC battery
  • Battery: 4 x 6V 225Ah
  • Optional power sources: Gasoline, Bi-energy (gasoline & battery), AC electric
  • Lock valves on all hydraulic cylinders for maintenance safety
  • Hand pump emergency lowering for system reliability
  • Durable and reliable components to minimize service needs
  • Construction
  • Facilities maintenance
  • Tree trimming and landscaping
  • Utility and electrical work
  • Sign and lighting maintenance
