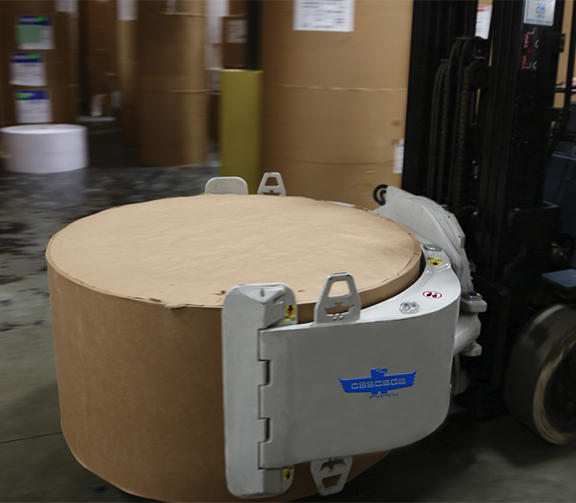

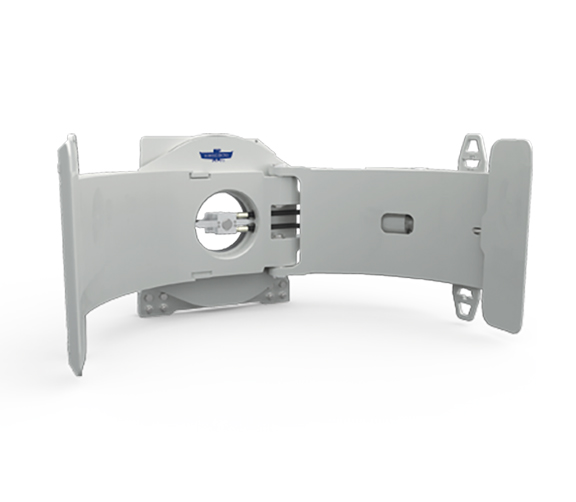

Cascade 13H Paper Roll Clamp

2,400 – 3,500 lb. Capacity
II Mounting Class
10 – 63 in. Roll Range
26.8 – 37.2 in. Arm Length

Documents

Product Documents

Videos

Cascade Paper Roll Clamps | Lift Truck Roll Handling

Attachment Resources

The Cascade 13H Paper Roll Clamp is a robust and reliable solution designed for handling small rolls of newsprint, form stock, and printing paper. Perfect for newspaper publishers, printers, and warehouses, this clamp features an expanded roll capacity range and rating, enabling efficient handling of a broader variety of roll sizes.

Reduced Roll Damage

H-Series pad alignment system, utilizing dual spring technology, holds the contact pads in proper alignment

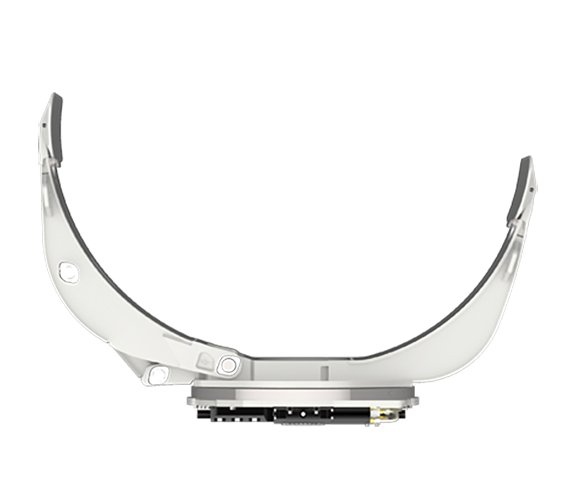

Thin-arm profile with smooth-arm contour eases roll breakout and permits close stacking

Fast Roll Handling

Excellent arm speed boosts production

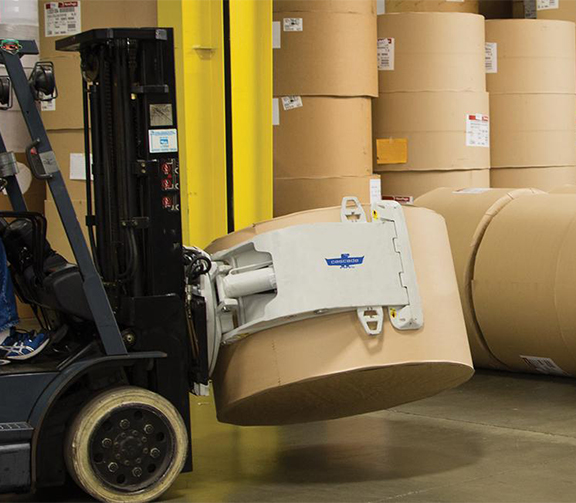

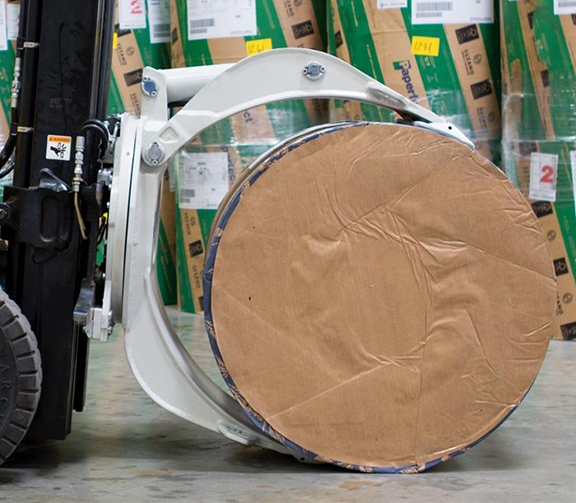

360º rotation to quickly transition to and from bilge position

Fast Roll Handling

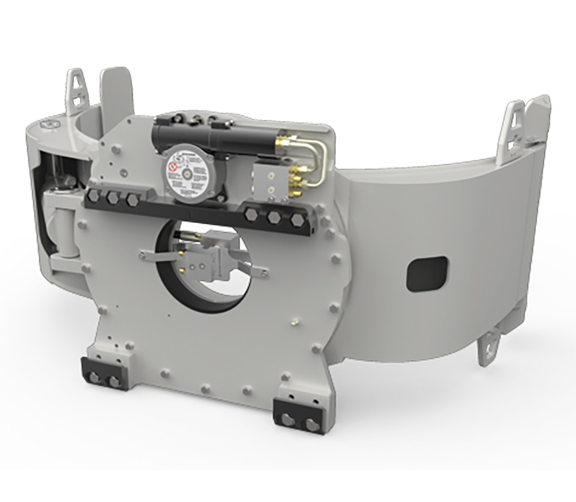

Highly durable rotator features a sealed ring gear design to eliminate contaminants and debris
Unitized construction provides structural integrity in arms and frame
Lube-free pivot bushings provide extended service life
Integral pad protector to guard against pad wear

Ultra compact frame
Durable rotator gear train
Dependable hydraulics leak resistant system
Proven 18 H arm design
Wide range of pad options available

Wide variety of rubber, urethane and other pads are available for improved handling of industry-specific papers
180º Stop Group to ensure pad alignment with roll
HFC (Hydraulic Force Control) to eliminate damage caused by improper clamp force
Custom opening ranges available

Printing & Publishing
Textiles
Packaging
Tire Manufacturing & Aircraft Industry
Warehousing
