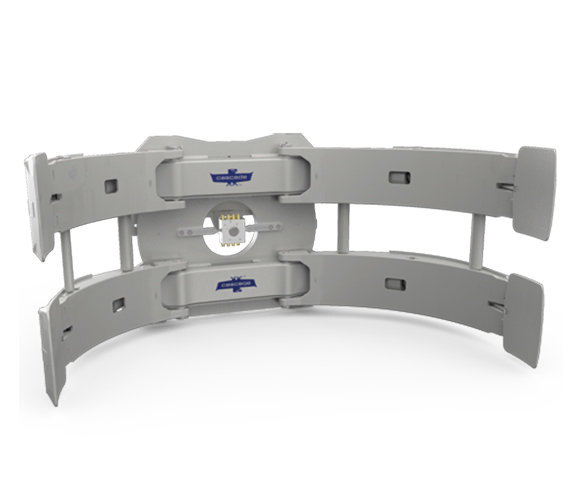

20H-RBP-A007_main

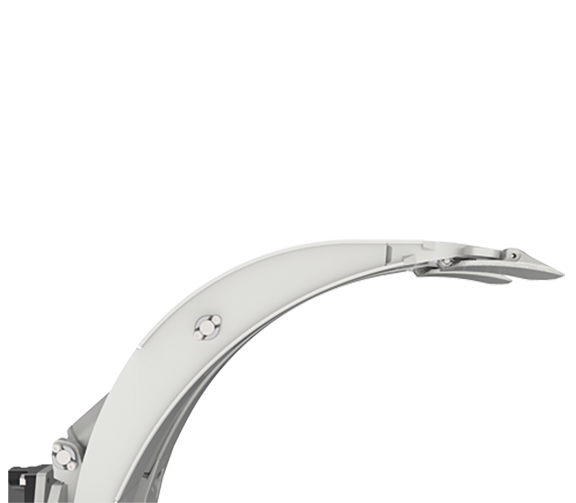

20H-RBP-A007_armProfile2

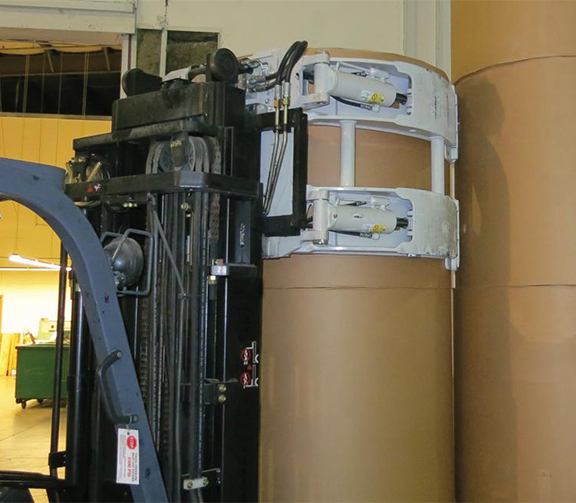

PRC_18H-App1

Cascade 18H & 20H Paper Roll Clamp

  • 3,700 – 4,850 lb. Capacity
  • II – III Mounting Class
  • 8 – 60 in. Roll Range
  • 950 – 1415 lb. Attachment Weight
Request a Quote

Documents

Product Documents

Videos

Attachment Resources

The Cascade 18H & 20H Paper Roll Clamps are tailored for small printers, newspaper publishers, and newsprint warehouses. Built to handle paper rolls with precision and efficiency, these clamps offer reliable performance in demanding applications. Their robust design ensures durability, making them a trusted choice for streamlined operations in paper handling environments.

Model Number: 18H-RCF | 20H-RCF | 18H-RDF | 20H-RDF | 18H-RCP | 20H-RCP | 18H-RDP | 20H-RDP

Reduced Roll Damage

  • Very thin arm profile and smooth-arm contour eases roll breakout and permits close stacking
  • Proven contact pad shape and surface holds rolls securely
  • Positioned Short Arm maintains thin-arm profile over a wide range of roll diameters

Fast Roll Handling

  • Excellent visibility through and around clamp
  • Handles less than full size rolls against the bumper for faster handling
  • Continuous 360° rotation
  • Frame size optimized for one or two roll handling

Excellent Durability

  • Unitized construction provides structural integrity in arms and frame
  • Proven durable rotator drive train
  • Pivot bushings are lube-free and provide longer service life
  • Large pivot pins for extended life
  • Thin Arm Profile
  • Durable rotator Drive train
  • Proven Contact Pad Design
  • Unitized Arm Construction
  • Lube Free Pivot Brushings
  • Fixed Frame/Fixed Short Arm or Fixed Frame/Positioned
  • Short Arm models available, see back page for all models
  • Split Long Arm—Recommended for improved stability when handling two individual rolls
  • AFC (Adaptive Force Control) for automatic control of clamping pressure that changes as roll weight changes
  • HFC (Hydraulic Force Control) a hydraulically controlled automatic clamp force system that changes clamp force proportional to the load weight
  • 180° mechanical stop group
  • Electronic Rotational Control for precise 180° and 90° (bilge) positioning
  • Wide variety of rubber, urethane and other pads available for improved handling of all paper types. Rubber or urethane pads are recommended for handling newsprint
  • Printing & Publishing
  • Textiles
  • Packaging
  • Tire Manufacturing & Aircraft Industry
  • Warehousing
