CLARK GEX20 80v Electric Pneumatic Forklift

CLARK 80V Electric Pneumatic Forklift

  • 4,000 – 10,000 lb. Capacity
  • Indoor/Outdoor Operation
  • 100% AC Motors
  • Rugged Upright and Carriage
  • Programmable Dash Display
  • Wet Disc Brakes

Documents

Product Documents

  • CLARK GEX20/25/30 80V Electric Pneumatic Spec Sheet
  • CLARK GEX40/45/50 80V Electric Pneumatic Spec Sheet
  • CLARK Full Line Brochure

Financing Information

  • Forklift Leasing: The Ultimate Guide

Forklift Information

  • New & Used Forklift Prices: What You Can Expect to Pay
  • Forklift Useful Life: Everything You Need to Know
  • Forklift Masts: Everything You Need to Know
  • Forklift Controls: Everything You Need to Know
  • Forklift Weight Capacity: Everything You Need to Know
Request a Quote
  • Description
  • Specifications
  • Advantages
  • Performance
  • Ease of Service
  • Safety
  • Industries

Product Description

In the past, one truck would be used for outdoor applications and another truck would be used for indoor warehousing. Now one CLARK GEX 80V electric pneumatic forklift can handle both environments, leaving you with the thought… two “hands” aren’t always better than one.

Model Numbers: GEX 20 | GEX 25 | GEX 30s | GEX 30 | GEX 32 | GEX 40 | GEX 45 | GEX 50

Equipment Details

Forklift Type

Electric Motor Riders

Brand

CLARK

Condition

New

Capacity

4,000 lbs., 5,000 lbs., 6,500 lbs., 6,000 lbs., 8,000 lbs., 9,000 lbs., 10,000 lbs.

Fuel Type

Electric/Battery, 80 Volt

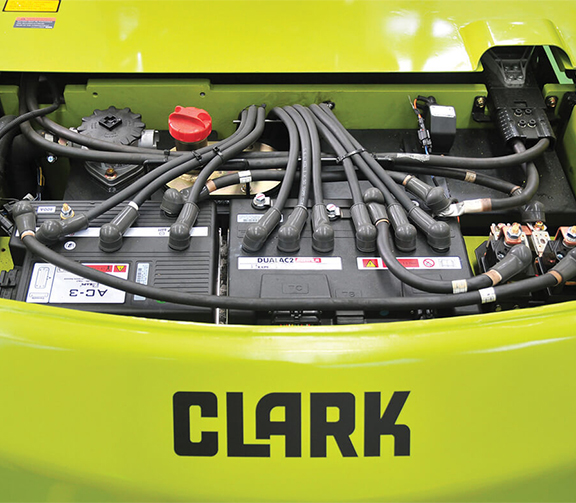

  • High efficiency, low maintenance, and powerful 100% AC electric system
  • 3 forms of regenerative braking: Accelerator release, change of direction, and service foot brake

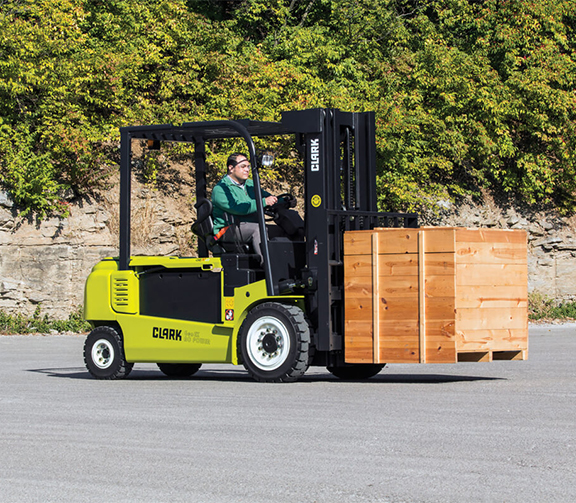

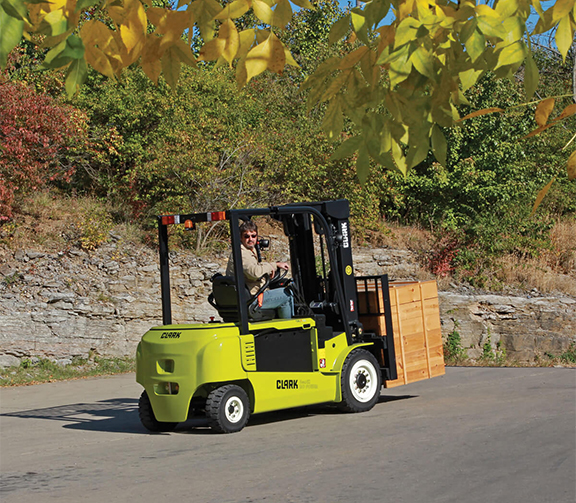

  • Ability to use indoors and outdoors
  • Non-polluting, quiet operation
  • Heavy duty drive motors and axles
  • Rugged upright and carriage
  • 100% AC electric system
    • EPA-compliant
    • Rivals IC truck performance in speed, acceleration and gradeability
    • Higher voltage = lower line loss & heating = greater efficiency
    • Enclosed, brushless motor
    • Better suited for rapid charge as only one receptacle is required via single battery connector
    • 2-wheel drive provides added traction, especially on wet or uneven surfaces
    • Inside wheel power reverses in tight turns preventing scuffing of steer tires like conventional 4-wheel trucks
    • Hall effect steer sensor relays steer tire position to control
    • Thermal and stall protection
    • Dual/powered reversing for tighter turns
    • Suitable for Wet Applications
    • Same motors for E & EE
    • GEX 20/25 can accommodate 54 kwh battery
    • GEX 30/32 can accommodate 60 kwh battery
    • GEX 40/45/50 can accommodate 72 kwh battery
  • Brakes and Steering
    • Wet disc brakes are built with long life lining material and enclosed and oil cooled for smooth, quiet operation
    • 3 forms of regenerative braking: Accelerator release, change of direction, service foot brake
  • Upright
    • Nested I-channel mast allows space for cylinders, hoses and chains for maximum visibility
    • Hydraulic cushioning valve allows for silent staging and reduces shock and vibration
    • Carriage has 6 shimmable, sealed, and canted rollers to maximize load distribution and reduce free play
  • Hinged rear control cover is supported on gas springs for easy service access from a standing position
  • On-board diagnostics allow servicing mechanic to check fault codes without service tool
  • Indicates the current alarm code and stores previous alarm codes for quick access
  • CLARK moved back the steer axle, dropped the battery compartment and moved all major components lower for a lower center of gravity
  • Curve cutback reduces truck travel speed in turns
  • Wide stance provides excellent lateral stability
  • Password protection enables certain adjustments to be password protected to allow only authorized operators to make adjustments
  • Indoor/Outdoor Manufacturing
  • Warehousing
  • Shipping/Receiving
