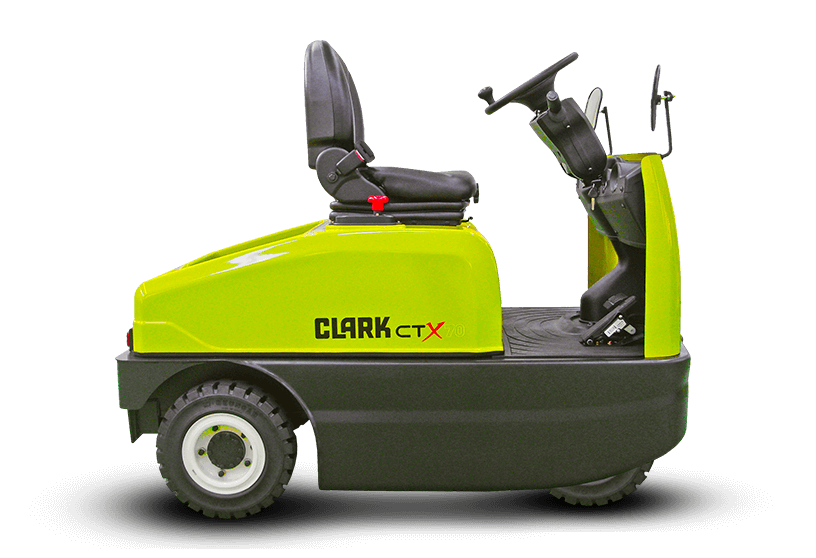

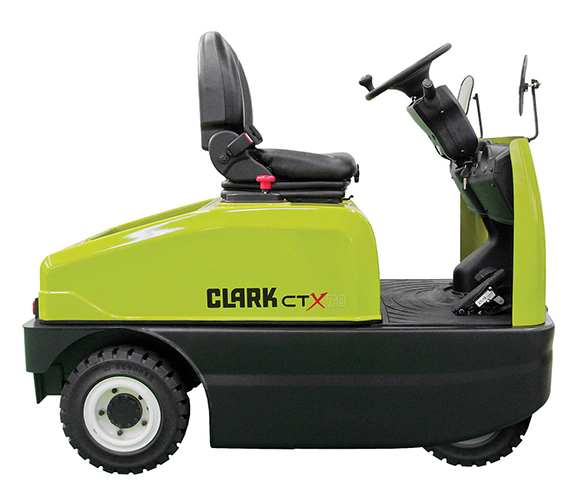

CLARK Core Tow Tractor

8,800 – 15,400 lb. Tow Capacity
48 Volt 100% AC Motors
Regenerative Brakes
Solid Pneumatic Tires
Easily Serviceable

Documents

Product Documents

Financing Information

Forklift Leasing: The Ultimate Guide

With a reinforced all-steel frame, solid pneumatic tires, large drum brakes, and optional weather enclosures, the CLARK CTX 3-wheel Tow Tractor operates with the same ease of use, flexibility, and rugged durability that has been at the center of CLARK material handling truck manufacturing for over 100 years.

Model Numbers: CTX 40 | CTX 70

Additional Information

Brand	CLARK
Condition	New
Capacity	8,800 lbs., 15,400 lbs.
Fuel Type	Electric/Battery, 48 Volt

Enclosed 100% AC heavy duty drive motors and axles provide high torque
Solid pneumatic tires for indoor/outdoor operation
Regenerative braking for higher efficiency and lower energy consumption
Reinforced steel frame for extra longevity
Optional weather enclosure to protect operators

Fully adjustable, full suspension seat is molded for support, which reduces operator fatigue and increases productivity
Tilt steering column is fully adjustable to suit the operator, and provides easier entry and exit
Thick molded floor mat reduces vibration and noise level to improve operator comfort

48-volt 100% AC system
- Fully enclosed 48-volt AC system keeps out dust and other contaminants
- No brushes to change or commutator to turn, ever, eliminating routine brush changes and the need to pull the motor to turn and undercut the commutator
- Wet environments are not a problem for this electric powerhouse
- Much less likely to burn-out the motor during a stall
- Advanced thermal protection prevents heat damage to the motor and control
Wheels and Brakes
- Solid pneumatic tires for extra durability
- Large drum brakes for exceptional stopping power
- Regenerative braking for higher efficiency and lower energy consumption
Platform
- Stable platform with low center of gravity, which CLARK achieved by moving the steer axle back, dropping the battery compartment, and moving all major components lower
- Wide stance of the CTX provides excellent lateral stability
Functionality
- Completely customizable parameters to the operators’ presence, including acceleration rate, deceleration rate, and separate FW/RV max speed
