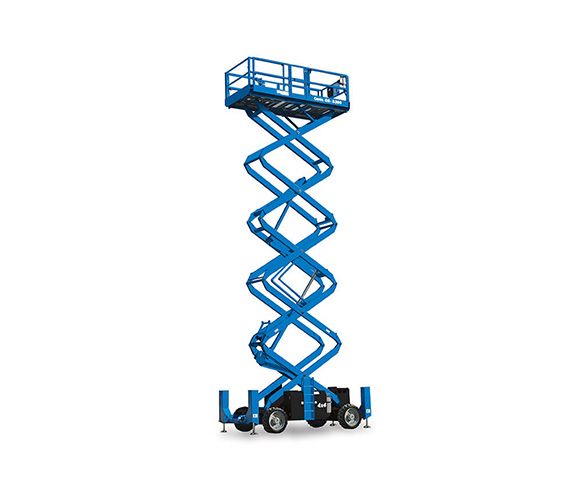

Genie GS-5390 RT Scissor Lift

59 ft. Working Height
1,500 lbs. Capacity
72 in. Machine Width
157 in. Machine Length
16,567 lbs. Machine Weight

Documents

Product Documents

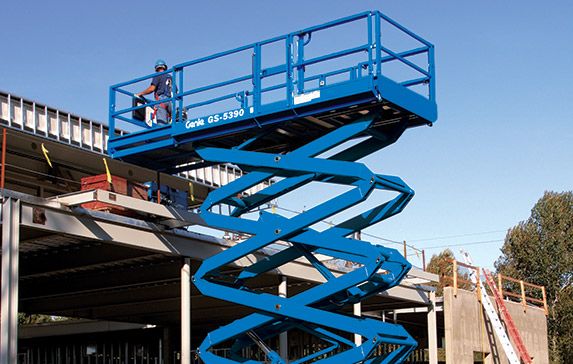

The Genie GS-5390 RT scissor lift is a tough, construction-oriented four-wheel drive machine. With positive traction control, it’s ideal for increasing productivity in demanding outdoor work sites. Designed to stand up to the rigors of frequent use in diverse conditions, this scissor lift is ready for demanding applications.

Genie RT scissor lifts are able to traverse through uneven or rough terrain environments more efficiently. They are equipped with four-wheel drive and positive traction control for traction when you need it most. They offer up to 50% gradeability when driving on slopes.

Additional Information

MEWP Type	Scissor Lift

Foam-filled, rough-terrain tires improve traction and durability
Four-wheel drive and positive traction control for traction when you need it most
Oscillating axle option for increased stability
Standard multi-position slide-out extension deck for added work space
Power to the platform allows workers to use electrically powered tools
On-board diagnostics help operators troubleshoot on the fly and make adjustments in the field to maintain uptime

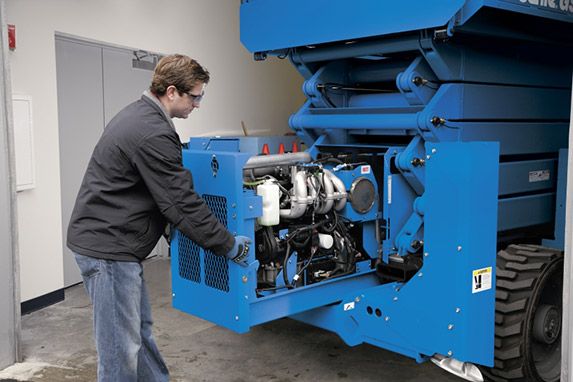

Slide- or pull-out engine trays allow easy access to components – no need to reach around obstacles inside the machine

156.5 x 72 in (3.98 x 1.83 m) steel frame platform
60 in (1.52 m) extension deck
Replaceable aluminum deck
Proportional lift and drive
Onboard diagnostic system
AC power to platform
Two self-closing gates
4WD
Automatic leveling hydraulic outriggers
Oscillating axle
Positive traction control
Four-wheel braking
Slide-out engine tray
Foam-filled rough terrain tires (eco fill)
Tilt level sensor with audible alarm
Descent alarm
Horn
Hour meter
75 hp (56 kW) Ford DSG-423 gas/LPG

Oscillating axle
Dual slide-out platform extension deck package 5 ft (1.52 m) front and 4 ft (1.22 m) rear
Air line to platform
Foam filled non-marking rough terrain tires 12 x 33 (30 x 84 cm)
High flotation air-filled tires 17 x 33 (43 x 84 cm)
High flotation foam-filled tires 16 x 33 (41 x 84 cm)
Dual flashing beacons
Motion alarm
Biodegradable hydraulic oil
48 hp (36 kW) Deutz D2.9L4 diesel, Tier 4f
AC, 2000 Watt generator (120 V / 60 Hz), (includes hydraulic oil cooler)
Cold weather package
Hydraulic oil cooler
Diesel catalytic scrubber muffler
LPG steel tank only, 33.5 lb capacity
Welder ArcPro 275 heavy duty (includes hydraulic oil cooler)
Welder ready package (includes hydraulic oil cooler)
