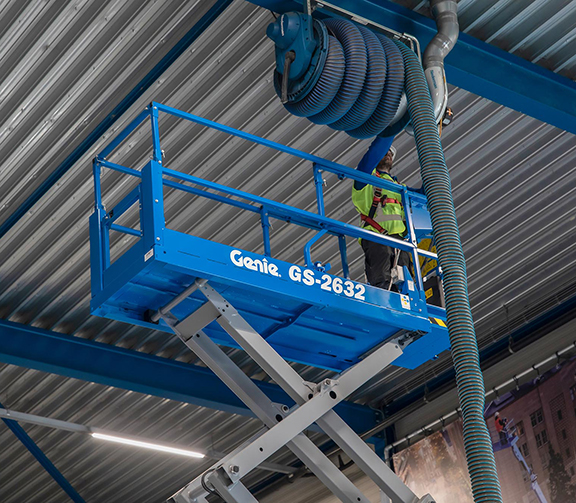

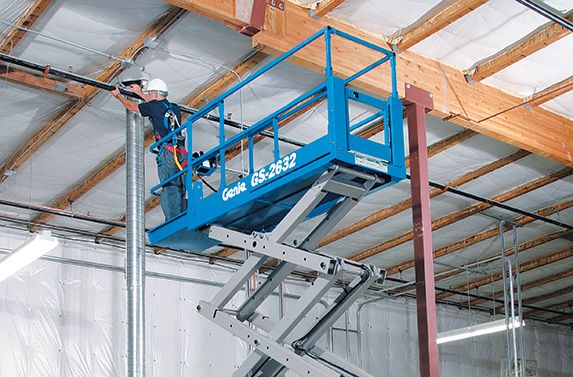

GS-2632 Elevated Work on Ceiling Overhead Systems

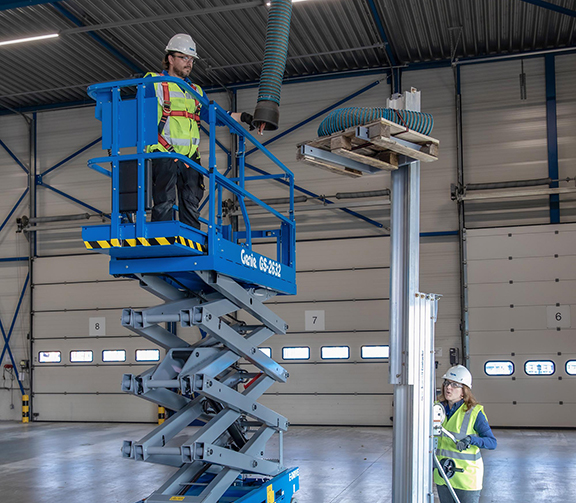

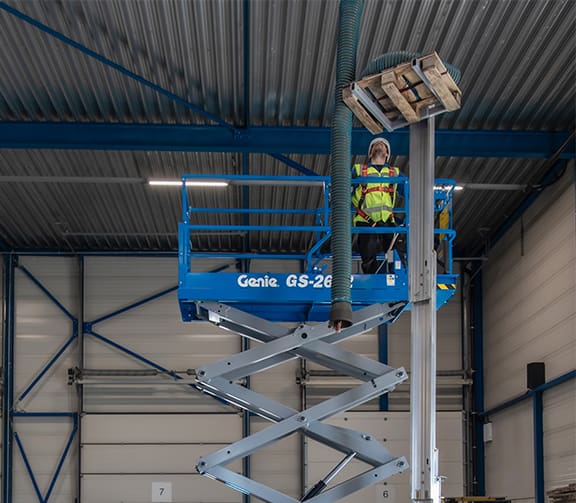

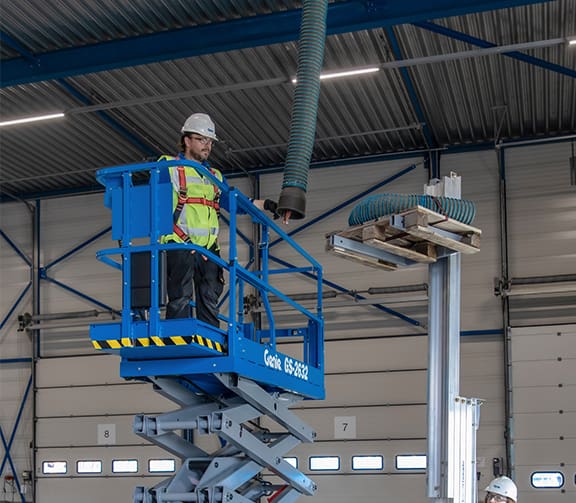

GS-2646 Operator in Platform (Action Shot)

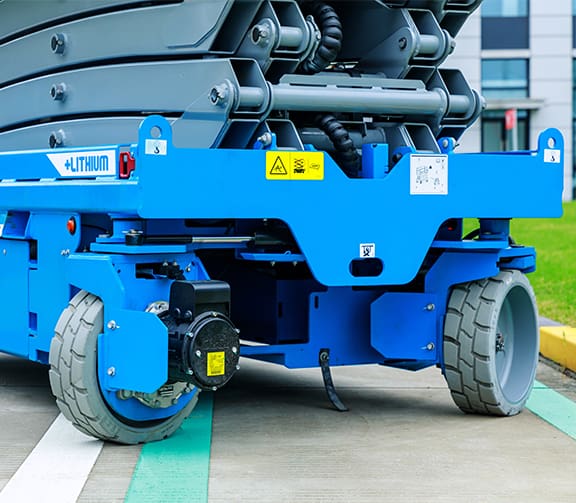

GS 2632 Scissor Stack & Guardrail Detail

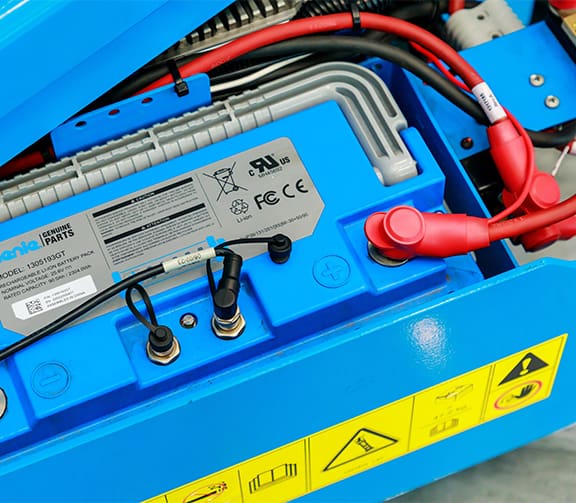

GS 2632 Battery & Base Compartment Close-Up

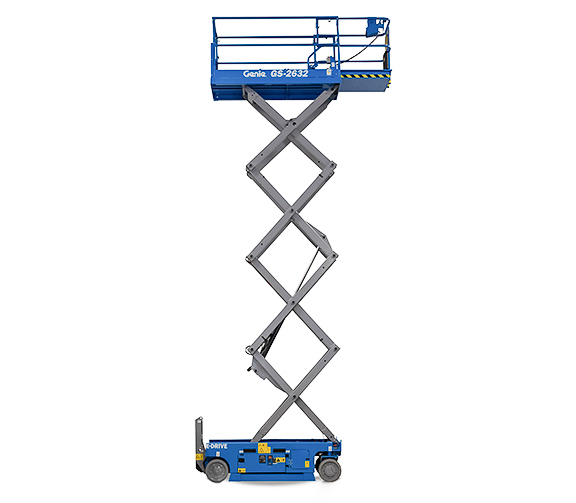

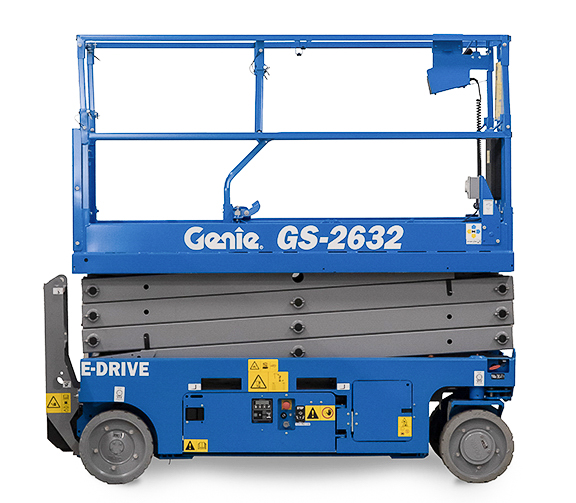

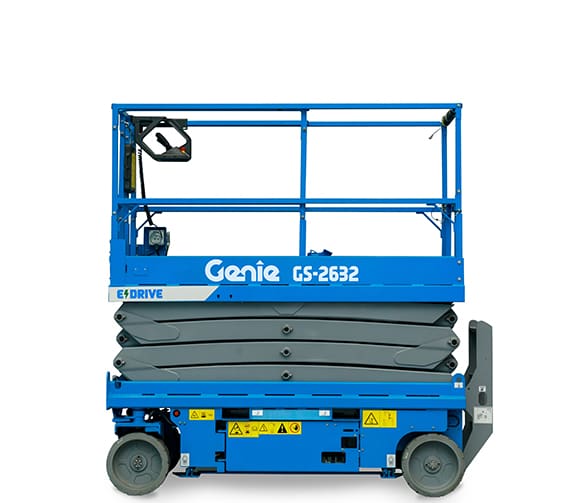

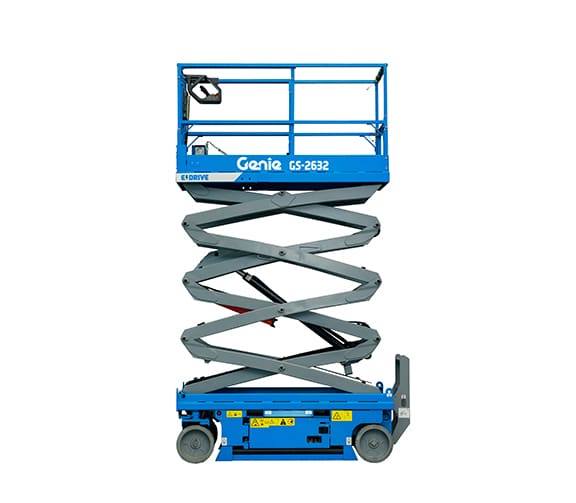

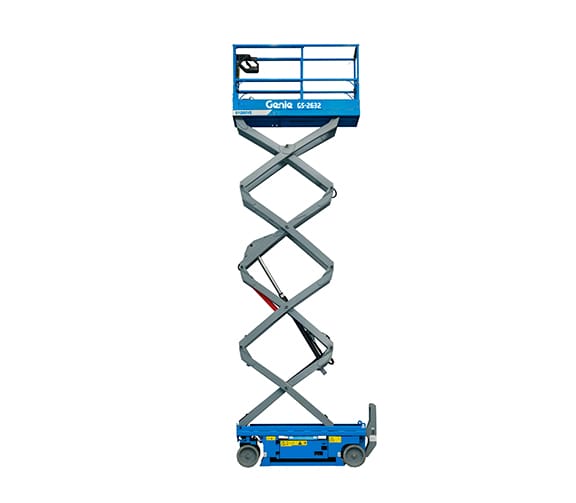

Genie GS-2632 Scissor Lift

32 ft. 1 in. Working Height
500 lbs. Capacity
32 in. Machine Width
36 in. Slide-Out Extension Deck
24V DC Electric Power with AC E-Drive System

Documents

Product Documents

Aerial Lift Information

Videos

The Genie GS-2632 electric scissor lift is a compact, reliable solution for working safely at height in tight indoor and outdoor spaces. Its narrow design and zero inside turning radius make it easy to maneuver through congested areas like warehouses, maintenance corridors, and job sites. With a spacious platform and slide-out extension deck, operators can handle tools and materials more efficiently without constant repositioning.

The smooth electric drive system delivers quiet performance with lower maintenance needs, while built-in safety features help protect your team and keep work moving. Designed for productivity and ease of use, the GS-2632 helps operations teams get more done with less downtime.

Model Number: GS-2632

Additional Information

Condition	New
Brand	Genie
MEWP Type	Scissor Lift
Power	Electric
MEWP Lift Height	Up to 25ft
MEWP Capacity	Up to 500 lbs

Quiet electric operation makes it well suited for indoor work and noise-sensitive environments.
AC E-Drive system is designed to deliver increased runtime, lower maintenance costs, and strong overall jobsite performance.

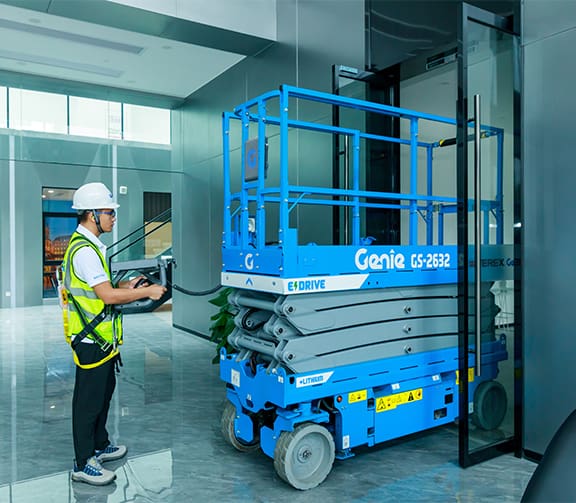

Narrow 32.2 in. machine width helps operators work in tight aisles, corridors, and other space-restricted areas.
Large platform workspace with a 36 in. slide-out extension provides more reach and room for tools and materials.
Driveable at full height helps reduce repositioning and improves productivity on the job.
Swing-out component trays and onboard diagnostics support faster access for maintenance and troubleshooting.

24V DC electric power with standard flooded lead-acid batteries.
Rear recessed charger receptacle.
Slide-out extension deck.
AC power to platform.
Descent, tilt, and motion alarm.
Diamond plate platform deck.
Dual LED flashing beacons.
Electric horn.
Lanyard attachment points.
Platform control guard (PCON).
Platform load sense system.
Proportional drive and lift controls.

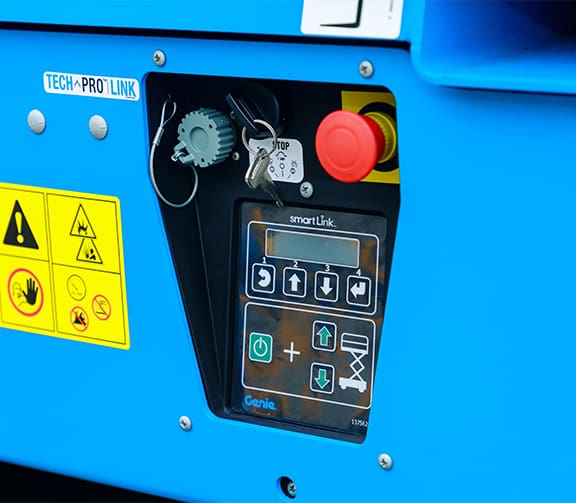

SmartLink dual-zone control system for indoor and outdoor use.
Biodegradable hydraulic oil.
Lift Tools Spill Guard.
Auxiliary platform lowering.
Dual front wheel sealed AC electric drive motors (E-Drive).
Electric brake release (E-Drive).
Onboard diagnostic system with battery charge indicator.
Pothole protection.
Side and rear fork pockets.
Solid non-marking tires.
Tech Pro Link connector.
Tie-down and lifting points.

AGM maintenance-free batteries.

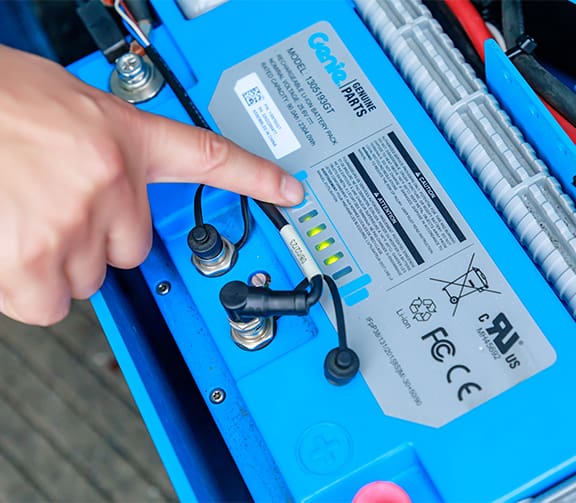

Lithium-ion battery.
Drive cut-out while charging.
Power inverter.
Air line to platform.
Automotive-style horn.
Lift Connect telematics.
Lift Connect with Access Manager upgrade.
Lift Guard White Noise Alarm.
Lift Guard Zone Lighting.
Genie Genuine Accessories including Lift Guard Safety Tools, Tech Pro Link handheld device, Lift Tools Productivity Tools, and Lift Tools Access Deck.

User-friendly SmartLink dual-zone controls simplify operation for indoor and outdoor applications.
Large platform workspace gives operators more room to work comfortably at height.

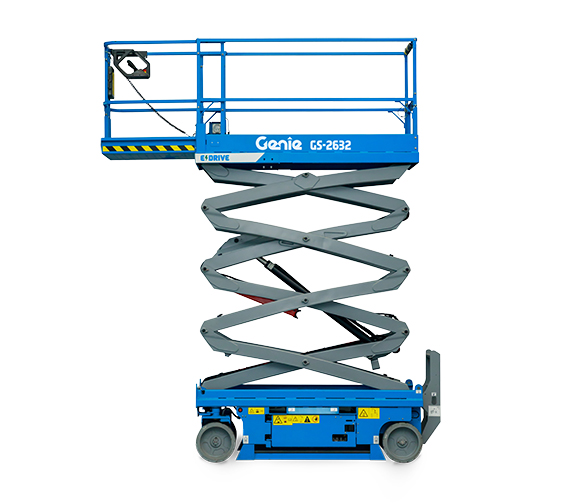

36 in. slide-out extension deck provides added reach without constantly repositioning the machine.
Proportional drive and lift controls allow smoother machine response.
AC power to platform supports the use of tools directly in the work area.

Platform load sense system helps operators stay within rated capacity.
Descent, tilt, and motion alarms provide active machine-status alerts.
Pothole protection supports stability during operation.
Lanyard attachment points support fall-protection tie-off requirements.
Platform control guard helps protect controls from unintended activation.
Auxiliary platform lowering supports emergency lowering from the ground.
Dual LED flashing beacons improve machine visibility on the jobsite.
Tilt sensor activation is rated at 3° front-to-back and 1.5° side-to-side.

Maximum working height: 32 ft 1 in.
Maximum platform height: 26 ft 1 in. indoors and 19 ft outdoors.
Platform capacity: 500 lb, with 250 lb capacity on the extension deck.
Maximum platform occupancy: 2 indoors / 1 outdoors.
Drive speed: 2.0 mph stowed and 0.5 mph raised.
Gradeability: 25% when stowed.
Zero inside turning radius supports maneuverability in confined spaces.
Machine width: 32.2 in.
Machine length: 8 ft.
Solid non-marking tires support indoor floor protection.
Sound pressure level at ground and platform workstations is below 70 dBA.

Swing-out component trays provide easier service access.
Onboard diagnostic system with battery charge indicator helps simplify troubleshooting and daily monitoring.
Tech Pro Link connector supports technician diagnostics and service workflows.
E-Drive design is promoted for reduced maintenance costs compared with traditional drive configurations.

Indoor and outdoor construction.
Building maintenance.
Installation work.
Warehousing and other applications requiring compact access equipment on firm, level surfaces.
