You are here: Home / Aerial Lifts / Boom Lifts / Genie S-80 X & S-85 Boom Lift
Genie-S-80 X and S-85-Boom-Lift

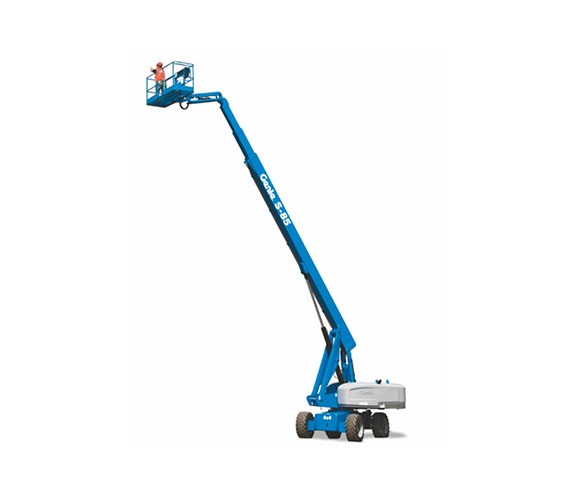

Genie S-80 X & S-85 Boom Lift

56 – 91 ft. Working Height

Unrestricted Capacity: 500 lbs.
Restricted Capacity: 1,000 lbs.
Maximum Horizontal Reach: 76 ft. 6 in.
Machine Weight: 35,400 – 38,000 lbs.


Category:

The Genie S-80 X & S-85 telescopic booms offer greater horizontal outreach than any other type of aerial platform, making these machines the perfect choice for work in construction and industrial applications with limited access.

Built to safely and quickly lift operators to full platform height, Genie telescopic booms can position workers and gear exactly where needed. Our innovative designs offer operators a working envelope ideal for the most extreme access jobs. The Genie Telescoping Jib Extend™ jib, offers operators up and over capabilities, as well as exceptional jib articulation. And on many models, working envelopes have been increased with extended reach out and down capabilities.

  • 360-degree continuous rotation turntable for quick positioning
  • Smooth boom functions for finer control
  • Virtual pivot primary boom aligns the machine’s center of gravity to work efficiently with a lower machine weight
  • Self-leveling platform
  • 160° hydraulic platform rotation
  • Proportional joystick controls
  • Drive enable
  • AC power cord to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Descent alarm
  • 360° continuous turntable rotation
  • Positive traction drive
  • Two speed wheel motors
  • 12V DC auxiliary power
  • Anti-restart engine protection
  • Auto engine fault shutdown
  • Catalytic converter muffler (Continental engine only)
  • Engine block heater (Continental engine only)
  • Platform swing gate
  • Half mesh platform inserts with swing gate
  • Platform top auxiliary rail
  • Welder Ready package
  • Weld leads to platform
  • Air line to platform
  • Hydraulic oil cooler
  • Biodegradable hydraulic oil
  • Hostile environment kit
  • Deluxe hostile environment kit
  • Aircraft protection package (6 ft platform only)
  • Thumb rockersteer
  • Tool tray
  • Alarm package
  • Panel cradle package (tri-entry platform)
  • Lockable platform control box covers
  • Tow package
  • Work light package
  • Operator Protective Structure
  • Engine gauge package
  • AC generator packages (110V/-220V/50Hz, 3000W)
  • Cold Weather Packages
  • Diesel scrubber/spark arrestor muffler (catalytic muffler)
  • LPG tank only, steel, 33.5 lbs (15.19 kg) capacity
  • Intake air pre-cleaner
