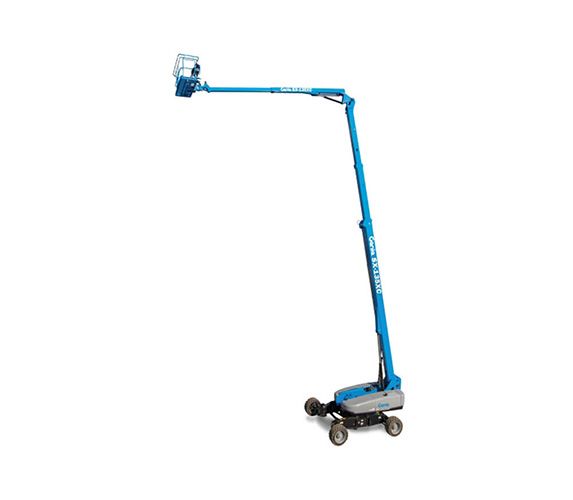

Genie SX-135 XC Boom Lift
Genie SX-135 XC boom lift
Genie sx-135 xc boom lift

Genie SX-135 XC Boom Lift

  • 141 ft. Working Height
  • 660 lbs. Unrestricted Capacity
  • 1,000 lbs. Restricted Capacity
  • 90 ft. Maximum Horizontal Reach
  • 47,500 lbs. Machine Weight

Documents

Product Documents

  • Genie Boom Lift Full Line Brochure
  • Genie SX-135XC Boom Lift Spec Sheet
Request a Quote
  • Description
  • Advantages
  • Standard Features
  • Popular Options

The Genie SX-135 XC boom’s innovative design includes 10 ft more of outreach than any other self-propelled boom on the market. This exceptional range of motion is thanks to a unique 18 ft – 30 ft Genie Telescoping Jib-Extend™ jib, which offers operators up and over capabilities, as well as 125° of jib articulation, boasting 55° down to 70° up of vertical articulation. The working envelope is also increased with this boom’s extended reach out and down capability – 19 ft 8 in of below ground reach, the furthest in the industry.

All Genie XC Booms combine the benefits of a dual-envelope design to provide an unrestricted platform capacity of 660 lb and a restricted capacity of 1,000 lb to reduce the number of lift cycles and amount of equipment needed to get tools and materials to aerial work sites. Doing more with a single unit saves time and increases productivity.

  • Industry leading maximum outreach
  • Telescoping jib-extend and 125-degree of jib articulation offers increased range of motion
  • Load sense technology for accurate load weighing and zero-load field calibration
  • X-chassis™ extendable axles
  • 30 ft (9.14 m) Telescoping Jib-Extend™
  • Self-leveling platform
  • 160° hydraulic platform rotation
  • Proportional joystick controls
  • Hydraulic oil cooler
  • Drive enable
  • AC power in the platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Descent alarm
  • 360° continuous turntable rotation
  • Positive traction 4WD
  • Two speed wheel motors
  • Four wheel high angle steer
  • Four steering modes: front, rear, crab and coordinated
  • On board full diagnostics and engine monitoring display
  • Telematics ready connector
  • 12 V DC auxiliary power
  • Auto engine fault protection
  • Swing out engine tray
  • Half-mesh platform inserts with swing gate
  • Platform top auxiliary rail
  • Welder package
  • Welder Ready package
  • Biodegradable hydraulic oil
  • Hostile environment kit
  • Thumb rocker steer
  • Light package
  • Pipe cradle (pair)**
  • Alarm package
  • Panel cradle package
  • Lockable platform control box cover
  • Operator Protective Structure**
  • Operator Protective Alarm
  • Fall Arrest Bar
  • 12 kW welder ready AC generator 208V/110V/60Hz
  • 5 kW welder ready AC generator
  • 208V/120V/60Hz (North America)
  • 3 kW AC generator
  • 110V/60Hz (North America)
  • Cold weather kit
  • Diesel scrubber/catalytic muffler
  • Intake air pre-cleaner
