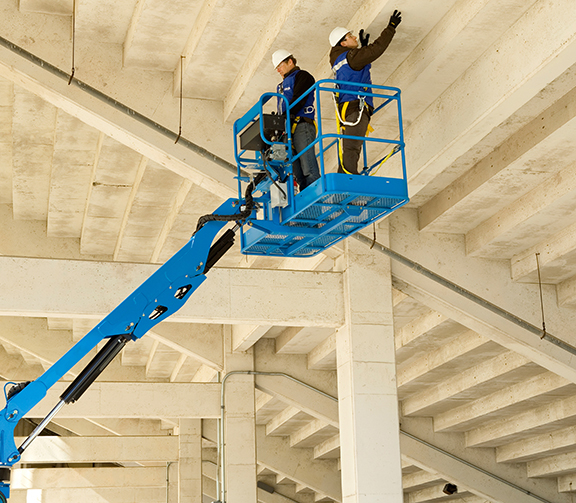

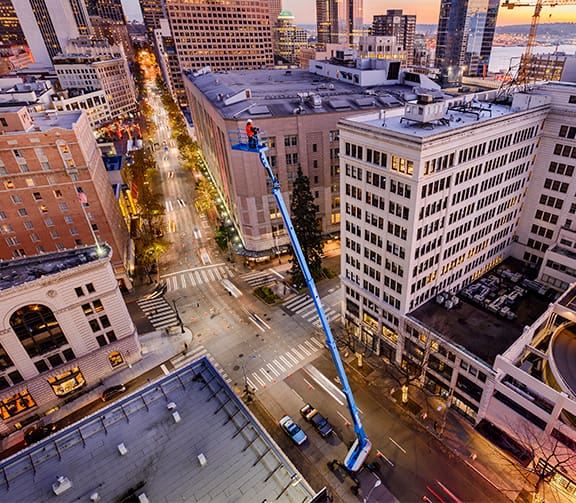

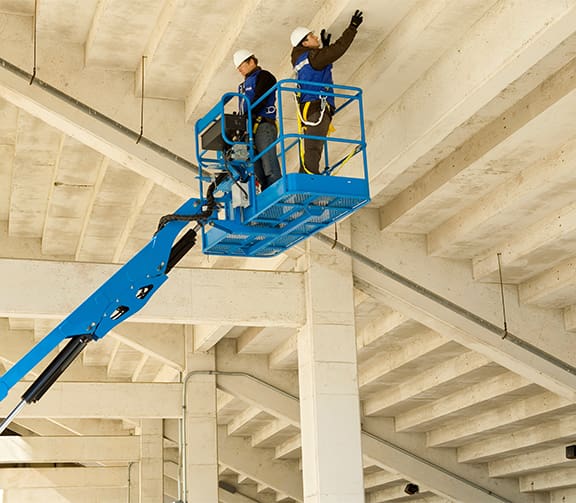

SX-180 Operator in Platform (Action Shot)

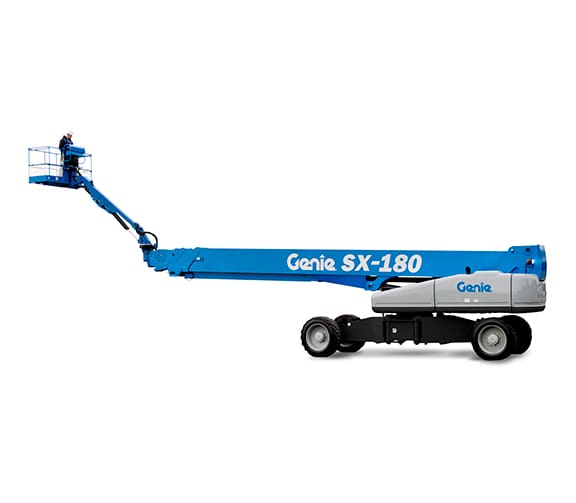

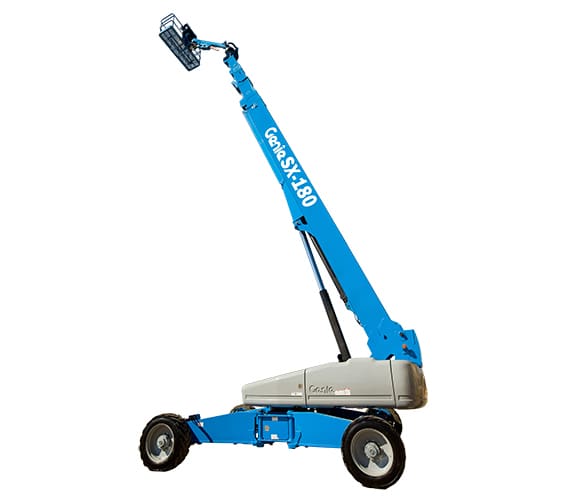

Genie SX-180 Boom Lift

186 ft. Working Height
750 lbs. Capacity
80 ft. Maximum Horizontal Reach
8 ft. 2 in. Machine Width
53 ft. 1 in. Machine Length (stowed)
55,000 lbs. Machine Weight

Documents

Product Documents

Videos

Aerial Lift Information

The Genie SX-180 telescopic boom lift is built for jobs that demand extreme reach and reliable performance. With an impressive working height of 186 feet and 80 feet of horizontal outreach, it allows operators to access hard-to-reach areas while minimizing repositioning.

Its high 750 lb lift capacity supports two workers and their tools, improving efficiency on large-scale projects. Designed for stability, safety, and precision control, the SX-180 is ideal for demanding outdoor applications where uptime and productivity matter most.

Model Number: SX-180

Additional Information

Condition	New
Brand	Genie
MEWP Type	Boom Lift, Telescopic
Power	Engine
MEWP Lift Height	Over 100ft
MEWP Capacity	501 – 1,000 lbs

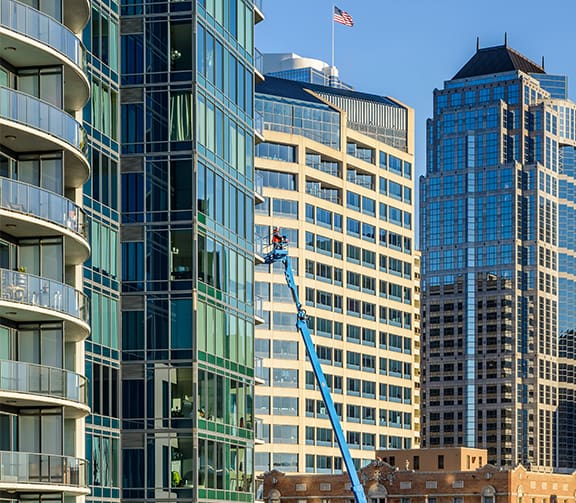

Exceptional working height of up to 186 ft enables access to extreme high-reach applications.

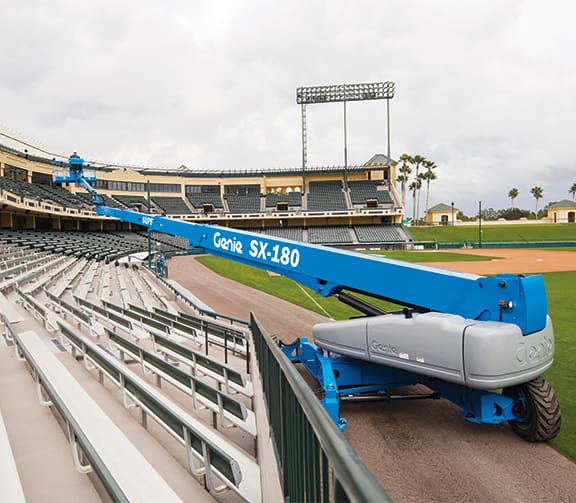

Long horizontal outreach (80 ft) improves jobsite productivity and reduces repositioning.
High lift capacity (750 lb) supports two workers plus tools for efficient operation.
360° continuous rotation and rotating jib increase positioning flexibility.

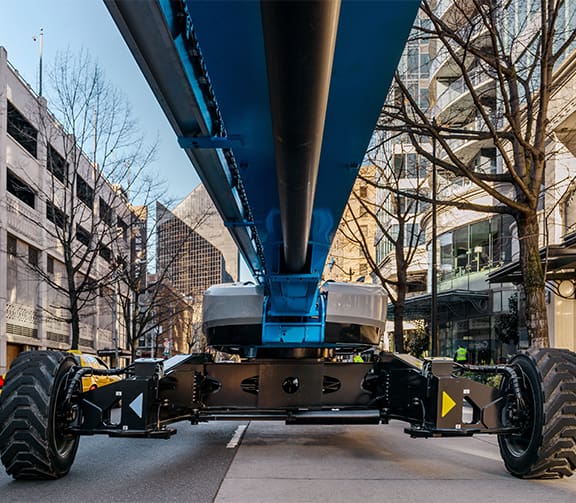

XChassis extendable axles enhance stability while maintaining transportability.
Telematics-ready system allows for fleet tracking and remote diagnostics.

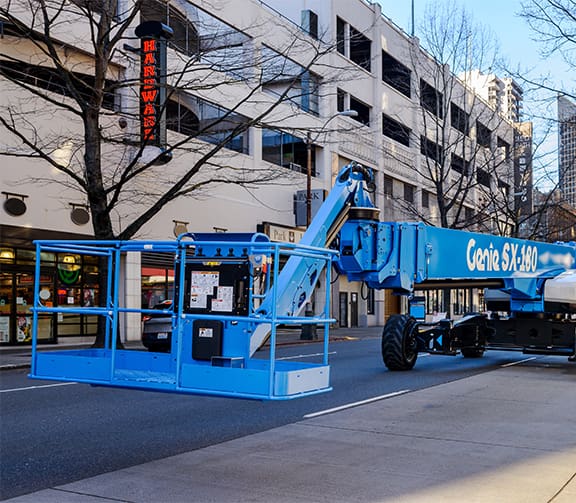

10 ft rotating jib with 135° vertical and 60° horizontal movement.
8 ft tri-entry platform with side swing gate.
Self-leveling platform and proportional controls for precise operation.
Drive enable system and dual-axis joystick steering.
4 steering modes for improved maneuverability.
Lift Guard Contact Alarm system.
Platform load sense system.
Rough-terrain, foam-filled tires.
2-speed wheel motors.
Alarm package including flashing beacon and travel alarm.
Hydraulic oil cooler and dual battery system.
Lift Connect telematics integration.

Cold weather package and cold weather hydraulic oil.
Air line to platform for pneumatic tools.
Welder-ready AC generators (7.5 kW or 12 kW).
Light package for improved visibility.
Lift Guard Full or Half Mesh panels.
Biodegradable or fire-resistant hydraulic oil.
Hostile environment kit for harsh jobsite conditions.
Lift Connect with Access Manager upgrade.

Dual-axis joystick steering allows intuitive machine control.
Thumb rocker steering option improves operator comfort.
Spacious 8 ft platform accommodates operators and tools.
Tri-entry platform design allows easier access and exit.

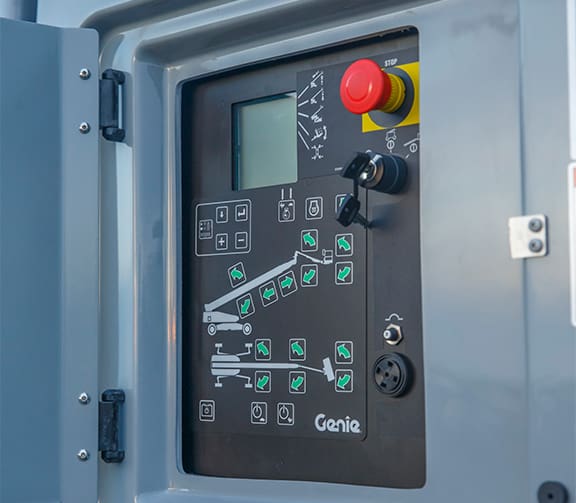

Smooth proportional controls enable precise positioning at height.

Lift Guard Contact Alarm and optional Lanyard Alert systems enhance operator protection.
Platform load sense system prevents overloading.
Tilt sensor with automatic function cut-out improves stability on uneven terrain.
Drive enable system ensures safe operation when conditions are met.
Descent, tilt, and motion alarms provide real-time alerts.
Positive air shutdown and auto engine fault shutdown systems.
Chassis tilt lift and drive function cut-out.

Working height: 186 ft; platform height: 180 ft.
Horizontal reach up to 80 ft with 2 ft below-ground reach.
Lift capacity of 750 lb for two occupants.
35% gradeability for navigating slopes.
Drive speed up to 2.3 mph (stowed).
360° turntable rotation with tight turning radius.
Diesel-powered (74 hp Deutz engine) for strong outdoor performance.

Lift Connect telematics enables remote diagnostics and fleet management.
Tech Pro Link connector supports advanced troubleshooting tools.
Hydraulic oil cooler helps extend component life.
Hour meter simplifies maintenance tracking.
Engine protection systems (anti-restart, fault shutdown) reduce service issues.
