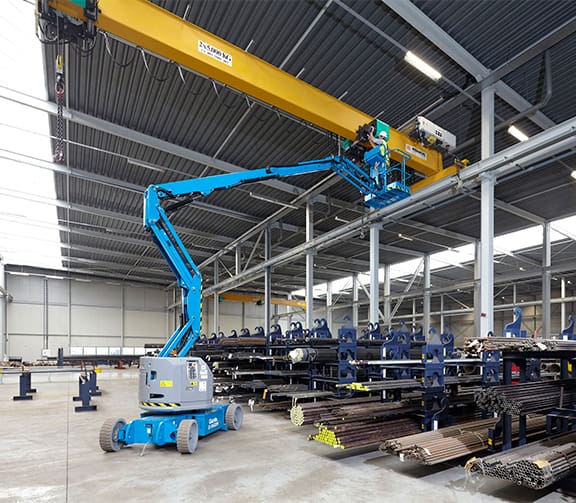

Z-3422 Operator in Platform (Action Shot)

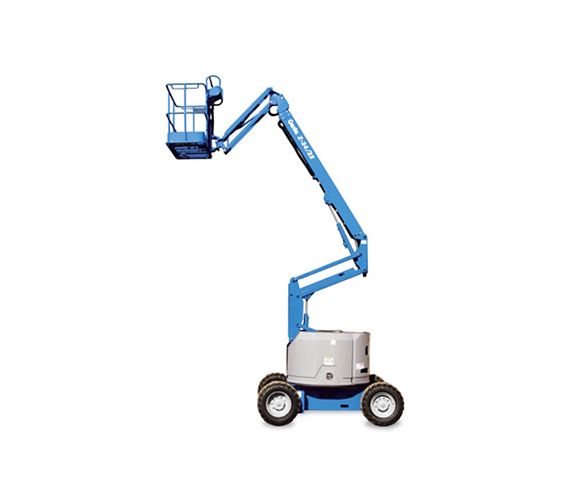

Genie Z-34/22 Boom Lift

40 ft. 6 in. Maximum Working Height
22 ft. 3 in. Maximum Horizontal Reach
500 Lbs. Platform Capacity
15 ft. 3 in. Max Up and Over Clearance (riser extended)

Documents

Product Documents

Videos

Aerial Lift Information

The Genie Z-34/22 series articulating boom lifts deliver versatile access for both indoor and outdoor applications, combining compact maneuverability with impressive reach. With up-and-over positioning, zero tailswing, and a 500 lb platform capacity, these lifts make it easier to work safely around obstacles in tight or congested spaces.

Electric models offer quiet, emission-free operation ideal for warehouses and facilities, while the IC version provides rugged 4WD performance for demanding outdoor jobsites. Designed with intuitive controls, strong safety features, and telematics-ready technology, this machine helps operations managers improve productivity while maintaining control over equipment performance and uptime.

Model Number: Z-34/22 N | Z-34/22 DC | Z-34/22 IC

Additional Information

Brand	Genie
Condition	New
MEWP Type	Boom Lift, Articulated
Power	Electric, Engine
MEWP Lift Height	26 – 40ft
MEWP Capacity	Up to 500 lbs

Quiet, emission-free electric models are well suited for sensitive indoor and low-noise environments.
Zero tailswing design helps operators work in tighter spaces with less risk of rear-end contact.
The narrow Z-34/22N chassis supports access through tighter aisles and congested indoor areas.

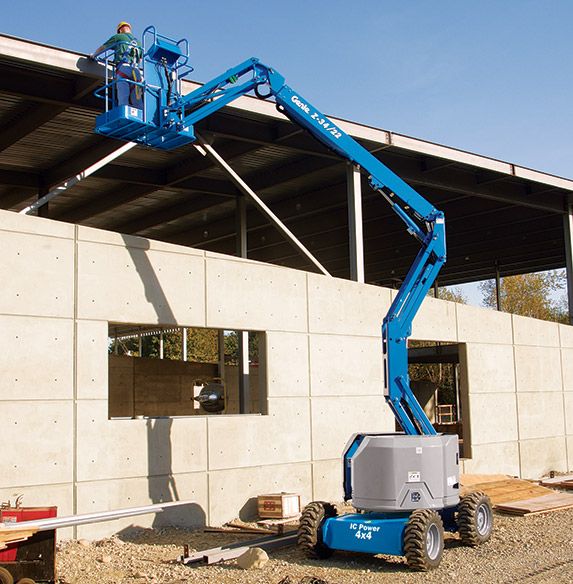

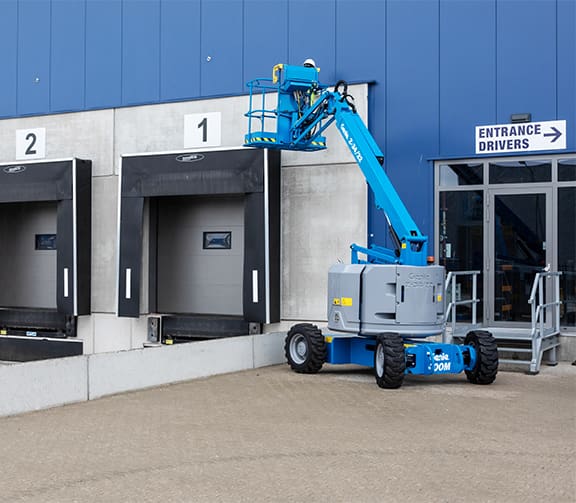

The Z-34/22 IC is designed for outdoor construction and industrial applications, with 4WD and strong rough-terrain capability.

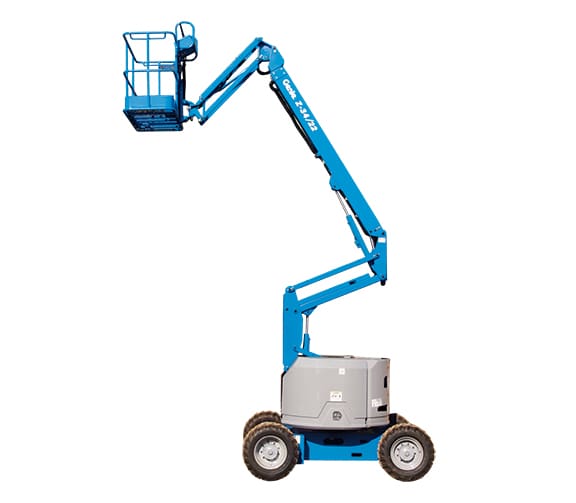

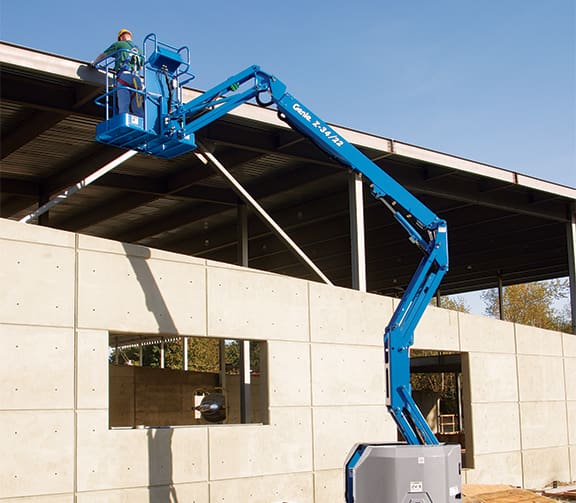

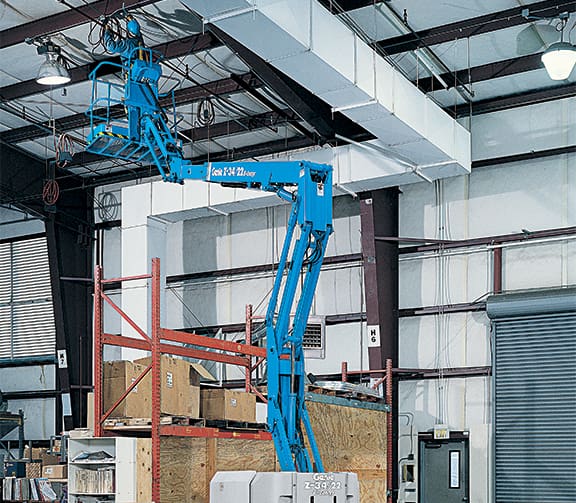

Articulating boom geometry provides up, out, and over access for reaching around structures and obstacles.

500 lb unrestricted platform capacity.
4 ft jib with 139° vertical jib rotation.
180° platform rotation.
355° turntable rotation.
Self-leveling platform.

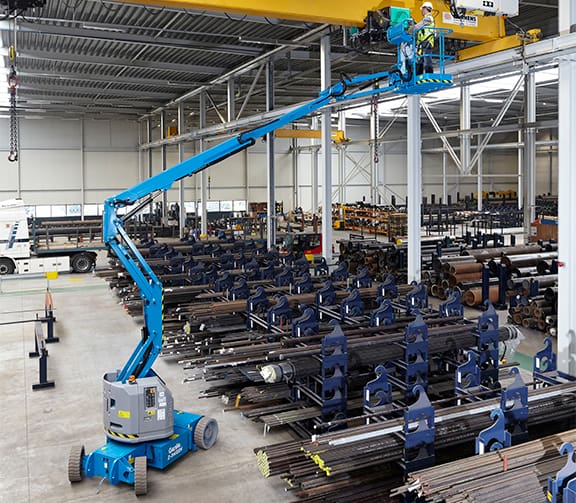

Proportional controls.
Platform load sense system.
Drive enable system.
Alarm package with flashing beacon, descent, travel, and tilt alarms.
Horn.
Dual parallelogram lift linkage.
Telematics-ready chassis.
Hour meter.

Lift Connect Telematics.
Lift Connect with Access Manager upgrade.
Tech Pro Link handheld device.
AGM maintenance-free batteries on the electric models.
Battery charge indicator and low voltage interrupt on the electric models.
Power inverter, 800W, 120V AC, 60Hz on the electric models.
Air line to platform.
Control box covers.
Lift Guard half mesh panels with swing gate.
Light package with drive and work lights.
Platform auxiliary top rail.
Lift Guard Lanyard Alert and Lift Guard Lanyard Alert Advanced.
Biodegradable, cold weather, and fire-resistant hydraulic oil options.
Hostile environment kit.
2.2 kW AC generator on the Z-34/22 IC.
Gas/LPG power and cold weather package options on the Z-34/22 IC.

Self-leveling platform helps keep the work area stable while positioning.
180° platform rotation supports easier placement of operators and tools.
Fully proportional controls on the Z-34/22 IC support smooth operation and precise boom movement.

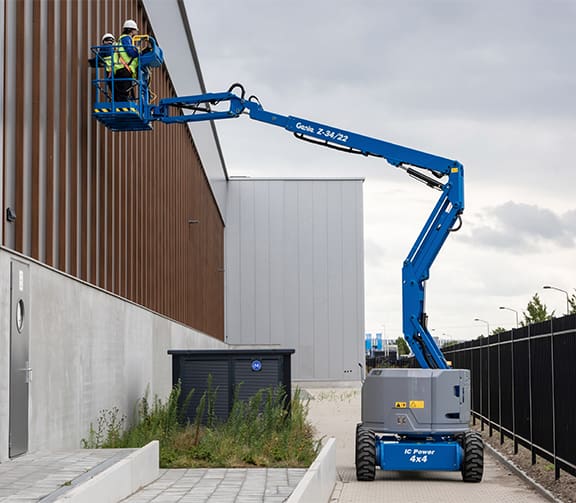

The articulating jib helps operators fine-tune positioning in hard-to-reach work zones.

Platform load sense system helps monitor platform loading.
Tilt alarms and chassis tilt drive/lift function cut-outs add protection when operating on slopes.
Drive enable system helps support controlled machine operation.
Lift Guard Contact Alarm is included.
Lift Guard Lanyard Alert and Lift Guard Lanyard Alert Advanced are available.
Alarm package includes descent, travel, and tilt alarms, plus flashing beacons.
Platform swing gate is included.

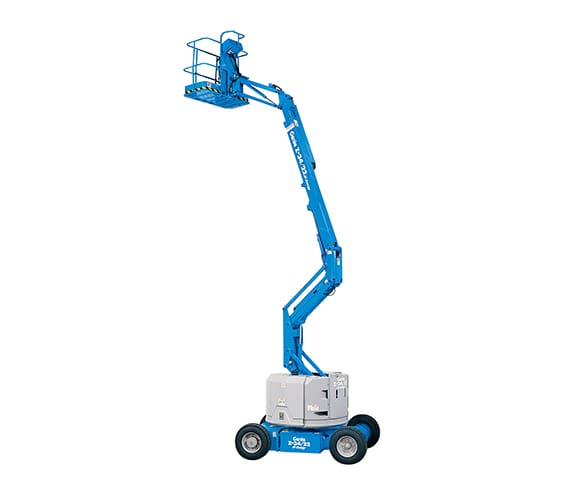

Maximum working height is about 40 ft 6 in to 40 ft 7 in depending on model.
Maximum horizontal reach is 22 ft 3 in across all three models.
Unrestricted platform capacity is 500 lb.
Z-34/22 DC travel speed is up to 4.0 mph with 30% gradeability.
Z-34/22N travel speed is up to 4.0 mph with 35% gradeability.
Z-34/22 IC travel speed is up to 3.0 mph with up to 45% gradeability.

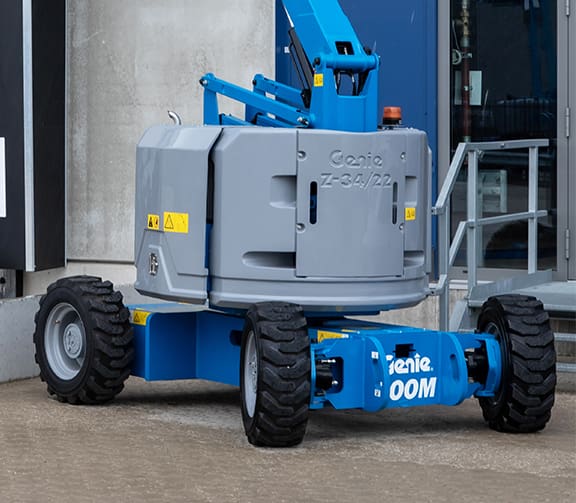

Z-34/22 IC features 4WD, hydrostatic drive, and two-speed wheel motors for rough-terrain travel.

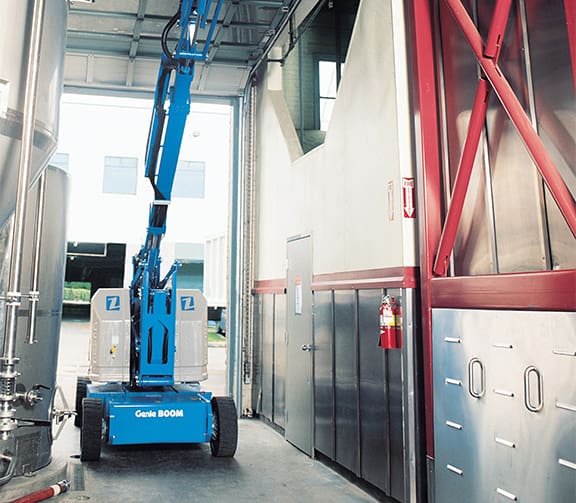

Zero tailswing improves maneuverability in confined spaces.

Telematics-ready design supports fleet monitoring and connected service tools.
Lift Connect Telematics can help with machine visibility and fleet management.
The electric drive motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing drive-system complexity and improving reliability.
Hour meter supports maintenance tracking.
Tech Pro Link handheld device is available as an accessory.

Indoor maintenance and facility work.
Warehousing and distribution.

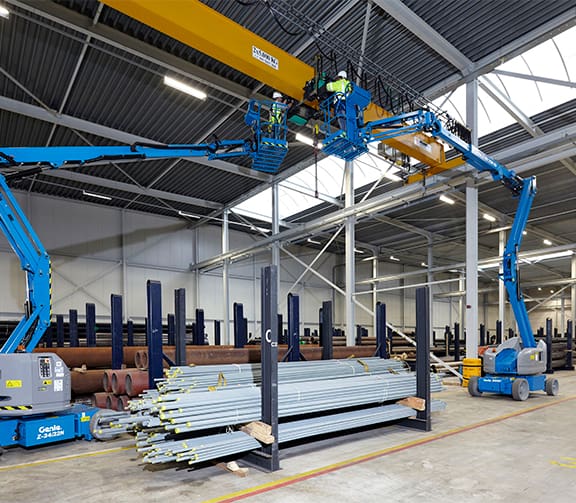

Manufacturing plants.
Construction and industrial jobsites.
Applications requiring work in tight aisles, around obstacles, or close to structures.
Outdoor rough-terrain construction and industrial work for the Z-34/22 IC.
