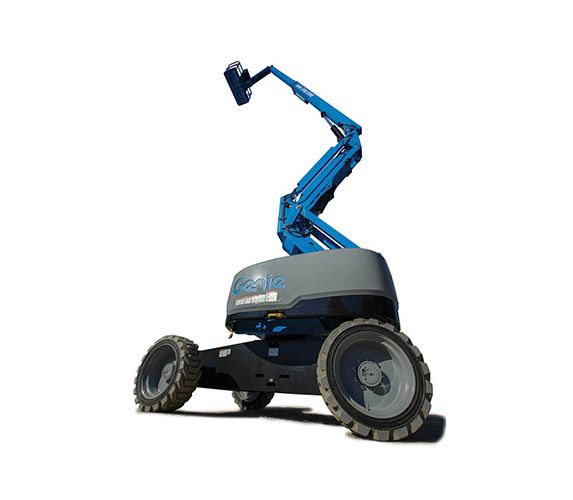

Genie Z-60 Boom Lift

65 ft.7 in. Working Height
36 ft. 7 in. Maximum Horizontal Reach
500 Lbs. Platform Capacity
24 ft. 3 in. Max Up and Over Clearance

Documents

Product Documents

Aerial Lift Information

Videos

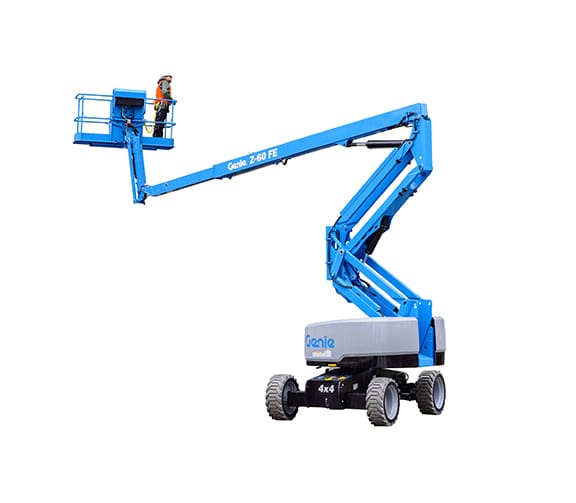

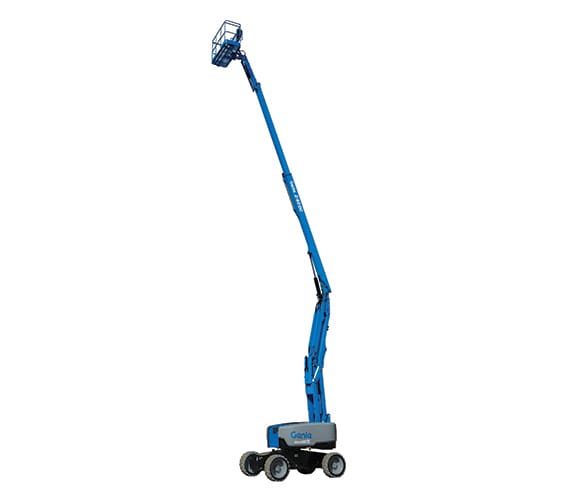

The Genie Z-60 FE and Z-60 DC articulated boom lifts deliver powerful, versatile performance for operations that need reliable access at height—indoors or out. With up to 65 feet of working height, impressive horizontal reach, and true up-and-over capability, these machines make it easy to navigate obstacles and position operators exactly where work needs to happen.

The electric and hybrid drive options help reduce fuel costs, noise, and emissions without sacrificing rough-terrain performance. Built with intuitive controls, advanced safety systems, and easy service access, they’re designed to keep your team productive and your equipment downtime low.

Model Number: Z-60 DC | Z-60 FE

Additional Information

Condition	New
Brand	Genie
MEWP Type	Boom Lift, Articulated
Power	Electric
MEWP Lift Height	41 – 60ft
MEWP Capacity	Up to 500 lbs

Offers two machine configurations to match jobsite priorities: the Z-60 FE provides hybrid and all-electric operation, while the Z-60 DC delivers electric performance for low-emission applications.
Designed for both indoor and outdoor work, combining low-noise operation with rugged rough-terrain capability.
Provides strong jobsite versatility with 4WD, 45% gradeability, and an active oscillating axle for improved traction on uneven ground.

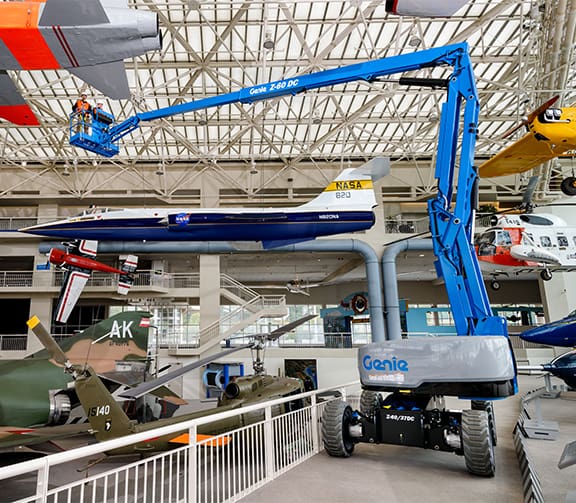

Supports efficient positioning with articulated boom geometry, up-and-over reach, and a jib for reaching up, out, and over obstacles.
Helps reduce operating costs through electric or hybrid power, with the FE model offering extended runtime flexibility.

500 lb unrestricted platform capacity.
65 ft 7 in maximum working height.
36 ft 7 in maximum horizontal reach.
24 ft 3 in maximum up-and-over clearance.
5 ft jib with 135° vertical rotation.
160° platform rotation and 355° turntable rotation.
Dual-entry platform with side swing gate, available in 6 ft and 8 ft widths.
Dual axis joystick steering.
AC power cord to platform.
Alarm package with flashing beacons, descent, travel, and tilt alarms.
Drive enable system.
Horn.
LCD display.
Platform load sense system.

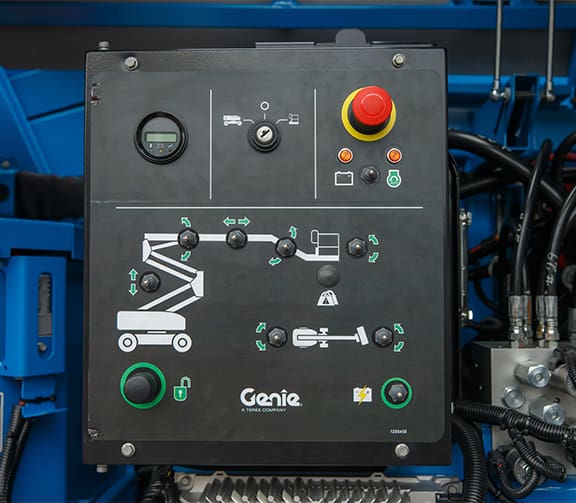

Proportional controls.
Self-leveling platform.
Active oscillating axle.
Chassis tilt drive function cut-out.
Chassis tilt lift function cut-out.
Dual parallelogram lift linkage.
Electric brake release.
Hour meter.
On-board diagnostic system.
Sealed AC electric drive motors.
Telematics-ready chassis.

AGM maintenance-free batteries.
Cold weather package.
2kW power inverter, 120V/60Hz.
Thumb rocker steering.
Air line to platform.
Control box covers.
Lift Guard full mesh panels.
Lift Guard half mesh panels.
Light package with drive and work lights.
Platform auxiliary top rail.
Lift Guard Lanyard Alert and Lift Guard Lanyard Alert Advanced.
Lift Connect Telematics.
Lift Connect with Access Manager upgrade.
Biodegradable, cold weather, or fire-resistant hydraulic oil.
Foam-filled rough-terrain tires or non-marking foam-filled tires.
Hostile environment kit.

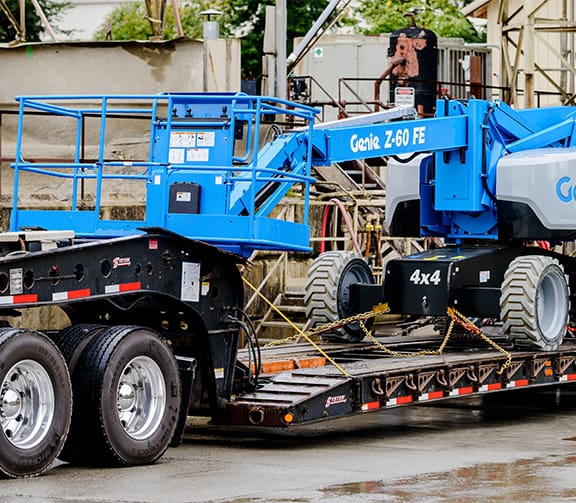

Tow package.
Genie accessories such as Lift Tools Productivity Tools, Lift Connect Telematics, and Tech Pro Link handheld device.

Dual axis joystick steering supports intuitive machine control.
Fully proportional controls help operators make smooth, precise movements.
Self-leveling platform helps maintain a stable working position.
160° platform rotation and 135° jib rotation improve operator access and positioning in tight or awkward work areas.

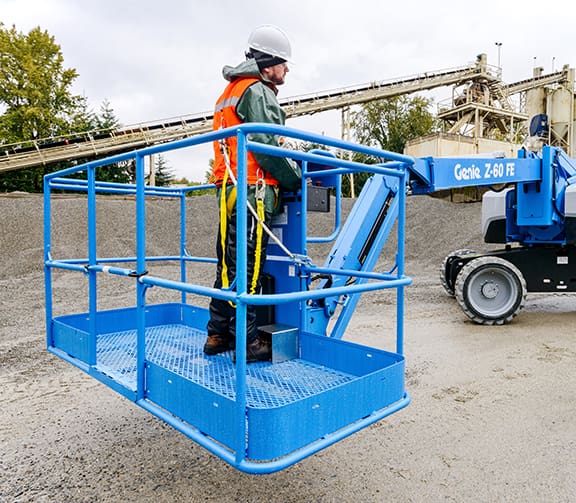

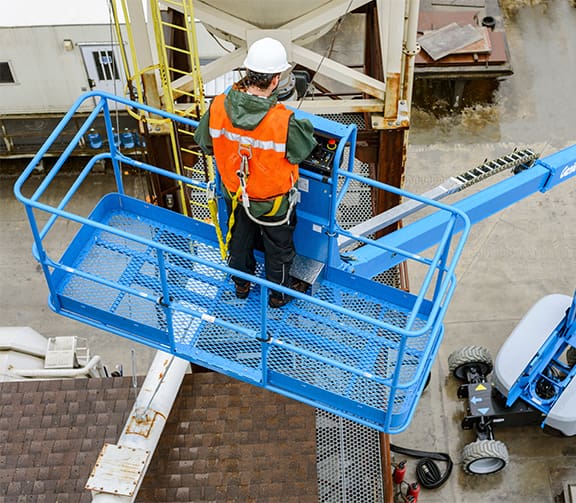

Dual-entry platform with side swing gate helps make entry and exit easier.
Fast Mast boom functionality allows operators to descend for materials and quickly return to working height.

Alarm package includes flashing beacons plus descent, travel, and tilt alarms.
Tilt sensor activation helps alert operators to out-of-level conditions.
Drive enable system adds an extra layer of operational control.
Platform load sense system helps monitor platform loading.
Lift Guard Contact Alarm is standard.
Optional Lift Guard Lanyard Alert systems can enhance operator awareness and tie-off compliance.
Chassis tilt drive and lift function cut-outs help prevent unsafe operation on excessive slope.
Full mesh or half mesh platform panel options can add protection in certain applications.

Maximum working height: 65 ft 7 in.
Maximum platform height: 59 ft 7 in.
Maximum horizontal reach: 36 ft 7 in.
Below ground reach: 8 ft 1 in.
Maximum up-and-over clearance: 24 ft 3 in.
Unrestricted platform capacity: 500 lb.
Drive speed up to 4.0 mph when stowed.
Raised drive speed of 0.68 mph.
45% gradeability for strong rough-terrain travel.
Inside turning radius of 8 ft 3 in for maneuverability.
High-efficiency AC drive system improves driving performance.

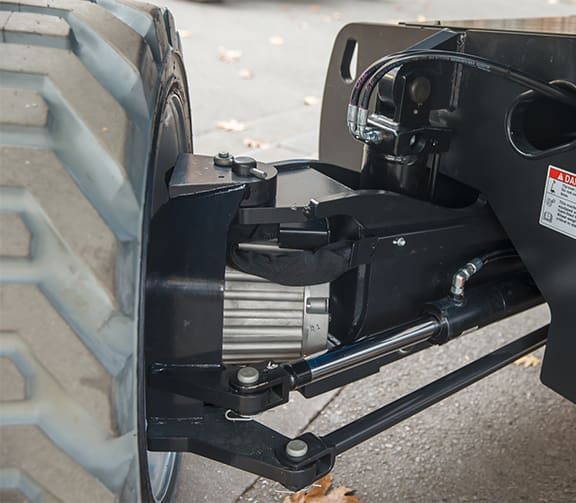

Active oscillating axle helps maintain traction on uneven terrain.
FE model can operate in all-electric mode for a full workday on one battery charge or in hybrid mode for up to a week on one tank of diesel.

High-efficiency AC drive system is designed to simplify maintenance.
AGM maintenance-free battery option helps reduce battery service needs.
On-board diagnostic system supports troubleshooting and service visibility.
Hour meter helps track usage and maintenance intervals.
Telematics-ready architecture and available Lift Connect Telematics can improve fleet monitoring and maintenance planning.
Tech Pro Link handheld device availability supports service and diagnostics.
Sealed AC electric drive motors help reduce exposure-related maintenance concerns.

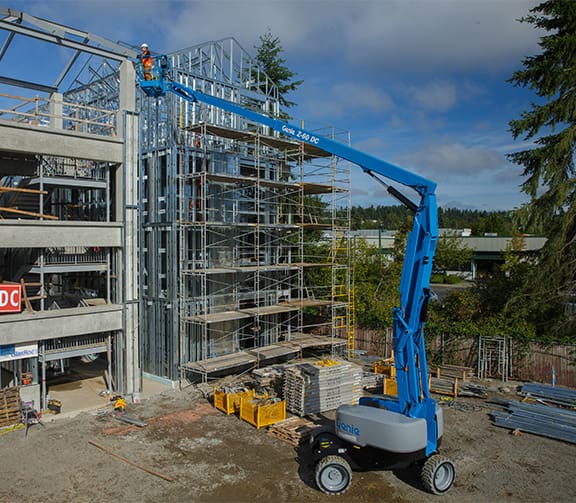

Commercial and industrial construction.
Facility maintenance.
Industrial plants and manufacturing sites.
Warehousing and logistics facilities.

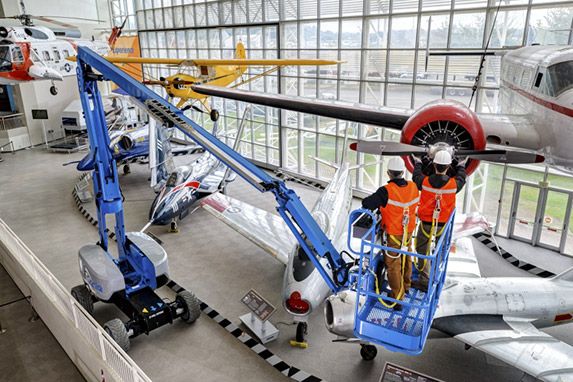

Aviation and aircraft maintenance environments.

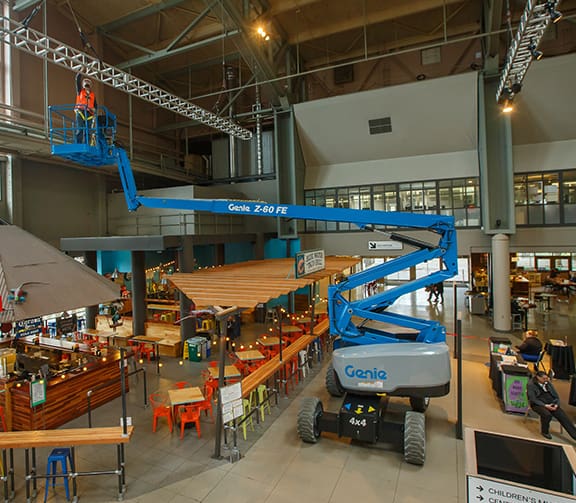

Indoor applications requiring low noise and low emissions.

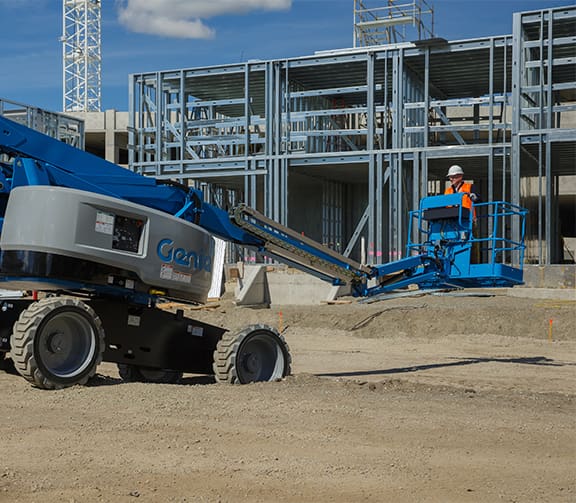

Outdoor jobsites that require rough-terrain mobility and up-and-over access.
