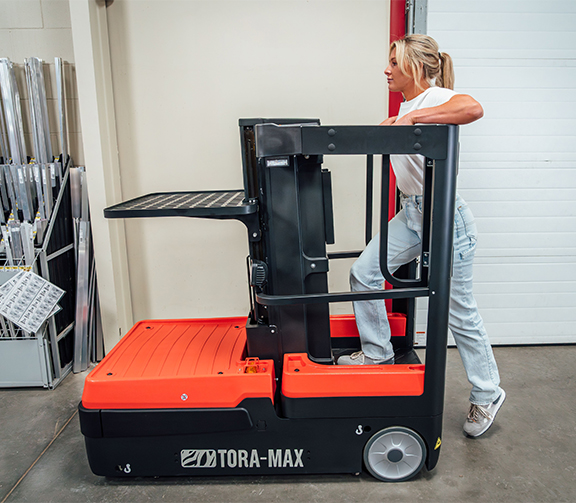

Tora-Max Stock Picker_Step Height_Closeup_1

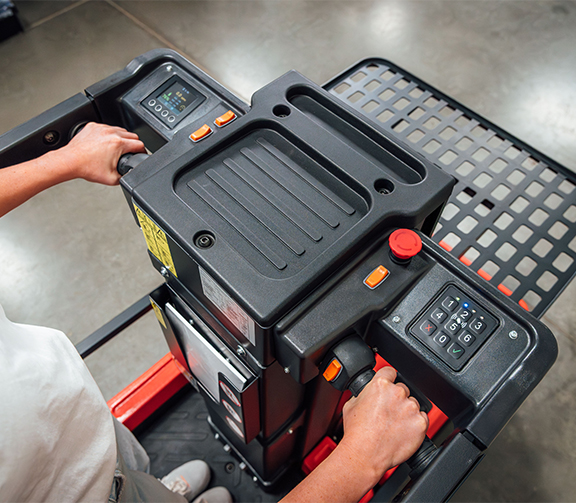

Tora-Max Stock Picker_Operator Handles_Closeup_3

Tora-Max Stock Picker

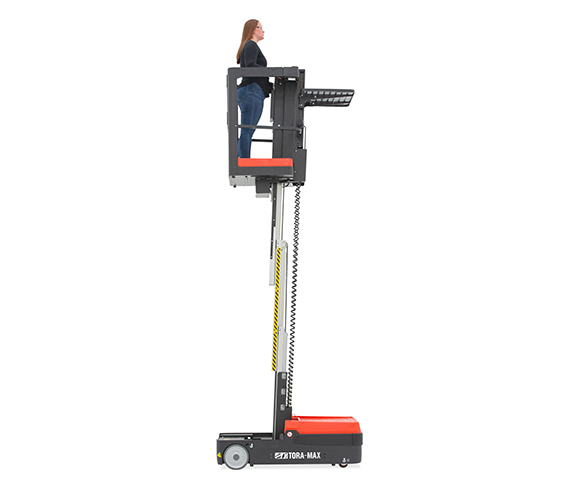

130-Inch Lift Height
Lithium-Ion Battery
Compact Design with Tight Turning Radius
Ergonomic Dual-Sided Picking Access
Onboard Charger & LCD Display

Documents

Product Documents

Financing Information

Product Description

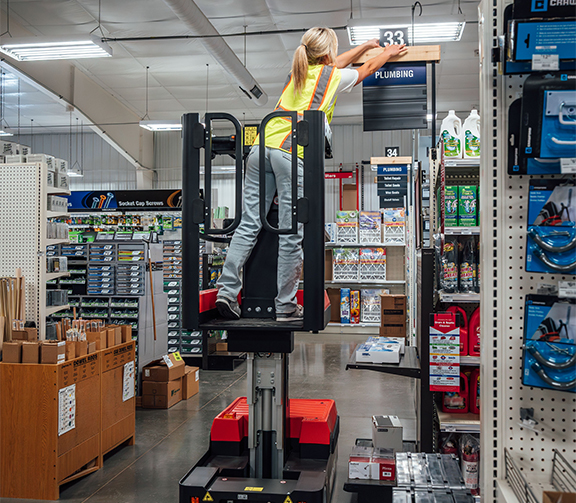

The Tora-Max Stock Picker is a compact, electric-powered solution designed to streamline order picking in tight warehouse aisles and retail environments. With a lift height of up to 130 inches and a maintenance-free lithium-ion battery, it delivers high-efficiency performance without the hassle of watering or long charge times. Operators benefit from ergonomic controls, a smooth electric lift, and dual-side access for faster, more comfortable picking. Its onboard charger and intuitive LCD display make charging and operation easy, even for first-time users. Whether you’re upgrading from ladders or replacing older equipment, the Tora-Max Stock Picker offers a smart, cost-effective way to improve productivity.

Model Numbers: 2TMP-130

Equipment Details

Forklift Type	Order Pickers
Brand	Tora-Max
Capacity	220 lbs.
Condition	New
Fuel Type	Electric/Battery, 24 Volt

Maintenance-free lithium-ion battery with fast charging and opportunity charging capabilities.
On-board charger simplifies recharging between shifts.
Tight turning radius enhances maneuverability in narrow aisles.
Compact design ideal for retail, warehousing, and distribution settings.
Quiet operation and low maintenance due to AC drive motor.
Allows simultaneous lift, travel, and steering for efficient operation.

LCD display showing speed, usage time, power, and steering angles.
Electric lift and lower functionality.
Dual multifunction control handles with operator sensing.
Electromagnetic parking brake.
Turtle speed mode for precise movement.
Polyurethane drive tire and load wheels.
RFID/Pin Code Access Control for security.

Adjustable front shelf keeps materials accessible without blocking the operator’s view.
Electric lift/lower controls ensure smooth and comfortable operation.
Large display buttons enhance usability.
Dual-hand operator presence sensing enhances safe operation while maintaining ease of use.

Emergency lowering switch provides ground-level access to lower the unit during emergencies.
Dual-hand operator sensing system to ensure intentional operation.
Pin code or RFID access reduces unauthorized use.

24V lithium-ion battery system with 100AH capacity.
AC drive motor delivers quiet and smooth performance.
Regenerative and electromagnetic braking systems.
Travel speed up to 3.4 mph (loaded or unloaded).
130-inch lift height with 39.4–43.3 fpm lifting speed.
Gradeability of 5% loaded, 8% unloaded.

Built-in charger eliminates the need for external equipment.
Maintenance-free lithium-ion battery reduces routine upkeep.
Clear LCD diagnostic display assists in quick troubleshooting.

General Manufacturing
Warehousing
Retail
Distribution
