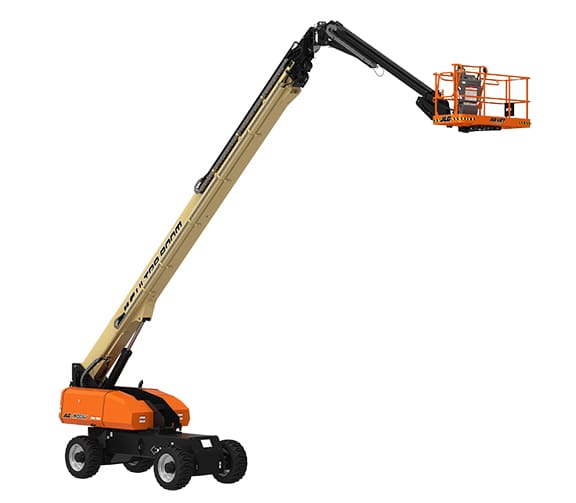

1500SJ Extended Front RF New
1500SJ Extended Front New

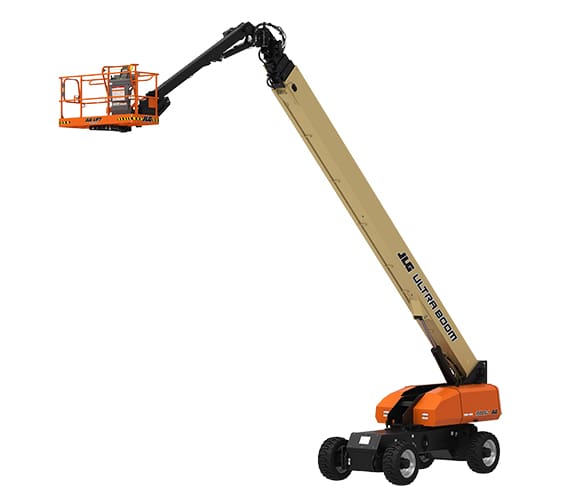

1500SJ Extended Front LF New

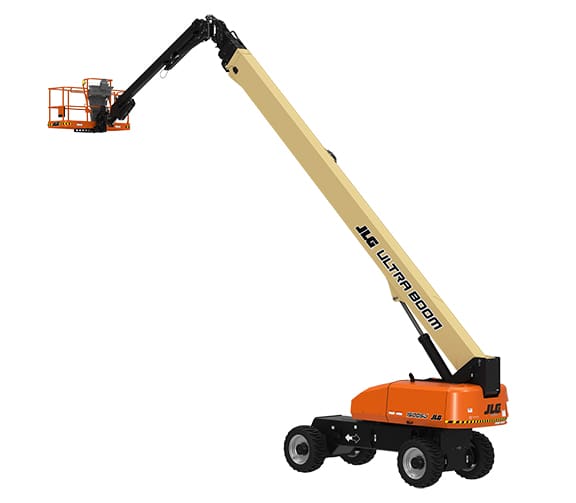

1500SJ Extended Rear LF New
1500SJ Extended Rear New

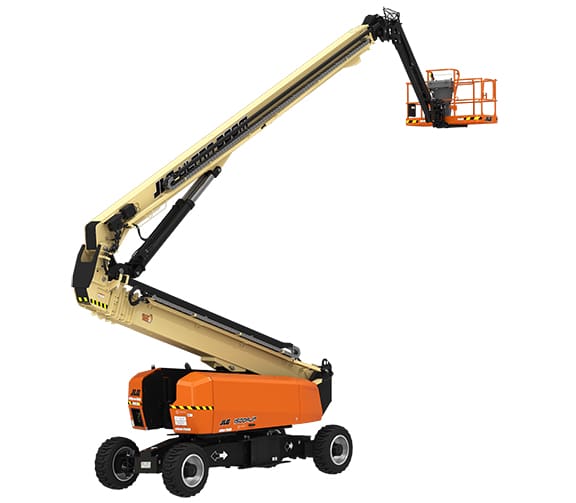

1500AJP Extended Rear RF New

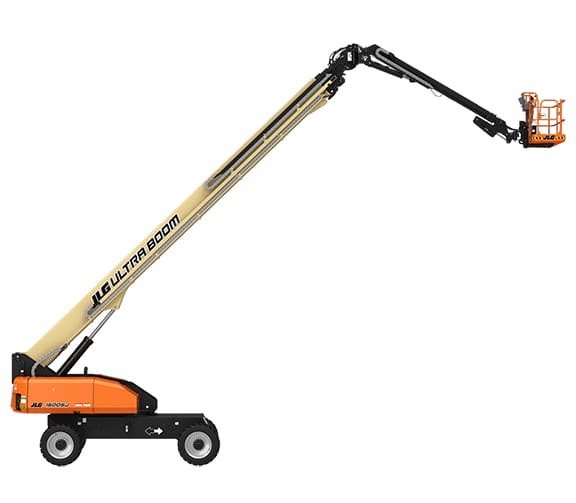

1500SJ Extended Side LF New
1500SJ Top New

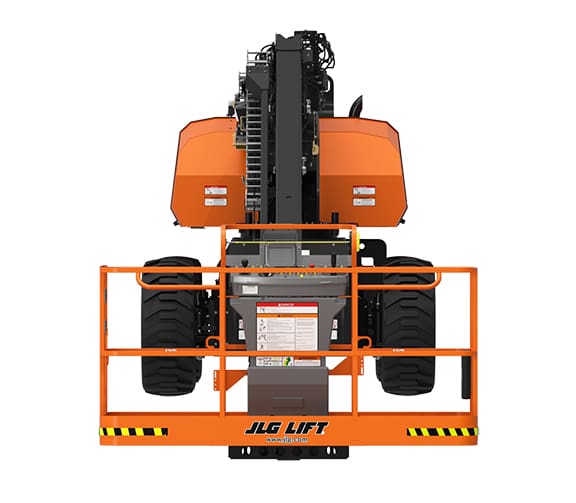

1500SJ Retracted Front New

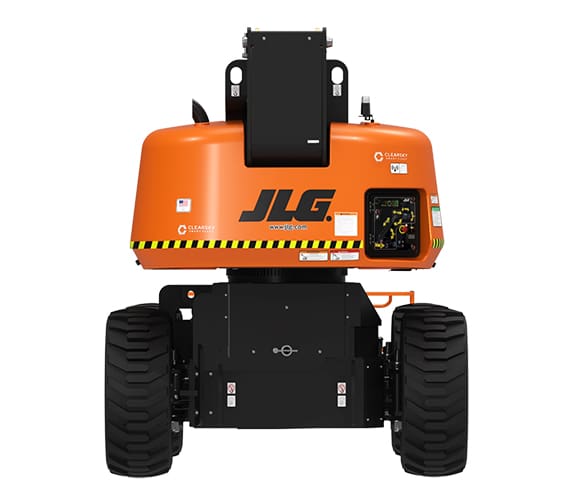

1500SJ Retracted Rear New

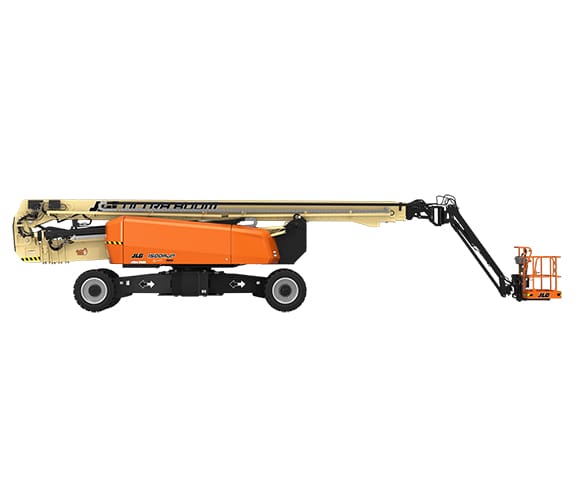

1500AJP Retracted Side RF New

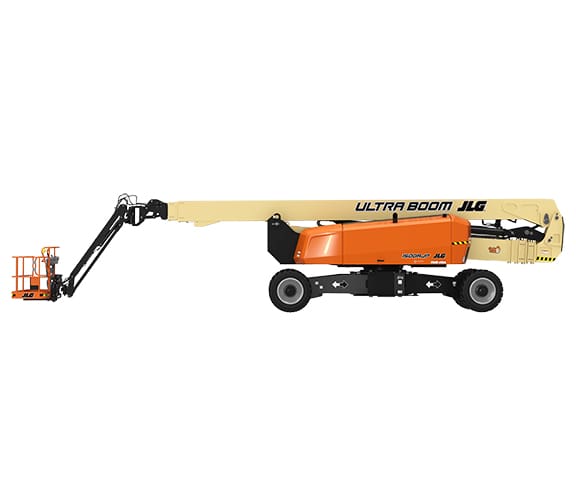

1500AJP Retracted Side LF New

JLG 1500AJP Articulating Boom Lift

  • 150 ft. Platform Height
  • 75 ft. Horizontal Outreach
  • 1,000 lb. Restricted / 600 lb. Unrestricted Platform Capacity
  • 60 ft. 4 in. Up-and-Over Height
  • 40% Gradeability
Request a Quote

Documents

Product Documents

The JLG 1500AJP Articulating Ultra Boom Lift gives operations teams the height, reach, and capacity needed to take on demanding elevated work with confidence. With a 150-foot platform height, 75 feet of horizontal outreach, and 60 feet 4 inches of up-and-over reach, it helps crews access hard-to-reach areas around structures, equipment, and obstacles. Its dual platform capacities allow operators to lift up to 1,000 pounds in restricted zones or 600 pounds unrestricted, making it a strong choice for jobs that require both personnel and materials at height.

QuikStik® boom technology helps reduce time spent positioning the machine, while proportional controls, an articulating jib, and 360-degree continuous swing make it easier to place workers exactly where they need to be. Built-in safety and service features like SkyGuard SkyLine™, load sensing, tilt alarm, ClearSky Smart Fleet hardware, and a swing-out engine tray help support safer operation, easier maintenance, and better uptime.

Model Number: 1500AJP

Additional Information

Brand

JLG
Condition

New
MEWP Type

Boom Lift, Articulated
Power

Engine
Working Height

150 – 159 ft.
MEWP Capacity

501 – 1,000 lbs
MEWP Lift Height

Over 100ft
  • Class-leading 1,000 lb restricted platform capacity helps operators lift more materials and tools to elevated work areas.
  • 150 ft platform height, 75 ft horizontal outreach, and 60 ft 4 in up-and-over reach provide a large working envelope for difficult-to-access jobsites.
  • Jib pivots vertically and horizontally to improve access around obstacles and into elevated work areas.
  • Fast lift speeds help reduce time spent positioning and increase productive work time.
  • Exclusive QuikStik boom technology delivers faster cycle speeds from ground to full elevation.
  • Designed for easier transport with no oversized load permit required, though an overweight permit is required for highway transportation.
  • ClearSky Smart Fleet compatibility helps fleet owners manage and maintain equipment more efficiently.
  • 12V DC auxiliary power
  • 180-degree hydraulic platform rotator
  • AC receptacle in platform
  • All-motion alarm
  • Articulating jib
  • ClearSky Smart Fleet hardware
  • Control ADE system
  • Dual USB power outlet
  • Dual rated capacities of 600 lb unrestricted and 1,000 lb restricted
  • Drive-out extendable axles
  • Engine distress warning and shutdown selectable through the JLG Analyzer
  • Gull-wing steel hoods
  • Hourmeter
  • Hydrostatic drive
  • LED motion/amber beacon
  • LCD panel at operator’s platform control console
  • Lifting and tie-down lugs
  • Load sensing system
  • 36 in x 96 in platform
  • Platform console machine status light panel
  • Proportional controls
  • QuikStik boom technology
  • SkyGuard SkyLine
  • Swing-out engine tray
  • Tilt light and alarm
  • SkyWelder package
  • SkyPower package
  • SkyGlazier package
  • Ambient white noise alarm
  • Bolt-on fall arrest system
  • Cold Package Plus
  • Cold Weather Package
  • Hostile Environment Package
  • Light Package
  • Platform mesh options, including mesh to top rail or mid rail in plastic or aluminum
  • Multiple platform configurations, including drop bar, rear-entry fall arrest, inward self-closing swing gate, tri-entry drop bar, and tri-entry swing gate options
  • SkySense enhanced detection system
  • Soft Touch system
  • Center or corner storage tray
  • Articulating jib with 131 degrees of articulation and 125 degrees of horizontal rotation helps operators position the platform more precisely.
  • 36 in x 96 in platform provides a spacious work area for operators, tools, and materials.
  • Proportional controls support smoother, more controlled machine operation.
  • LCD panel at the operator’s platform control console provides accessible machine information from the platform.
  • Dual USB power outlet and AC receptacle in the platform add convenience for tools, devices, and accessories.
  • Multiple platform entry and gate options allow the machine to be configured for different operator preferences and jobsite needs.
  • SkyGuard SkyLine comes standard to help enhance operator protection.
  • Load sensing system helps monitor platform load.
  • Platform console machine status light panel provides indicator lights for system distress, low fuel, degree tilt light, and foot switch status.
  • Tilt light and alarm help alert operators when the machine is operating outside approved limits.
  • All-motion alarm and LED motion/amber beacon help increase awareness around the machine.
  • Engine distress warning and shutdown can be selected through the JLG Analyzer.
  • Optional SkySense enhanced detection system and Soft Touch system are available for added object detection and protection.
  • Optional bolt-on fall arrest system and fall arrest platform configurations are available.
  • 150 ft maximum platform height
  • 75 ft horizontal outreach
  • 60 ft 4 in up-and-over clearance
  • 1,000 lb restricted platform capacity
  • 600 lb unrestricted platform capacity
  • 360-degree continuous swing
  • 180-degree hydraulic platform rotation
  • 8 ft jib with 131 degrees of articulation
  • 125 degrees of jib horizontal rotation
  • 2.8 mph drive speed
  • 40% gradeability
  • 5-degree tilt cut-out
  • Deutz TCD 3.6L Tier 4 Final diesel engine rated at 99.8 hp
  • 45 gallon fuel tank capacity
  • Hydrostatic drive for reliable machine movement and control
  • Simple single-sensor load sensing system uses fewer parts and does not require weight for calibration.
  • Swing-out engine tray provides easier access for maintenance.
  • Gull-wing steel hoods improve access to internal components.
  • ClearSky Smart Fleet compatibility helps users manage and maintain fleet equipment.
  • Hourmeter supports maintenance tracking.
  • Engine distress warning and shutdown functionality helps operators and service teams identify potential machine issues.
  • JLG Online Express provides access to manuals, parts, schematics, and product support resources.
  • Elevated work applications requiring extreme height and outreach
  • Construction jobsites
  • Industrial facility maintenance
  • Large-scale exterior building work
  • Applications requiring access around obstacles, up-and-over reach, and high platform capacity
