What Are the Parts of a Forklift and Their Functions?

Updated January 5, 2023 6 Comments

What Are the Parts of a Forklift and Their Functions?

This article covers all the parts of a forklift and their functions.

In it, you’ll learn:

  • The main parts of a counterbalance forklift
  • The different varieties of forklift components
  • What each component does
  • And lots more!

Let’s dive in!

Table of Contents

  • What Are the Three Major Parts of a Forklift
  • The Chassis: What’s All Part of It?
  • The Mast: What’s All Part of It?
  • The Overhead Guard: What’s All Part of It?
  • Safety Equipment: What’s All Part of It?

What Are the Three Major Parts of a Forklift?

Answer: The chassis, the mast, and the overhead guard.

Additionally, forklifts have numerous safety devices distributed throughout the truck.

But within these groups, there’s more to the story.

So what follows in this article is a breakdown of each group.

The Chassis: What’s All Part of It?

The chassis is comprised of 4 major components:

  1. The counterweight
  2. The engine or battery compartment
  3. The operator compartment
  4. The wheels and tires

Let’s go through each one.

The Counterweight

A forklift counterweight is a weight mounted on the rear of a forklift.

What does the counterweight do on a forklift?

Answer: It counteracts the weight on the forks and provides for the proper weight distribution of the truck.

If you think of a forklift as a teeter totter, this may make more sense.

The front wheels act as the fulcrum - or balancing point.

So any weight ahead of the front wheels needs to be balanced by weight behind the wheels.

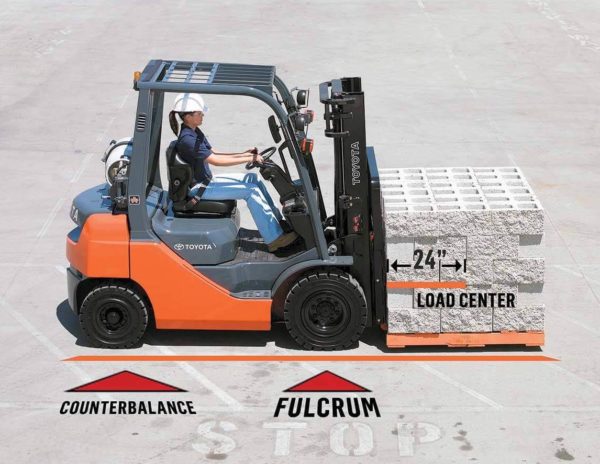

A forklift with the counterbalance, fulcrum, and load center annotated
The counterweight’s purpose is to balance the load on the forks to prevent instability

Without that counterbalance, a loaded forklift would become too heavy on the front.

And this would cause the lift truck to tip forward - rendering it useless and potentially causing injury.

What Are the Main Types of Forklift Counterweights?

There are two main types of forklift counterweights:

Bulk-Type

This is the most common type of counterweight you’ll see on a forklift.

A bulk-type forklift counterweight
A bulk-type forklift counterweight

Bulk-type counterweights are designed with a hollow body that’s typically lead-filled.

They can also consist of a single metal casting or a hollow metal container with a mix of concrete and metal.

Stack-Type

Stack counterweights are usually used on high-capacity forklifts.

These have metal plates or cast metal housings/steel canisters designed to stack onto a base plate.

A Hoist forklift with a stack-type counterweight
The black slabs are removable, allowing you to increase or decrease the lifting capacity

Removing or stacking these plates enables the lift to handle more weight.

Lift trucks with stack-type counterweights can have as many as six plates stacked, each at 2.5 tons.

Electric Forklifts and Counterweights

Electric sit-down forklifts have smaller counterweights than internal combustion (IC) forklifts of the same lifting capacity.

Why?

Because the battery on an electric forklift helps provide much of the counterweight.

After all, forklift batteries weigh several tons at a minimum

Thus, a full-sized counterweight isn’t necessary for electric forklifts.

The Engine/Battery Compartment

Obviously, this part of the chassis is where the power source for forklifts exists.

The engine compartment on a sit-down internal combustion forklift is located directly under the operator’s seat.

The engine compartment on a CLARK forklift
The engine compartment on a CLARK forklift

The battery compartment on an electric forklift is also located under the seat.

The battery compartment on a Toyota forklift
The battery compartment on a Toyota forklift

In internal combustion forklifts, the parts of a forklift engine include the:

  • Engine itself
  • Transmission
  • Fuel system
  • Radiator and cooling system
  • Air intake
  • Hydraulic valve, pump, and tank
  • Electrical fuse box

In an electric forklift, this compartment contains the battery and electrical controllers.

Because they’re battery-powered, electric forklifts have fewer components than internal combustion fork trucks do.

That is, they do not have a transmission, fuel system, radiator and cooling system, and air intake.

They do, however, have hydraulic systems to operate the mast.

The location of the hydraulic system on a Toyota electric forklift
The location of the hydraulic system on a Toyota electric forklift

These are located underneath the floorboard, which the operator’s feet rest on.

Operator Compartment

The operator compartment is where the forklift operator sits or stands during operation.

The operator compartment on a CLARK pneumatic forklift
The operator compartment on a CLARK pneumatic forklift

Common components in the operator compartment include:

Steering Wheel

This is self-explanatory.

Forklift steering wheels also include a horn for safety.

Seat and Seatbelt

This is also self-explanatory.

Newer forklifts require seat belts.

Pedals

There are different pedals for different functions, including the accelerator, service brake, parking brake, and inching pedal.

The various pedals on an internal combustion forklift
The various pedals on an internal combustion forklift

Levers

Forklifts have 3 basic hydraulic control levers:

  1. Lift knob to control the fork’s height
  2. Tilt knob to control the mast’s tilts (up and down)
  3. An auxiliary knob used for attachment functions like side shifting
The 3 hydraulic levers on an electric sit-down rider forklift
The 3 hydraulic levers on an electric sit-down rider forklift

Some forklifts have 4 or even 5 control knobs for additional auxiliary functions.

Gauges

These include an hour meter, engine temperature, warning indicators, and speedometer.

The instrument panel on an electric sit-down rider forklift
The instrument panel on an electric sit-down rider forklift

Just like in a car, they’re used to measure different aspects of the lift’s operation.

Data Plate

Sometimes called a capacity plate or a nameplate, the forklift data plate includes important information about the lift truck’s design and capabilities.

The data plate on a Toyota propane forklift
The data plate on a Toyota propane forklift

That includes information like:

  • Forklift weight
  • Fuel type
  • Battery type
  • Mast type
  • Attachments
  • Load capacity
  • Tire size

Operators need to understand the data plate before using the lift.

The Wheels and Tires

Forklift wheels and tires are different from those in road vehicles.

For one, there are various types of tires available.

For another, forklifts steer in the opposite way than cars do.

And finally, forklifts do not have any suspension connected to the wheels.

Let’s cover forklift wheels and tires in more detail.

Forklift Wheels

Forklifts have two types of wheels: Drive wheels and steer wheels.

Drive Wheels

Drive wheels are located on the front axle of the forklift and are what the engine or electric motor supplies power to in order to move the lift truck.

The drive wheel on a Toyota propane forklift
The drive wheel on a Toyota propane forklift

These wheels do not steer left and right.

Instead, they support most of the load from the mast in a fixed position.

Steer Wheels

These are located on the rear axle of the forklift.

The steer wheel on a CLARK propane forklift
The steer wheel on a CLARK propane forklift

They allow the lift truck to turn, and also act as support for the counterweight.

Why Is Forklift Steering Backwards?

Answer: Because the front drive wheels support the weight of the load.

If the drive tires could turn, the forklift would become unstable and potentially tip over.

So instead, forklifts are designed to steer from the rear to keep the truck steady under a load.

Forklift Tires

Forklifts have different types of tires depending on the type of forklift and application.

The main types of forklift tires are:

Pneumatic

These tires are filled with air, just like car tires.

A pneumatic drive tire on a Toyota diesel forklift
A pneumatic drive tire on a Toyota diesel forklift

Overall, they have better traction and stability on uneven terrain.

But they are prone to punctures from nails and metal debris.

Solid Pneumatic

Solid pneumatic tires are like air pneumatic tires.

But instead of being filled with air, they’re typically filled with foam.

A solid pneumatic drive tire on a CLARK forklift
A solid pneumatic drive tire on a CLARK forklift

That also makes them more expensive than air-filled pneumatic tires.

Solid pneumatics are best for outdoor areas with a lot of debris that can puncture air-filled tires.

They’re typically used in lumber yards, scrap yards, and construction sites.

Cushion

Cushion tires (also called press-on tires) are made of solid rubber molded to a steel band.

A cushion tire on a Toyota electric forklift
A cushion tire on a Toyota electric forklift

They’re ideal for indoor use on smooth driving surfaces or light outdoor use.

Many forklift users choose to outfit their lifts with non-marking cushion tires.

The advantage of these is that they won’t scuff up the floor as regular black cushion tires will.

The Mast: What’s All Part of It?

If you’re wondering “What is the front part of a forklift called?” the answer is the mast.

A forklift mast, also called upright, is the part of the forklift that lifts, positions, and lowers the loads that forklifts handle.

Types of Forklift Masts

There are 4 types of forklift masts:

Single-Stage Mast

A single-stage mast - also called a “Simplex” forklift mast - has one channel and, therefore, a limited lifting height.

A single-stage mast on a Moffett off-road forklift
A single-stage mast on a Moffett off-road forklift

They have zero free lift capability, meaning as the forks rise, the top of the mast also rises.

So, these types of masts are best for outdoor environments or applications where overhead clearance doesn’t matter.

Two-Stage Mast

A two-stage mast - or “Double” or “Duplex” mast - has two channels or sections either with or without full free lift capabilities.

A two-stage mast on a Toyota electric forklift
A two-stage mast on a Toyota electric forklift. Note the free lift cylinder in the center

A 2-stage mast is best for jobs that don’t need to lift very high.

An example is loading and unloading flatbed semi-trailers.

Three-Stage Mast

Also called a “Triplex,” “Triple,” or “Triple Stage Upright (TSU),” this is the most common type of mast.

A three-stage mast on a Toyota electric forklift
A three-stage mast on a Toyota electric forklift

A 3-stage mast has three sections.

These sections extend the carriage and forks to the maximum lift height with two sliding rails on the sides and a single stationary rail.

It enables loading and unloading at greater heights than single- or two-stage masts.

Quad Mast

This mast uses four sets of rails with added chains to give four stages of lifting with full free lift.

A quad mast on a Toyota electric forklift
A quad mast on a Toyota electric forklift

It provides the highest reach and is commonly used in very high stacking in specialized warehousing.

What Are the Main Forklift Mast Parts?

The parts of a forklift mast include:

  • Rails
  • Cylinders
  • Chains
  • Carriage

Let’s go through each part.

Rails

The rails are the “frame” of the mast.

The inner and outer rail on 2-stage forklift mast
The inner and outer rail on 2-stage forklift mast

They allow the mast to extend up to its maximum fork height (MFH) or down to its collapsed or lowered height.

Lift Cylinders

Also called hydraulic cylinders, lift cylinders harness hydraulic power to raise or lower the mast and load.

There are 2 types of lift cylinders:

  1. Free lift
  2. Outboard

Free lift cylinders are mounted in the center of the mast and allow the carriage to rise without extending the rails through the top of the mast.

The free lift cylinder on a Toyota electric forklift
The free lift cylinder on a Toyota electric forklift

The outboard cylinders are located in the rear of the mast and push the nested rails upward.

An outboard cylinder on a Clark diesel forklift
An outboard cylinder on a Clark diesel forklift

Tilt Cylinders

These control the forward and backward movement of the mast.

The tilt cylinder on a Toyota electric forklift
The tilt cylinder on a Toyota electric forklift

They’re double-acting hydraulic cylinders, meaning they can both push and pull.

Lift Chains

Forklift mast chains attach the carriage to the hydraulic cylinders.

The lift chains and anchors on a Clark diesel forklift
The lift chains and anchors on a Clark diesel forklift

They function in combination with lift cylinders and rails to raise and lower the carriage.

Carriage

The carriage is the component that is lifted and that also does the lifting in a forklift.

The carriage is installed inside the mast rails, attached to lift chains, and has a mounting rail for attachments.

The carriage on a Toyota electric forklift
The carriage on a Toyota electric forklift

A load backrest bolts onto the carriage and helps to prevent the load from tumbling backward off the forks (and even onto the forklift itself).

Carriage Class Sizes

Not all carriages are the same.

Instead, they differ according to their size and the weights they can handle.

The following are the 5 carriage classes, along with their capacities:

Class Carriage Height Lifting Capacity
I13"<2,200 lbs.
II16"2,200 lbs. — 5,500 lbs.
III20"5,500 lbs. — 10,998 lbs.
IV25"11,000 lbs. — 17,600 lbs.
V28.66"17,602 lbs. — 24,198 lbs.

Attachments

Attachments mount to the carriage and are what actually handle the loads.

Common forklift attachments include:

Forks

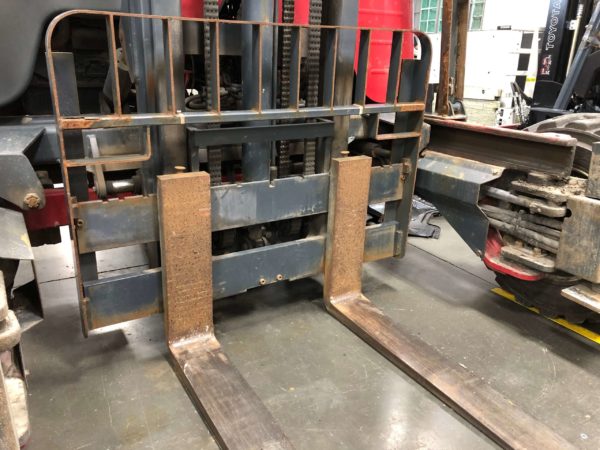

The simplest attachment, forks simply hook onto the carriage.

Forks hanging on a bare carriage
Forks hanging on a bare carriage

Common fork sizes include:

  • 42”
  • 48”
  • 54”
  • 60”
  • 72”
  • 96”

What Are Forklift Tines?

“Tines” is simply another name for forks.

You may also hear them referred to as “blades.”

But to be sure, they all mean the same thing.

Sideshifters

A sideshifter hooks onto the carriage and forks hook onto the sideshifter.

With this arrangement, operators can move a load from side to side.

A sideshifter mounted to the carriage of a CLARK forklift
A sideshifter mounted to the carriage of a CLARK forklift

In doing so, the operator can make minor adjustments to the load alignment without maneuvering the entire forklift.

Fork Positioners

Fork positioners are typically sideshifters with extra hydraulics that allow side-to-side positioning of the forks.

A fork positioner mounted to a Toyota electric forklift
A fork positioner mounted to a Toyota electric forklift

They are essential when the load’s width constantly changes since they allow the operator to quickly align the forks with the pallet channels.

Paper Roll Clamps

These attachments are designed to handle cylindrical paper rolls.

A Toyota Paper Roll Special propane forklift
A Toyota Paper Roll Special propane forklift

As you can imagine, they’re commonly used in the paper and printing industries.

Multiple Pallet Handlers

Another common name for this style of attachment is the “single-double.”

A forklift with a Cascade single-double attachment
A forklift with a Cascade single-double attachment

These allow operators to handle more than one pallet by hydraulically spreading multiple sets of forklifts.

Then, the operator can carry multiple pallets at the same time.

Slip Sheeters

Also called a “push/pull” attachment, these are designed to handle non-palletized goods.

To do so, the attachment grabs onto the “slip sheet” under the load.

A slip-sheet attachment about to pull back an unpalletized load of boxes
A slip-sheet attachment about to pull back an unpalletized load of boxes

Then, the attachment retracts and pulls the load onto the forks beneath.

These are commonly used in sensitive industries like food and pharmaceuticals where using wood pallets could contaminate the products.

The Overhead Guard: What’s All Part of It?

The overhead guard is a safety feature designed to protect the operator from falling objects while within the confines of the operator compartment.

The overhead guard on a Toyota 8FGCU25 forklift
Forklifts must have an overhead guard installed to protect operators from falling objects

Since the 1960s or so, overhead guards have been standard equipment on forklifts.

And in fact, they are required by OSHA, which states that:

“An overhead guard shall be used as protection against the impact of small falling objects such as boxes, debris, small packages, bagged material, etc. But, they're not able to withstand the impact of a falling capacity load.”

Safety Equipment: What’s All Part of It?

In past years, forklifts had practically zero safety features.

Today, there are many different options for keeping operators, supervisors, and pedestrians safe.

These include:

Seatbelts

Like car seat belts, forklift seat belts save lives as they restrain the driver and prevent them from being catapulted out of the compartment in case of a tip-over.

A forklift operator buckling their seat belt
Seat belts are essential for preventing injury and death from tip-overs

Headlights

These are commonly found on forklifts working in dark areas, like semi-trailers, to improve visibility.

A CLARK internal combustion forklift outfitted with headlights
A CLARK internal combustion forklift outfitted with headlights

Warning Lights

Warning lights can take many forms.

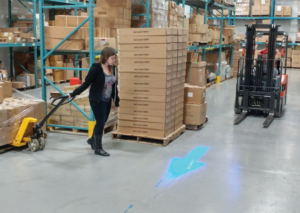

One popular type is blue lights.

A blue warning light mounted on the back of a Toyota forklift
A blue warning light mounted on the back of a Toyota forklift

These are used to alert pedestrians and warehouse workers that a forklift is approaching.

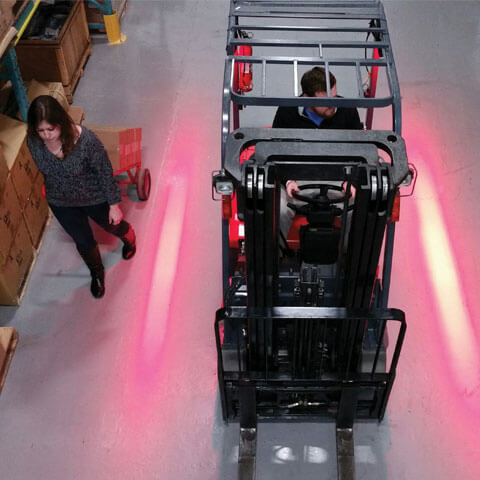

Red-Zone lights are another type of warning light.

Red-Zone lights let pedestrians know how far to stay away from a forklift
Red-Zone lights let pedestrians know how far to stay away from a forklift

They are used to alert pedestrians/warehouse workers of how close they can get to the forklift.

Mirrors

Mirrors are mounted on the left and right pillars of the overhead guard to allow the operator to see behind the fork truck.

A Toyota electric forklift with side mirrors installed
A Toyota electric forklift with side mirrors installed

Not all forklifts have these, nor are they required.

Brake Lights and Turn Signals

These for extra signaling, just like on a car or truck.

Brake and turn signals on a Toyota electric forklift
Brake and turn signals on a Toyota electric forklift

But like mirrors, not all lift trucks have them.

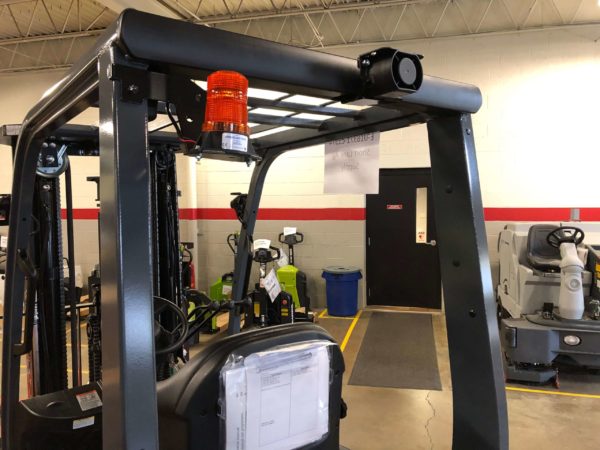

Strobe Lights

Strobe lights are typically mounted on the rear of the overhead guard where everyone can see them.

An orange strobe light installed on a Toyota internal combustion forklift
An orange strobe light installed on a Toyota internal combustion forklift

They serve as a universal sign that workers should be alert.

Travel Alarm

These provide audible warnings either when the forklift is in motion or just when the forklift is backing up.

A back-up alarm mounted on the rear of a Toyota forklift
A back-up alarm mounted on the rear of a Toyota forklift

Forklift Horn

Forklifts must be equipped with horns.

A steering wheel with a horn on a Toyota electric forklift
A steering wheel with a horn on a Toyota electric forklift

They provide a warning when crossing thresholds that may have pedestrians nearby.

Conclusion

That’s it: Forklift part names and their functions.

Now, we’d like to turn it to you.

Were you surprised about any of the parts of a forklift?

Do you have further questions?

Let us know in the comments section!

Reader Interactions

Comments

  1. jeff barnas says

    December 10, 2021

    i have an issue with a toyota forklift . how do i get to the help/ questions blog?
    thanks

    Reply
    • Alex Hilke says

      December 10, 2021

      Hi Jeff. Can you tell me what issue exactly that you’re having and I’ll see where to direct you for help?

      Reply
  2. Moses Babarinde says

    August 28, 2022

    It’s very, very interesting and well enjoyed!!!

    Reply
    • Alex Hilke says

      August 29, 2022

      Hi Moses, I’m glad you found it interesting — thanks for the kind reply!

      Reply
  3. Barış Can YÜREKLİ says

    September 1, 2022

    Hi Alex, there is something I need to ask you.

    Is there any secondary safety measure on forklift forks so that if the cylinders or chains break, the forklift fork does not fall?

    What holds the forks on a forklift, when chains or cylinders break?

    Reply
    • Alex Hilke says

      September 1, 2022

      Hi Baris, great question! Here’s what our technical team says:

      There are many redundant safety systems built into the design of a lift truck lifting mechanism. Let’s first address the question about the chains. Each lift truck chain is typically rated for 2X the rated capacity load of the truck. Most lift trucks use chains in tandem so in the event a single chain would break the other one will still be able to support a capacity load. The next is the cylinders. Most lift cylinders have some type of flow restricting device that will control the speed of decent in the event there is instant failure in the hydraulic system. To answer the question directly. “ Is there any secondary safety measure on forklift forks so that if the cylinders or chains break, the forklift fork does not fall?” No. In the unlikely event there is complete failure of the chains or the cylinders the carriage and forks will come to the ground. This is the reason why proper use, safety adherence and maintenance are so important.

      Thanks for reaching out!

      Reply

Leave a Comment Cancel reply

Your email address will not be published. Required fields are marked *

Primary Sidebar

Footer

Get In Touch With Us

Feel free to contact us the old fashioned way. Sometimes it’s nice to talk to a real person.
_
t: (920) 499-5181

Locations

Green Bay
_
2290 S. Ashland Ave
Green Bay, WI
54304

Neenah
_
528 Enterprise Dr
Neenah, WI
54956

Wausau
_
5901 Packer Dr
Wausau, WI
54401

Richfield
_
3046 Helsan Dr Suite B
Richfield, WI
53076

Copyright © 2023 · Conger Industries Inc. · Sales Terms & Conditions · Service Terms & Conditions · Rental Terms & Conditions
