AXCS Push Around Scissor Lift

530 lb. Platform Capacity
16 ft. Maximum Working Height
Zero Turn Radius
893 lbs. Machine Weight
Manual Push with Hydraulic Lift

Documents

Product Documents

Product Options

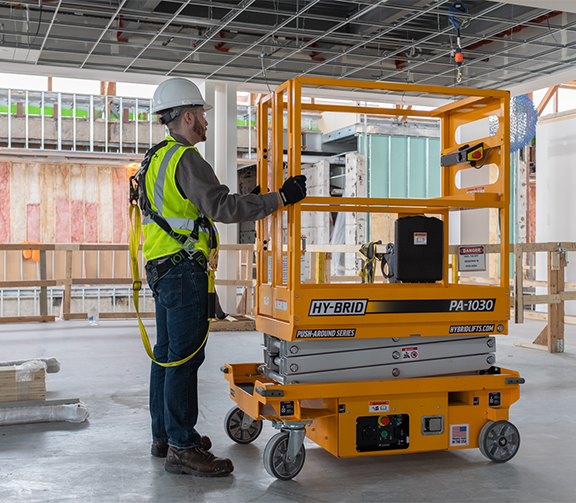

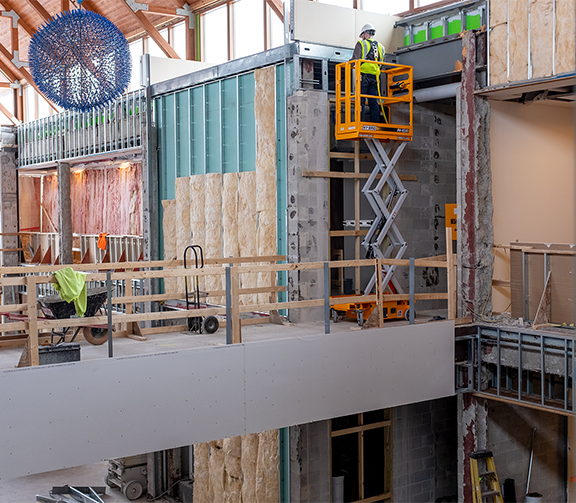

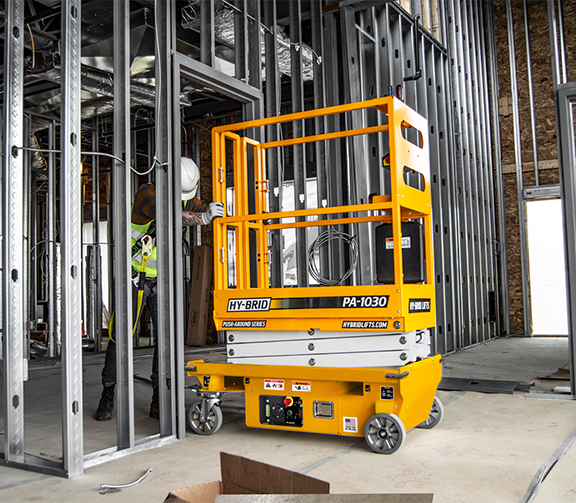

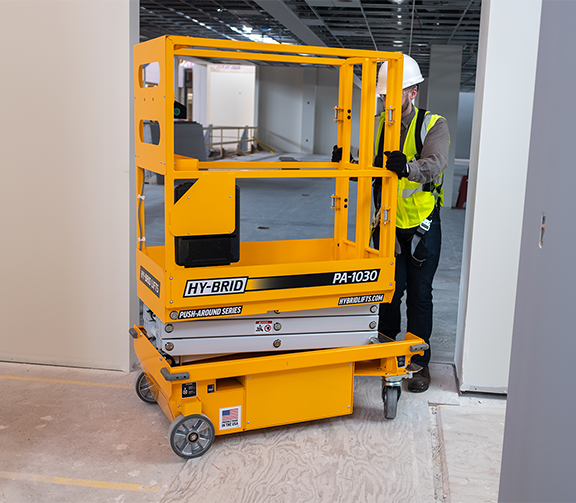

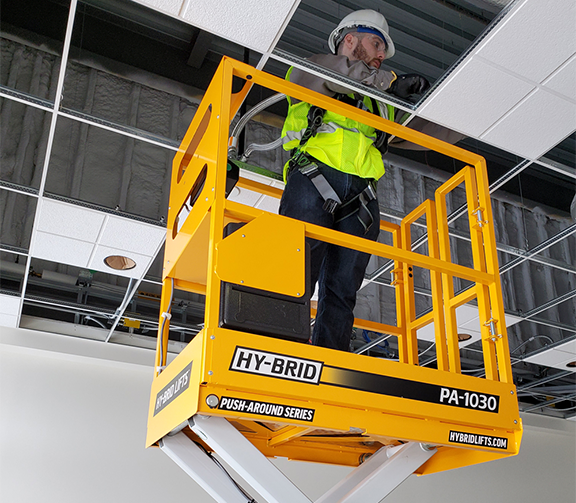

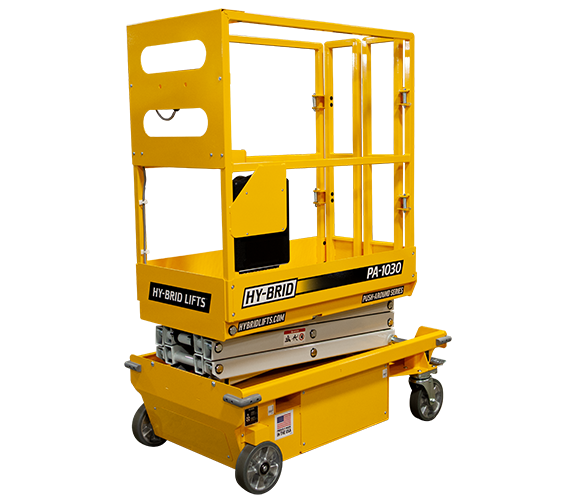

The Hy-Brid PA-1030 push-around scissor lift is a compact, operator-friendly solution for indoor overhead work in tight or sensitive environments. With a working height of 16 feet and a 530 lb platform capacity, it allows technicians to bring tools and materials with them—reducing trips and boosting productivity.

Its lightweight, zero-turn design makes it easy to maneuver through narrow hallways, elevators, and standard doorways without damaging flooring or walls. Built with safety in mind, it features two-handed operation, a tilt alarm, and auto-locking casters. This low-maintenance lift is ideal for facility maintenance, retail fit-outs, and any job where ladders fall short.

Models: PA-1030

Additional Information

Condition	New
Brand	AXCS
Power	Electric
MEWP Lift Height	Up to 25ft
MEWP Capacity	501 – 1,000 lbs

Compact and lightweight design fits through standard doorways and elevators.
Zero inside turning radius makes it ideal for tight indoor applications.
Maintenance-free design reduces downtime and ownership costs.
High platform capacity (530 lbs) allows room for operator and tools.
Manual operation offers enhanced safety and control in sensitive environments.

Tool holder and parts tray for convenience.
Saloon-style entry gate for easy platform access.
Onboard battery condition indicator and diagnostics.
Two-handed vertical operation for safe control.
Oversized scissor pins and auto-lock front casters.
Tilt alarm and manual descent pull cable.
Forklift pockets and recessed charger outlet.
Non-slip deck surface for added operator security.
Slide-out component drawer for service access.
2-year parts & labor warranty, 5-year structural warranty.

110V power-to-platform for using tools at height.
Flashing beacon for enhanced visibility.
AGM maintenance-free batteries.
Inverter for AC power needs on the platform.

Compact size and lightweight (893 lbs) for easy maneuvering by one person.
Platform height up to 10 ft with 16 ft working height indoors.
Saloon gate and low platform entry for comfortable access.
Zero turn radius reduces effort during repositioning.

Tilt alarm helps prevent operation on unsafe surfaces.
Two-handed vertical controls reduce accidental lift motion.
Manual descent pull cable provides emergency lowering option.
Lanyard attachment point supports fall protection compliance.
Horn and auto-lock casters ensure visibility and stability.

530 lb platform capacity for tools and personnel.
Lift speed of 18 seconds up / 20 seconds down.
One-person indoor rated occupancy.
Battery-powered hydraulic lift system with 12V Group 27 battery.

Maintenance-free mechanical design.
Slide-out drawer for quick component access.
Onboard diagnostics simplify troubleshooting.

Facility maintenance
Warehousing
Electrical installation
Retail and commercial fit-outs
Healthcare and clean environments
