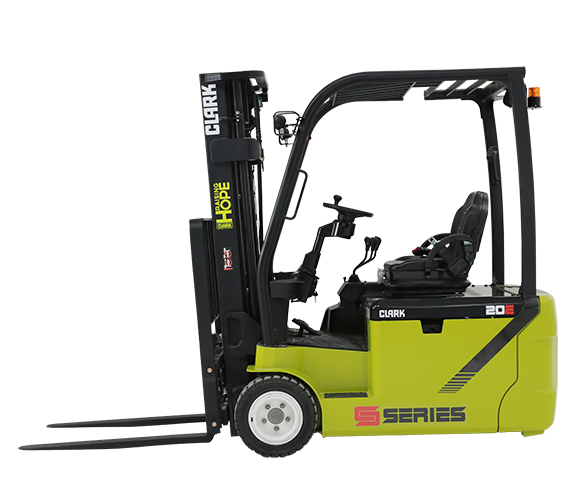

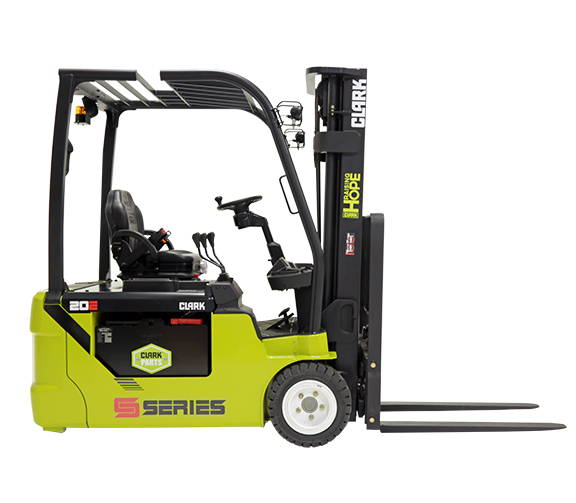

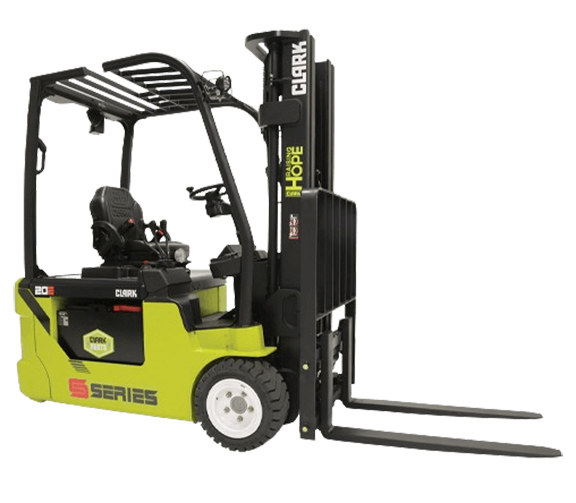

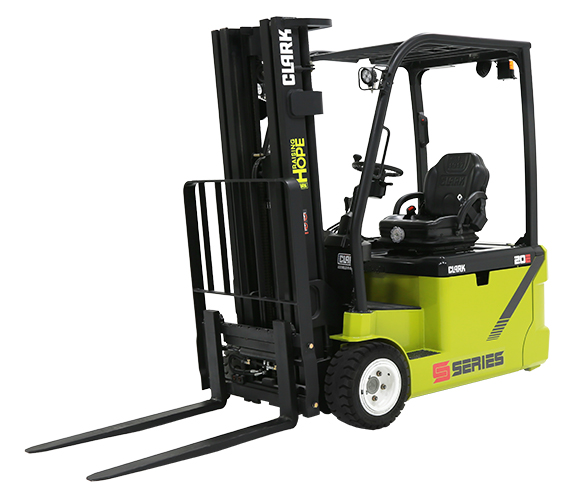

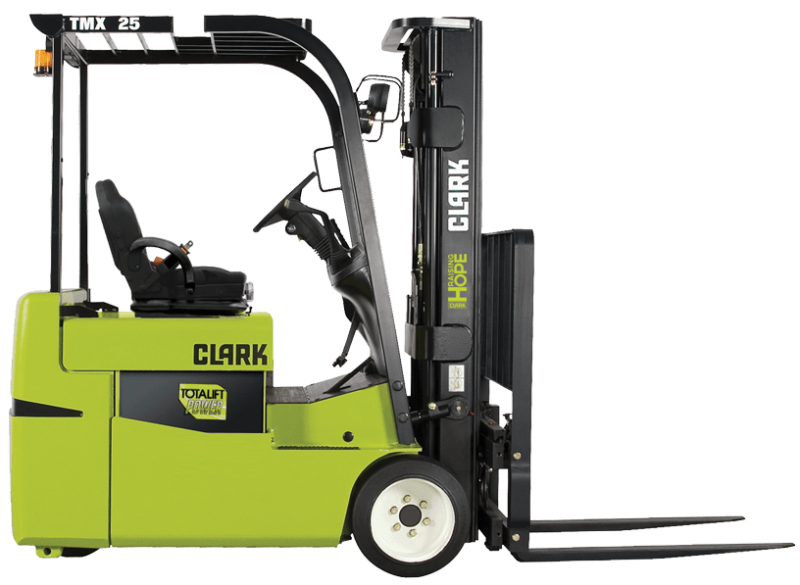

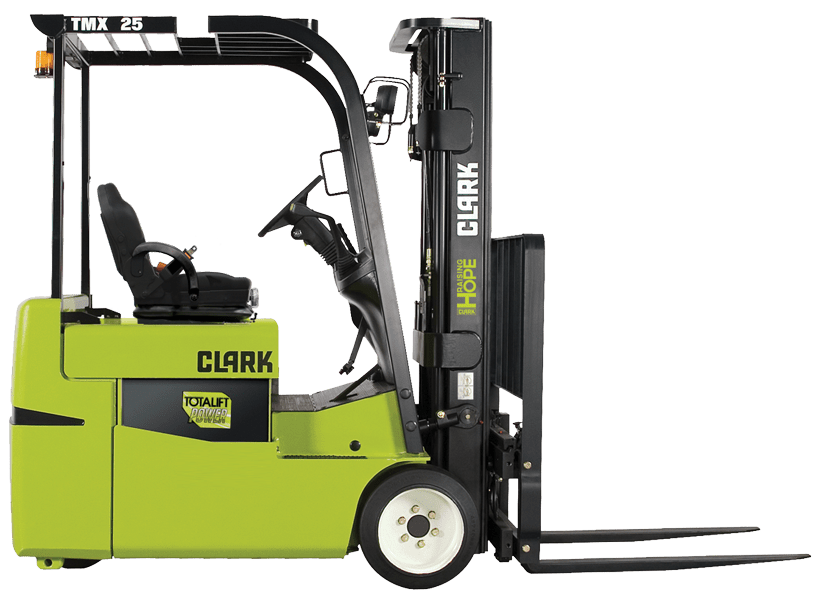

CLARK 3-Wheel Electric Forklift

2,500 – 5,000 lb. Capacity Range
100% AC Electric System
Best in Class Draw-bar Pull
Hydrostatic Power Steering
Enclosed Motors

Documents

Product Documents

CLARK TMX15s/15/17/20/25 3-Wheel Electric Spec Sheet

Financing Information

Product Description

CLARK’S TMX 3-Wheel Electric Forklift continues the evolution of our three-wheel design with the efficiency, low maintenance and power of a 100% AC System. This rugged yet comfortable design delivers superior capacities and the quality, dependability and maneuverability you’ve come to expect from CLARK; the inventor of the three-wheel forklift.

Model Numbers: TMX 15s | TMX 15 | TMX 17 | TMX 20 | TMX 25

Equipment Details

Forklift Type	Electric Motor Riders
Brand	CLARK
Condition	New
Capacity	2,500 lbs., 3,500 lbs., 3,000 lbs., 4,000 lbs., 5,000 lbs.
Fuel Type	Electric/Battery, 36 Volt, Electric/Battery, 48 Volt

High efficiency, low maintenance, and powerful 100% AC electric system
Heavy duty, high torque drive motor produces twice the draw bar pull of some competitors and climbs grades previously limited to IC trucks
13% increased runtime over DC equivalent lift trucks
Standard single-tire steer axle and an optional dual-tire steer axle are made from high strength cast steel and heat treated for additional strength
Standard hydraulic pump control is fully programmable, including lift speed, tilt, and auxiliary functions

Fully adjustable seat molded for support with non-cinching, retractable seat belt
Tilt steering column adjusts to suit operator and provides easier entry/exit
Cowl mounted hydraulic controls located and sized for ease of use
Thick molded floor mat reduces vibration and noise level to improve operator comfort

100% AC electric system
- 13% increased runtime over DC equivalent
- Produces twice the draw bar pull of some competitors
- Enclosed, brushless smart lift lock out
- Thermal and stall protection
- One motor for both steering and hydraulics
- Climbs grades previously limited to IC trucks
- Added torque eliminates roll back when starting on an incline
- Standard battery compartment accommodates a 1240 AH battery
- Optional battery compartment available for a full 1550 AH battery
- Customizable parameters to meet operators’ preference, including acceleration rate, deceleration rate and separate FW/RV max speed
- Maximum travel speed can be programmed, forward and reverse can be set independently
Hydraulic System
- Fully programmable standard hydraulic pump control
- Lift speed is fully proportional to lift lever position
- Tilt and auxiliary functions run at programmable fixed speeds
Upright
- Nested I-channel mast allows space for cylinders, hoses and chains for maximum visibility
- Hydraulic cushioning valve allows for silent staging and reduces shock and vibration
- Carriage has 6 shimmable, sealed, and canted rollers to maximize load distribution and reduce free play

Maintenance-free AC motors
No brushes to change or commutator to turn – ever
Fewer parts and minimum wear = less downtime = higher ROI

Drive axle incorporates spiral bevel and helical gear sets and was proven in 20 million field hours testing in heavy-duty application
Standard single-tire steer axle and an optional dual-tire steer axle are made from high strength cast steel and heat treated for additional strength
Heavy-duty, high torque drive motor
