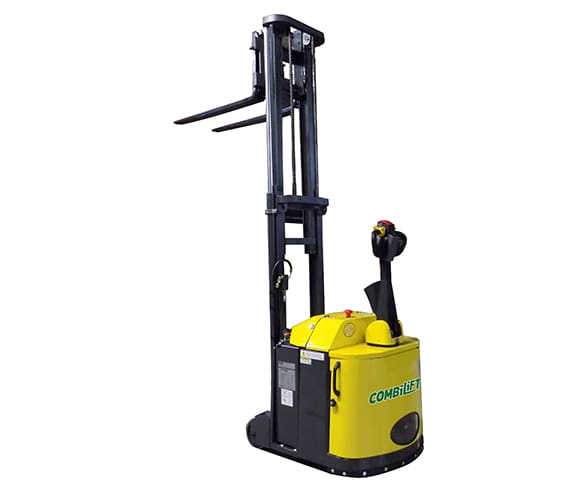

Combilift – COMBI CS – Pedestrian Stacker - Cut Out

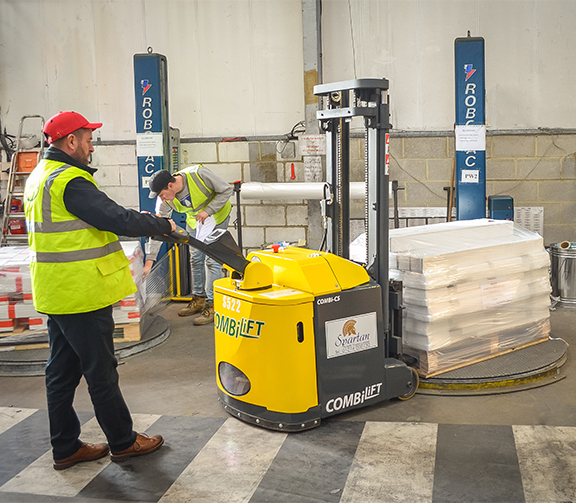

Combi Counter Balance Stacker - Application 6

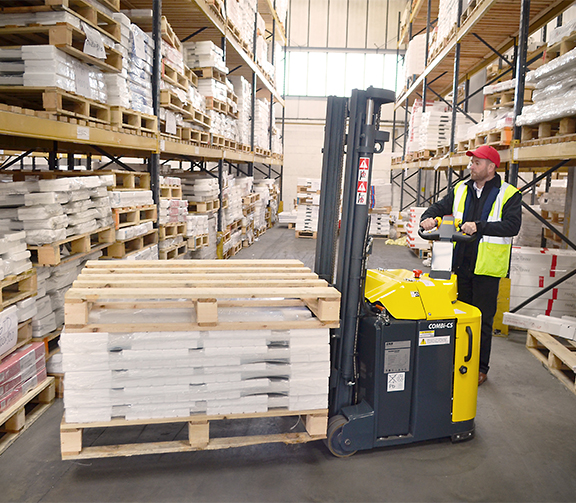

Combi Counter Balance Stacker - Application 5

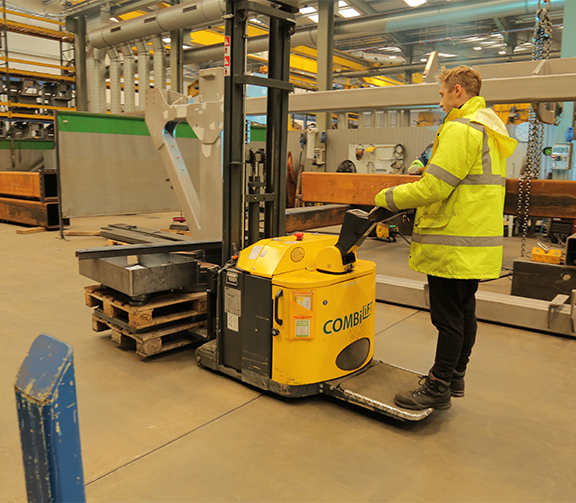

Combi Counter Balance Stacker - Application 4

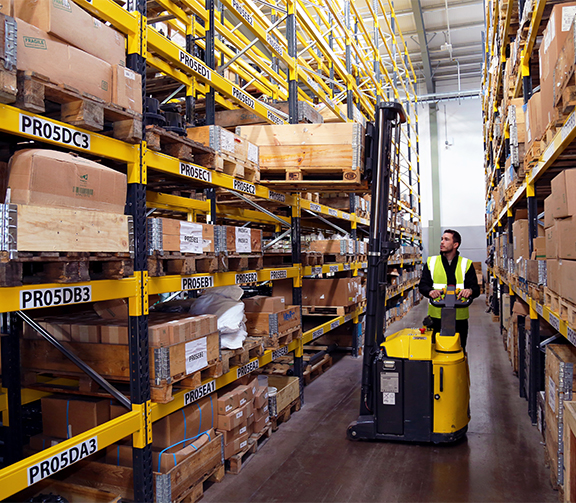

Combi Counter Balance Stacker - Application 3

Combi Counter Balance Stacker

2,200 – 4,400 lb. Capacity
24-Volt Electric Power
38 – 63 in. Turning Radius
5,060 – 7,600 lbs. Machine Weigh
4 mph Maximum Travel Speed

Documents

Product Documents

Videos

Financing Information

Forklift Leasing: The Ultimate Guide

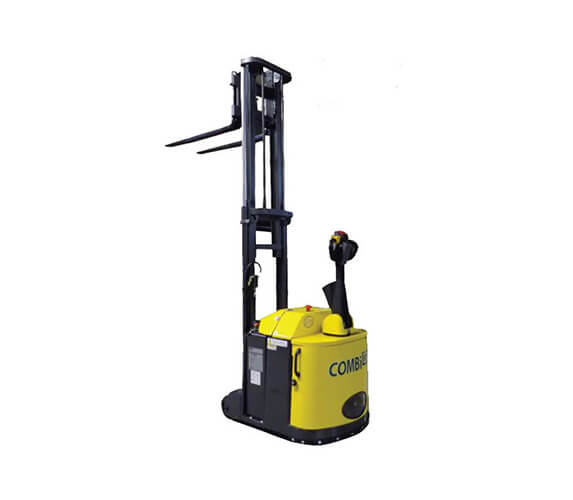

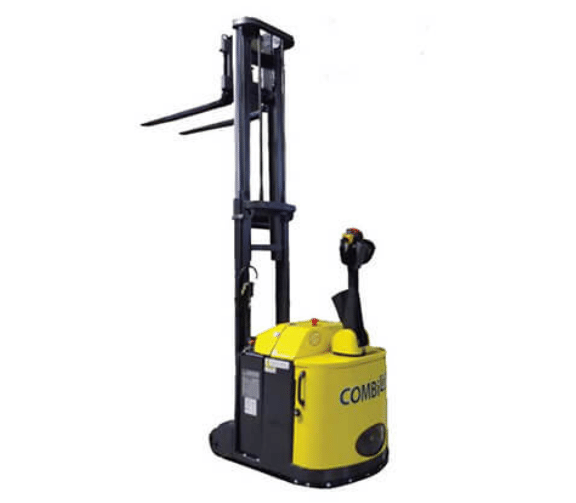

The Combi-CS is a compact, pedestrian-operated counterbalanced stacker designed to safely handle palletized loads in tight warehouse spaces. Unlike traditional walk-behind stackers, it features a patented multi-position tiller arm that allows the operator to stand beside the machine—offering full visibility and eliminating the risk of getting trapped.

With a powerful AC electric motor, power steering, and intuitive controls, it delivers exceptional maneuverability even in narrow aisles. Available in lift capacities up to 4,400 lbs, the Combi-CS combines safety, efficiency, and performance in one operator-friendly package. As your local Combilift dealer, we’re here to help you find the right model for your facility’s needs.

Model Numbers: Combi-CS, Combi-CS 4400

Additional Information

Forklift Type	Electric Pallet Jacks & Stackers
Fuel Type	Electric/Battery

Superior safety in narrow aisles due to patented multi-position tiller arm design.
Operator stands to the side, eliminating risk of being crushed and enabling operation in very narrow aisles.
Full visibility of load and forks enhances maneuverability and safety.
Counterbalanced design eliminates the need for outrigger arms, enabling closer access to racking.

Patented Multi-Position Tiller Arm
Power Steering
Rear Wheel Drive
AC Motor Technology
Yellow & Gray Color Scheme

Various overall lengths and wheelbase configurations to suit different warehouse environments:
- Combi-CS: Length options – 79”, 85”, 91” | Wheelbase – 31”, 37”, 42.5”
- Combi-CS 4400: Length options – 99”, 105”, 111” | Wheelbase – 54.5”
Capacity variations:
- Combi-CS: 2200 lbs, 2750 lbs, 3300 lbs
- Combi-CS 4400: 3300 lbs, 3850 lbs, 4400 lbs

Operator can stand safely to the side of the unit during operation, reducing fatigue and improving visibility.
Tiller arm can be positioned to the left or right to maximize comfort and control.

Operator remains outside the danger zone thanks to side-standing design.
Multi-position tiller arm ensures full control and visibility at all times.
Excellent for tight warehouse aisles where traditional forklifts pose higher risk.

Maximum lift height: 98” (both models)
Maximum ground speed: 4 mph
Gradeability: 5%
AC Electric Traction Motor:
- Combi-CS: 24V / 3.35 HP
- Combi-CS 4400: 24V / 4 kW
AC Electric Pump Motor:
- Combi-CS: 24V / 6.7 HP
- Combi-CS 4400: 24V / 5 kW
Battery Capacity:
- Combi-CS: 24V / 330 Ah
- Combi-CS 4400: 24V / 630 Ah

Electric components and AC motor technology reduce maintenance complexity.
Polyurethane and Vulkollan wheels for durable wear and smoother serviceability:
- Combi-CS Front Tire: 6″ OD / 2″ Width | Rear Tire: 10″ OD / 3″ Width
- Combi-CS 4400 Front Tire: 10″ OD / 2″ Width | Rear Tire: 12″ OD / 3″ Width

Warehousing & Distribution
Retail Inventory Management
Manufacturing Environments
Industrial Storage Applications
