The FactoryCat MicroMag is a compact walk-behind floor scrubber designed for congested production, service, and commercial areas. Its 35-inch-long chassis can be equipped with a 17- or 20-inch disk deck, while matching 10-gallon tanks support practical productivity up to 7,308 square feet per hour. Pad-assist operation, adjustable handlebars, and non-marking wheels help operators maneuver the machine around equipment and other obstacles. A powder-coated steel chassis provides durability, while tool-free access to the batteries, pumps, and motors simplifies routine service. Optional battery, charging, wand, brush, pad, and squeegee configurations allow the machine to be matched to different cleaning applications.

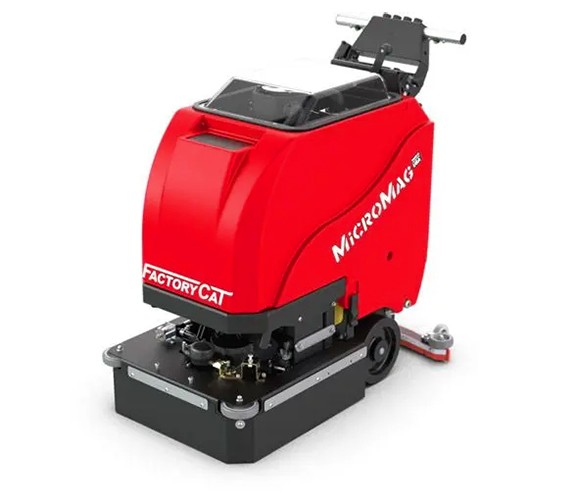

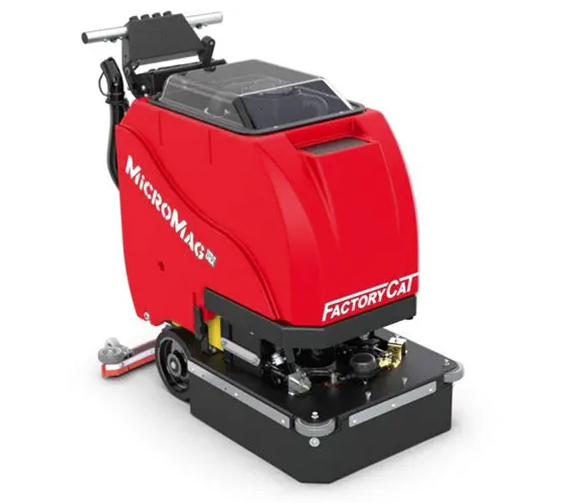

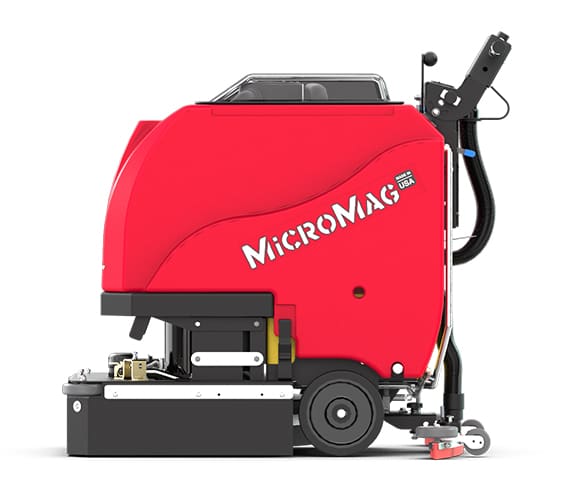

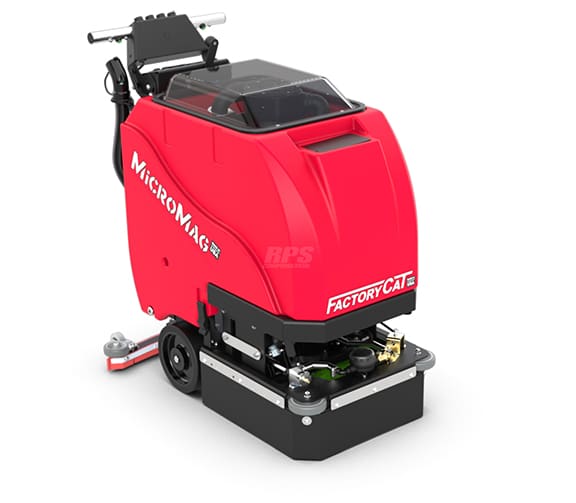

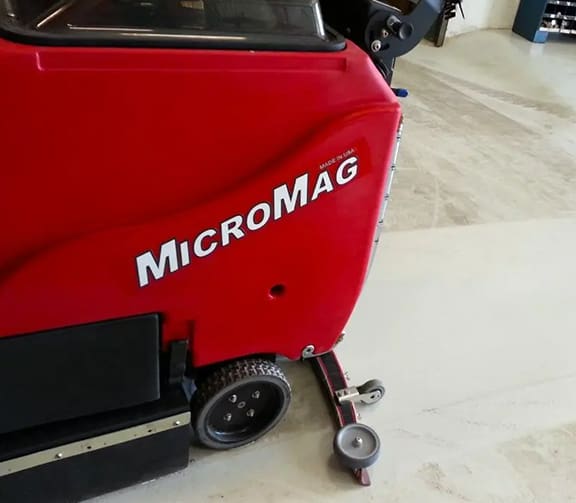

Factory Cat MicroMag Scrubber

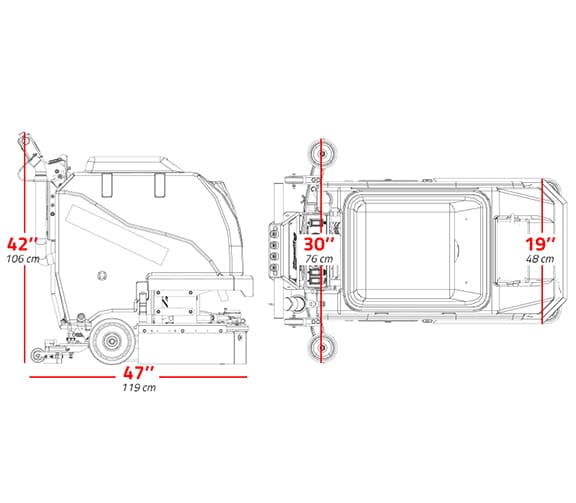

- Compact 35 × 18 × 38-inch chassis
- Choice of 17- or 20-inch disk scrub decks
- Matching 10-gallon solution and recovery tanks
- Up to 7,308 sq. ft. per hour practical productivity
- Tool-free access to batteries, pumps, and motors
Documents
- Description
- Additional Information
- Advantages
- Standard Features
- Ergonomics
- Performance
- Ease of Service
- Industries
- Sales Terms & Conditions
Additional Information
| Cleaning Width | 20 in. |
|---|---|
| Fuel Type | Electric/Battery, 24 Volt |
| Tank Capacity | 10. gal |
| Cleaning Type | Floor Scrubber |
| Operator Position | Walk Behind |

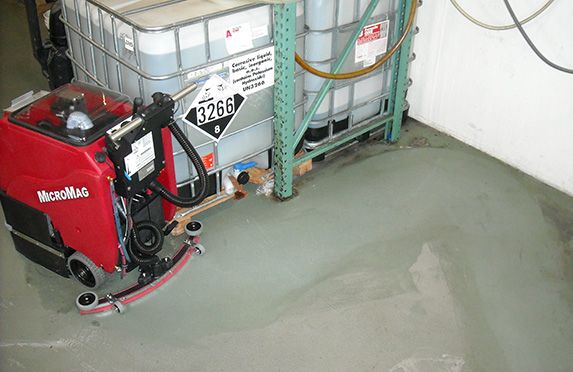

- Compact 35 × 18 × 38-inch footprint helps operators clean congested and hard-to-reach areas.
- Cleans up to 31,496 square feet per charge under the manufacturer’s stated operating conditions.
- Matching 10-gallon solution and recovery tanks support productive cleaning with fewer refill interruptions.
- Powder-coated, 1/8-inch steel chassis provides a durable platform for demanding facilities.

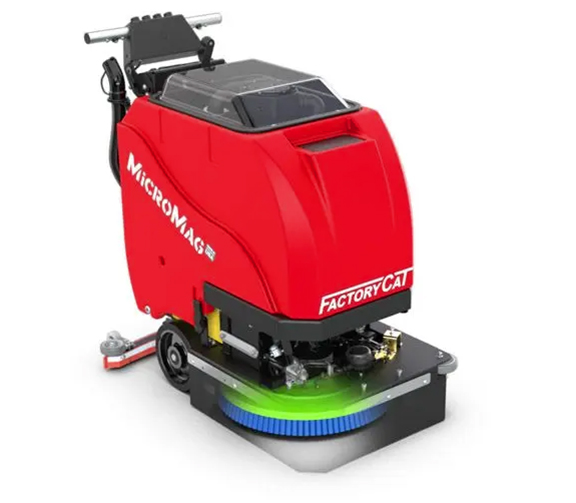

- Choice of 17- or 20-inch disk scrub decks.
- Pad-assist drive system with forward and reverse operation.
- 0.75 hp brush motor operating at 200 rpm.
- Up to 100 pounds of brush down pressure.
- 24-volt power system with an 85 Ah wet battery configuration.
- Adjustable solution flow from 0 to 0.5 gallons per minute with a stainless-steel inline filter.
- Three-stage, 0.8 hp vacuum rated at 70 inches of water lift and 70 cfm of airflow.

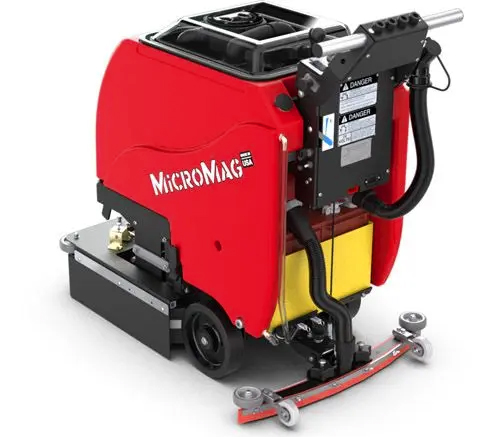

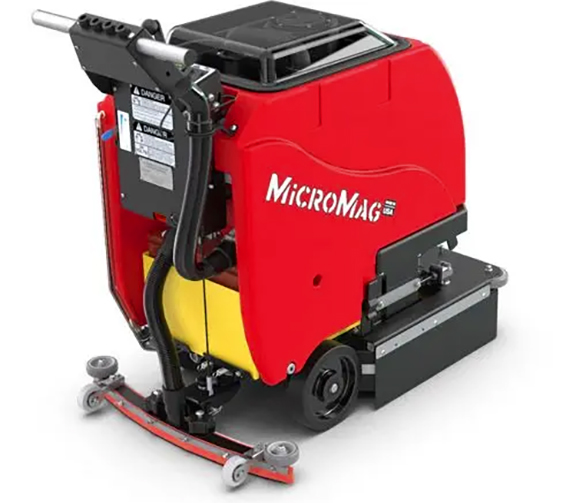

- Non-marking gray wheels, removable deck shroud, transparent lid, and adjustable handlebars.
- Adjustable handlebars accommodate different operators and working positions.
- Pad-assist operation helps move the machine while the brush is engaged.
- Front fill port provides convenient access when refilling the solution tank.
- Transparent covers make it easier to monitor tank and filtration components.
- Up to two hours of continuous scrubbing runtime, depending on battery configuration and operating conditions.
- Theoretical productivity up to 15,748 square feet per hour.
- Practical productivity up to 7,308 square feet per hour based on ISSA 2010 cleaning times.
- Scrubbing speed up to 2 mph and transport speed up to 2.6 mph.
- Graduated 10-gallon solution tank and 10-gallon recovery tank support controlled cleaning operations.

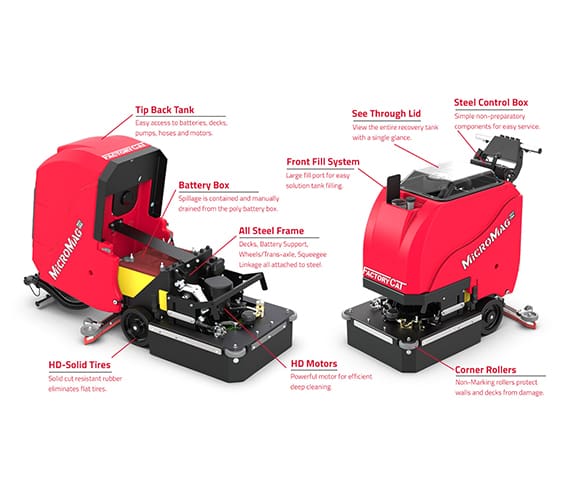

- Tank tips open for tool-free access to the batteries, pumps, and motors.
- The machine can be tipped back to provide direct access to the brush or pad.
- Removable shroud simplifies access around the scrub deck.
- Vacuum protection system seals off airflow as the recovery tank fills to help protect the vacuum motor.
- Recovery system includes a stainless-steel vacuum screen, washable filter, drain saver, and 1.5-inch drain hose.

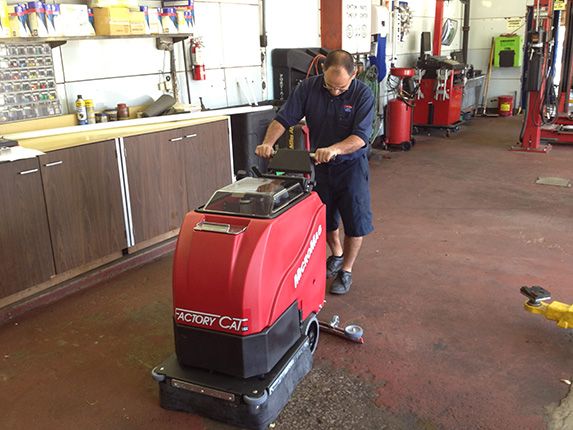

- Fabrication shops
- Automotive and truck dealerships
- Machine shops
