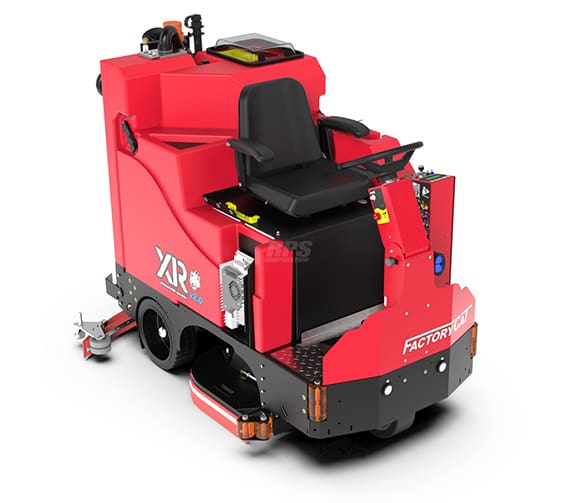

xr-v2-disk-web1

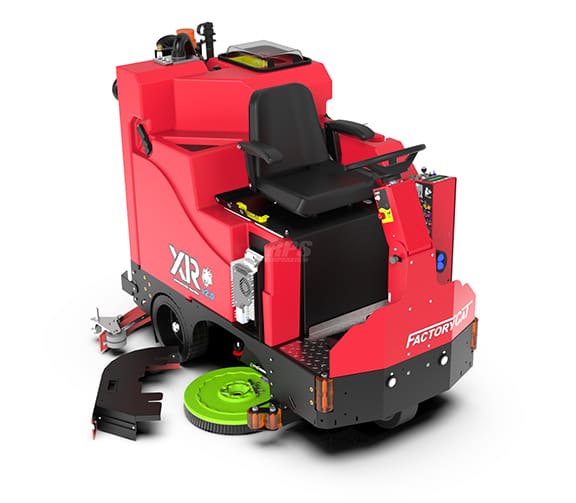

xr-v2-disk
xr-v2-cyl-web-1
xr-v2-cyl

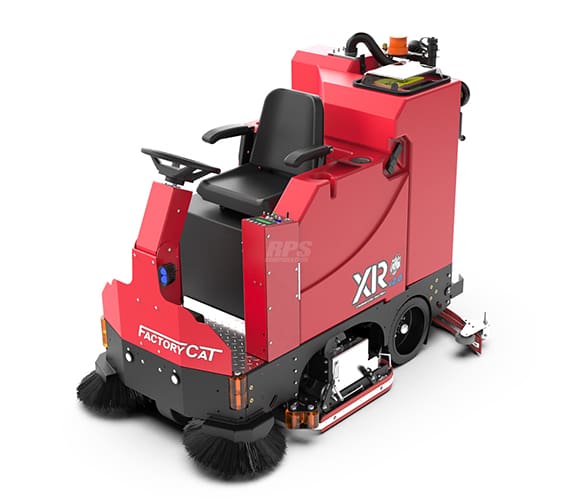

xr-v2-cyl-web-2

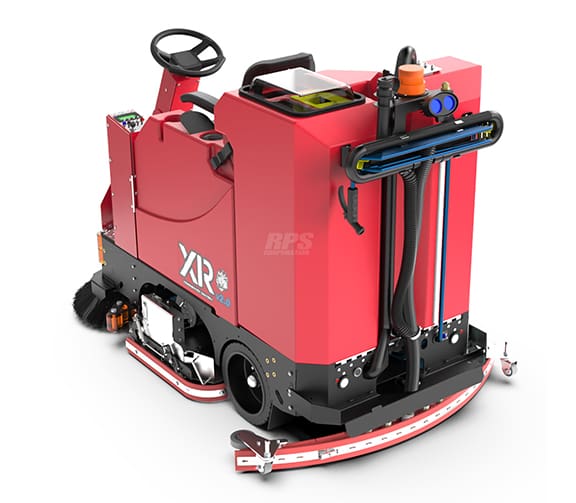

xr-v2-cyl-web-3
xr-v2-cyl-web

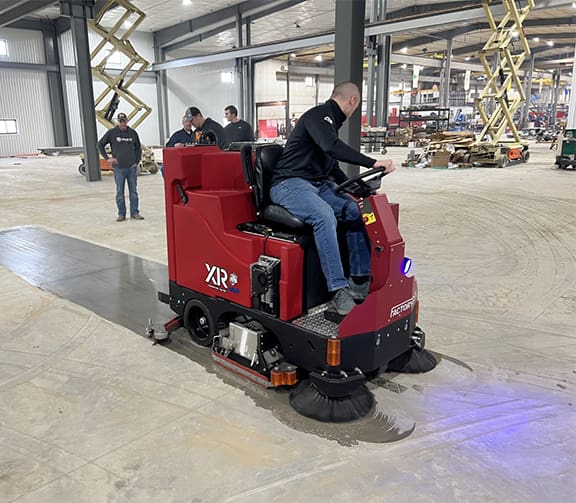

Factory Cat XR Scrubber - Image 8
fc-xr-v2-warehouse-1
fc-xr-v2-cylindrical-warehouse-beverage

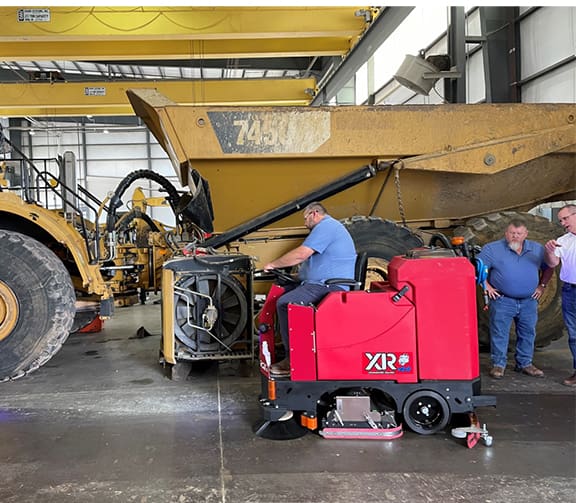

fc-xr-v2-cylindrical-construction-garage-dirt-floor-stripe-dave-1

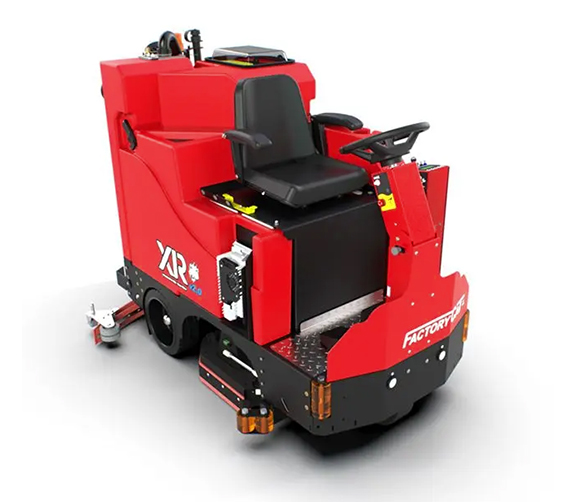

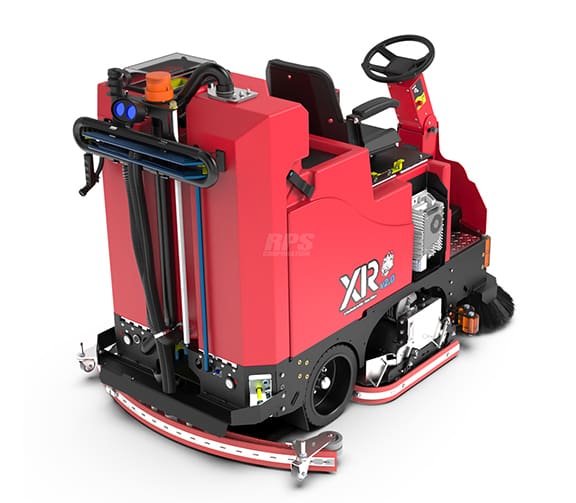

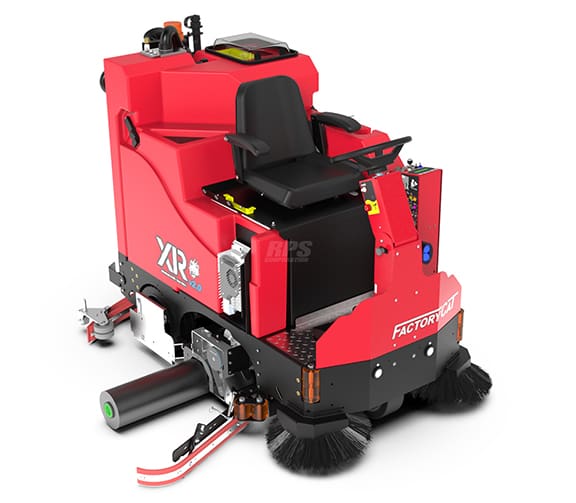

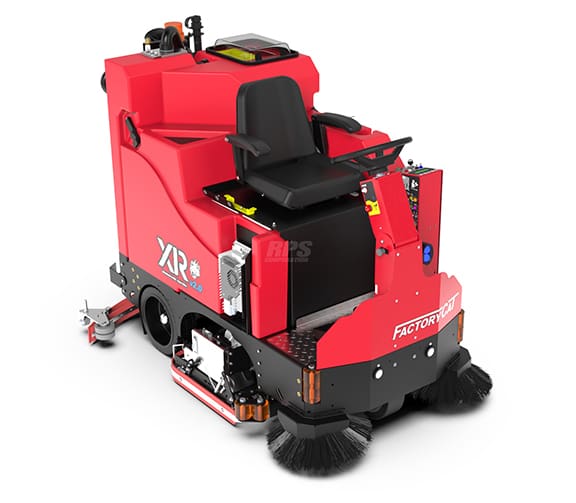

Factory Cat XR Scrubber

  • 40 – 46 in. Cleaning Width
  • Up to five hours or 315,000 sq. ft. per battery charge
  • 65-gallon solution and 78-gallon recovery tanks
  • Up to 250 lb of brush down pressure
  • 3/16-inch steel chassis with tool-free tip-back service access
Request a Quote

Documents

Product Documents

Videos

The FactoryCat XR is a high-capacity ride-on floor scrubber designed for distribution centers, sports arenas, aviation facilities and other expansive environments. Its 40- to 46-inch deck choices, 65-gallon solution tank and 78-gallon recovery tank help crews cover large floor areas with fewer interruptions.

Operators can select disk or cylindrical cleaning systems, with up to 250 lb of down pressure and as much as five hours of continuous scrubbing runtime.

A heavy steel chassis, stainless steel squeegee and protected vacuum system support demanding daily use, while the tool-free tip-back tank keeps major service components accessible.

Additional Information

Cleaning Width

46 in.
Fuel Type

Electric/Battery, 36 Volt
Tank Capacity

65 gal.
Cleaning Type

Floor Scrubber
Operator Position

Ride On
  • Up to 63,000 sq. ft. of theoretical productivity and 29,374 sq. ft. of practical productivity per hour.
  • 65-gallon solution and 78-gallon recovery tanks support extended cleaning cycles across large facilities.
  • Available 40- to 46-inch scrub decks provide broad floor coverage while retaining maneuverability for U-turns and work near racking.
  • Up to five hours of continuous scrubbing runtime, depending on battery configuration and operating conditions.
  • 3/16-inch powder-coated steel chassis with major assemblies mounted directly to the frame.
  • Dual 1 hp, two-stage vacuum motors deliver 180 cfm of airflow and 73 inches of water lift.
  • 65-gallon solution tank includes a graduated sight tube and stainless steel inline filter.
  • Stainless steel breakaway squeegee offers locking latches and blade choices for smooth or rough floors.
  • Large clear recovery-tank lid provides a direct view of the water level, foam, debris basket and vacuum filter.
  • Drain Saver basket, stainless steel screen and white vacuum filter help protect airflow and squeegee performance.
  • Green antimicrobial tanks formulated to inhibit bacterial growth inside the tanks.
  • Scrub-and-vac wand with spray jet for cleaning restrooms, under tables and other areas beyond the machine’s reach.
  • Dual side brooms and guards extend cleaning toward walls, racking and pallets while directing small debris toward the center path.
  • Heavy-duty steel side doors with leading rollers help protect the scrub deck from impacts.
  • Overhead guard and non-marking gray tires for compatible configurations.
  • White driving lights, blue pedestrian warning light and flashing yellow beacon.
  • Battery choices include wet-cell, AGM and lithium-ion configurations.
  • Adjustable steering wheel helps operators establish a comfortable driving position.
  • Large clear lid allows operators to monitor recovery water, foam and collected debris without opening the tank.
  • Six-foot remote solution-fill hose simplifies filling when direct access to a faucet is limited.
  • Compact rider layout provides useful sight lines when cleaning near racking, equipment or aircraft.
  • Steel operator protection, tall polyethylene rollers and a flip-up bumper help shield the machine in demanding facilities.
  • Patented vacuum-protection system separates foam and dirty water from the vacuum motors and drains collected liquid when the vacuum switches off.
  • Optional white driving lights improve visibility, while the blue warning light and yellow beacon alert nearby pedestrians and traffic.
  • Optional heavy-duty side doors add protection around critical scrub-deck components.
  • Choose 40- or 45-inch disk decks and 40- or 46-inch cylindrical decks.
  • Dual 1.5 hp brush motors power either 350 rpm disk brushes or 750 rpm cylindrical brushes.
  • Up to 250 lb of brush down pressure supports demanding floor-cleaning applications.
  • Cylindrical configurations scrub and sweep in one pass, while disk decks provide a broad selection of brushes and pads.
  • Scrubbing speed reaches 2.9 mph, with forward travel speeds up to 3.6 mph.
  • Up to 315,000 sq. ft. of cleaning per battery charge under the brochure’s stated operating assumptions.
  • Tank tips back without tools to provide standing access to the vacuum motors, batteries, pumps, filters, valves and deck actuator.
  • Patented service cabinet groups solution filtration, vacuum drainage, moisture collection and battery-box drainage points in one accessible location.
  • Fully accessible recovery tank can be opened for thorough cleaning to remove collected debris and odor sources.
  • Through-bolted stainless steel fasteners support future component service and replacement.
  • Separate battery-box drain provides a controlled way to remove excess electrolyte.

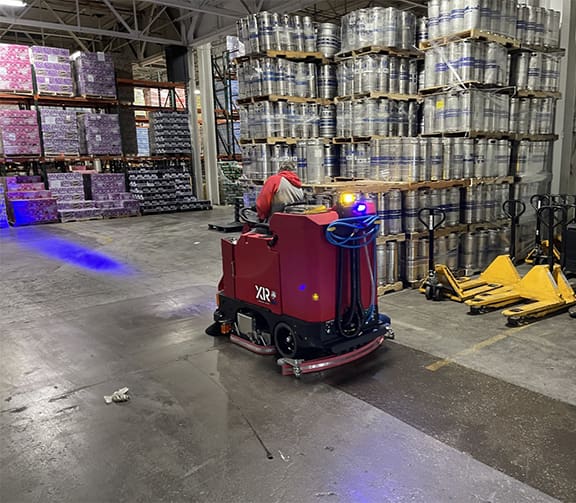

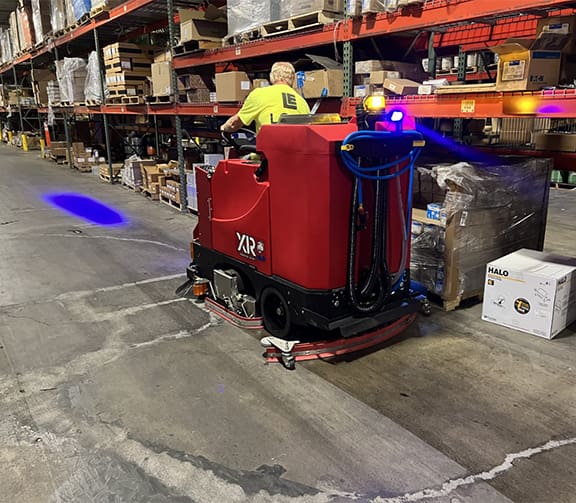

  • Distribution centers and warehouses with large floor areas, storage racking and frequent turning requirements.
  • Sports arenas that combine open concourses with narrower aisles and multiple floor surfaces.
  • Aviation assembly plants, hangars and service centers requiring productivity, maneuverability and useful operator sight lines.
