Genie Z-30/20 Boom Lift

36 ft. Working Height
21 ft. 5 in. Maximum Horizontal Reach
500 Lbs. Platform Capacity
12 ft. 8 in. Max Up and Over Clearance (riser extended)

Documents

Product Documents

Videos

Aerial Lift Information

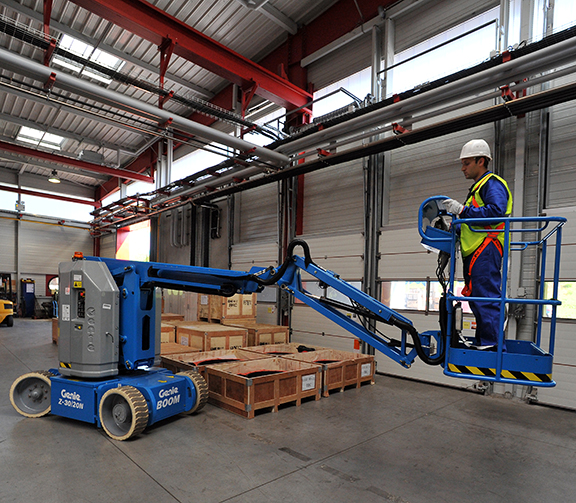

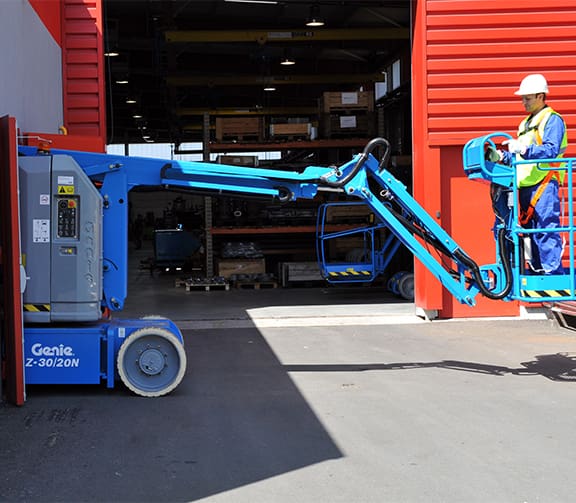

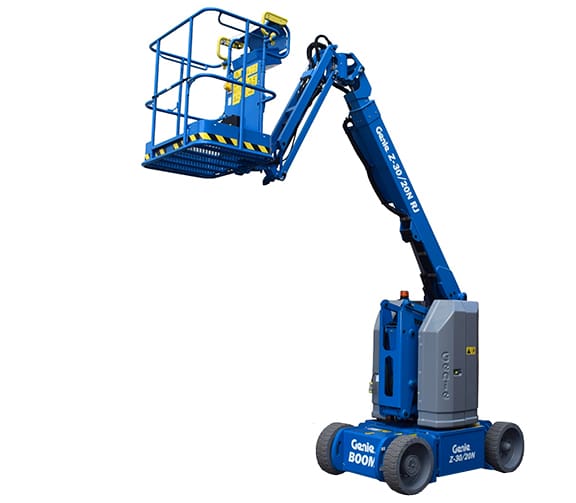

The Genie Z-30/20N articulating boom lift is a compact, electric-powered solution designed for working efficiently in tight indoor and outdoor spaces. Its narrow chassis and zero tail swing make it easy to maneuver through aisles, doorways, and congested job sites, while the articulating boom and rotating jib provide excellent up-and-over reach.

With quiet, emission-free operation and non-marking tires, it’s ideal for facilities that require clean, low-noise performance. Built with intuitive controls and advanced safety features, this lift helps your team position faster and work with confidence at height.

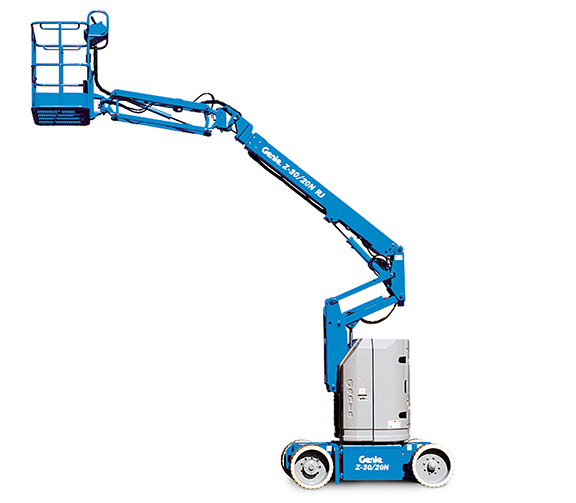

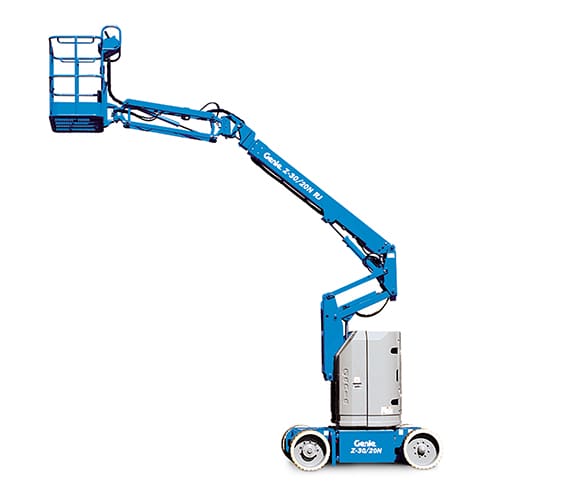

Model Number: Z-30/20N | Z-30/20N RJ

Additional Information

Condition	New
Brand	Genie
MEWP Type	Boom Lift, Articulated
Power	Electric
MEWP Lift Height	26 – 40ft
MEWP Capacity	Up to 500 lbs

Quiet, emission-free electric operation makes it well suited for sensitive indoor work environments.
Narrow-access design allows operators to drive through standard doorways and work in aisles, tight spaces, and congested areas.
Zero tail swing helps operators work close to buildings, racks, walls, and other obstacles with greater confidence.

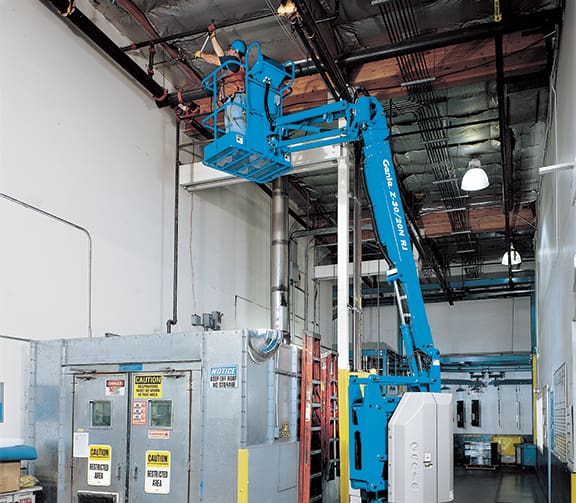

Articulating boom design provides strong up-and-over capability for reaching above equipment, around structures, and into hard-to-access areas.
The rotating jib on the RJ model supports more precise positioning in confined work zones.
Solid non-marking tires help protect indoor floors while supporting jobsite mobility.

48V DC power system with flooded lead-acid batteries.
Battery charge indicator.
3 ft 10 in steel platform.
4 ft jib.
AC power cord to platform.
Alarm package with flashing beacons, descent, travel, and tilt alarms.
Drive enable system.
Horn.
Lift Guard Contact Alarm.
Platform load sense system.
Proportional controls.
Self-leveling platform.
Telematics-ready chassis.
Chassis tilt drive function cut-out.
Chassis tilt lift function cut-out.
Dual parallelogram lift linkage.
Hour meter.
Solid, non-marking tires.
Zero tail swing.

AGM maintenance-free batteries.
Low voltage interrupt with battery charge indicator.
800W power inverter.
Air line to platform.
Control box covers.
Lift Guard half mesh panels with swing gate.
Light package with drive and work lights.
Platform auxiliary top rail.
Platform swing gate.
Lift Guard Lanyard Alert.
Lift Guard Lanyard Alert Advanced.
Lift Connect Telematics.
Lift Connect with Access Manager upgrade.
Biodegradable hydraulic oil.
Cold weather hydraulic oil.
Fire-resistant hydraulic oil.
Hostile environment kit.
Lift Tools productivity tools.
Tech Pro Link handheld device.

Proportional controls help provide smooth, precise machine operation.
Self-leveling platform helps keep the platform positioned properly while working through the boom’s range of motion.
180° platform rotation supports easier positioning at the work area.

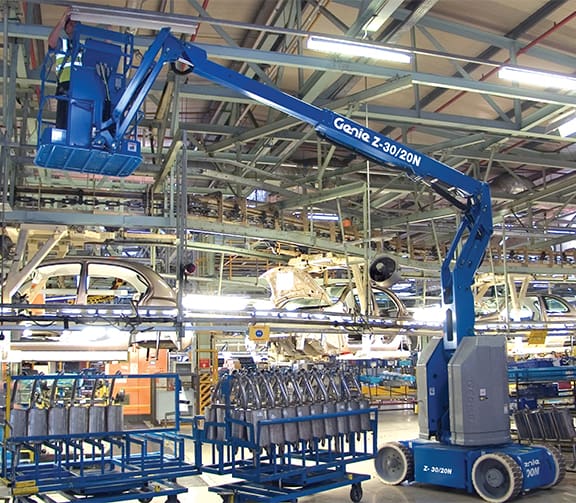

The jib provides additional flexibility for placing operators above or below the target area without frequent machine repositioning.
Compact chassis and narrow width improve maneuverability in tight indoor layouts.

Alarm package includes flashing beacons plus descent, travel, and tilt alarms.
Drive enable system adds controlled machine operation during travel.
Lift Guard Contact Alarm is designed to alert ground personnel if contact is made with the platform control panel.
Platform load sense system helps monitor platform loading.
Chassis tilt drive and lift function cut-outs add protection when operating on excessive slope.
Lift Guard Lanyard Alert and Lift Guard Lanyard Alert Advanced are available options for added operator awareness.

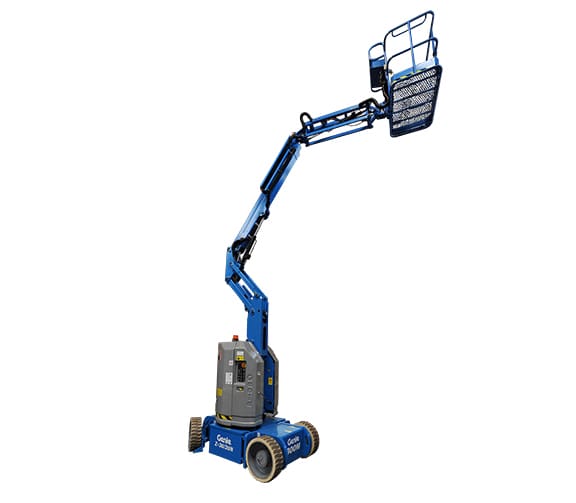

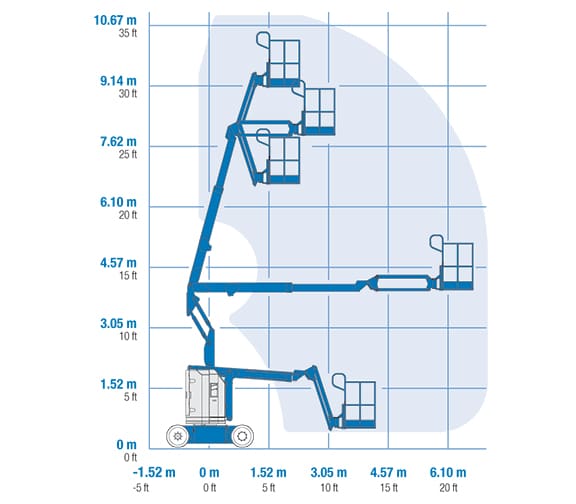

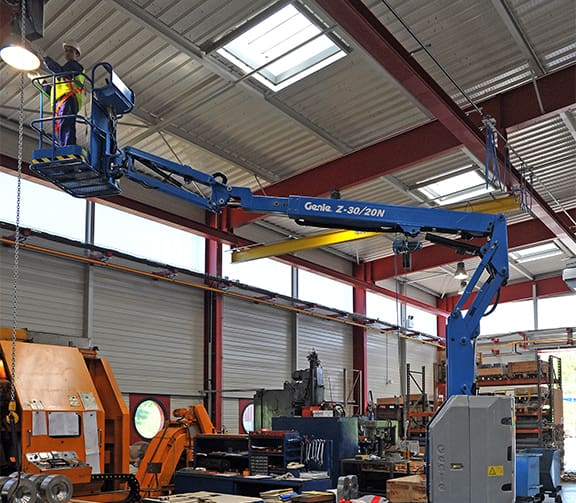

Up to 36 ft working height and 21 ft 5 in horizontal reach on the Z-30/20N.

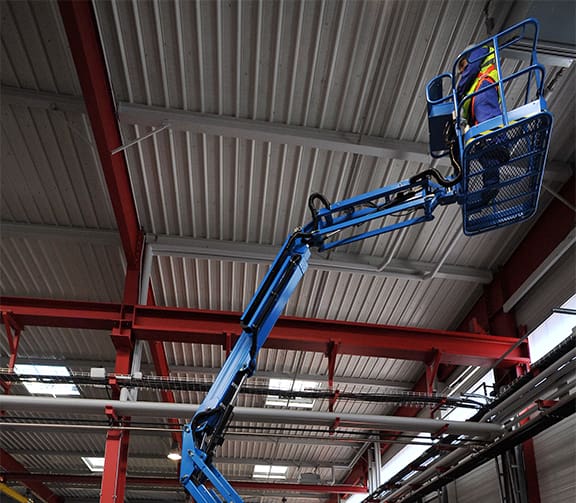

Up to 12 ft 8 in up-and-over clearance helps operators reach over obstacles.
500 lb unrestricted platform capacity.
35% gradeability supports travel on ramps and sloped surfaces within rated conditions.
Up to 3.0 mph drive speed when stowed and 0.68 mph when raised.
355° turntable rotation supports flexible positioning on the job.
Zero tailswing improves performance in space-restricted work areas.

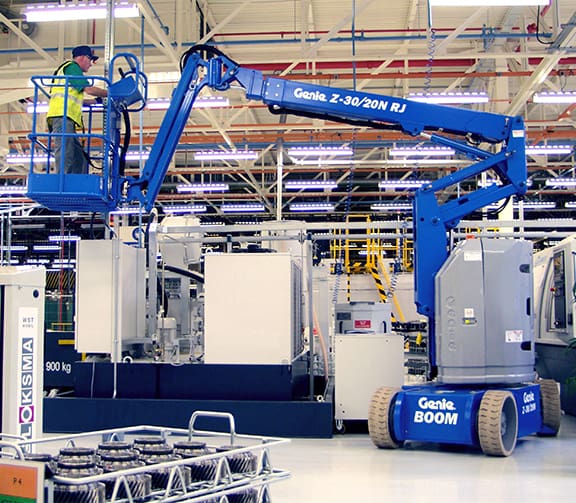

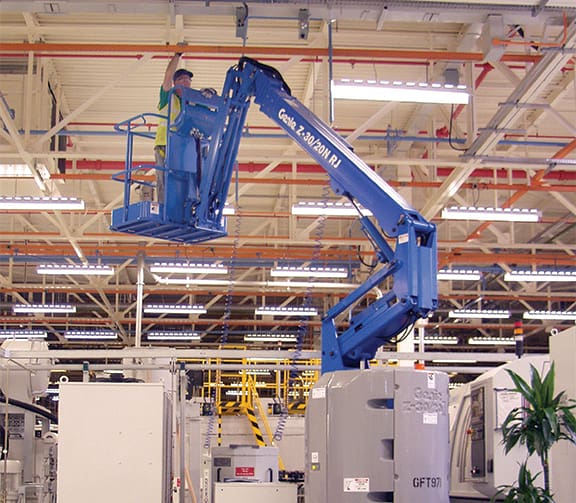

RJ model adds 180° horizontal jib rotation for extra positioning flexibility.

Telematics-ready design supports fleet connectivity and machine management.
Available Lift Connect Telematics can help support monitoring and fleet visibility.
Hour meter helps track usage for maintenance planning.
Tech Pro Link handheld device is available as an accessory to support service and diagnostics workflows.

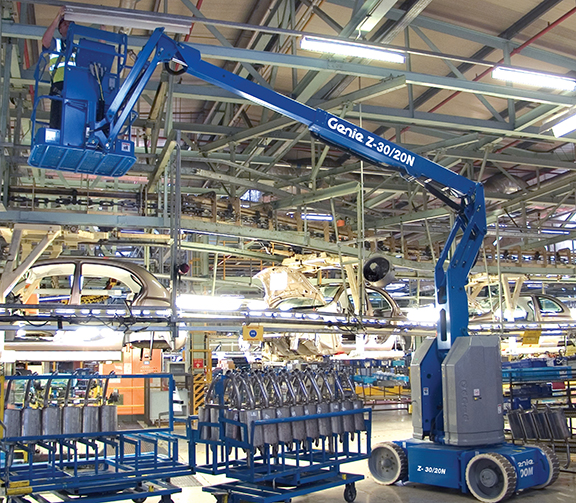

Warehousing and distribution.
Manufacturing facilities.
Facilities maintenance.
Commercial and institutional indoor maintenance.
Operations requiring work in narrow aisles, near buildings, or around overhead obstacles.
