Genie Z 33/18 Boom Lift
genie z-33/18 boom lift

Genie Z-33/18 Boom Lift

  • 38 ft. Working Height
  • 440 lbs. Capacity
  • 18 ft. 3 in. Horizontal Reach
  • 14 ft. 1 in. Up and Over Clearance
  • 8,080 lbs. Machine Weight

Documents

Product Documents

  • Genie Boom Lift Full Line Brochure
  • Genie Z-33/18 Boom Lift Spec Sheet
Request a Quote
  • Description
  • Advantages
  • Standard Features
  • Popular Options

Drive through standard doorways, move around obstacles or access overhead work from aisles with the Genie Z-33/18 DC electric articulating boom. It features a 48V DC electric drive system, which can be freely used in areas where quiet, emission-free operation is important. This advanced system yields better drive speed and gradeability, and the drive wheels work independently for excellent tract ion control.

The lightweight electric Genie Z-33/18 DC boom lift is highly maneuverable and well-suited to tasks on sensitive surfaces – such as in airports, shopping centers and theaters – where space is restricted, plus routine outdoor maintenance tasks. It was designed from the ground up to combine lightweight, compact dimensions with powerful low-consumption motors, shorter ground-to-top lifting time with the FastMast™ boom system, plus improved ergonomic features and easy-to-access machine components to speed up troubleshooting and servicing.

  • Driveable at full height for added productivity in high-rise spaces
  • 360-degree turntable rotation for precise positioning at height
  • Genie fast mast boom system allows operators to descend and retrieve materials and to quickly return to work at height
  • Proportional controls for lift and drive functions
  • Alarm package
  • 4 ft 11 in (1.50 m) width
  • 6 ft 3 in (1.9 m) inside turning radius
  • Self-leveling platform
  • Fast Mast™ System
  • Proportional joystick controls
  • Thumb rocker steer
  • Drive enable
  • Horn
  • Hour meter
  • Tilt alarm
  • Descent & travel alarms
  • 400° non-continuous turntable rotation
  • AC electric drive system
  • Traction control
  • On board easy to understand diagnostics
  • AC power cord to platform
  • Entry toe board
  • 48 V DC deep cycle battery pack
  • 24 V DC auxiliary power
  • Universal 30A battery smart charger
  • Battery charge indicator
  • Low battery voltage interrupt
  • Air line to platform(Factory fit option only)
  • Work lights package (2 on chassis, 2 on platform)
  • Lockable platform control box cover

Related products

  • Genie GS-2032 Scissor Lift

    Genie GS-2032 Scissor Lift

    View Details
  • Genie GS-3232 Scissor Lift

    Genie GS-3232 Scissor Lift

    View Details
  • Genie GS-1930 Scissor Lift

    Genie GS-1930 Scissor Lift

    View Details

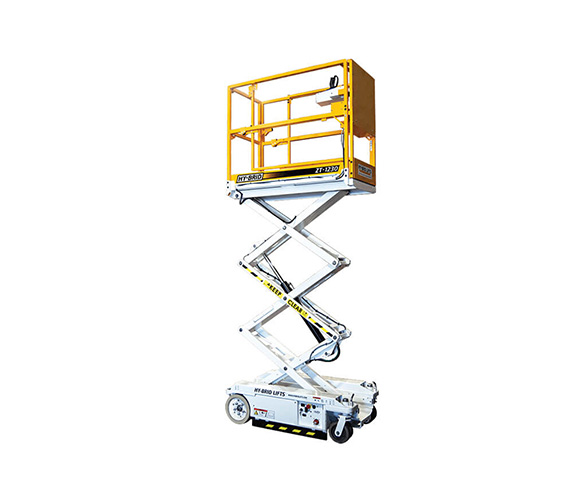

  • Hy-Brid ZT-1630 Scissor Lift
