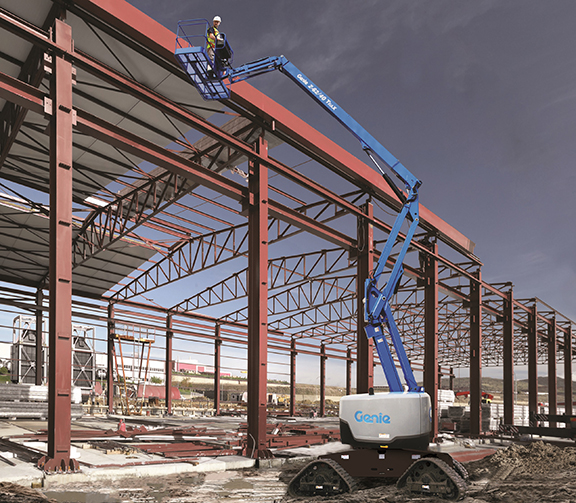

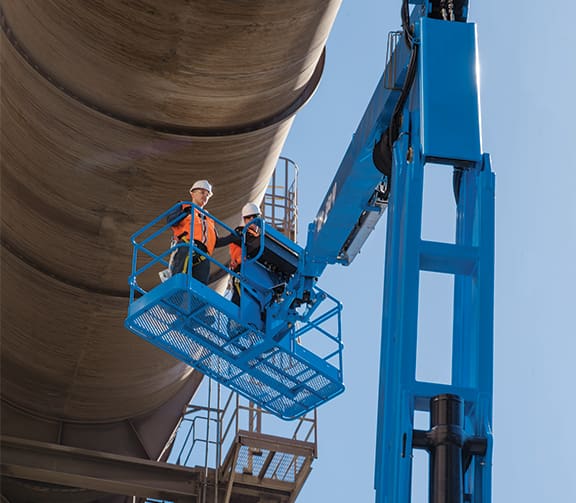

Z-6240 Operator in Platform (Action Shot)

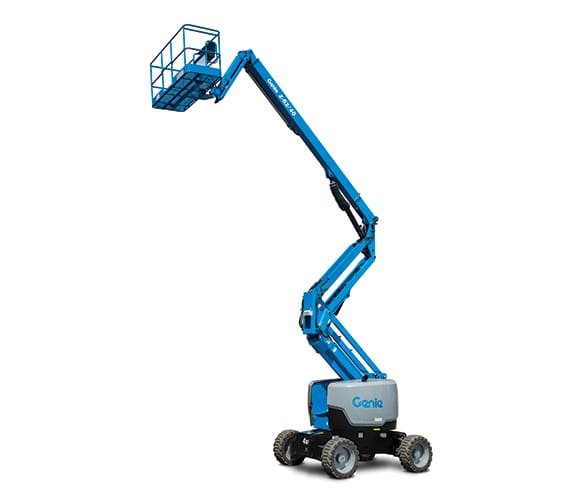

Genie Z-62/40 Boom Lift

67 ft. 11 in. working height
500 lb. capacity
40 ft. 9 in. horizontal reach
25 ft. 7 in. up-and-over clearance
22,160 – 26,933 lbs. machine weight

Documents

Product Documents

Videos

Aerial Lift Information

The Genie Z-62/40 articulating boom lift is built to handle demanding job sites where reach, precision, and terrain matter. With nearly 68 feet of working height, strong up-and-over capability, and zero tailswing, it allows operators to access tight or obstructed areas without repositioning. Its rugged design—available with rough terrain tires or a low ground pressure TraX track system—keeps crews productive on uneven or sensitive surfaces.

Smooth proportional controls and a self-leveling platform help operators work efficiently and confidently at height. As a dealer, we provide this lift with the support, service, and expertise to keep your operation running without interruption.

Model Number: Z-62/40 & Z-62/40 TraX

Additional Information

Brand	Genie
Condition	New
MEWP Type	Boom Lift, Articulated
Power	Engine
MEWP Capacity	Up to 500 lbs
MEWP Lift Height	61 – 100ft

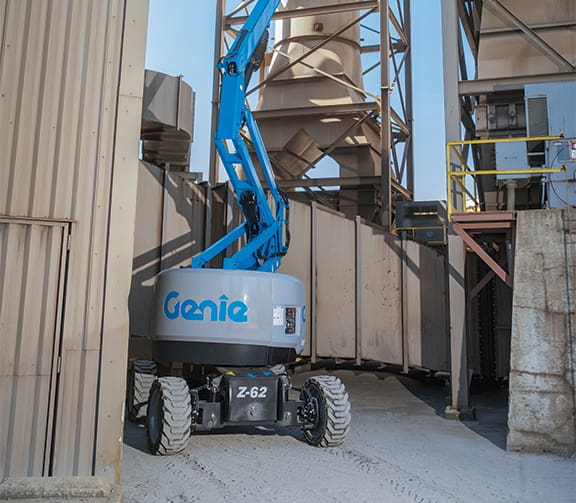

Zero tailswing design allows operation in tight and confined spaces.
Rugged terrain capability with rough terrain tires or TraX track system for improved flotation and reduced ground pressure.

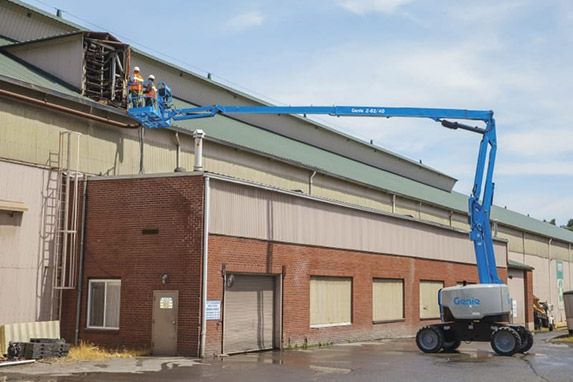

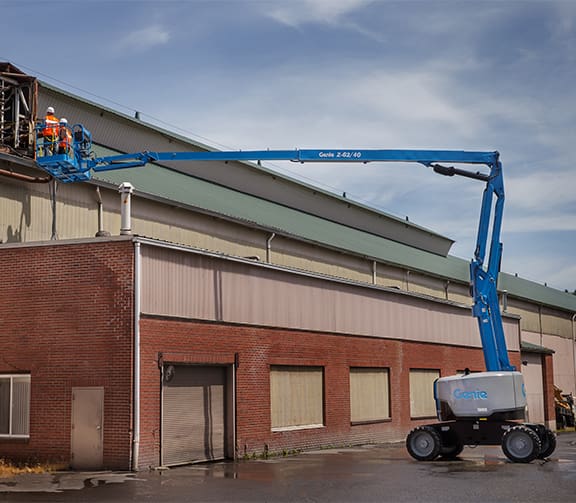

Strong up-and-over reach (25 ft 7 in) for accessing hard-to-reach work areas.
High horizontal outreach (40 ft 9 in) for increased jobsite versatility.
Dual parallelogram lift linkage improves positioning precision and up-and-over capability.

500 lb unrestricted lift capacity.
360° continuous turntable rotation with zero tailswing.
Self-leveling platform with 160° rotation.
5 ft jib with 135° vertical rotation.

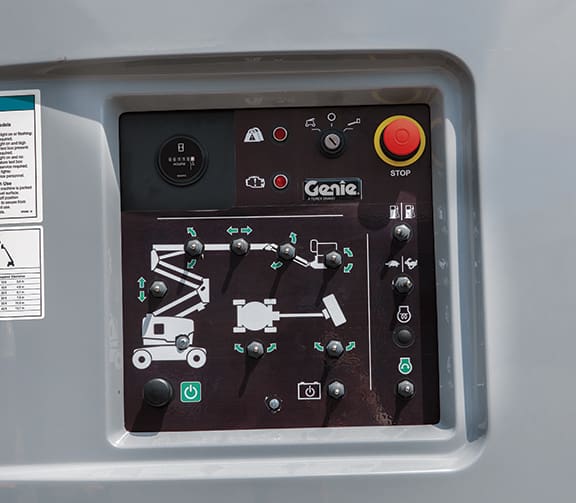

Proportional controls for smooth operation.
Platform load sense system.

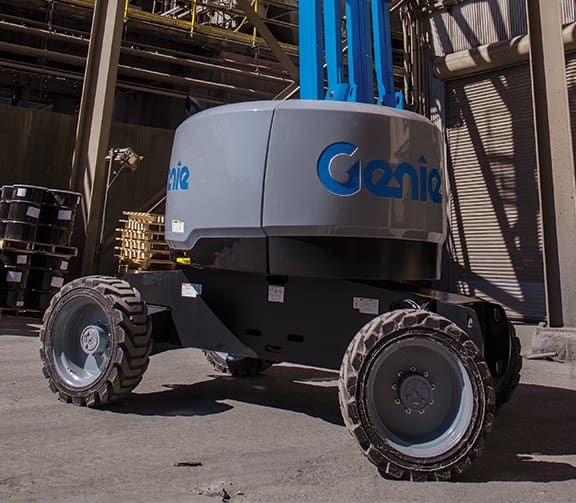

Active oscillating axle for improved traction on rough terrain.
2-speed wheel motors.
Hydraulic oil cooler and hour meter.
Telematics-ready system.

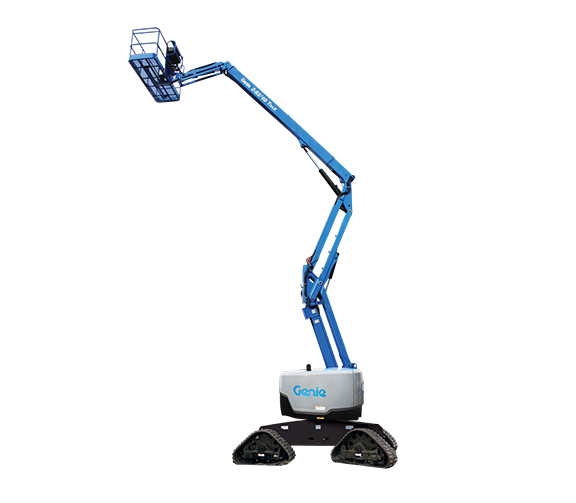

TraX track drive system for low ground pressure applications.
4-wheel steering for enhanced maneuverability.
AC generators (3kW or 12kW welder-ready).
Cold weather package and hostile environment kits.
Lift Guard safety system (contact alarm and lanyard alert).
Light packages including drive and work lights.
Air line to platform and work tray accessories.
Lift Connect telematics with Access Manager.

Dual-axis joystick steering for intuitive machine control.
Thumb rocker steering option for operator comfort.
Dual-entry or tri-entry platform with swing gate for easy access.
Spacious platform options (6 ft or 8 ft widths).
Proportional controls enable smooth, precise positioning.

Platform load sense system prevents overload conditions.
Tilt sensor with automatic cut-out for unsafe angles.
Chassis tilt drive and lift function cut-outs.
Alarm package including descent, tilt, and travel alarms.
Lift Guard contact alarm and optional lanyard alert systems.
Drive enable system and horn for operator awareness.
Auto engine fault shutdown and positive air shutdown options.

Working height up to 68 ft 1 in (TraX).
Horizontal reach up to 40 ft 9 in.
Up-and-over clearance of 25 ft 7 in.
Gradeability up to 45% (TraX models).
Drive speeds up to 3.0 mph (stowed).
Diesel-powered with optional gas/LPG configurations.
Excellent maneuverability with tight turning radius.

Telematics-ready system for remote diagnostics and fleet management.
Lift Connect telematics option for performance monitoring.
Engine gauge package available for easier diagnostics.
Hydraulic oil cooler supports longer component life.
Auto engine fault shutdown helps prevent damage.

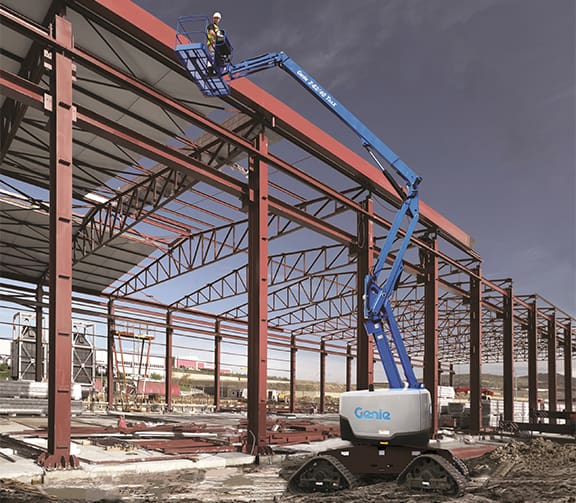

Construction and general contracting.
Industrial maintenance and facility management.
Oil & gas and energy applications.
Infrastructure and utility work.
Heavy industrial and manufacturing environments.
