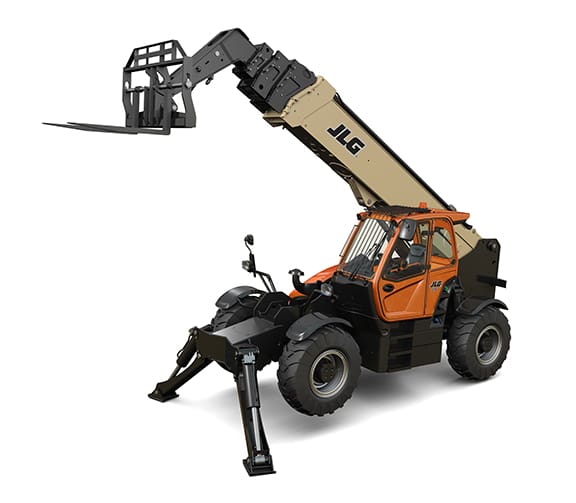

Prespective_outriggerD

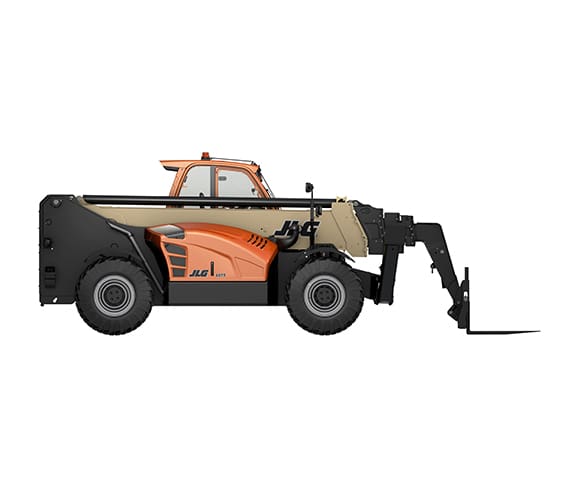

Side_v2
JLG 1075 Telehandler - Image 3
1075-Stowed-Gallery-01-App

JLG 1075 Telehandler

  • 10,000-lb rated capacity
  • 75-ft maximum lift height
  • 60-ft maximum forward reach
  • 2,100-lb capacity at maximum reach
  • Cummins QSB4.5L 160 hp Tier 4 Final diesel engine
Request a Quote

Documents

Product Documents

Videos

The JLG 1075 is a high-reach telehandler built for large jobsites that need capacity, reach, and precise load placement. It offers a 10,000-lb rated capacity, 75-ft maximum lift height, and 60-ft maximum forward reach, giving crews the ability to place materials at significant height and distance.

A Cummins QSB4.5L Tier 4 Final diesel engine, hydrostatic transmission, selectable steering modes, and load sense hydraulics support demanding jobsite work. Operator-focused features such as single joystick controls, an adjustable seat, and a right-side electronic mirror with dual cameras help improve visibility and control during daily operation.

Model Number: 1075

Additional Information

Condition

New
Brand

JLG
MEWP Type

Telehandler
Power

Engine
MEWP Lift Height

61 – 100ft
MEWP Capacity

Over 2,000 lbs
  • 10,000-lb rated capacity with 75-ft maximum lift height for high-reach material handling.
  • 60-ft maximum forward reach helps reduce material rehandling on large jobsites.

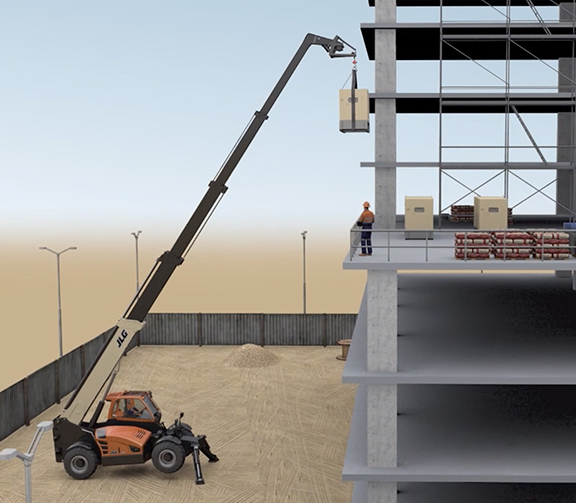

  • Eight-story lift height can reduce or eliminate the need for cranes on certain applications.
  • 30-ft up-and-over reach supports more precise load placement over obstacles.
  • Right-side electronic mirror with dual cameras helps improve visibility from the cab.
  • 10,000-lb rated capacity with 75-ft maximum lift height.
  • Cummins QSB4.5L Tier 4 Final diesel engine with 160 hp and 460 lb-ft of torque.
  • Hydrostatic transmission with 2 forward speeds and 2 reverse speeds.
  • Operator-selectable 4-wheel circle, 4-wheel crab, and 2-wheel front steering modes.
  • 8 degrees of frame leveling.
  • Single joystick controls with tilt and declutch on joystick.
  • Certified ROPS/FOPS structure, adjustable seat, horn, and anti-theft.
  • 17.5-25 SGG Foam Firestone tires.
  • Enclosed cab, air conditioning, Arctic Package, and wiper package.
  • Hydraulic coupler for attachment changes.
  • Operator Confidence Package and SmartLoad Technology.
  • Ride Control and Boom Float for smoother load handling.
  • Road lights, work lights, white noise back-up alarm, and air shut-off valve.
  • Brick guards for added front-end protection in masonry and material handling applications.
  • Adjustable seat supports operator comfort during long work periods.
  • Single joystick controls help keep key machine functions within easy reach.
  • Tilt and declutch on joystick support more efficient machine control.
  • Right-side electronic mirror with dual cameras helps improve visibility around the machine.
  • Available enclosed cab, air conditioning, and wiper package support operator comfort in changing jobsite conditions.
  • Certified ROPS/FOPS structure.
  • Right-side electronic mirror with dual cameras helps improve operator visibility.
  • Available Operator Confidence Package and SmartLoad Technology support more informed operation.
  • Service brakes use inboard wet disc brakes on the front and rear axles.
  • Parking brakes are wet disc, spring-applied, hydraulic release brakes on the front axle.
  • Hydraulic power steering includes manual backup.
  • 10,000-lb rated capacity for heavy high-reach material handling.
  • 75-ft maximum lift height and 60-ft maximum forward reach.
  • 2,100-lb capacity at maximum reach.
  • 17 mph top travel speed.
  • 8 degrees of frame leveling for positioning on uneven terrain.
  • 22,500-lb loaded drawbar pull.
  • 90 gal hydraulic system capacity with load sense piston pump.
  • Volt meter, hourmeter, engine oil pressure gauge, temperature gauge, fuel gauge, and DEF gauge help operators monitor machine status.
  • Load sense piston pump supports hydraulic system operation.
  • Auxiliary hydraulics support attachments equipped with cylinders or other hydraulic components.
  • Warranty coverage includes one full year on the machine and five years on specified major structural components.
  • Large construction jobsites that need high lift height and long forward reach.
  • Projects where eight-story lift height may reduce the need for crane support.
  • Framing, truss setting, metal building erection, and post-frame building applications.
  • Masonry and block handling supported by cubing forks, pallet forks, and brick guard options.
  • General material handling applications using carriages, forks, buckets, work platforms, and sheet material handlers.
