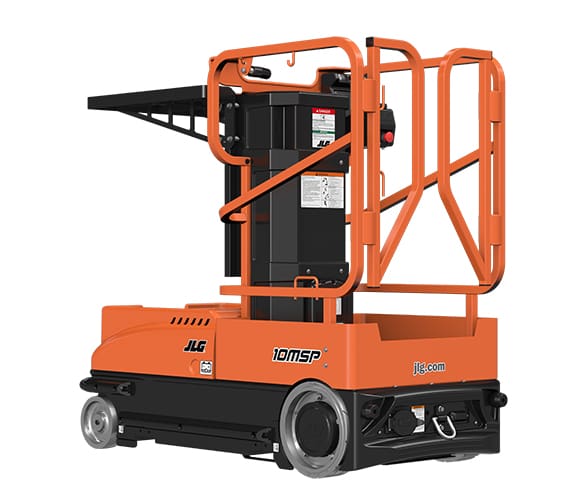

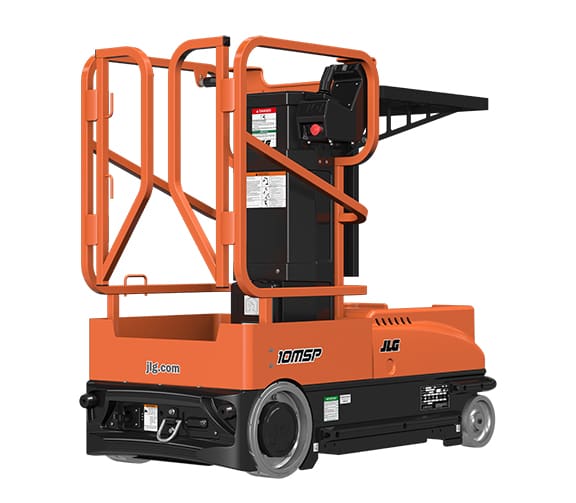

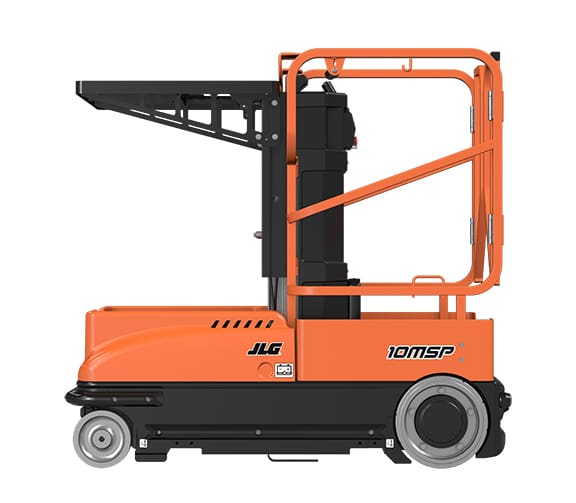

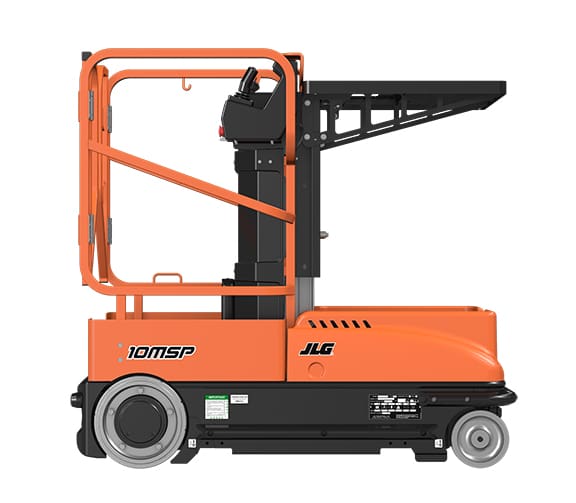

JLG 10MSP Mobile Stock Picker

  • 10-ft platform height
  • Driveable at full height
  • 350 lbs. Capacity
  • Zero turning radius
  • Point & Go one-hand drive and steer system
Request a Quote

Documents

Product Documents

The JLG 10MSP is a compact mobile stock picker built for indoor picking work where maneuverability and efficient movement matter. With a 10-ft platform height, 16-ft working height, and full-height drive capability, operators can move between picks without lowering the platform each time.

Its zero turning radius and 32.5-in machine width help it work in narrow aisles, while the Point & Go one-hand drive and steer system supports comfortable operation compared to a walkie stacker. A 350-lb platform capacity, 250-lb material tray, maintenance-free AGM batteries, and built-in automatic charger make the 10MSP a practical choice for warehouse and stockroom applications.

Model Number: 10MSP

Additional Information

Condition

New
Brand

JLG
MEWP Type

Vertical Mast Lifts
Power

Electric
MEWP Lift Height

Up to 25ft
MEWP Capacity

Up to 500 lbs
  • Driveable at full platform height to help operators move through stock-picking tasks without lowering between picks.
  • Zero turning radius supports maneuverability in narrow aisles and tight indoor work areas.
  • Point & Go one-hand drive and steer system supports operator comfort compared to a walkie stacker.
  • Built-in automatic battery charger helps reduce downtime during warehouse shifts.
  • Compact 32.5-in machine width and 61-in machine length help the unit fit into constrained warehouse spaces.
  • 10-ft elevated platform height and 16-ft working height.
  • 350-lb platform capacity with a 250-lb adjustable-height material tray.
  • Simultaneous lift and drive capability.
  • Proportional drive with heavy-duty planetary gear drive motors.
  • Battery discharge indicators at the platform and base.
  • Lubrication-free anodized aluminum mast sections and maintenance-free mast guide system.
  • Non-marking tires, side and front bumpers, transportation tie downs, and shipping skid.
  • Aisle guide roller system.
  • ClearSky legacy connectivity.
  • Electrically powered material tray with 200-lb capacity.
  • Object sensing pad.
  • Programmable 4-digit security lock.
  • Remote manual descent.
  • Retractable charger cord and floor mats.
  • Point & Go one-hand drive and steer system supports comfortable operation during picking tasks.
  • Adjustable-height material tray helps position picked items within easier reach.
  • Stand-on foot switch operation enable control supports intentional machine operation from the platform.
  • 13.75-in ground entry height provides platform access from floor level.
  • Platform gate operation interlock.
  • Slope cut-out control interlock.
  • Lanyard attachment anchor point.
  • Horn, programmable motion alarm, and front and rear strobe lights.
  • Side and front bumpers plus non-marking tires for indoor work environments.
  • Full-height drive capability with a 10-ft platform height and 16-ft working height.
  • 5.0 mph lowered drive speed and 0.5 mph elevated drive speed.
  • 15% gradeability.
  • 4 sealed 210 amp-hour maintenance-free AGM batteries.
  • 25 amp automatic battery charger.
  • Indoor-only machine with 1,100-lb base weight before certain options or country-standard changes.
  • Maintenance-free AGM batteries reduce routine battery service requirements.
  • Maintenance-free mast guide system and lubrication-free anodized aluminum mast sections reduce routine mast upkeep.
  • Hourmeter supports usage tracking for maintenance planning.
  • Built-in automatic charger supports simple charging between shifts.
  • Indoor warehousing and distribution.
  • Stock picking and order picking in narrow aisles.
  • Facilities that need compact, driveable access for elevated shelf inventory.
