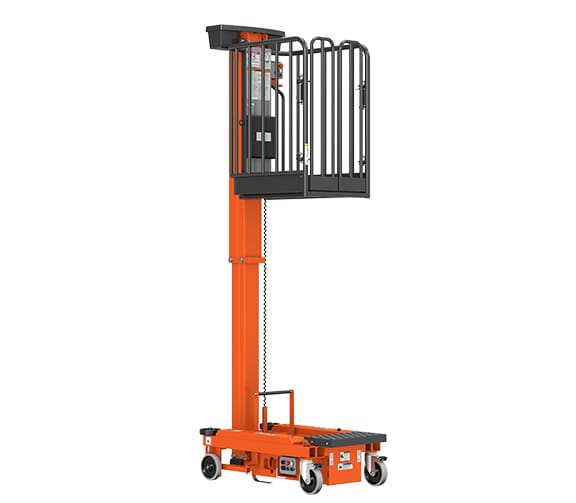

1230P_Raised_Front_RF

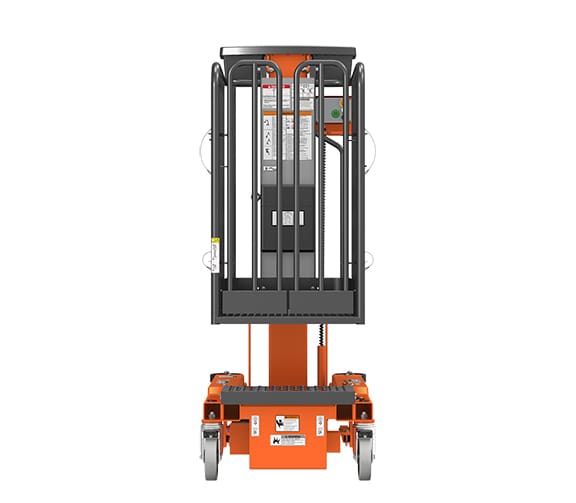

1230P_Stowed_Front

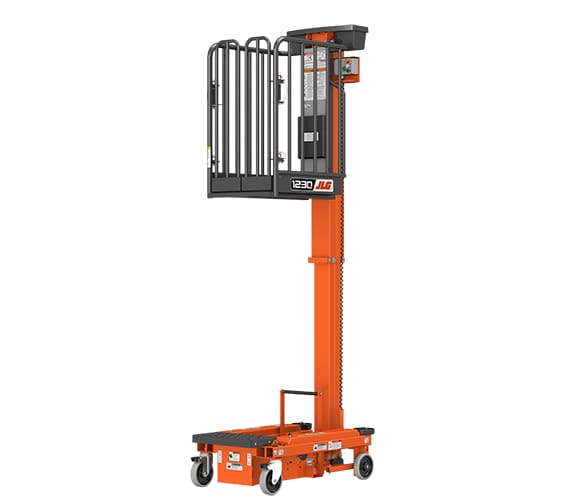

1230P_Raised_Front_LF

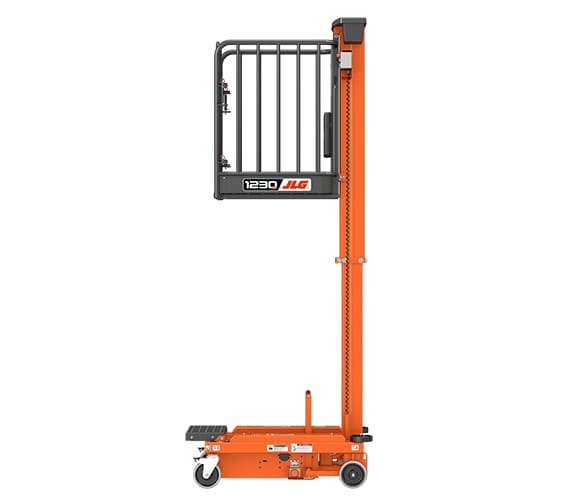

1230P_Raised_Side_LF
1230P_Raised_Side_RF

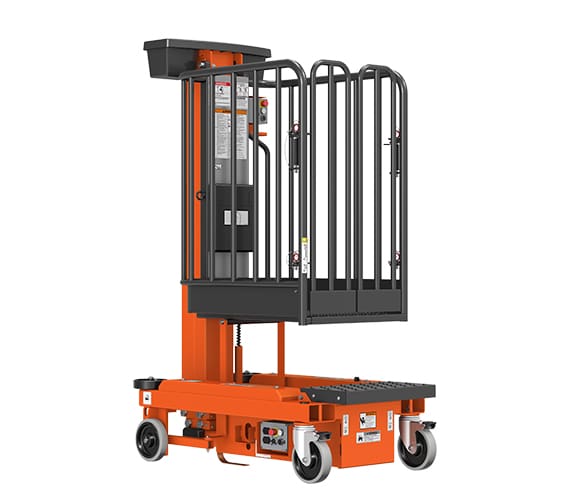

1230P_Stowed_Front_RF

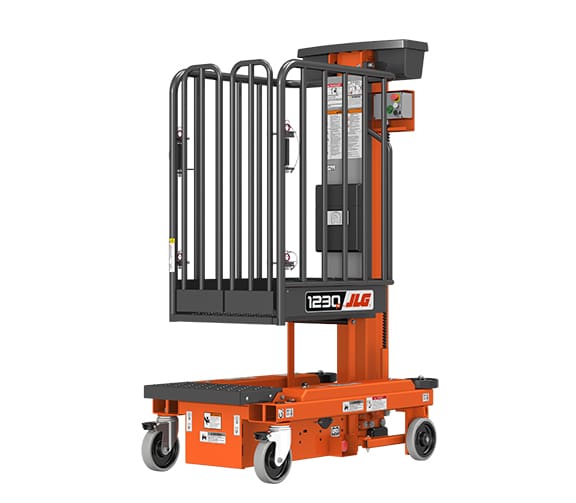

1230P_Stowed_Front_LF

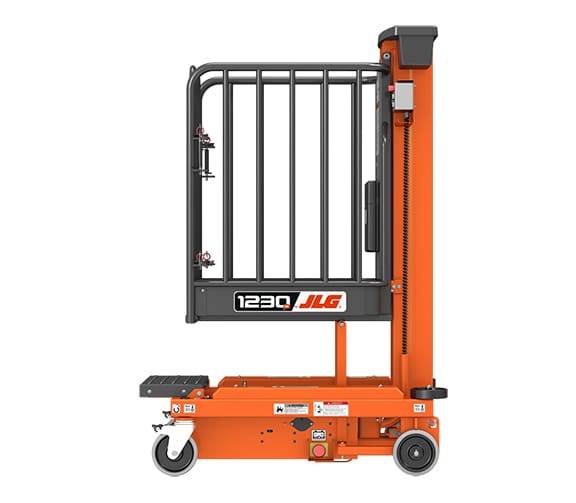

1230P_Stowed_Side-LF

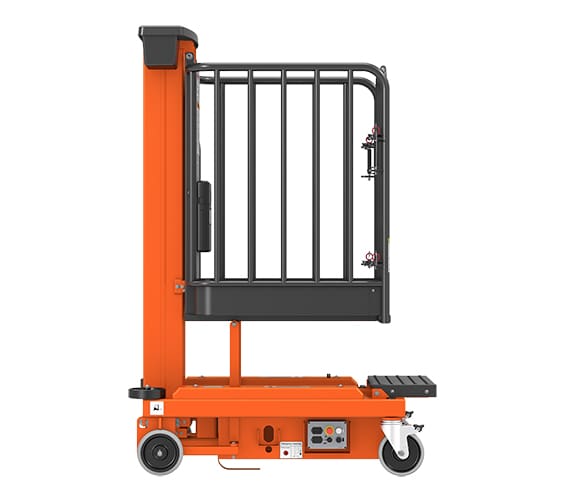

1230P_Stowed_Side_RF

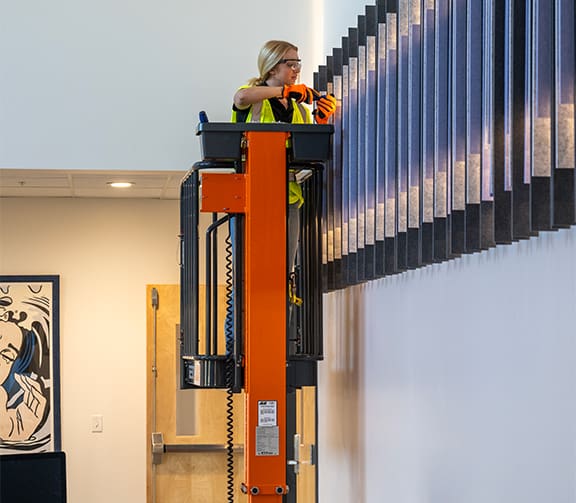

JLG-1230P-Fixture-App-017-P1

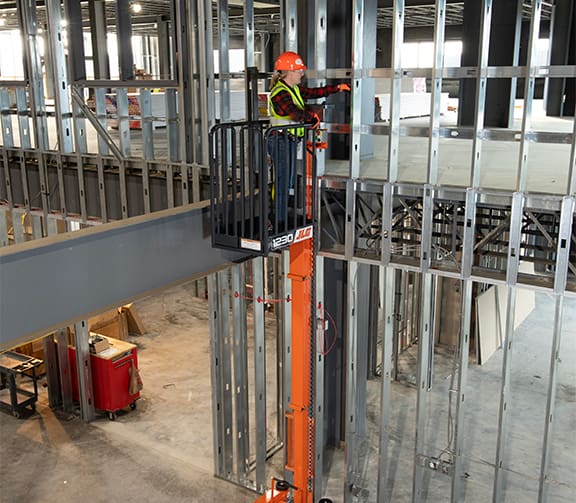

JLG-1230P-Framing-App-2666-P1

JLG 1230P Push Around Mast Lift

  • 11-ft 4-in platform height
  • 17-ft 4-in working height
  • 440-lb platform capacity
  • 30-in machine width
  • Auto-locking wheels on elevation
Request a Quote

Documents

Product Documents

The JLG 1230P is a push-around mast lift designed for indoor low-level access work that needs added height in a compact footprint. It offers an 11-ft 4-in platform height, 17-ft 4-in working height, and 440-lb platform capacity, helping operators bring tools to height and work with both hands.

The 30-in-wide machine fits through most doorways and freight elevators, while the push-around design and powered lifting help crews get into position quickly. Standard features such as auto-locking wheels, non-marking wheels, a frame-mounted bubble level, emergency descent, battery charge indicator, and hour meter support practical daily use.

Model Number: 1230P

Additional Information

Condition

New
Brand

JLG
MEWP Type

Vertical Mast Lifts
Power

Electric
MEWP Lift Height

Up to 25ft
MEWP Capacity

Up to 500 lbs
  • 11-ft 4-in platform height and 17-ft 4-in working height support higher indoor low-level access tasks.
  • Push-around design with powered lifting helps operators get to work quickly once the lift is positioned.
  • 440-lb platform capacity supports an operator and tools at height.
  • 30-in machine width helps the lift fit through most doorways and freight elevators.
  • Platform design supports 360-degree, hands-free access to the work area.
  • 11-ft 4-in platform height with 440-lb platform capacity.
  • 12V AGM battery with automatic 110V, 12V DC, 6A charger.
  • 33.5 x 28-in platform with 15-in platform entry height.
  • Self-closing saloon-style entry gate.
  • Frame-mounted bubble level and integrated fork pockets.
  • Protective wall bumpers, non-marking wheels, and static strap.
  • Tool tray, service prop, battery charge indicator, and hour meter.
  • Emergency descent and auto-locking wheels on elevation.
  • Maintenance tray with anchor points to tether tools.
  • Provides a safer, more ergonomic alternative to ladders for low-level access work.
  • Platform design allows operators to work comfortably with both hands and a 360-degree range of motion.
  • Push-around design makes the lift easy to position before elevation.
  • Low 15-in platform entry height supports easier entry and exit.
  • Tool tray and optional maintenance tray help keep tools accessible while working.
  • Auto-locking wheels engage on elevation.
  • Frame-mounted bubble level helps operators confirm positioning before use.
  • Emergency descent supports controlled lowering when needed.
  • Self-closing saloon-style entry gate helps secure the platform entry.
  • Protective wall bumpers and non-marking wheels help reduce contact damage in indoor environments.
  • Maximum wind speed rating is 0 mph, indicating indoor use only.
  • 17-ft 4-in working height and 11-ft 4-in platform height.
  • 440-lb platform capacity.
  • 30-in machine width and 47-in machine length for compact positioning.
  • 952-lb machine weight.
  • 0.5-degree maximum gradient for operation and 5-degree maximum gradient for pushing.
  • Maximum ground bearing pressure is 173.33 psi at the front and 488.76 psi at the rear.
  • Battery charge indicator and hour meter help operators monitor machine status.
  • Service prop is included as standard equipment.
  • Integrated fork pockets support easier movement when needed.
  • Automatic charger supports routine battery charging.
  • Warranty coverage includes one full year on the machine and five years on specified major structural components.
  • Indoor finish work and facility maintenance.
  • Commercial, institutional, and retail spaces where compact low-level access equipment is needed.
  • Work areas where operators need a safer, more ergonomic alternative to ladders.
  • Indoor applications that benefit from non-marking wheels and compact maneuverability.
