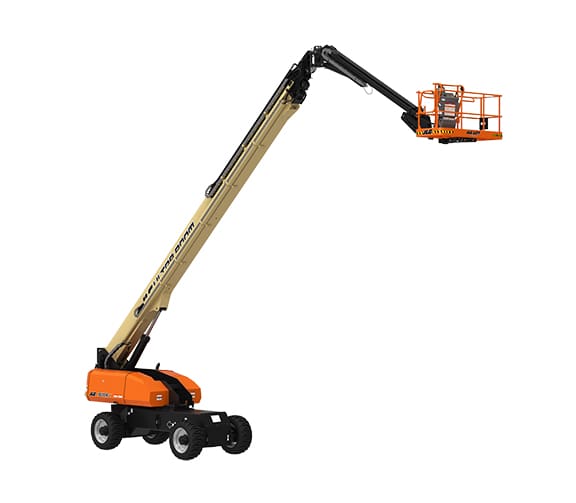

1500SJ Extended Front RF New

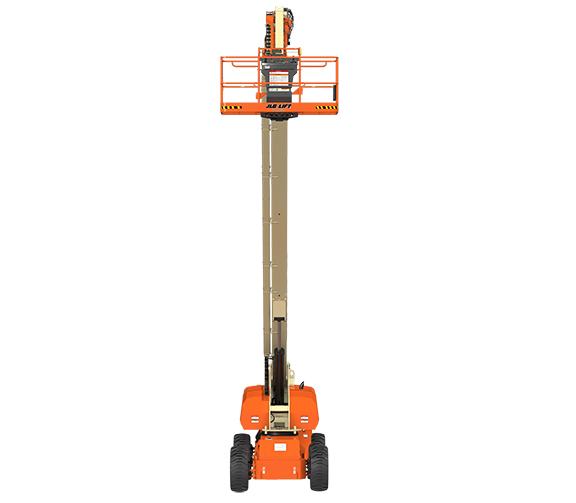

1500SJ Extended Front New

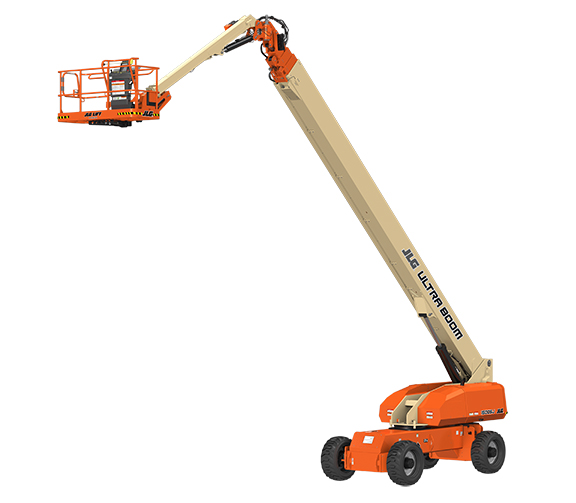

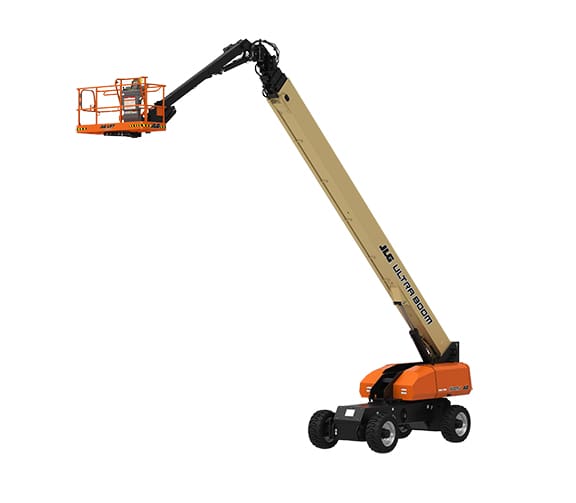

1500SJ Extended Front LF New

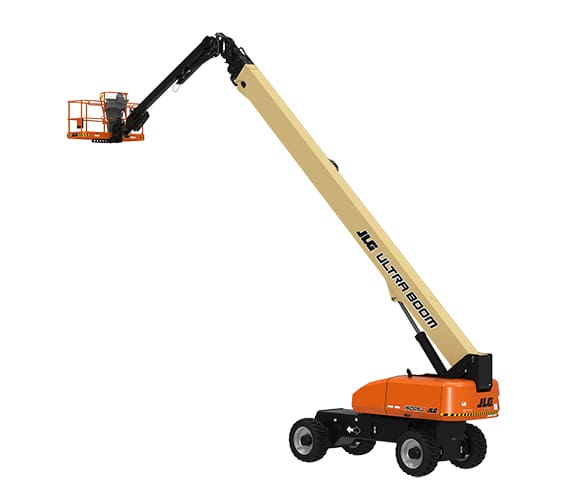

1500SJ Extended Rear LF New

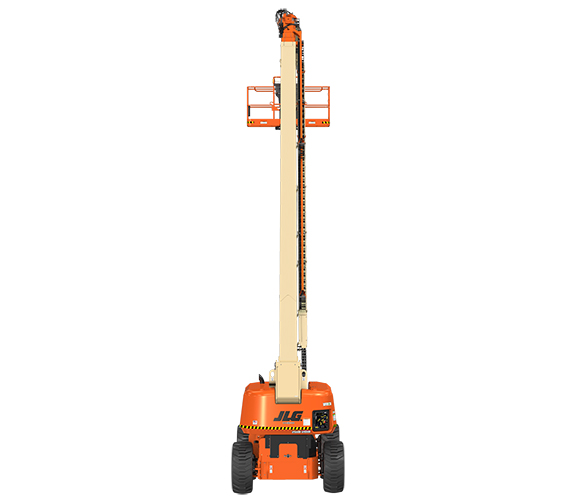

1500SJ Extended Rear New

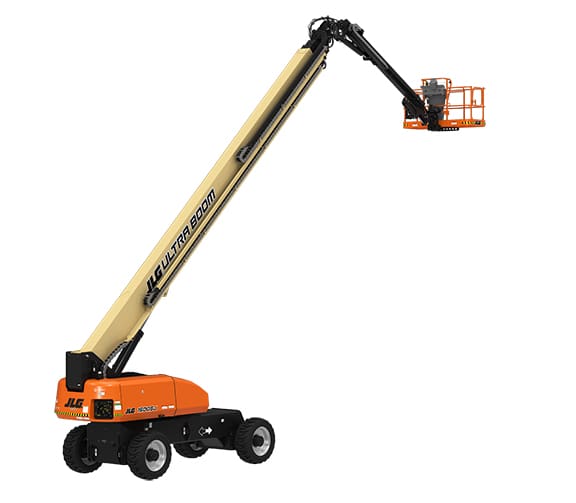

1500SJ Extended Rear RF New

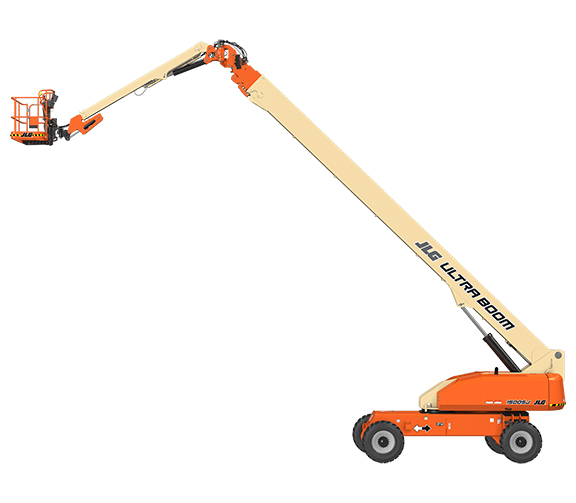

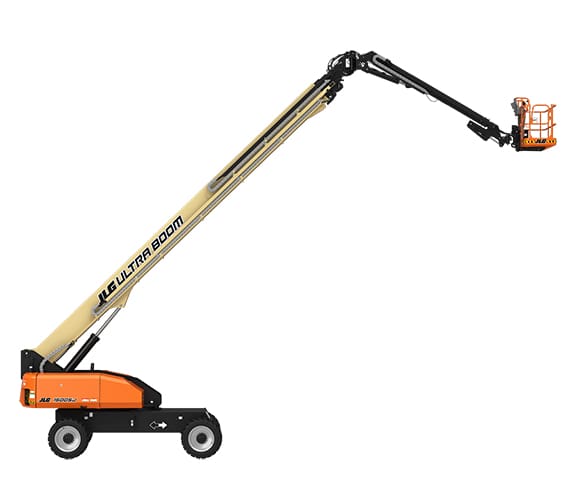

1500SJ Extended Side LF New

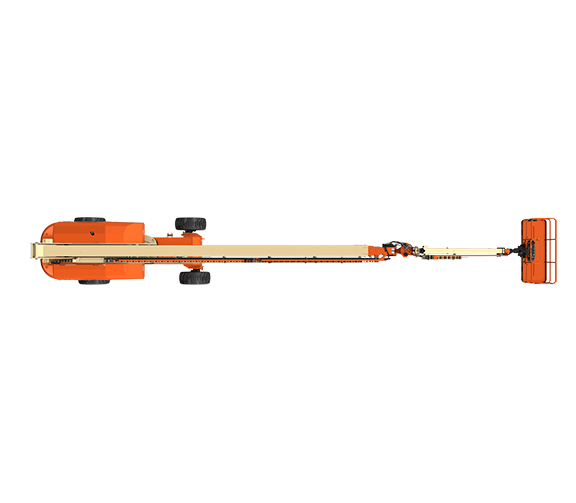

1500SJ Top New

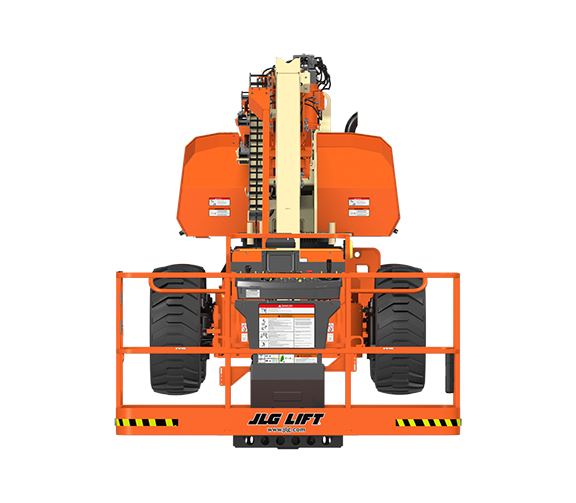

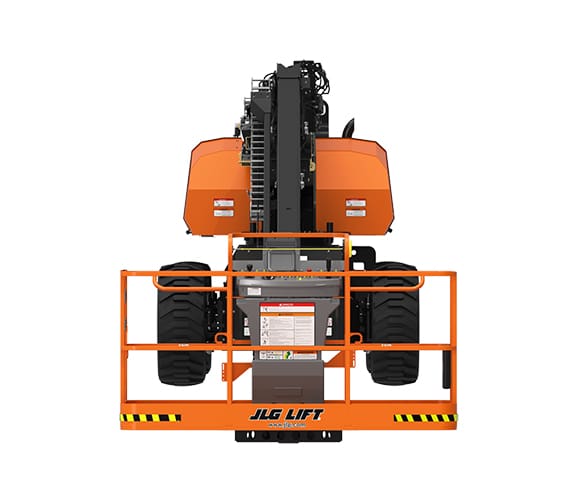

1500SJ Retracted Front New

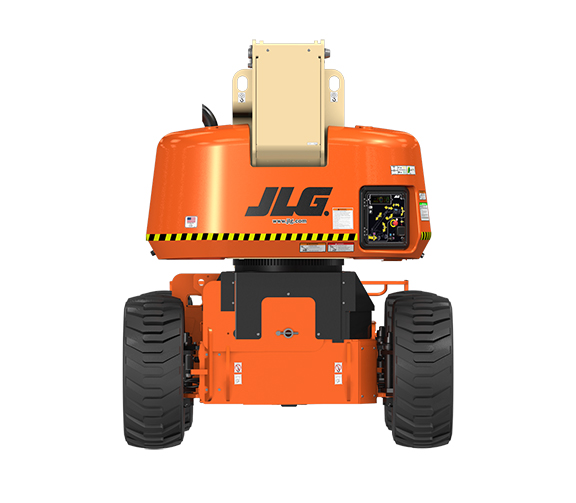

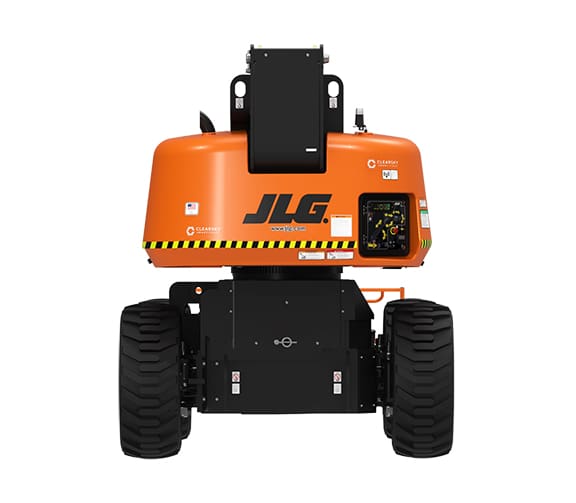

1500SJ Retracted Rear New
1500SJ Retracted Side RF New

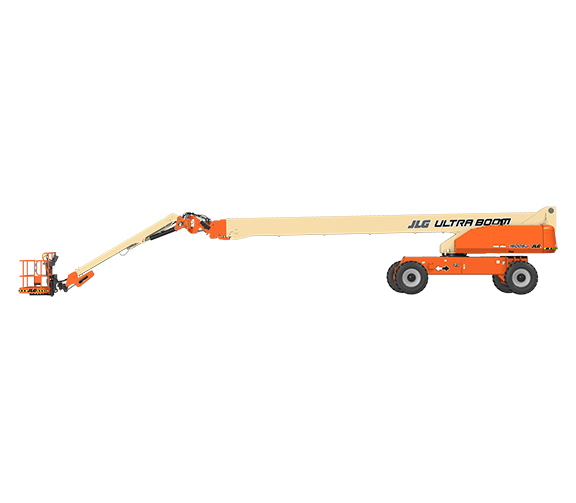

1500SJ Retracted Side LF New

JLG 1500SJ Telescopic Boom Lift

  • 150 ft. Platform Height
  • 80-ft horizontal outreach
  • Jib extension from 15 ft 2 in to 25 ft
  • 1,000 lb restricted and 500 lb unrestricted capacity
  • Full-time 4WD
Request a Quote

Documents

Product Documents

The JLG 1500SJ is a telescopic Ultra Boom lift built for high-reach outdoor work where crews need both elevation and outreach. With a 150-ft platform height, 80-ft horizontal outreach, and an extendable telescoping jib, it helps operators position the platform around large structures and elevated work areas.

Dual 1,000-lb restricted and 500-lb unrestricted capacities give crews room for workers, tools, and materials, while full-time 4WD, 40% gradeability, and selectable steering modes support movement around active jobsites. The 1500SJ also includes practical operator and fleet features such as proportional controls, an LCD platform display, ClearSky Smart Fleet hardware, and standard safety systems including SkyGuard SkyLine, load sensing, and tilt light and alarm.

Model Number: 1500SJ

Additional Information

Brand

JLG
Condition

New
MEWP Type

Boom Lift, Telescopic
Power

Engine
MEWP Capacity

501 – 1,000 lbs
MEWP Lift Height

Over 100ft
  • 150-ft platform height and 80-ft horizontal outreach help crews reach high, distant work areas.
  • Telescoping jib extends from 15 ft 2 in to 25 ft for added work envelope flexibility at elevation.
  • Dual platform capacity provides 1,000 lb restricted and 500 lb unrestricted capacity for workers, tools, and materials.
  • Designed for transport without an oversized load permit, though an overweight permit is required for highway transportation.
  • Full-time 4WD, 40% gradeability, and three selectable steering modes support movement around large outdoor jobsites.
  • Deutz TD2.9L4 Tier 4 Final diesel engine rated at 74.2 hp.
  • 360-degree continuous swing and hydraulic platform rotation.
  • Drive-out extendable axles with 8 ft 2 in retracted width and 12 ft 6 in extended width.
  • Control ADE system, proportional controls, and LCD panel at the operator platform control console.
  • ClearSky Smart Fleet hardware, LED motion/amber beacon, hourmeter, and platform console machine status light panel.
  • Rapid replaceable platform with self-closing gate, AC receptacle, USB-A and USB-C charger, and center storage tray.
  • Foam-filled 445/50D710 tires, 31-gal fuel tank, and 55-gal hydraulic system capacity.
  • SkyWelder, SkyPower, and SkyGlazier accessory packages for specialized trade applications.
  • SkySense enhanced detection system and Soft Touch system.
  • Cold Weather Package, Cold Package Plus, and Hostile Environment Package.
  • Platform mesh, mesh-to-top-rail, and mesh-to-mid-rail options in plastic or aluminum.
  • Platform configurations include fall arrest rear entry, drop bar, inward self-closing swing gate, tri-entry drop bar, and tri-entry swing gate.
  • Optional solid and solid non-marking tire choices.
  • Telescoping jib and 120-degree jib articulation help operators position the platform around elevated work.
  • Proportional controls support smooth, controlled boom and drive movements.
  • LCD platform display and machine status light panel keep key machine information visible to the operator.
  • USB-A and USB-C charging are built into the platform area for jobsite device support.
  • Multiple platform entry and gate options allow the machine to be configured around crew and task needs.
  • Load sensing system and selectable capacity envelope support operation within rated capacity ranges.
  • SkyGuard SkyLine, all motion alarm, tilt light and alarm, and LED motion/amber beacon are standard.
  • 4-degree tilt cutout helps limit operation outside specified slope conditions.
  • Optional SkySense enhanced detection system, Soft Touch system, and bolt-on fall arrest system are available.
  • Platform console machine status lights indicate system distress, low fuel, degree tilt light, and foot switch status.
  • 150-ft platform height and 80-ft horizontal outreach for large-scale elevated work.
  • 1,000-lb restricted and 500-lb unrestricted platform capacity.
  • 3.0 mph drive speed and 40% gradeability.
  • Full-time 4WD and 12-in axle ground clearance for outdoor jobsite travel.
  • Inside turning radius is 14 ft 5 in with axles retracted and 8 ft with axles extended.
  • Outside turning radius is 22 ft 6 in with axles retracted and 19 ft 4 in with axles extended.
  • Swing-out engine tray and gull-wing steel hoods provide service access to key machine areas.
  • Single-sensor load sensing system uses fewer parts and requires no weight to calibrate.
  • Engine distress warning and shutdown can be selected through the JLG Analyzer.
  • ClearSky Smart Fleet hardware supports connected fleet visibility.
  • Lifting and tie-down lugs are standard for handling and transport preparation.
  • General contractors
  • Glaziers

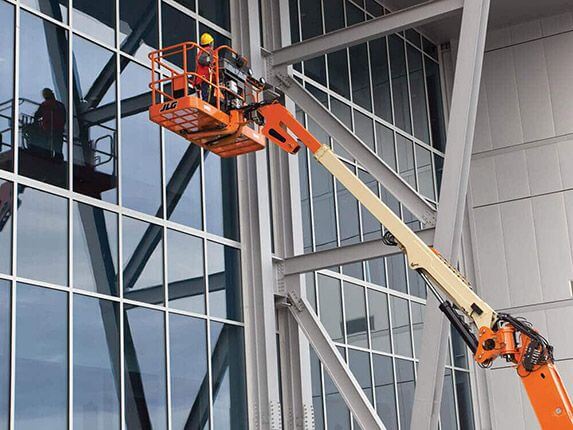

  • Window cleaners
  • Welders
  • Large outdoor construction and maintenance applications requiring high reach and horizontal outreach
