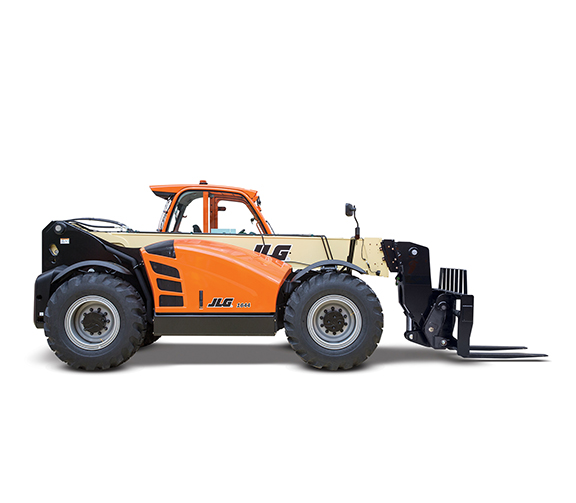

JLG_1644_High_Capacity_Telehandler_Studio

JLG 1644 High-Capacity Telehandler

15,650-lb rated capacity
43-ft 7-in maximum lift height
31-ft 1-in maximum forward reach
6,750-lb capacity at maximum lift height
Deutz TCD 3.6L 134 hp diesel engine

Documents

Product Documents

Videos

High-Capacity Telehandlers

The JLG 1644 is a high-capacity telehandler built for demanding material handling applications that require strength, reach, and attachment versatility. It offers a 15,650-lb rated capacity, 43-ft 7-in maximum lift height, and 31-ft 1-in maximum forward reach, with 6,750 lb of capacity available at maximum lift height.

A Deutz TCD 3.6L diesel engine, hydrostatic 2-speed transmission, selectable steering modes, and load sense hydraulics help support heavy jobsite work. The spacious enclosed cab, single joystick controls, tilt steering column, and available SmartLoad Technology help operators work with better comfort, visibility, and load awareness.

Model Number: 1644

Additional Information

Condition	New
Brand	JLG
MEWP Type	Telehandler
Power	Engine
MEWP Lift Height	41 – 60ft
MEWP Capacity	Over 2,000 lbs

15,650-lb rated capacity for high-capacity material handling applications.
43-ft 7-in maximum lift height and 31-ft 1-in maximum forward reach support heavy load placement at height and distance.
Spacious cab, 2-speed hydrostatic transmission, and available boom float and ride control support operator comfort and control.
SmartLoad Technology supports automatic attachment recognition and real-time load monitoring.
Wide attachment range includes carriages, pallet forks, buckets, pipe grapple, log handler, steel coil handler, work platform, and lifting hooks.

15,650-lb rated capacity with 6,750-lb capacity at maximum lift height.
Deutz TCD 3.6L 4-cylinder diesel engine with 134 hp and 369 lb-ft of torque.
Hydrostatic 2-speed transmission.
Operator-selectable 4-wheel circle, 4-wheel crab, and 2-wheel front steering modes.
8 degrees of frame leveling.
Enclosed cab with adjustable seat, retractable sunscreen, tilt steering column, and single joystick controls.
Tilt and auxiliary hydraulics on joystick.
ClearSky Smart Fleet hardware and LED motion/amber beacon.
Certified ROPS/FOPS structure, horn, anti-theft, and 17.5-25 SGG tires.

Air conditioning, Arctic Package, roof wiper, and multiple seat options.
Hydraulic coupler for attachment changes.
SmartLoad Technology and Seatbelt Engagement and Operator Presence systems.
Multi-function display with reversing camera.
Reverse sensing system, white noise back-up alarm, road lights, and work lights.
Ride Control and Boom Float for smoother load handling.
Dual auxiliary hydraulics, auxiliary electrics, remote boom control, platform docking station, reversing fan, boom brushes, boom prop, brick guards, fenders, and air shut-off valve.

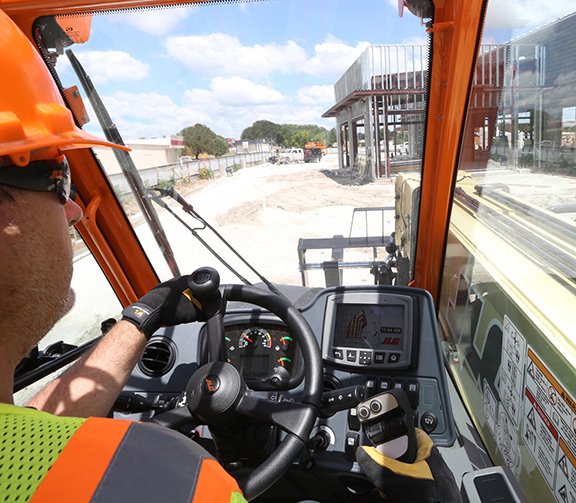

Spacious enclosed cab is designed to support operator comfort during demanding work.
Adjustable seat and tilt steering column help operators find a comfortable working position.
Single joystick controls keep key machine functions within easy reach.
Tilt and auxiliary hydraulics on joystick support more efficient attachment operation.
Retractable sunscreen, available air conditioning, and available roof wiper support comfort and visibility in changing conditions.

Certified ROPS/FOPS structure.
Precision gravity lower system and soft stop boom control support controlled boom operation.
Available reverse sensing system and reversing camera help improve operator awareness around the machine.
Available Seatbelt Engagement and Operator Presence system supports proper operator positioning before machine operation.
Service brakes use inboard wet disc brakes on the front and rear axles and include inching.
Parking brakes are wet disc, spring-applied, hydraulic release brakes on the front axle.

15,650-lb rated capacity for high-capacity material handling.
6,750-lb capacity at maximum lift height and 2,000-lb capacity at maximum reach.
43-ft 7-in maximum lift height and 31-ft 1-in maximum forward reach.
20 mph top travel speed.
8 degrees of frame leveling for positioning on uneven terrain.
23,000-lb loaded drawbar pull.
67 gal hydraulic system capacity with load sense piston pump.

DEF gauge, engine oil pressure gauge, fuel gauge, hour meter, temperature gauge, and volt meter help operators monitor machine status.
Load sense piston pump supports hydraulic system operation.
Auxiliary hydraulics support attachments equipped with cylinders or other hydraulic components.
Available reversing fan helps support cooling system cleanliness in dusty jobsite conditions.
Warranty coverage includes one full year on the machine, two years or 2,000 hours on the drivetrain, and five years on specified major structural components.

Heavy construction jobsites that need high-capacity lifting and forward reach.
Masonry and block handling supported by pallet forks, brick guards, and high-capacity lifting attachments.
Pipe handling applications supported by the available 96-in pipe grapple.
Logging and steel handling applications supported by log handler and steel coil handler attachments.
General material handling applications using carriages, forks, buckets, work platforms, material handling arms, and lifting hooks.
