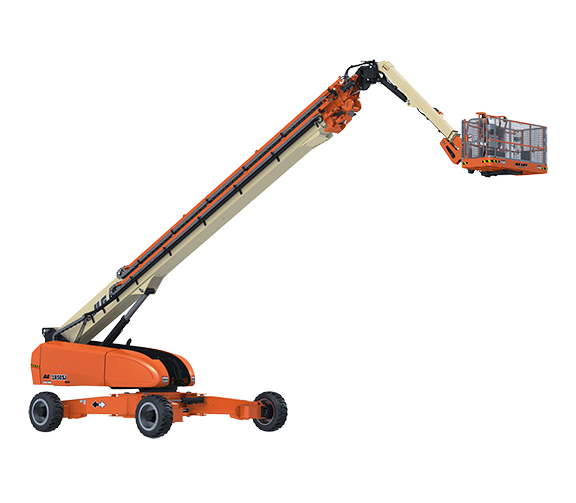

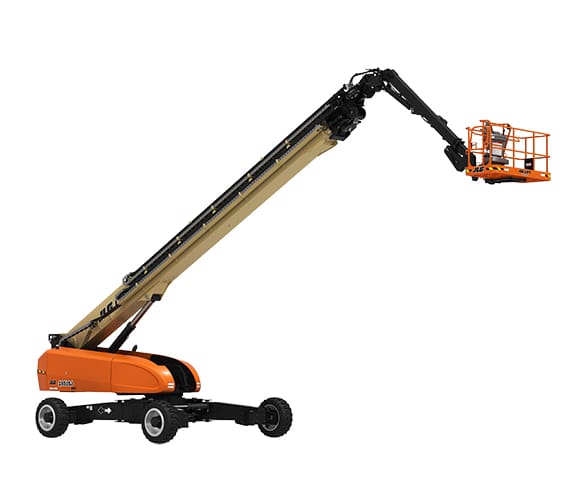

1850SJ Extended Front RF New
1850SJ Extended Front New

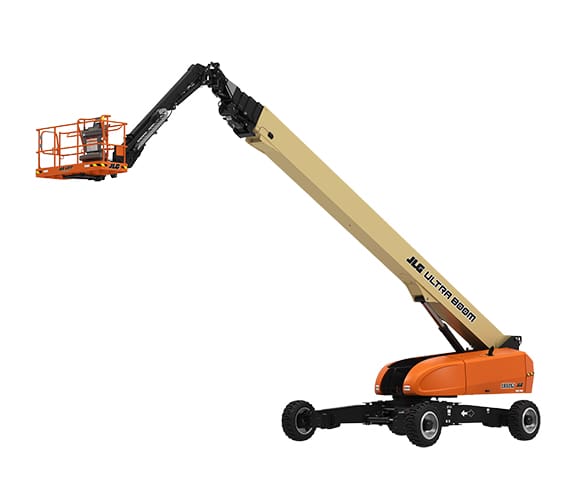

1850SJ Extended Front LF New

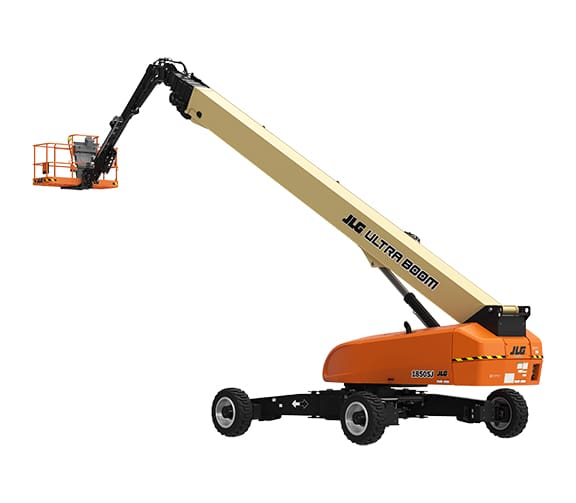

1850SJ Extended Rear LF New

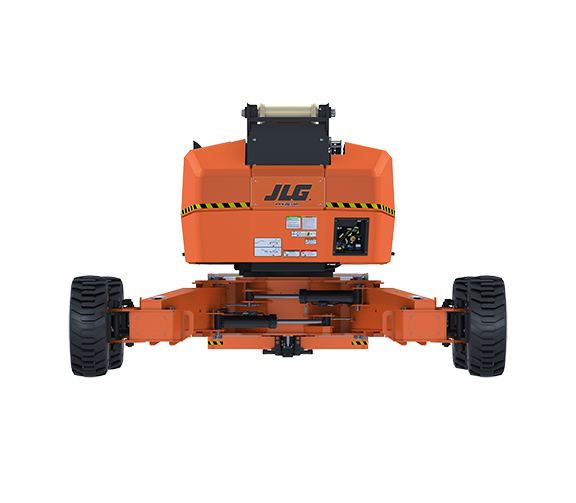

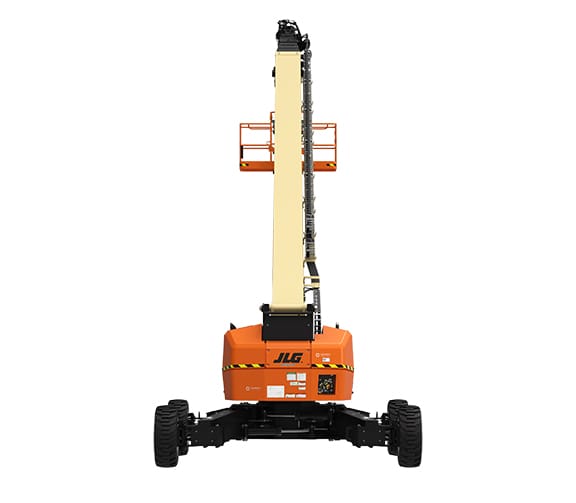

1850SJ Extended Rear New

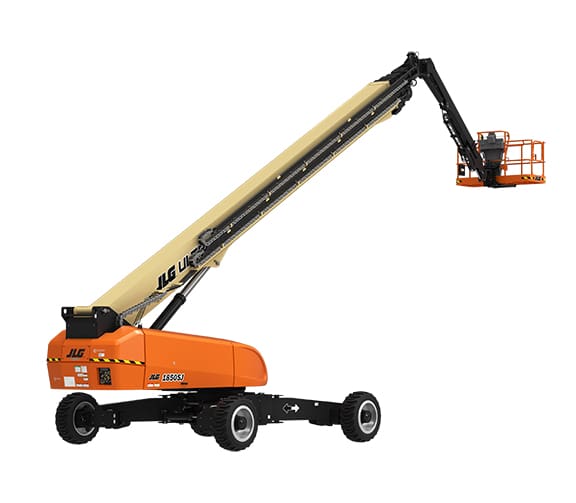

1850SJ Extended Rear RF New

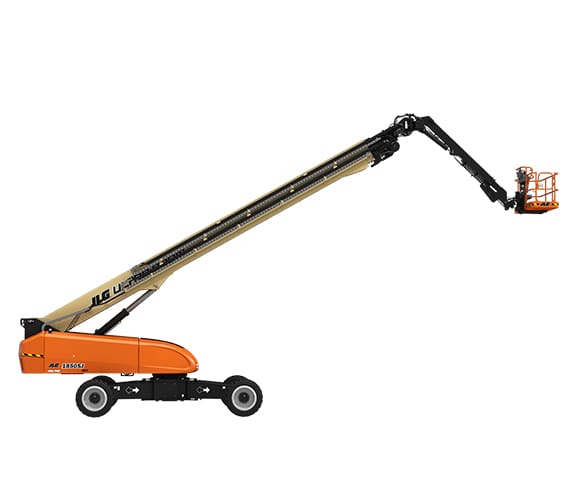

1850SJ Extended Side LF New
1850SJ Top New

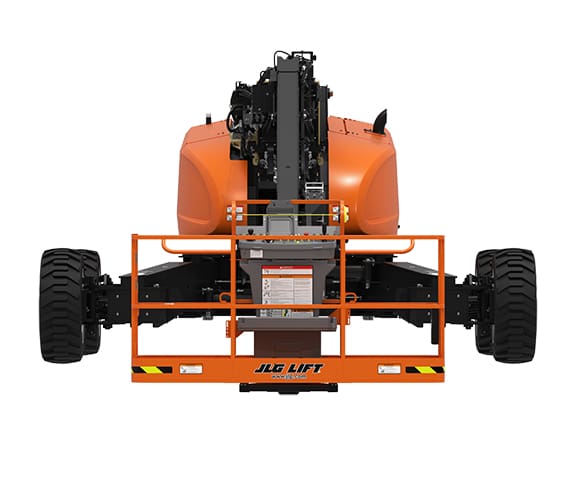

1850SJ Retracted Front New

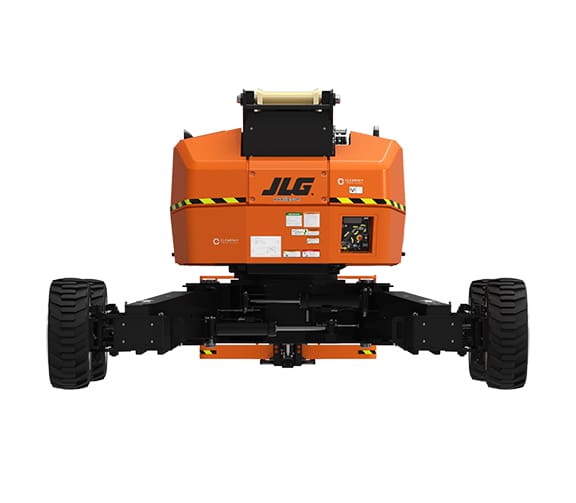

1850SJ Retracted Rear New
1850SJ Retracted Side RF New
1850SJ Retracted Side LF New

JLG 1850SJ Boom Lift

  • 185 ft. Platform Height
  • 80-ft horizontal outreach
  • 1,000 lbs. Restricted Capacity
  • 500 lbs. Unrestricted Capacity
  • Full-time 4WD
Request a Quote

Documents

Product Documents

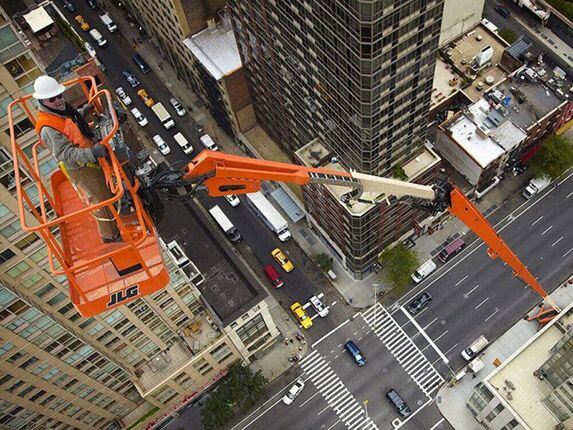

The JLG 1850SJ is an engine-powered telescopic Ultra Boom built for work that demands extreme height, long outreach, and rough-terrain mobility. With a 185-ft 7-in platform height, 80-ft horizontal outreach, and telescoping jib, it gives crews a large 2.9 million cubic-foot work area for positioning around tall structures and complex jobsites.

Full-time four-wheel drive, three steering modes, and drive-out extendable axles help the machine move and set up efficiently in demanding outdoor environments. Operators also get enhanced platform controls with an LCD work-envelope display, while service teams benefit from practical access features such as gull-wing steel hoods and a swing-out engine tray.

Model Number: 1850SJ

Additional Information

Brand

JLG
Condition

New
MEWP Type

Boom Lift, Telescopic
Power

Engine
MEWP Lift Height

Over 100ft
MEWP Capacity

501 – 1,000 lbs
  • 185-ft 7-in platform height and 80-ft horizontal outreach support access to very high, hard-to-reach work areas.
  • Telescoping jib provides 2.9 million cubic feet of work area for positioning around large structures.
  • Drive-out extendable axles extend or retract in about one minute to help balance jobsite stability with transport needs.
  • No oversized permit is needed for highway transportation, though an overweight permit is required.
  • Full-time four-wheel drive helps the machine move across rough terrain.
  • 185-ft 7-in platform height with 80-ft horizontal outreach.
  • Selectable capacity envelope with 1,000-lb restricted and 500-lb unrestricted platform capacity.
  • 13-ft retracted / 20-ft extended jib with 120 degrees of articulation.
  • 173-degree hydraulic platform rotator.
  • 360-degree continuous swing.
  • Full-time 4WD and three selectable steering modes.
  • Drive-out extendable axles.
  • ClearSky Smart Fleet hardware and LED motion/amber beacon.
  • AC receptacle, USB-A and USB-C charger, and 12V DC auxiliary power.
  • SkyWelder, SkyPower, and SkyGlazier accessory packages.
  • SkySense Enhanced Detection System.
  • Soft Touch System.
  • Bolt-on fall arrest system and rear-entry fall arrest platform option.
  • Cold Package Plus, Cold Weather Package, and Hostile Environment Package.
  • Platform mesh to top rail or mid rail in plastic or aluminum.
  • Multiple platform entry configurations, including drop bar, inward self-closing swing gate, and tri-entry options.
  • LCD screen at the platform control console shows operators their position in the work envelope and other useful machine information.
  • Proportional controls support smoother operation from the platform.
  • Hydraulic platform rotator and articulating jib help operators position the platform more precisely at height.
  • USB-A and USB-C charger provide convenient power access at the platform.
  • Load sensing system supports the selectable capacity envelope.

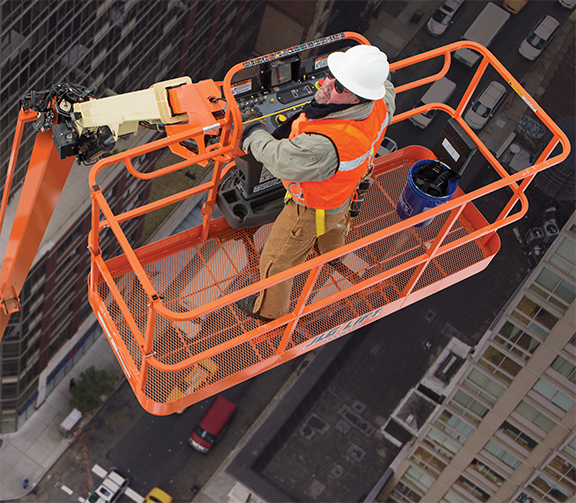

  • SkyGuard SkyLine is included as standard equipment.
  • All motion alarm, tilt light and alarm, and platform console machine status lights help keep operators aware of machine conditions.
  • Optional SkySense Enhanced Detection System is available for added object-detection awareness.
  • Optional bolt-on fall arrest and rear-entry fall arrest platform configurations are available.
  • 185-ft 7-in maximum platform height.
  • 80-ft maximum horizontal outreach.
  • 1,000-lb restricted and 500-lb unrestricted platform capacity.
  • 2.8 mph drive speed and 40% gradeability.
  • Deutz TCD 3.6L Tier IV Final diesel engine rated at 99.8 hp.
  • 445/50D710 foam-filled tires are standard.
  • Swing-out engine tray and gull-wing steel hoods provide access for service work.
  • Single-sensor load sensing system uses fewer parts and requires no weight to calibrate.
  • Engine distress warning/shutdown can be selected through the JLG Analyzer.
  • Hourmeter supports maintenance tracking.
  • ClearSky Smart Fleet hardware supports connected fleet visibility.
