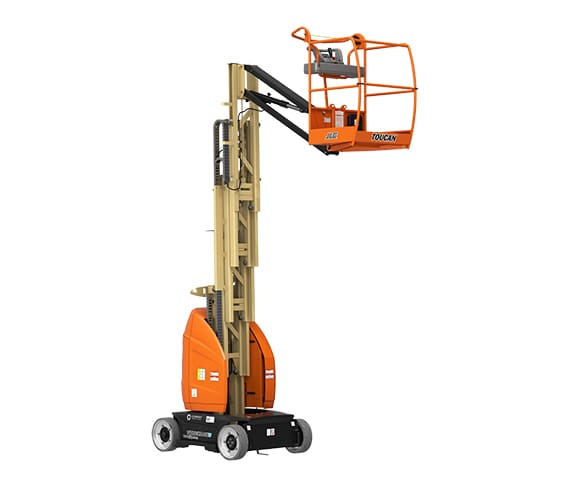

26E Raised Front RF New
26E Raised Front New

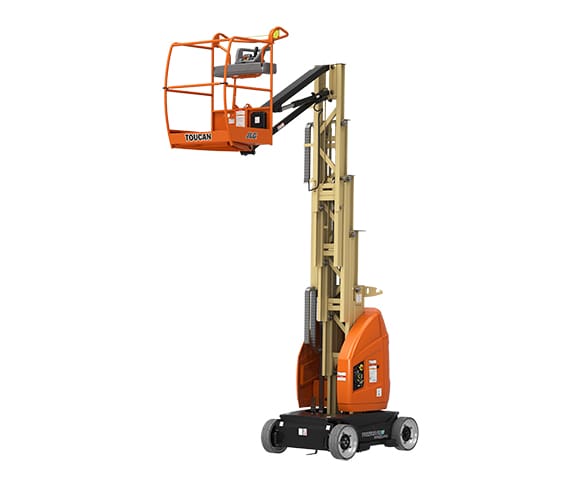

26E Raised Front LF New

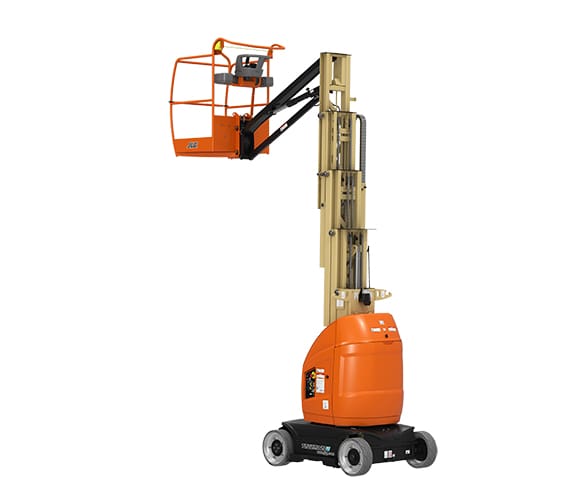

26E Raised Rear LF New
26E Raised Rear New

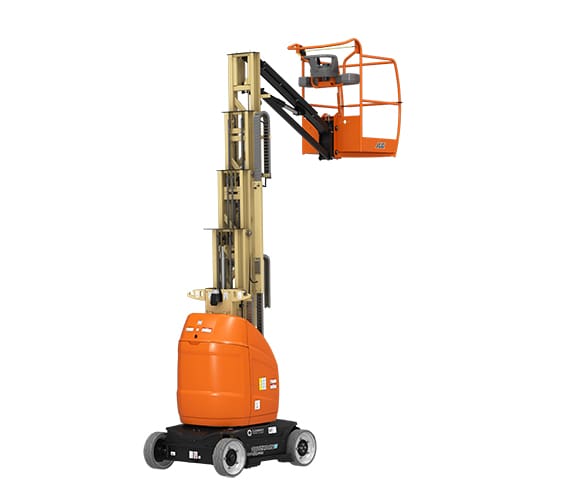

26E Raised Rear RF New

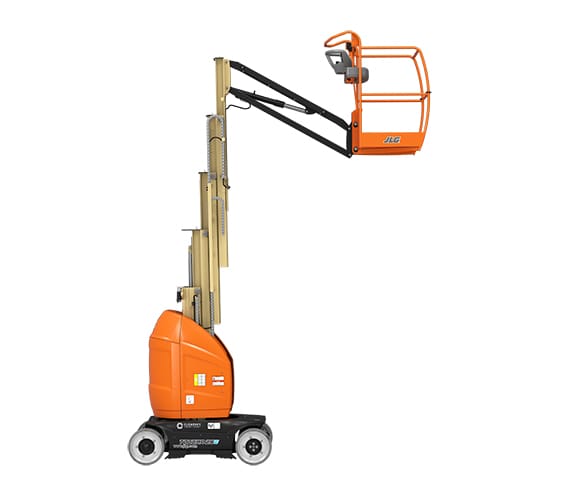

26E Raised Side RF New

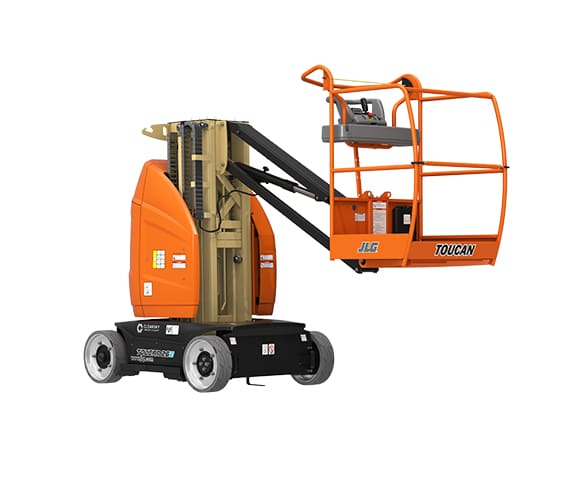

26E Stowed Front RF New

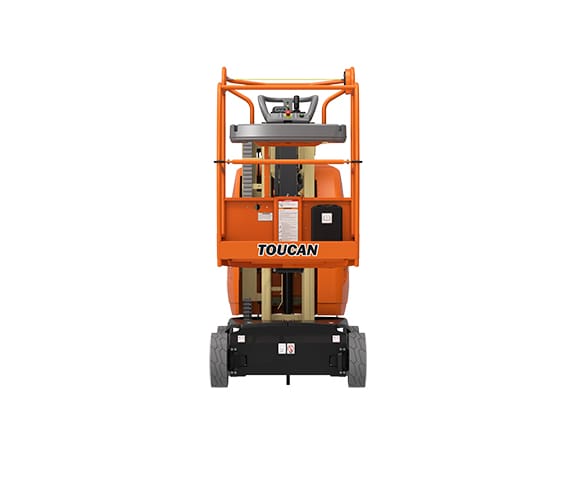

26E Stowed Front New
26E Stowed Rear New

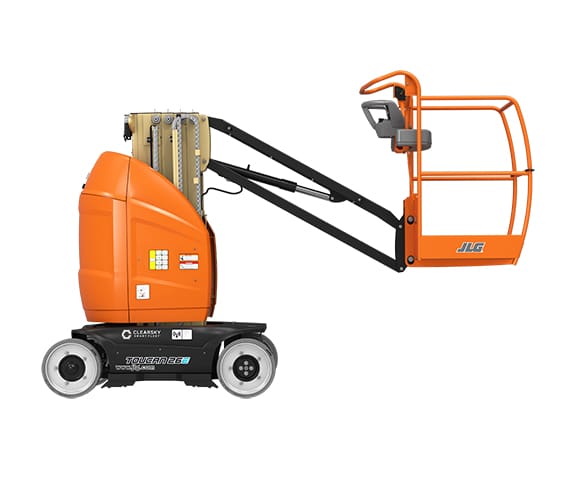

26E Stowed Side RF New

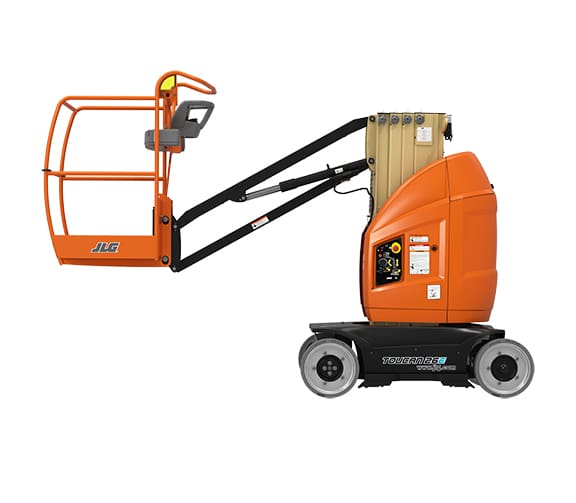

26E Stowed Side LF New

JLG 26E Toucan Mast Lift

  • 26-ft 7-in platform height
  • 21-ft 4-in up-and-over height
  • 500 lbs. capacity
  • 345-degree non-continuous swing
  • AC direct electric drive
Request a Quote

Documents

Product Documents

The JLG 26E Toucan mast-style boom lift is built for compact up-and-over access in facilities, maintenance areas, and other tight work environments. Its vertical telescopic mast with jib provides a 26-ft 7-in platform height, 21-ft 4-in up-and-over height, and 8-ft 9-in horizontal outreach.

A 500-lb platform capacity, 345-degree non-continuous swing, and compact 3-ft 3-in machine width help operators work efficiently in constrained spaces. With electric drive, non-marking tires, 25% gradeability, SkyGuard SkyLine, load sensing, and ClearSky Smart Fleet hardware, the 26E gives operations teams a compact lift for practical indoor and outdoor elevated work.

Model Numbers: 26E

Additional Information

Condition

New
Brand

JLG
MEWP Type

Vertical Mast Lifts
Power

Electric
MEWP Lift Height

26 – 40ft
MEWP Capacity

Up to 500 lbs
  • 26-ft 7-in platform height and 21-ft 4-in up-and-over height help operators reach elevated work in tight spaces.
  • Vertical telescopic mast with jib provides compact up-and-over access where a larger articulating boom may not fit.
  • 500-lb platform capacity supports workers and tools.
  • 3-ft 3-in machine width supports maneuverability in confined indoor areas and standard double-door access routes.
  • AC direct electric drive supports optimum battery life and more duty cycles.
  • 25% gradeability supports use on outdoor work areas as well as indoor applications.
  • 110V AC receptacle in the platform.
  • 345-degree non-continuous swing.
  • 5-degree tilt alarm and indicator light.
  • All motion alarm.
  • Battery condition indicator.
  • ClearSky Smart Fleet hardware.
  • Emergency lowering pump.
  • Horn.
  • Hourmeter.
  • LED motion/amber beacon.
  • Lifting eyes.
  • Load sensing system.
  • Proportional controls.
  • Saloon gate platform.
  • SkyGuard SkyLine.
  • Tie-down lugs.
  • Warning beacon.
  • 5/16-in airline.
  • 70W platform work light.
  • Console cover.
  • Drop bar platform.
  • Proportional controls help operators position the lift with controlled movement.
  • Saloon gate platform supports straightforward platform entry and exit.
  • 28 x 36-in platform provides working space for operators and tools.
  • SkyGuard SkyLine operator protection system comes standard.
  • Load sensing system is included as standard equipment.
  • 5-degree tilt alarm and indicator light help alert operators to machine positioning conditions.
  • All motion alarm and warning beacon help improve awareness around the machine.
  • Emergency lowering pump supports controlled lowering when needed.
  • 26-ft 7-in platform height.
  • 21-ft 4-in up-and-over height.
  • 8-ft 9-in horizontal outreach.
  • 500-lb platform capacity.
  • 345-degree non-continuous swing.
  • 3.4 mph stowed drive speed.
  • 0.47 mph elevated drive speed up to 23-ft 7.5-in platform height with the jib fully raised.
  • 0.25 mph elevated drive speed above 23-ft 7.5-in platform height with the jib fully raised.
  • 25% gradeability.<
  • Battery condition indicator helps operators monitor battery status.
  • Hourmeter supports routine usage tracking.
  • ClearSky Smart Fleet hardware supports fleet visibility and equipment management.
  • 24V DC power source with 260 amp-hour AGM batteries and 27-amp charger.
