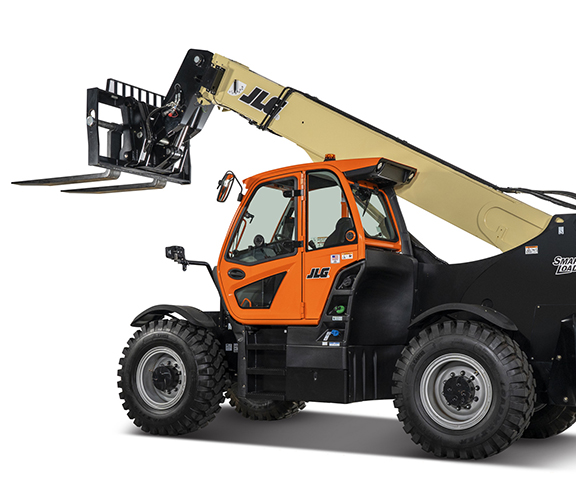

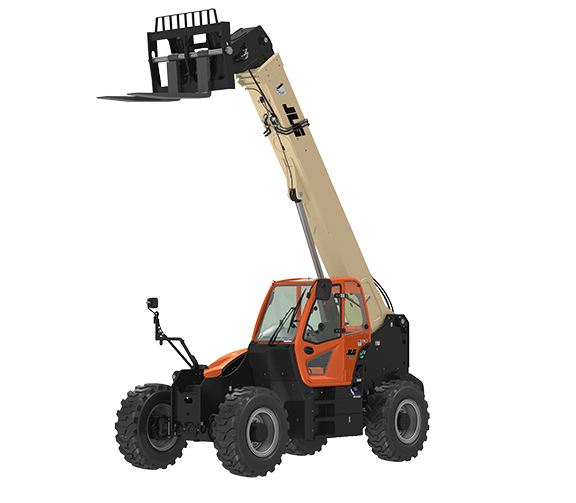

JLG 2733 High-Capacity Telehandler

26,600-lb rated capacity
33-ft 1-in maximum lift height
17-ft 7-in maximum forward reach
160-hp Cummins QSB4.5L Tier 4 Final engine
Wide attachment range

Documents

Product Documents

Videos

The JLG 2733 high-capacity telehandler is built for heavy pick-and-carry work, with a 26,600-lb rated capacity and the reach needed to place material up to 33 ft 1 in high. Its 17-ft 7-in maximum forward reach and 15,500-lb capacity at full height make it a strong fit for jobsites that need both lifting power and placement flexibility.

Operators get a visibility-focused cab with single joystick controls, selectable steering modes, and available camera, mirror, reverse sensing, and SmartLoad features for added awareness. A broad attachment lineup helps the 2733 adapt to pallet handling, cleanup, pipe handling, tire handling, steel coil handling, and other demanding applications.

Model Number: 2733

Additional Information

Condition	New
Brand	JLG
MEWP Type	Telehandler
Power	Engine
MEWP Lift Height	26 – 40ft
MEWP Capacity	Over 2,000 lbs

26,600-lb rated capacity supports heavy pick-and-carry applications.
33-ft 1-in maximum lift height and 17-ft 7-in maximum forward reach help reduce reliance on wheel loaders in some applications.
Wide attachment compatibility supports work across construction, wind, oil and gas, mining, and other heavy-duty jobsites.

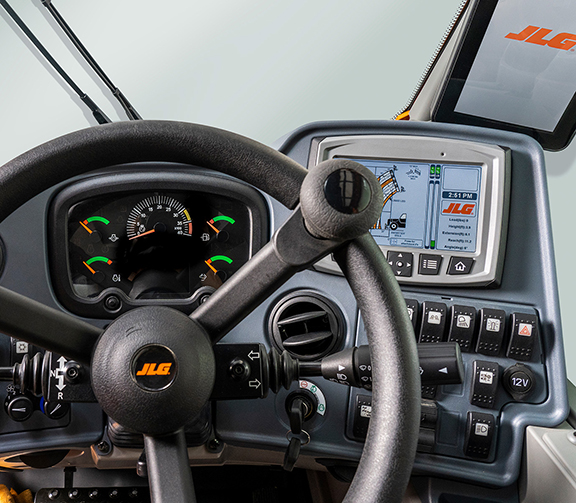

Operator-focused cab layout combines visibility, single joystick control, and a wrap-around dash.

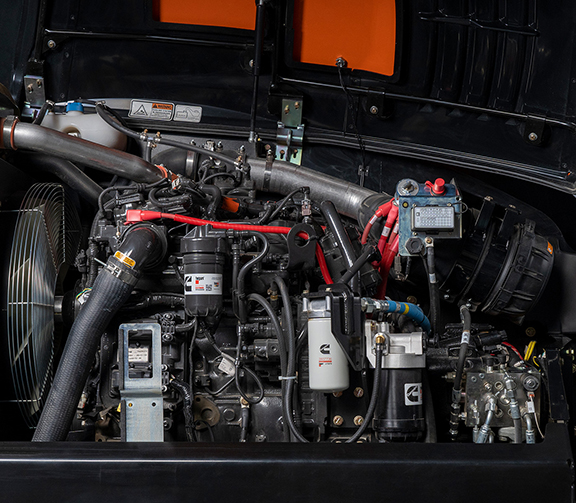

Cummins QSB4.5L Tier 4 Final engine rated at 160 hp.
Hydrostatic transmission with 2-speed forward and 2-speed reverse operation.
Operator-selectable 4-wheel circle, 4-wheel crab, and 2-wheel front steering modes.
Certified ROPS/FOPS cab structure with adjustable seat, horn, single joystick controls, tilt and declutch on joystick, and anti-theft.

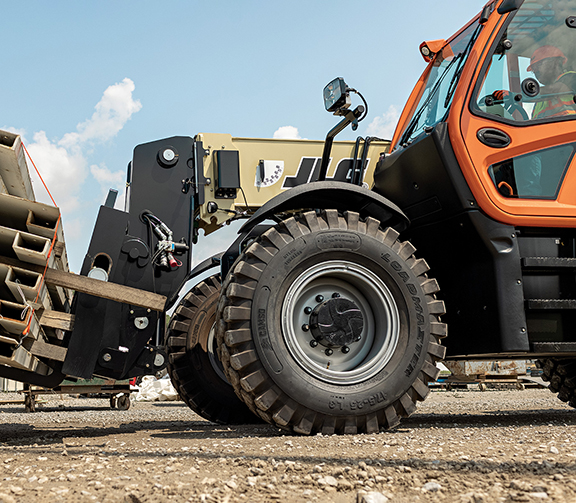

Standard 17.5-25 Air CAMSO L2 tires.

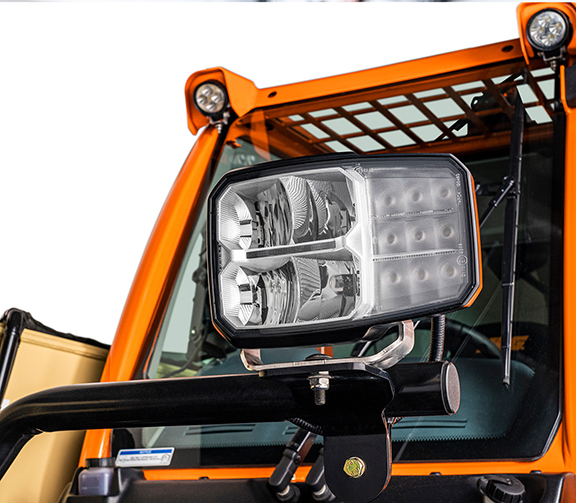

LED Motion/Amber Beacon and ClearSky Smart Fleet Connectivity hardware.

Air conditioning, air suspension seat, arctic package, fenders, road lights, roof wiper, and work lights.
Hydraulic coupler, ride control and boom float, reverse sensing, white noise backup alarm, and right-side electronic mirror.
Multi-function display with reversing camera and optional SmartLoad Technology.
Standard, dual fork positioning, and side-shift carriages.

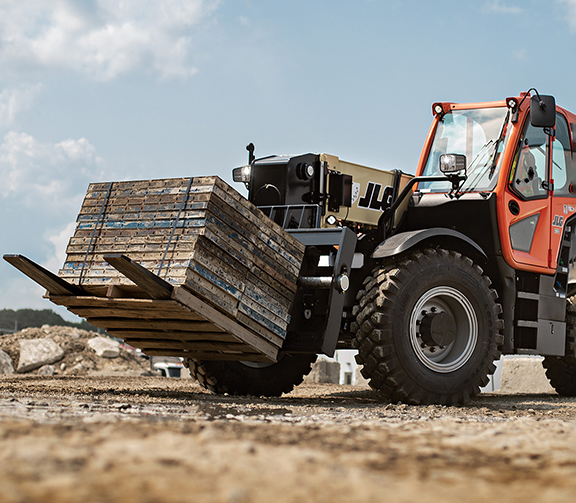

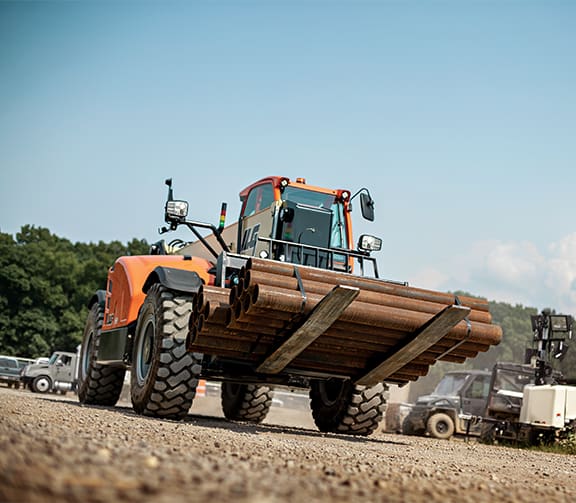

Pallet forks, general purpose bucket, grapple bucket, light material bucket, truss boom, tire handler, log handler, hydraulic winch, pipe grapple, and steel coil handler.

Cab is designed for operator comfort and visibility during heavy-duty material handling.
Single joystick controls and a wrap-around dash help keep key functions within easy reach.
Optional air suspension seat and air conditioning add comfort for long shifts or demanding environments.

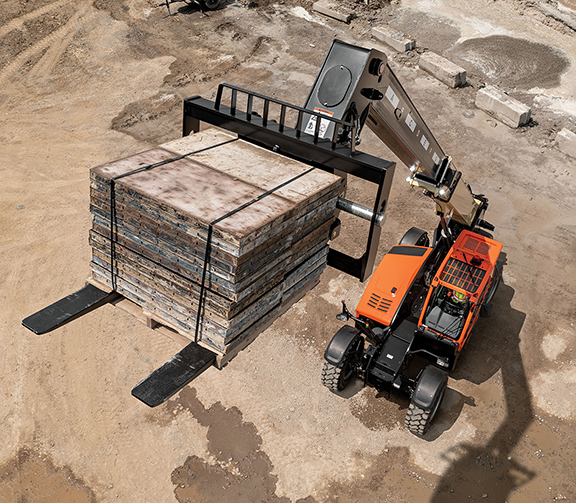

Dual fork positioning carriage lets operators adjust fork position for palletized loads without leaving the cab.

Certified ROPS/FOPS cab structure supports operator protection.
Load Stability Indication helps operators monitor machine stability while handling loads.
Optional SmartLoad Technology, right-side electronic mirror, reverse sensing, and reversing camera support operator awareness.
Inboard wet disc service brakes are used on the front and rear axles, with a wet disc spring-applied hydraulic release parking brake on the front axle.

26,600-lb rated capacity, with 15,500-lb capacity at maximum height.
8,000-lb capacity at maximum reach.
33-ft 1-in maximum lift height and 17-ft 7-in maximum forward reach.
17 mph top travel speed with 28,500-lb loaded drawbar pull.
8 degrees of frame leveling and a 176-in outside turning radius.
38,775-lb operating weight.

Construction
Wind
Oil and gas
Mining
Heavy-duty material handling and pick-and-carry applications
