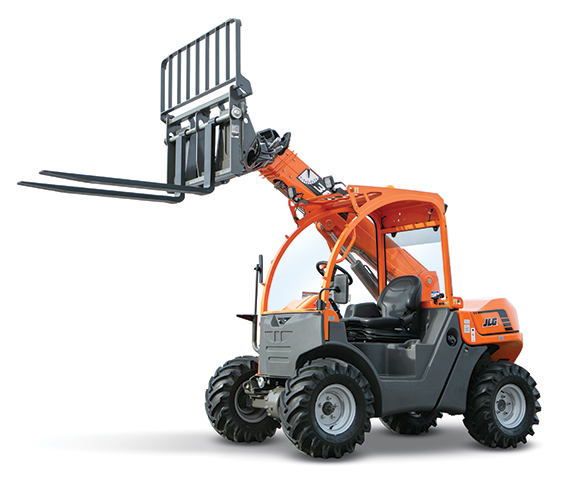

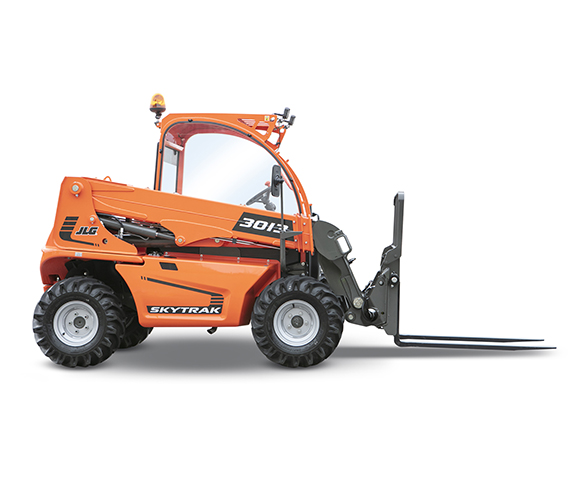

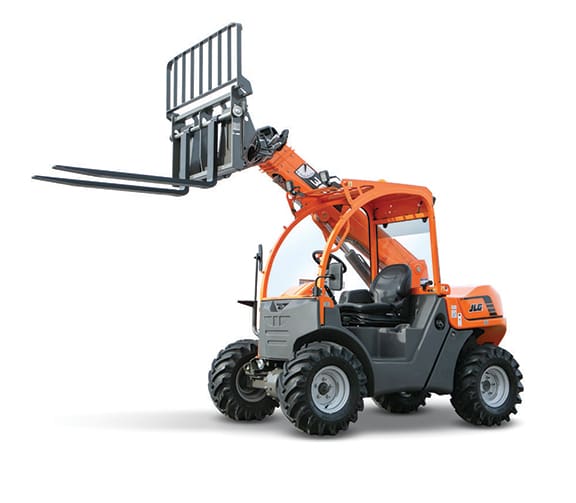

JLG SkyTrak 3013 Telehandler

2,700-lb rated capacity
13-ft 1-in maximum lift height
7-ft 1-in maximum forward reach
117-in outside turning radius
5,280-lb operating weight

Documents

Product Documents

Videos

Tour the Ultra-Compact SkyTrak 3013 Telehandler

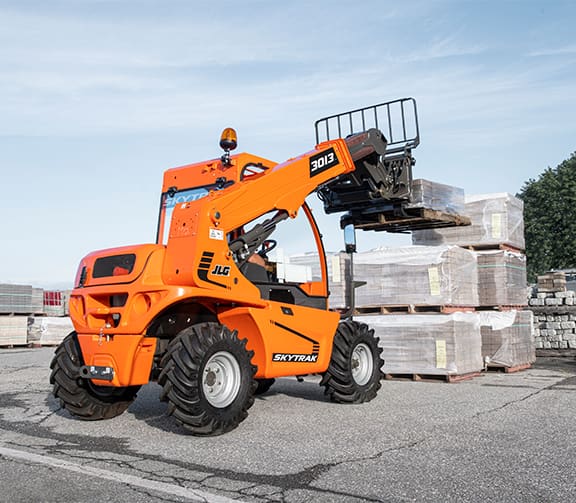

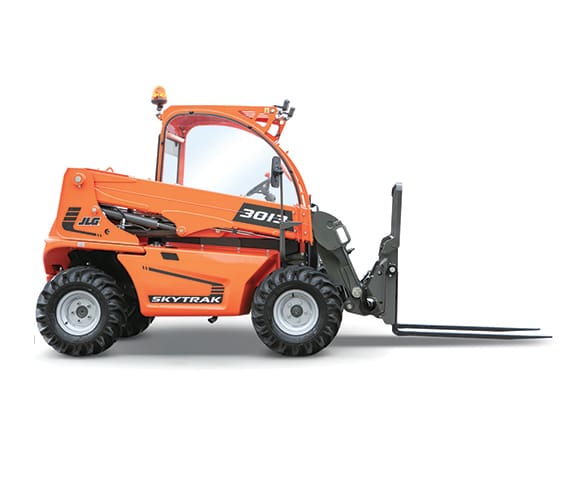

The SkyTrak 3013 is an ultra-compact telehandler designed for material handling in tight and confined environments. It offers a 2,700-lb rated capacity, 13-ft 1-in maximum lift height, and 7-ft 1-in maximum forward reach, giving operators practical reach into truck beds, trailers, and over obstacles.

Its rear-wheel steering, rear oscillating axle, and 117-in outside turning radius help it maneuver cleanly while reducing ground disturbance. With a lightweight 5,280-lb operating weight, Kubota diesel power, four-wheel drive, and available skid steer attachment compatibility, the 3013 is a compact option for crews that need reach without a full-size telehandler.

Model Number: 3013

Additional Information

Condition	New
Brand	JLG
MEWP Type	Telehandler
MEWP Lift Height	Up to 25ft
MEWP Capacity	Over 2,000 lbs

Ultra-compact design helps operators complete material handling tasks in confined environments.
2,700-lb rated capacity with 13-ft 1-in maximum lift height supports light-duty lifting and placement work.
7-ft 1-in maximum forward reach helps operators reach into truck beds, trailers, and over obstacles.
Rear-wheel steering helps reduce ground disturbance while improving maneuverability in tight areas.
Lightweight 5,280-lb operating weight supports easier transport from job to job with a pickup and trailer.

2,700-lb rated capacity with 1,555-lb capacity at maximum lift height.
Kubota V-1505 4-cylinder engine with 24.8 hp and 68.3 lb-ft of torque.
Hydrostatic transmission with 1 forward speed and 1 reverse speed.
Four-wheel drive with limited slip axle and rear oscillating axle.
Rear pivot power steering.
Certified ROPS/FOPS structure, adjustable suspension seat, retractable seat belt, and rear view mirrors.
Single joystick controls, integrated armrest, and Longitudinal Stability Indication System.
Hourmeter, engine oil pressure indicator, temperature indicator, fuel gauge, pre-heating indicator, battery indicator, and air filter indicator.

Enclosed cab for added operator protection from jobsite conditions.
Work lights and wiper package.

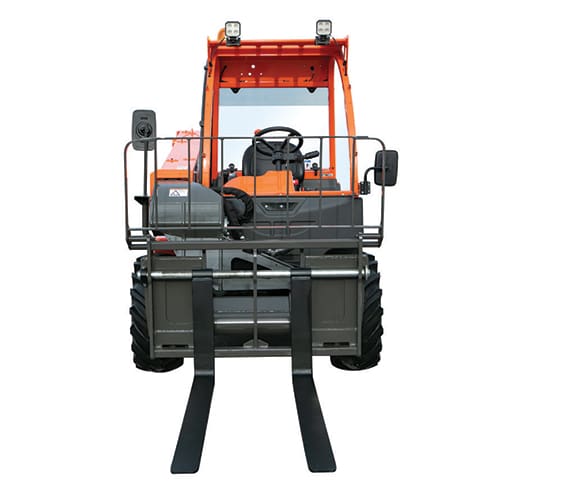

Front brick guard for added front-end protection.
2 in. ball hitch.
Cold Weather Package.
Foam-filled ag tread, pneumatic non-marking, foam-filled non-marking, and turf tire options.

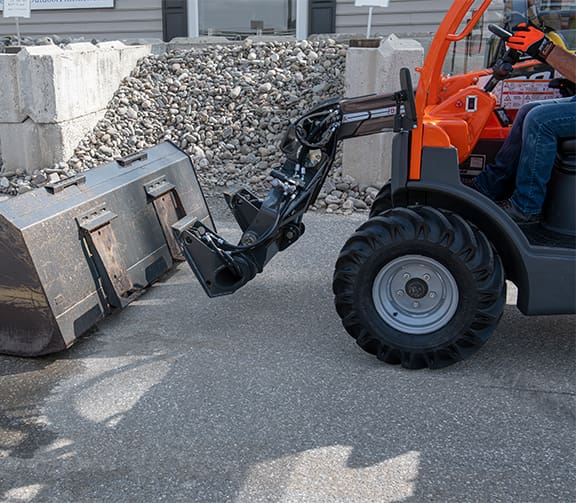

Optional hydraulic universal skid steer coupler for use with skid steer attachments.

Adjustable suspension seat supports operator comfort during daily use.
Integrated armrest and single joystick controls keep key machine functions within easy reach.
Rear view mirrors support visibility around the machine.
Rear oscillating axle provides a smoother ride and helps support load stability.
Enclosed cab and wiper package options support comfort and visibility in changing conditions.

Certified ROPS/FOPS structure.
Longitudinal Stability Indication System helps operators monitor load stability conditions.
Retractable seat belt is included with the adjustable suspension seat.
Rear view mirrors support operator awareness around the machine.
Emergency brake is spring-applied and hydraulically released.
Service brake includes inching for controlled machine movement.

2,700-lb rated capacity for compact material handling applications.
1,555-lb capacity at maximum lift height and 1,200-lb capacity at maximum reach.
13-ft 1-in maximum lift height and 7-ft 1-in maximum forward reach.
10.5 mph top travel speed.
117-in outside turning radius for maneuvering in confined work areas.
2,623-lb loaded drawbar pull.
8.5 gal hydraulic system capacity with auxiliary hydraulics for compatible attachments.

Hourmeter helps track service intervals and machine usage.
Engine oil pressure, temperature, fuel, pre-heating, battery, and air filter indicators help operators monitor machine status.
Hydraulic holding valves support implement hydraulic control.
Auxiliary hydraulics support attachments equipped with cylinders or other hydraulic components.
Warranty coverage includes one full year on the machine, two years or 2,000 hours on the drivetrain, and five years on specified major structural components.

Confined jobsites that need compact material handling equipment.

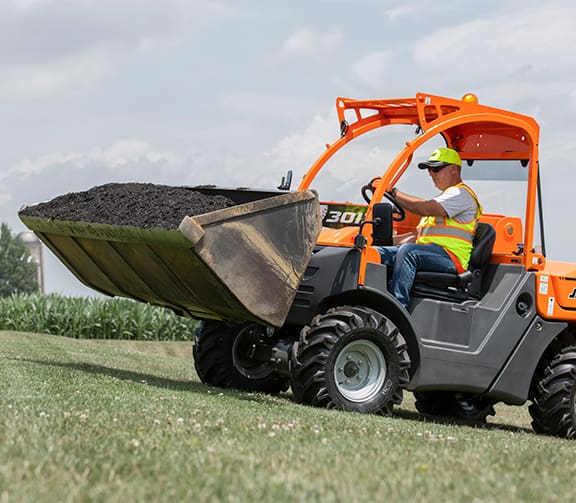

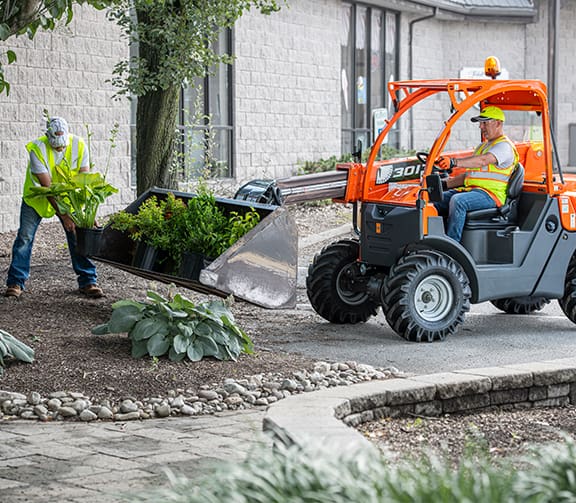

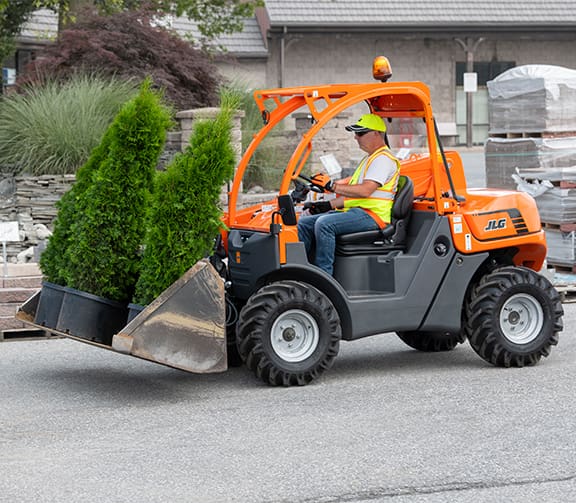

Residential and light construction work where maneuverability and low ground disturbance are important.

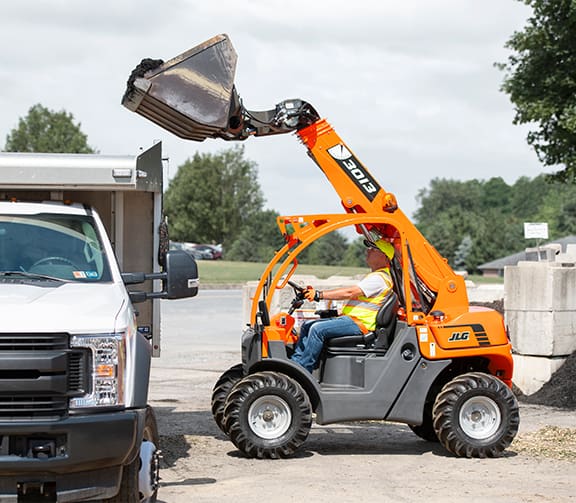

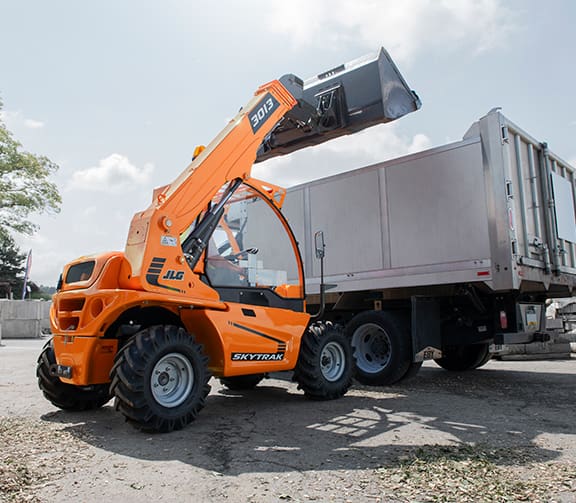

Truck and trailer loading applications supported by the machine’s forward reach.

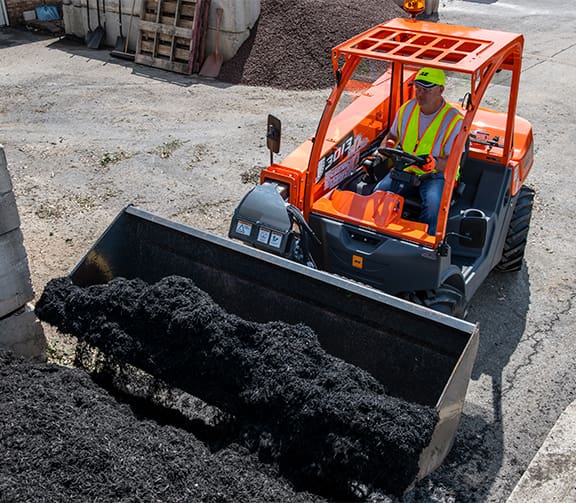

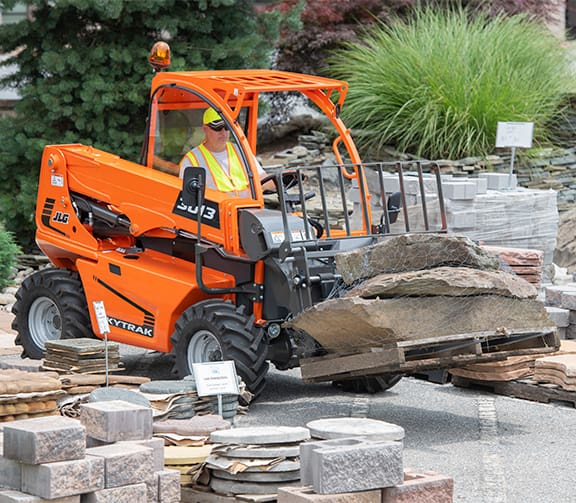

General material handling applications using pallet forks, carriages, and buckets.
