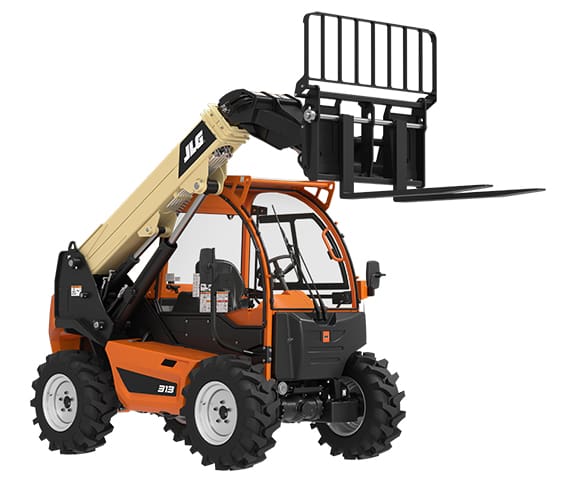

313_Extended_Front_RF

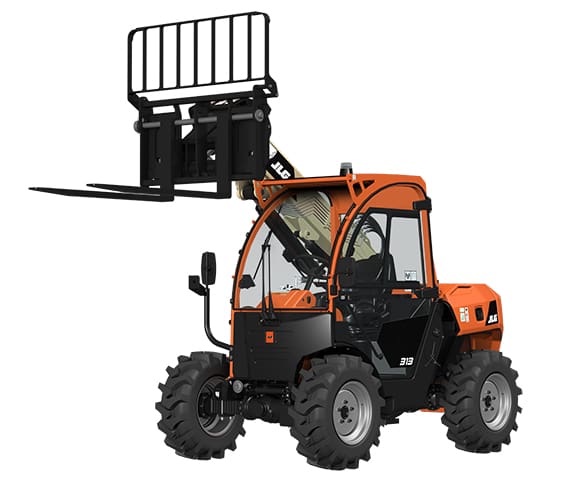

313_Raised_Front_LF

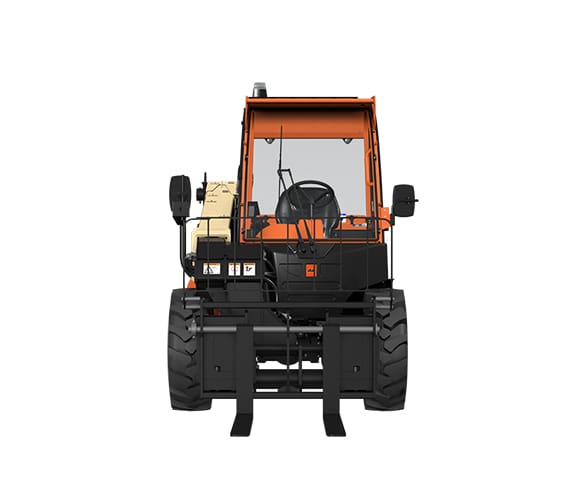

313_Stowed_Front

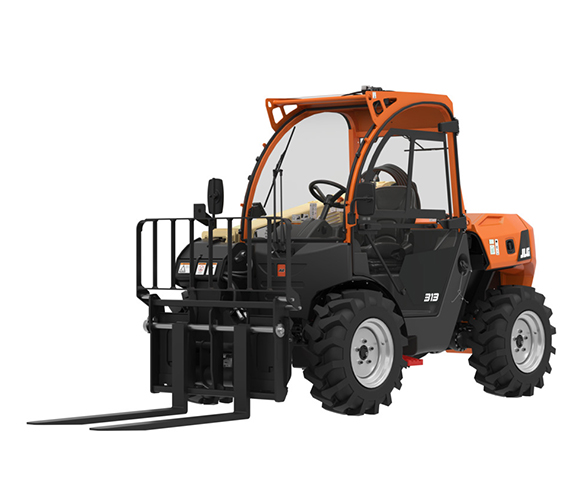

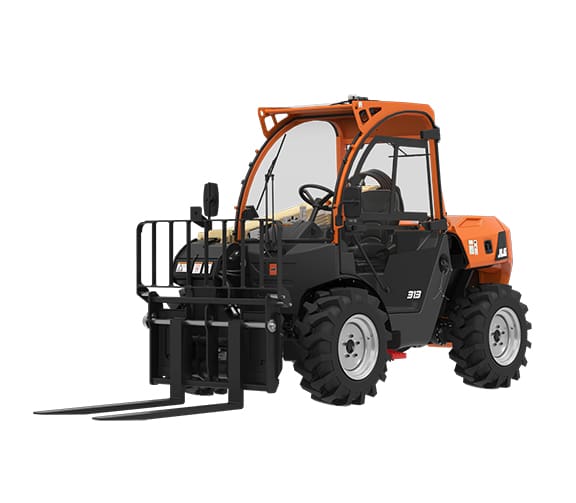

313_Stowed_Front_LF

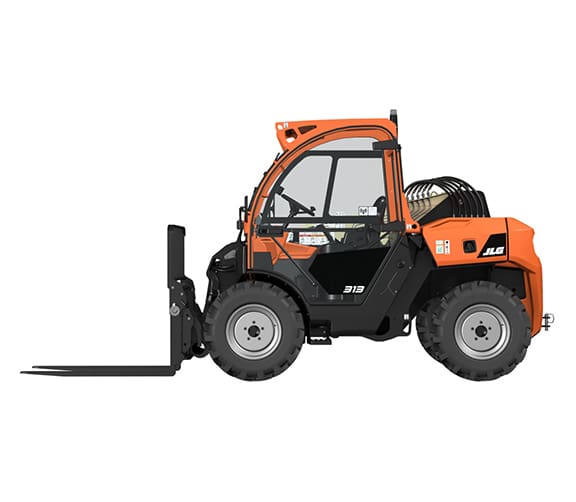

313_Stowed_Side-LF

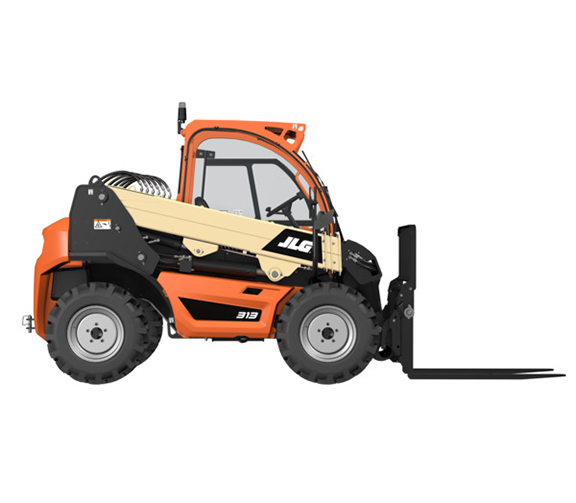

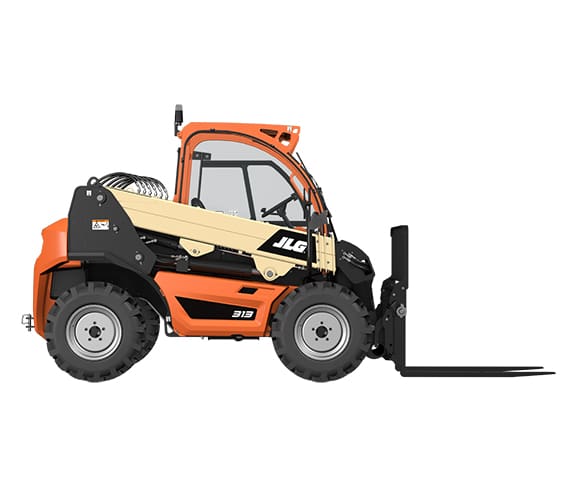

313_Stowed_Side_RF

JLG 313 Telehandler

  • 3,500 lbs. Rated Capacity
  • 13 ft. Platform Height
  • 7 ft. 6 in. Maximum Forward Reach
  • 4-ft 10-in machine width
  • Universal skid steer coupler
Request a Quote

Documents

Product Documents

The JLG 313 telehandler is a compact material handling machine built for crews that need lift, reach, and maneuverability in tighter job site conditions. With a 3,500-lb rated capacity, 13-ft 1-in lift height, and 7-ft 7-in forward reach, it can handle palletized loads, buckets, and supported attachments while staying narrow enough for crowded work areas.

The cab is designed around operator visibility and comfort, with an integrated display, adjustable suspension seat, armrest, and single joystick proportional controls. Standard auxiliary hydraulics, rear pivot steering, 2WD/4WD modes, and a universal skid steer coupler help the 313 adapt to changing material handling needs throughout the day.

Model Numbers: 313

Additional Information

Condition

New
Brand

JLG
MEWP Type

Telehandler
Power

Engine
MEWP Lift Height

Up to 25ft
MEWP Capacity

Over 2,000 lbs
  • Compact telehandler design with a 4-ft 10-in machine width and 134-in outside turning radius for maneuvering on crowded job sites.
  • 3,500-lb rated capacity gives crews the ability to move palletized materials, buckets, and job site supplies with one machine.
  • 13-ft 1-in maximum lift height and 7-ft 7-in forward reach help place loads where compact equipment is required.
  • 2-wheel and 4-wheel drive modes support traction needs across varied terrain.
  • Universal skid steer coupler and auxiliary hydraulics make the machine compatible with supported attachments.
  • 41-in carriage with bolt-on backrest.
  • 48-in pallet forks.
  • Mechanical universal skid steer coupler.
  • Auxiliary hydraulics.
  • Rear pivot steering.
  • Integrated electronic display and hourmeter.
  • Tow hitch.
  • Standard 10.0/75-15.3 pneumatic Ag tread tires.
  • Enclosed cab.
  • Hydraulic universal skid steer coupler.
  • High auxiliary flow rated at 10.5 gpm / 3045 psi.
  • Road lights, work lights, and wiper package.
  • Foam-filled Ag tread tires or 10-16.5 turf tires.
  • General purpose 63-in bucket.
  • Adjustable suspension seat supports operator comfort during daily material handling work.
  • Integrated armrest and single joystick proportional controls keep key machine functions within easy reach.
  • Enhanced visibility and rear view mirrors help operators maintain awareness around the machine.
  • Integrated electronic display keeps machine information visible from the cab.
  • Certified ROPS/FOPS cab structure.
  • Longitudinal Stability Indication System helps operators monitor machine stability conditions.
  • Seatbelt engagement and operator assurance system.
  • Backup alarm and LED motion / amber beacon.
  • Service brakes use inboard wet disc brakes on the front axle, with spring-applied hydraulic-release parking brakes.
  • 3,500-lb rated capacity.
  • 1,800-lb capacity at maximum lift height.
  • 1,415-lb capacity at maximum reach.
  • 13-ft 1-in maximum lift height and 7-ft 7-in maximum forward reach.
  • 12.4 mph top travel speed.
  • Kubota V1505-E4B 4-cylinder engine with 24.8 hp gross power.
  • Hydrostatic 2-speed transmission.
