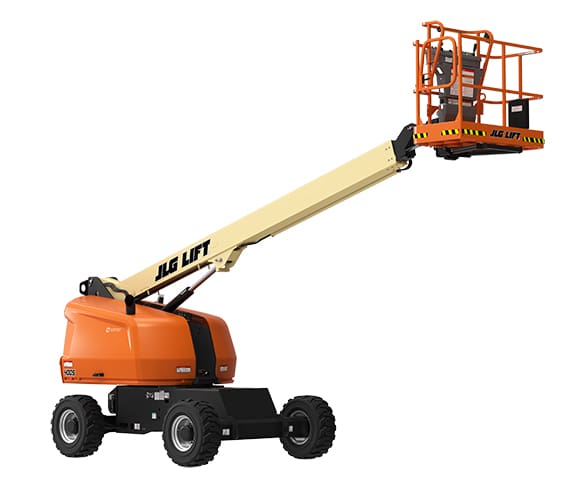

400S Extended Front RF New
400S HC3 Extended Front New

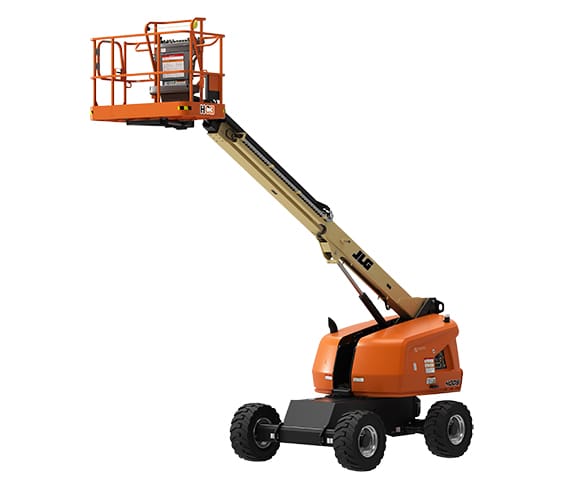

400S HC3 Extended Front LF New

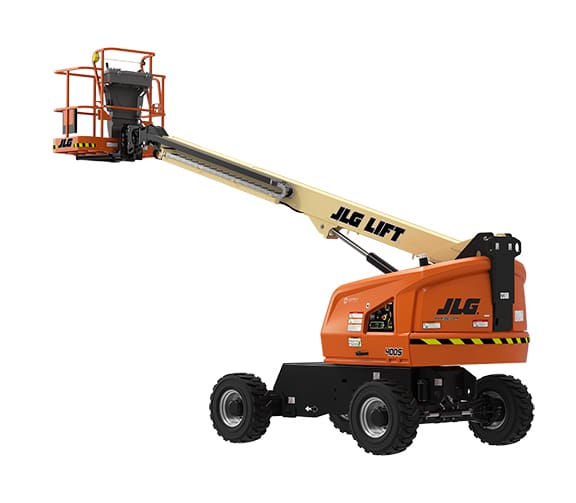

400S Extended Rear LF New
JLG 400S HC3 Telescopic Boom Lift - Image 5

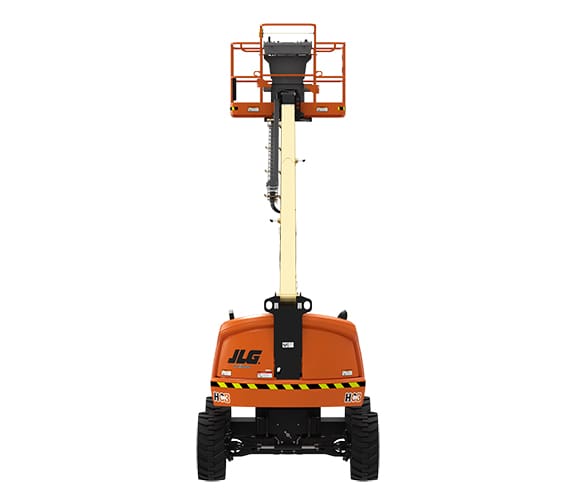

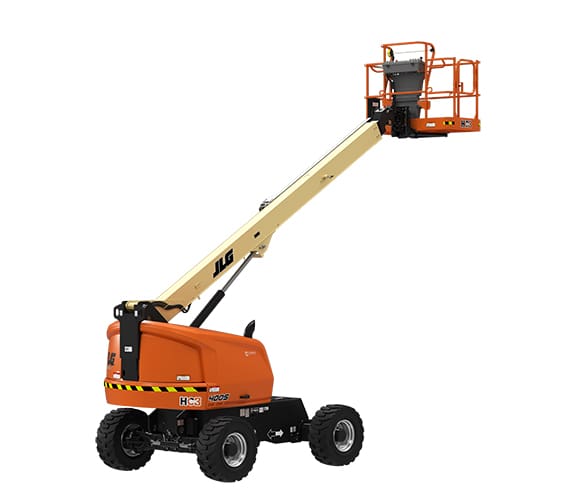

400S HC3 Extended Rear RF New

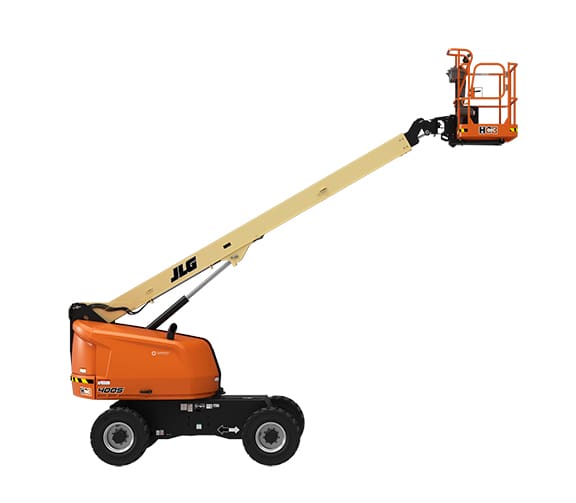

400S HC3 Extended Side RF New
400S HC3 Top New

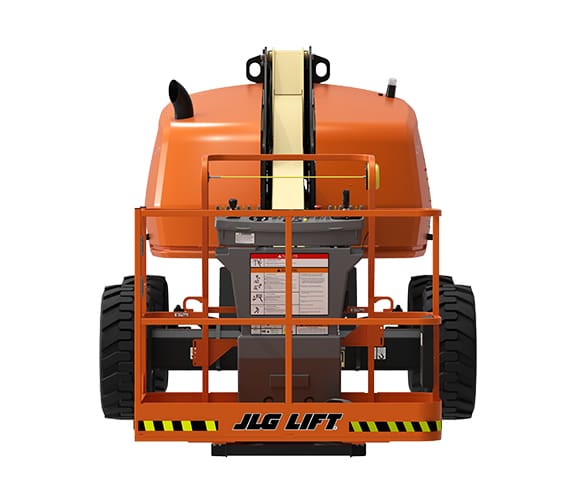

400S Retracted Front New

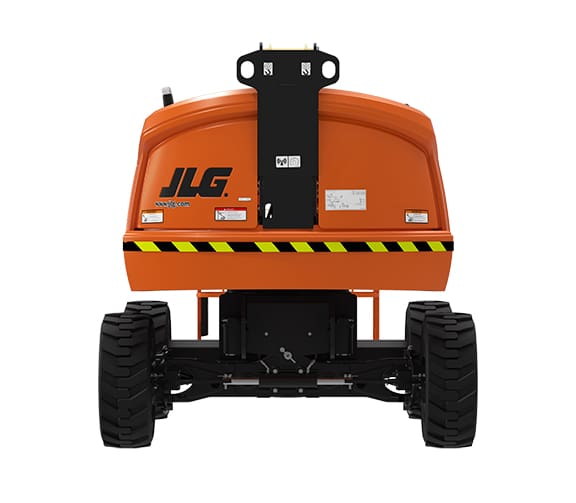

400S Retracted Rear New

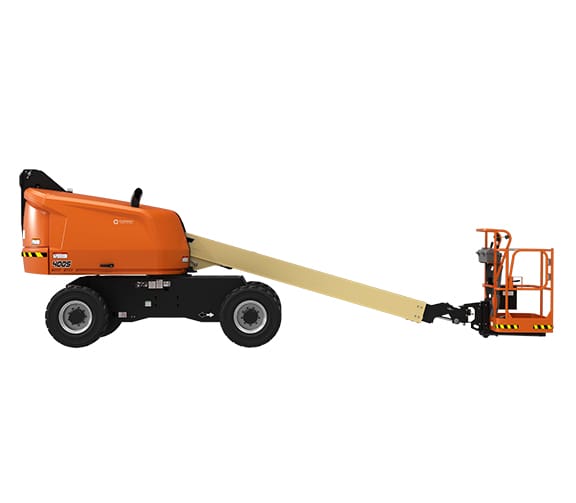

400S Retracted Side RF New

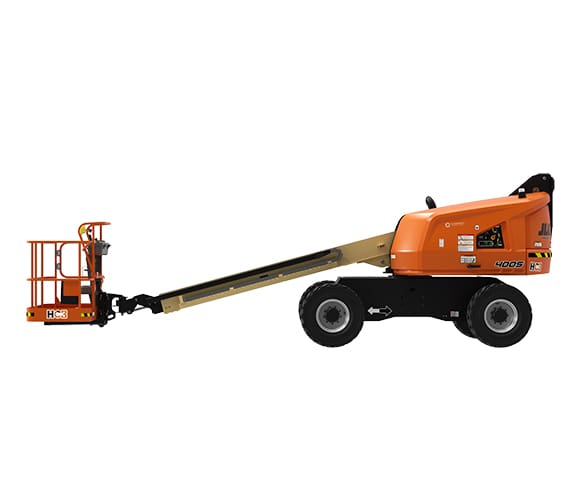

400S HC3 Retracted Side LF New

JLG 400S HC3 Telescopic Boom Lift

  • 40-ft Platform Heightt
  • 33-ft 3-in Horizontal Outreach
  • 660 – 1,000 lb. Platform Capacity
  • 4.25 mph Drive Speed
  • 45% Gradeability
Request a Quote

Documents

Product Documents

The JLG 400S HC3 is a high-capacity telescopic boom lift built for operations that need more reach, more platform capacity and more flexibility on demanding jobsites. With a 40-foot platform height, 33-foot 7-inch horizontal outreach and three working zones, it gives crews the space and capacity to lift up to three workers plus tools where the job needs them. Its 660 lb unrestricted capacity and up to 1,000 lb restricted capacity help reduce trips up and down, improving productivity for maintenance, construction and facility work.

Operators benefit from proportional controls, an upgraded status light panel, USB charging and multiple platform options, while safety-focused features like SkyGuard SkyLine, a 5-degree tilt alarm and motion alerts help support confident operation. For fleet managers, the zero-calibration load sensing system, swing-out engine tray and ClearSky Smart Fleet hardware make the 400S HC3 easier to monitor, maintain and keep working.

Model Numbers: 400S HC3

Additional Information

Brand

JLG
Condition

New
MEWP Type

Boom Lift, Telescopic
Power

Bi-Energy, Engine
Working Height

40 – 49 ft.
MEWP Lift Height

41 – 60ft
MEWP Capacity

501 – 1,000 lbs
  • Hi-capacity telescopic boom lift designed to provide more flexibility at height.
  • Three working zones allow up to three workers plus tools to fit in the platform.
  • Maximum platform capacity of up to 1,000 lb in restricted capacity zones.
  • 660 lb unrestricted platform capacity for greater usability across the working envelope.
  • 40 ft platform height and 33 ft 7 in horizontal outreach support elevated access across a wide range of jobsites.
  • Zero-calibration automatic load sensing system eliminates the need for external weights during calibration.
  • ClearSky Smart Fleet hardware is included as standard for fleet connectivity.
  • 5-degree tilt alarm and indicator light.
  • 12V DC auxiliary power.
  • 110V AC receptacle in the platform.
  • 180-degree hydraulic platform rotator.
  • Center storage tray.
  • ClearSky Smart Fleet hardware.
  • Control ADE system.
  • Four-wheel hydrostatic drive.
  • Glow plugs for diesel engine operation.
  • Horn and motion alarm.
  • Hourmeter.
  • Improved multi-function controls.
  • Interactive display at ground controls.
  • LED motion / amber beacon.
  • Lifting and tie-down lugs.
  • Oscillating axle.
  • Platform console machine status light panel.
  • Proportional controls.
  • Rapid replaceable platform with self-closing gate.
  • Reduced time to full height.
  • SkyGuard SkyLine.
  • Swing-out engine tray.
  • USB-A and USB-C charger.
  • 1/2 in air line to platform.
  • AC generator available in 2500W or 4000W configurations.
  • SkyPower package.
  • SkyGlazier package.
  • SkyWelder package.
  • Arctic package for extreme cold-weather operation.
  • Cold Weather Package.
  • Hostile Environment Package.
  • Bolt-on fall arrest system.
  • Light packages.
  • Platform mesh to mid rail or top rail.
  • Aluminum or plastic platform options.
  • Drop bar platform configurations.
  • Fall arrest rear-entry platform configurations.
  • Inward self-closing swing gate platform configurations.
  • Tri-entry platform configurations with drop bar or swing gate.
  • SkySense enhanced detection system.
  • Soft Touch System.
  • Optional foam-filled and non-marking tire configurations.
  • Turf and sand tire option.
  • Improved multi-function controls support smoother operation from the platform.
  • Proportional controls help operators make more precise boom and drive movements.
  • Interactive display at the ground controls improves machine status visibility during setup, operation and service checks.
  • Platform console machine status light panel provides at-a-glance indicators for system distress, low fuel, tilt status and foot switch status.
  • Upgraded light panel is designed to be more visible in sunlight.
  • USB-A and USB-C charger helps keep devices powered while working.
  • Center storage tray provides a convenient place for small items and tools.
  • Multiple platform entry and gate options allow users to configure the machine for jobsite preferences.
  • Chassis tilt alarm alerts the operator when the machine is on a slope exceeding 5 degrees.
  • 5-degree tilt cutout helps support safe operation on uneven ground.
  • Complies with A92.20 ANSI regulations.
  • SkyGuard SkyLine is included as a standard operator protection feature.
  • Motion alarm and horn help alert nearby personnel during machine movement.
  • LED motion / amber beacon improves jobsite visibility.
  • Self-closing gate helps secure platform entry points.
  • Optional SkySense enhanced detection system adds advanced object detection support.
  • Optional Soft Touch System helps reduce contact risk in sensitive work areas.
  • Optional bolt-on fall arrest system supports additional fall protection requirements.
  • 40 ft platform height.
  • 33 ft 7 in horizontal outreach.
  • Up to 1,000 lb restricted platform capacity.
  • 660 lb unrestricted platform capacity.
  • 360-degree continuous swing.
  • 180-degree hydraulic platform rotator.
  • 4.25 mph drive speed.
  • 45% gradeability.
  • Four-wheel hydrostatic drive for jobsite mobility.
  • Oscillating axle with 4 in axle oscillation.
  • Deutz D2.9L4 Tier 4 Final diesel engine rated at 49 hp.
  • 22 gal fuel tank capacity.
  • 12.1 in ground clearance.
  • Inside turning radius of 6 ft 5 in and outside turning radius of 15 ft 8 in.
  • Swing-out engine tray provides easier access to engine components.
  • Zero-calibration automatic load sensing system eliminates the need to use external weights during calibration.
  • Interactive ground control display helps simplify machine diagnostics and status checks.
  • Hourmeter supports maintenance tracking.
  • Platform console machine status light panel helps operators and technicians identify key machine conditions quickly.
  • Rapid replaceable platform design can help reduce downtime when platform replacement is needed.
  • ClearSky Smart Fleet hardware supports connected fleet management and equipment monitoring.
  • One-year full warranty coverage and five-year coverage on specified major structural components.
