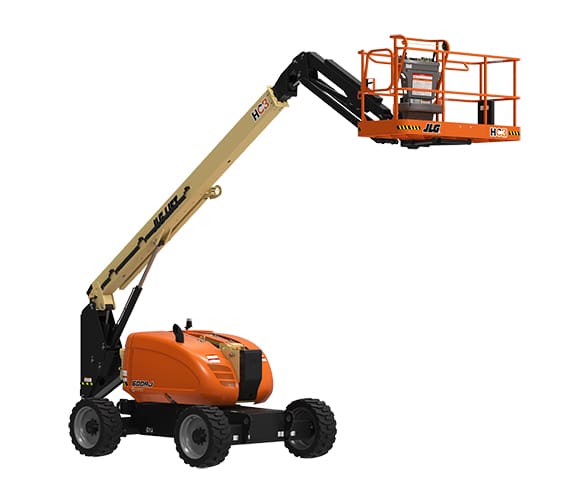

600AJ Extended Front RF New

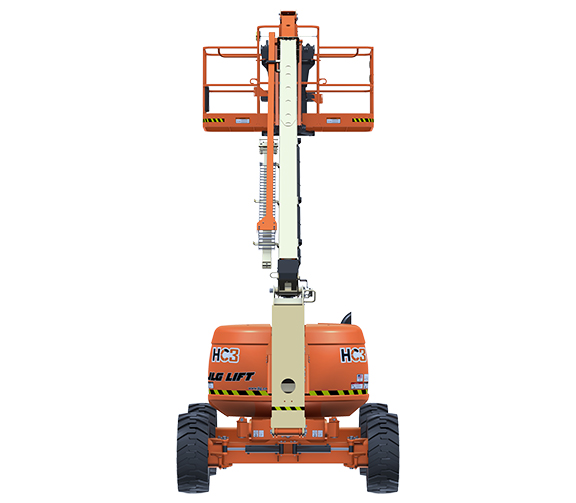

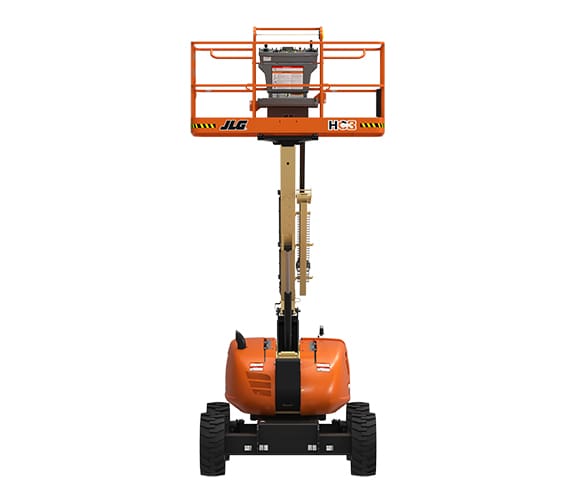

600AJ Extended Front New

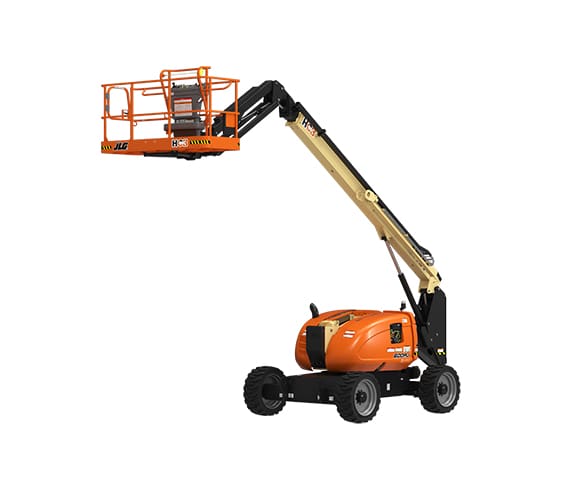

600AJ Extended Front LF New

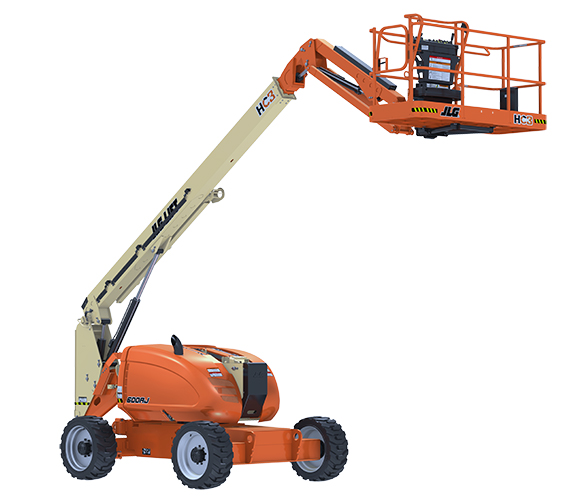

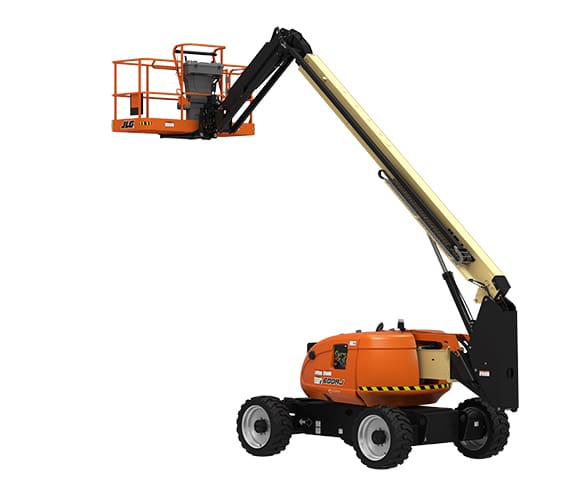

600AJ Extended Rear LF New

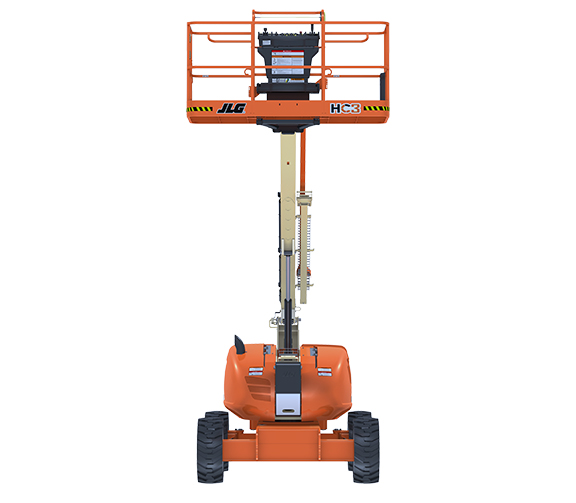

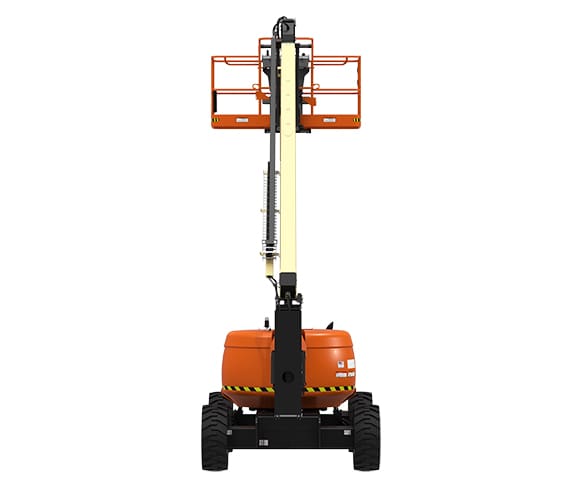

600AJ Extended Rear New

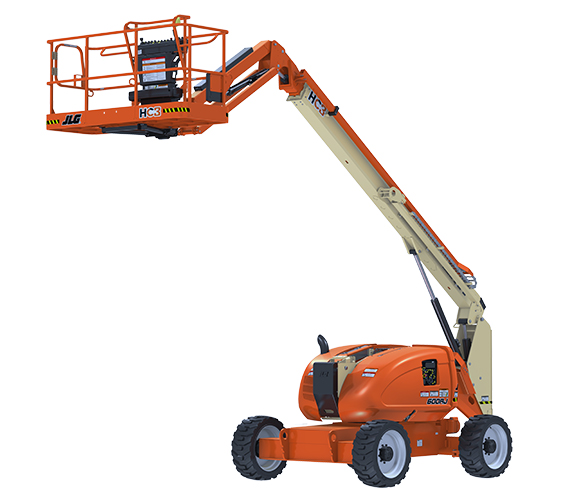

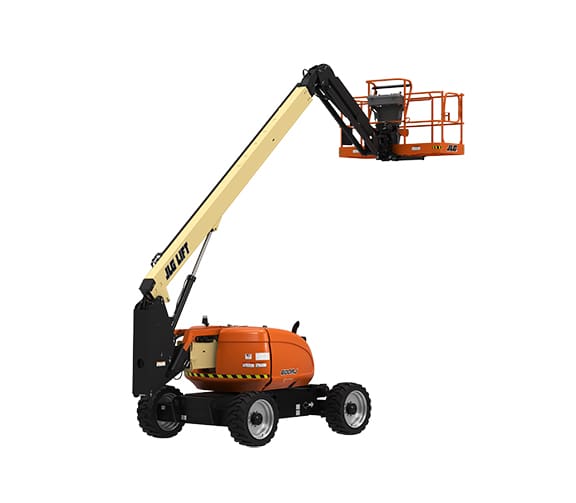

600AJ Extended Rear RF New

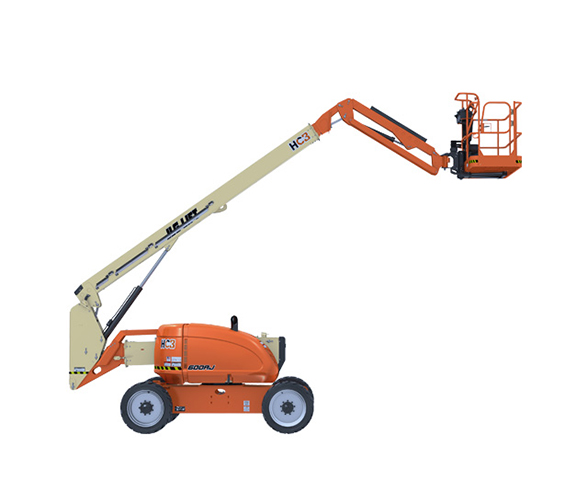

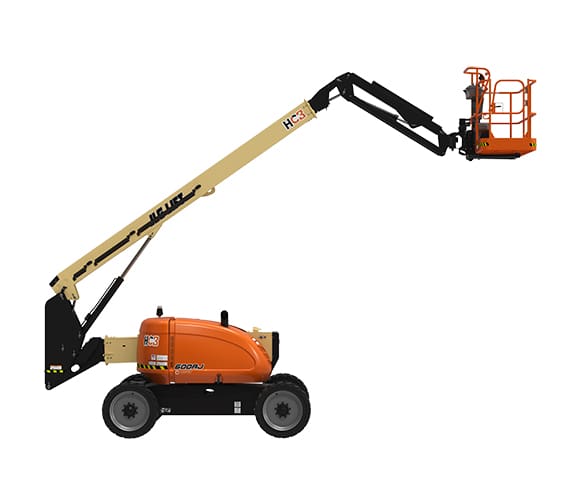

600AJ Extended Side LF New

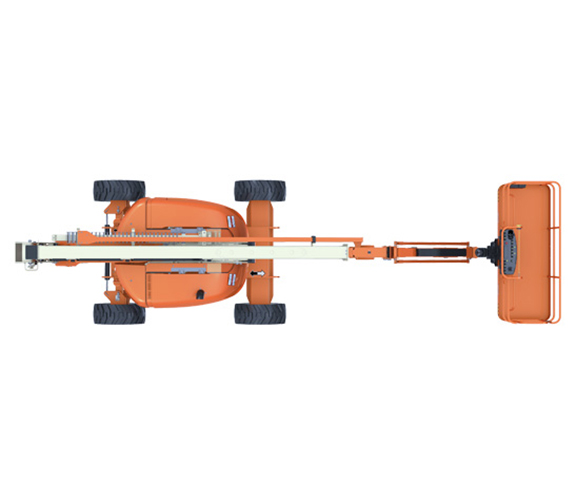

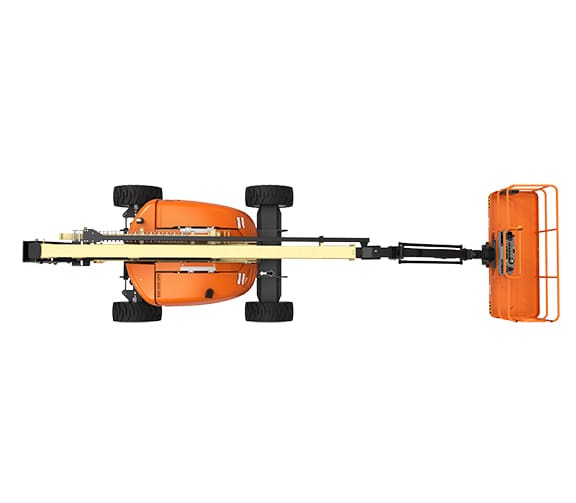

600AJ Top New

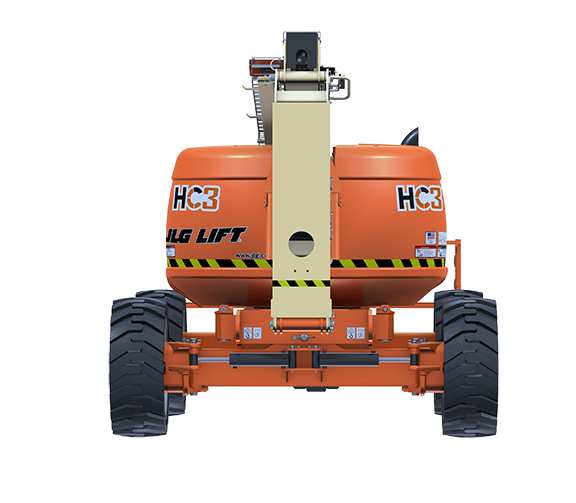

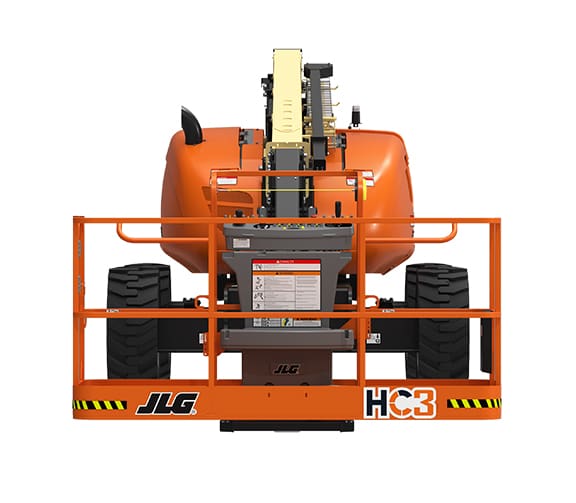

600AJ Retracted Front New

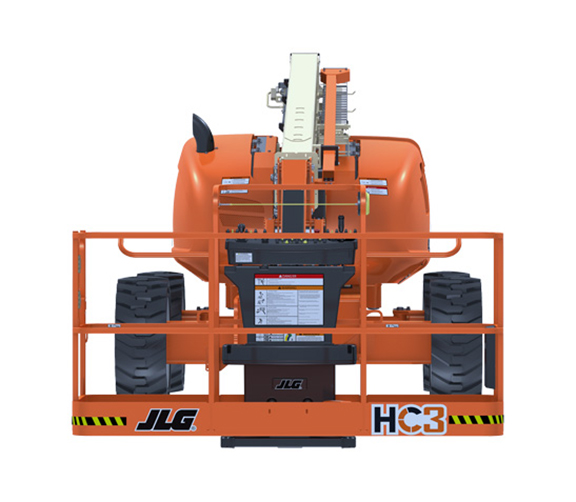

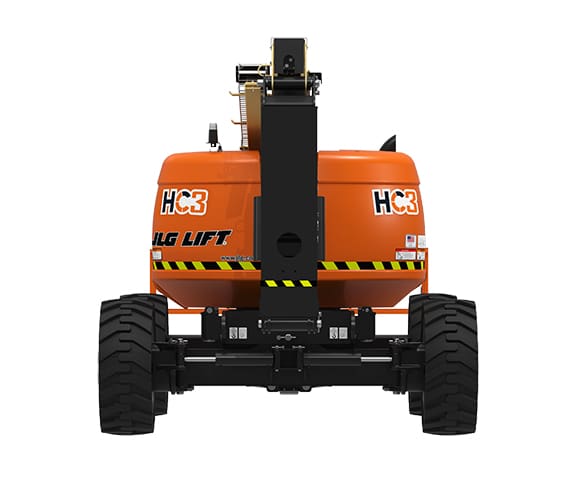

600AJ Retracted Rear New

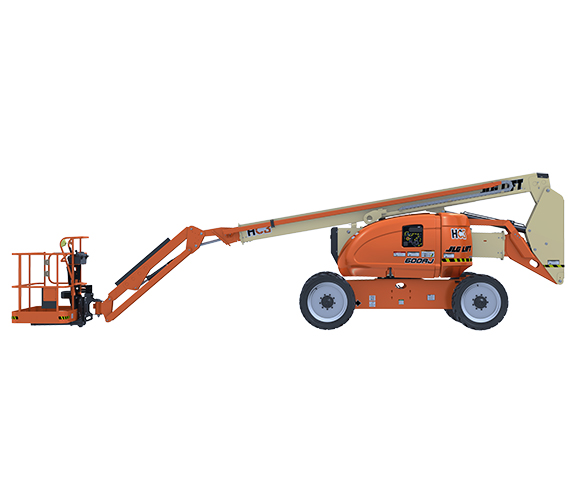

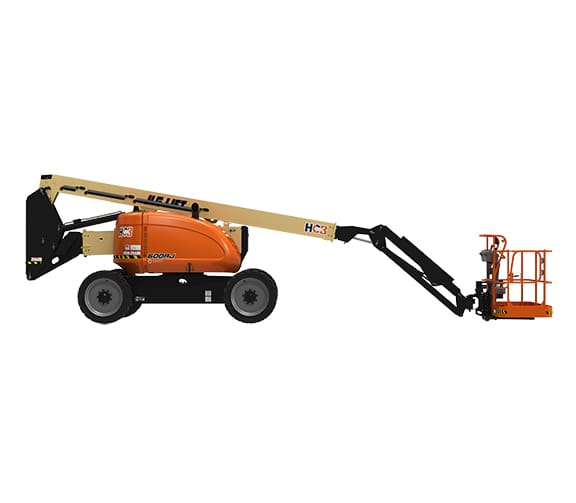

600AJ Retracted Side RF New

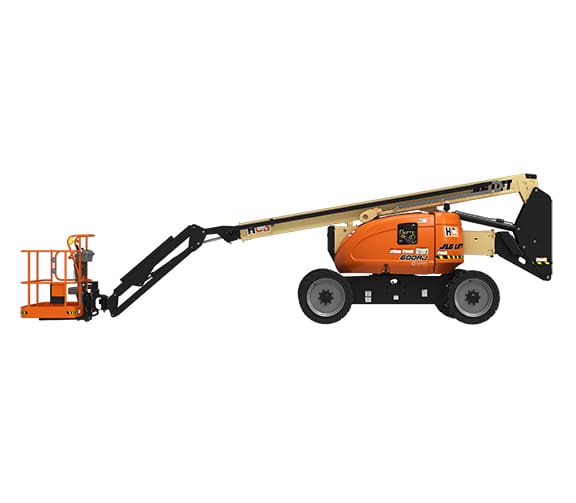

600AJ Retracted Side LF New

JLG 600AJ Articulating Boom Lift

  • 60 ft. 7 in. Platform Height
  • 39 ft. 9 in. Horizontal Outreach
  • 426 ft. 7 in. Up-and-Over Height
  • 500 lb. Platform Capacity
  • 4.25 mph Drive Speed
Request a Quote

Documents

Product Documents

The JLG 600AJ articulating boom lift gives operations teams the reach and flexibility needed to work safely and efficiently around obstacles, equipment, and building structures. With a 60 ft. 7 in. platform height, 39 ft. 9 in. horizontal outreach, and 26 ft. 7 in. up-and-over reach, it helps crews access elevated work areas that straight lifts may struggle to reach. Its zero tailswing, oscillating axle, and tight turning radius make it easier to maneuver in congested jobsites, while proportional controls support smooth, precise positioning.

Standard features like load sensing, SkyGuard SkyLine, platform status lights, auxiliary power, and a 110V platform outlet help improve operator confidence and productivity. For operations managers looking to reduce downtime and improve jobsite versatility, the 600AJ offers a dependable, configurable solution backed by JLG service and support.

Model Number: 600AJ

Additional Information

Brand

JLG
Condition

New
MEWP Type

Boom Lift, Articulated
Power

Engine
MEWP Lift Height

41 – 60ft
MEWP Capacity

501 – 1,000 lbs
  • Best reach envelope in its class for accessing elevated and hard-to-reach work areas.
  • Excellent maneuverability for confined job sites and tight work areas.
  • Fuel-efficient Tier 4 engine helps keep operation cost-effective and environmentally friendly.
  • Articulating design provides up-and-over access around obstacles.
  • Zero tailswing helps operators work more confidently in restricted spaces.
  • Available accessories and option packages allow the machine to be configured for unique job requirements.
  • Backed by JLG service, support, and warranty coverage.
  • 60 ft. 7 in. platform height
  • 39 ft. 9 in. horizontal outreach
  • 26 ft. 7 in. up-and-over height
  • 500 lb. platform capacity
  • 360-degree continuous swing
  • 180-degree hydraulic platform rotator
  • 130-degree jib range of articulation
  • 4-degree tilt alarm and indicator light
  • 12V DC auxiliary power
  • 110V AC receptacle in the platform
  • All motion alarm
  • Center storage tray
  • ClearSky Smart Fleet hardware
  • Control ADE system
  • Glow plugs on diesel models
  • Gull-wing engine hood
  • Horn and hourmeter
  • LED motion/amber beacon
  • Lifting and tie-down lugs
  • Load sensing system
  • Oscillating axle
  • Platform console machine status light panel
  • Proportional controls
  • Rapid replaceable platform with self-closing gate
  • SkyGuard SkyLine
  • Swing-out engine tray
  • USB-A and USB-C charger
  • SkySense enhanced detection system
  • SkyPower package with built-in generator and power cable to platform
  • SkyWelder package with welding capability at the platform
  • SkyGlazier package for glass and panel handling
  • SkyCutter package with onboard plasma cutter
  • Nite Bright lighting package
  • Cold Weather Start Package
  • Arctic Package
  • Hostile Environment Package
  • AC generator, 2500W or 4000W
  • 1/2 in. air line to platform
  • 43.5 lb. propane tank
  • Foam-filled non-marking tires
  • Foam-filled turf and sand tires
  • Platform mesh to mid rail or top rail
  • Aluminum or plastic platform options
  • Drop bar, swing gate, fall arrest, and tri-entry platform configurations
  • Soft Touch system
  • Tow bar
  • Welder-ready package
  • White noise alarm
  • Articulating jib helps operators position the platform in hard-to-reach areas.
  • Proportional controls support smooth, precise machine movement.
  • Rapid replaceable platform with self-closing gate supports easier platform access and jobsite flexibility.
  • USB-A and USB-C charger helps keep operator devices powered while working.
  • 110V AC receptacle in the platform supports tool and accessory use at height.
  • Center storage tray provides a convenient place for small tools or jobsite items.
  • Optional platform configurations allow the lift to be tailored to different access preferences and job requirements.
  • Load sensing system helps monitor platform capacity.
  • Zero calibration automatic load sensing system eliminates the need for external weights during calibration.
  • 4-degree tilt alarm and indicator light alerts operators to slope-related conditions.
  • Platform console machine status light panel provides indicator lights for system distress, low fuel, tilt status, and foot switch status.
  • All motion alarm and horn help alert nearby personnel during operation.
  • LED motion/amber beacon increases machine visibility on the job site.
  • SkyGuard SkyLine is included as a standard operator protection feature.
  • Lifting and tie-down lugs help support secure transport and handling.
  • Optional SkySense enhanced detection system supports improved operator awareness.
  • Optional Soft Touch system, light packages, and white noise alarm provide additional safety-focused configurations.
  • Platform height: 60 ft. 7 in.
  • Horizontal outreach: 39 ft. 9 in.
  • Up-and-over height: 26 ft. 7 in.
  • Platform capacity: 500 lb.
  • Swing: 360 degrees continuous
  • Jib range of articulation: 130 degrees
  • Drive speed: 4.25 mph
  • Gradeability: 30% for 2WD and 45% for 4WD
  • Axle oscillation: 8 in.
  • Zero tailswing for improved positioning in tight spaces.
  • Available dual fuel Ford MSG425 engine rated at 84 hp.
  • Available diesel Deutz D2.9L4 Tier 4 Final engine rated at 48.8 hp.
  • 30-gallon fuel tank capacity.
  • 12 in. ground clearance.
  • Gull-wing engine hood supports easier access to service areas.
  • Swing-out engine tray improves access during inspection and maintenance.
  • Hourmeter helps track machine usage for maintenance planning.
  • ClearSky Smart Fleet hardware supports fleet management and machine communication.
  • Online access to manuals, parts, schematics, and fault code information helps support service and troubleshooting.
  • Zero calibration automatic load sensing system reduces calibration complexity.
  • Backed by JLG service and support.
