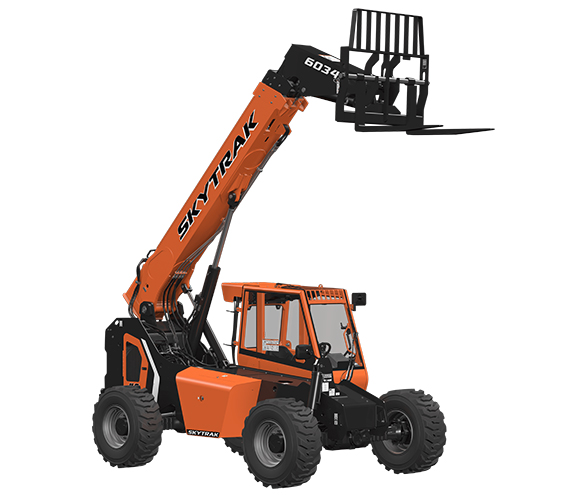

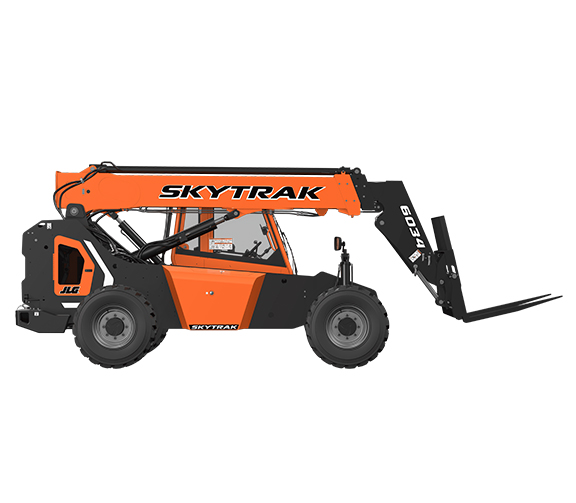

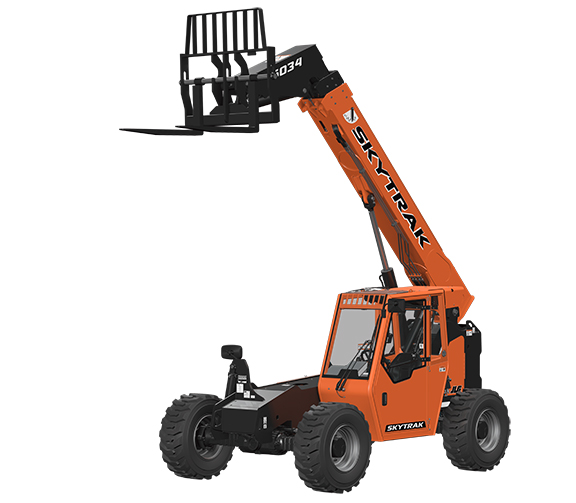

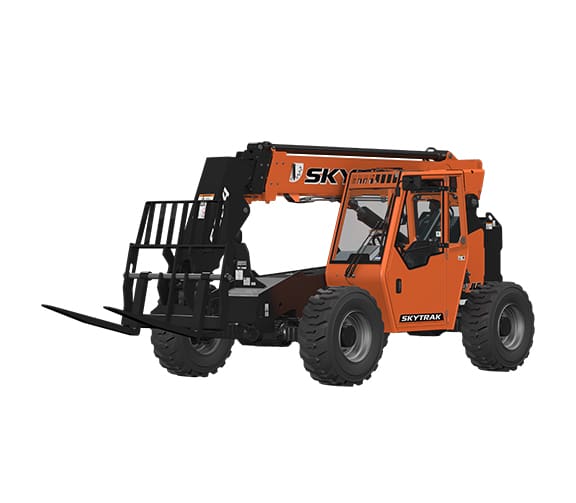

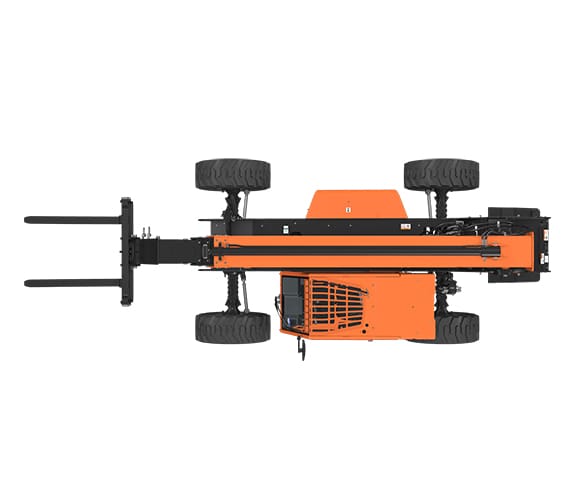

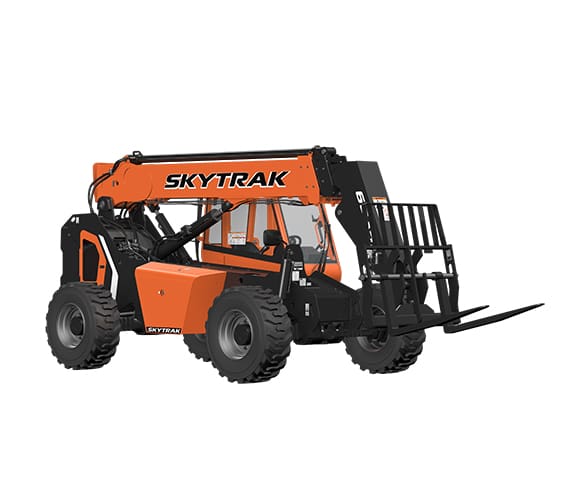

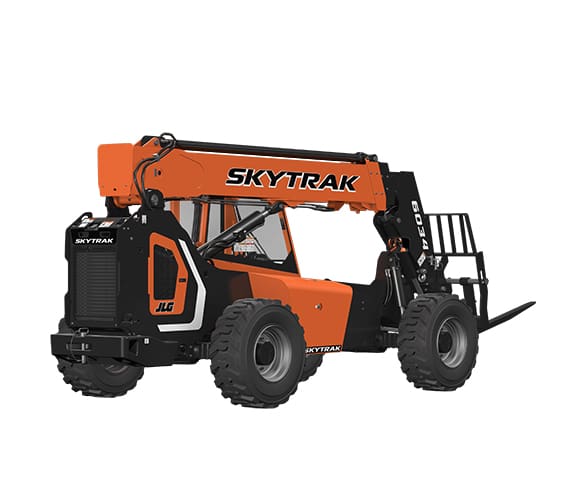

JLG SkyTrak 6034 Telehandler

6,000-lb rated capacity
34-ft 5-in maximum lift height
23-ft 2-in maximum forward reach
Hydrostatic transmission
Deutz TCD2.9 L4 74 hp diesel engine

Documents

Product Documents

Videos

Tour the Upgraded SkyTrak® 6034 & 6042

The SkyTrak 6034 is a jobsite telehandler built for operators who need practical lift height, forward reach, and straightforward operation. It offers a 6,000-lb rated capacity, 34-ft 5-in maximum lift height, and 23-ft 2-in maximum forward reach, with a hydrostatic transmission that supports ease of use.

A Deutz diesel engine, full-time 4-wheel drive, selectable steering modes, and Stabil-Trak system help support productive work across changing jobsite conditions. Its advanced control system, electric-over-hydraulic joystick, and diagnostic display give operators useful control and machine feedback during daily material handling.

Model Number: 6034

Additional Information

Condition	New
Brand	JLG
MEWP Type	Telehandler
Power	Engine
MEWP Lift Height	26 – 40ft
MEWP Capacity	Over 2,000 lbs

6,000-lb rated capacity with 34-ft 5-in maximum lift height for jobsite material handling.
23-ft 2-in maximum forward reach helps operators place materials farther into the work area.
Hydrostatic transmission supports easier operation.
Advanced control system supports more options and improved diagnostics.

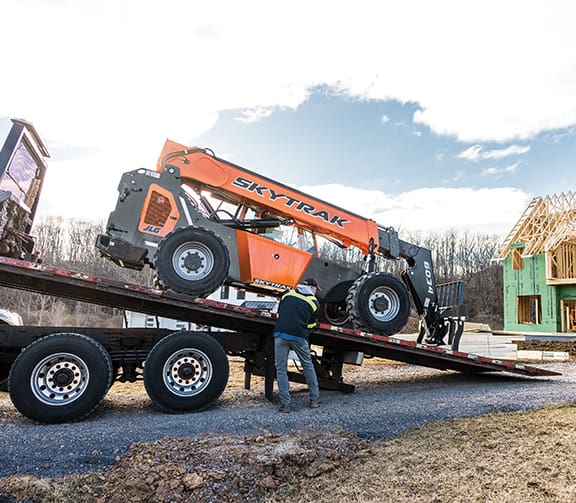

Lightweight design allows transport from job to job with a truck and trailer.
Electric-over-hydraulic joystick provides greater multifunction capability.

6,000-lb rated capacity with 34-ft 5-in maximum lift height.
Deutz TCD2.9 L4 diesel engine with 74 hp and 221 lb-ft of torque.
Hydrostatic transmission with 1 forward speed and 1 reverse speed.
Full-time planetary 4-wheel drive with oscillating rear axle and Stabil-Trak system.
Operator-selectable 4-wheel circle, 4-wheel crab, and 2-wheel front steering modes.
10 degrees of frame leveling.
Adjustable suspension seat with retractable seat belt, integrated armrest, rear view mirrors, and single joystick controls.
Certified ROPS/FOPS structure and high-visibility seatbelt.
Large LCD display for diagnostics, fuel gauge, hourmeter, temperature gauge, speedometer, and tachometer.

Enclosed cab, air conditioning, Arctic Package, and fenders.
Load Stability Indication and Seatbelt Engagement and Operator Presence systems.
Multi-reverse camera system and reverse sensing system.
Road lights, work lights, flashing beacon, and white noise back-up alarm.
Air shut-off valve.
Foam-filled, solid, turf, pneumatic non-marking, and foam-filled non-marking tire options.

Adjustable suspension seat supports operator comfort during daily use.
Integrated armrest and single joystick controls keep key machine functions within easy reach.
Electric-over-hydraulic joystick supports multifunction operation.
Rear view mirrors and available multi-reverse camera system support visibility around the machine.
Hydrostatic transmission helps simplify machine operation.

Certified ROPS/FOPS structure.
Stabil-Trak system supports machine stability during operation.
High-visibility seatbelt and retractable seat belt are included.
Available Load Stability Indication helps operators monitor load stability conditions.
Available Seatbelt Engagement and Operator Presence system supports proper operator positioning before machine operation.
Hydraulically actuated inboard wet disc brakes include an inching feature.
Load holding valves are included on frame level, attachment tilt, extend, and lift cylinders.

6,000-lb rated capacity for jobsite material handling.
4,000-lb capacity at maximum lift height and 1,000-lb capacity at maximum reach.
34-ft 5-in maximum lift height and 23-ft 2-in maximum forward reach.
15 mph top travel speed.
11-ft 11-in outside turning radius.
12,863-lb loaded drawbar pull.
35.7 gal hydraulic system capacity with variable-flow, load-sensitive hydraulics.

Advanced control system and large LCD display provide improved diagnostics.
Fuel gauge, hourmeter, temperature gauge, speedometer, and tachometer help operators monitor machine status.
Gear pump and load-sensitive hydraulic system support implement operation.
Auxiliary hydraulics support attachments equipped with cylinders or other hydraulic components.
Warranty coverage includes one full year on the machine, two years or 2,000 hours on the drivetrain, and five years on specified major structural components.

General construction jobsites that need lift height, reach, and compact maneuverability.

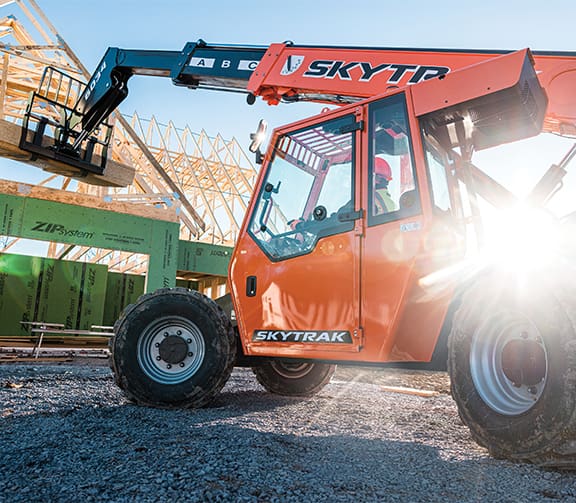

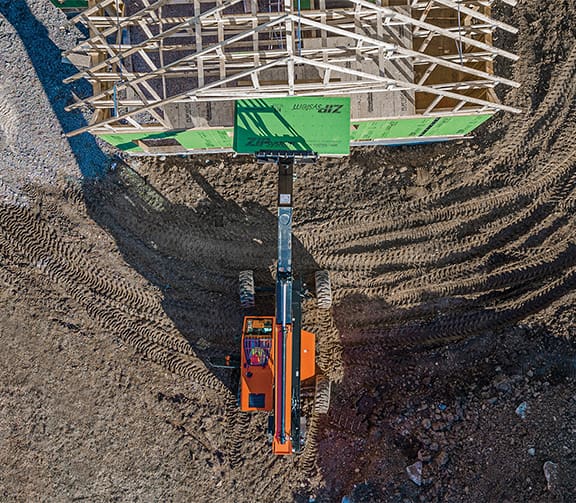

Framing, truss setting, and post-frame building applications supported by truss boom and fork-mounted extendable truss attachments.

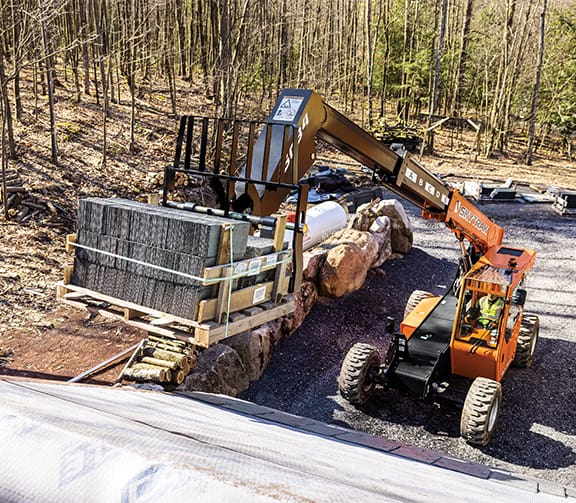

Masonry and block handling supported by cubing forks and pallet fork options.
Jobsite cleanup and material placement supported by material bucket and grapple bucket attachments.

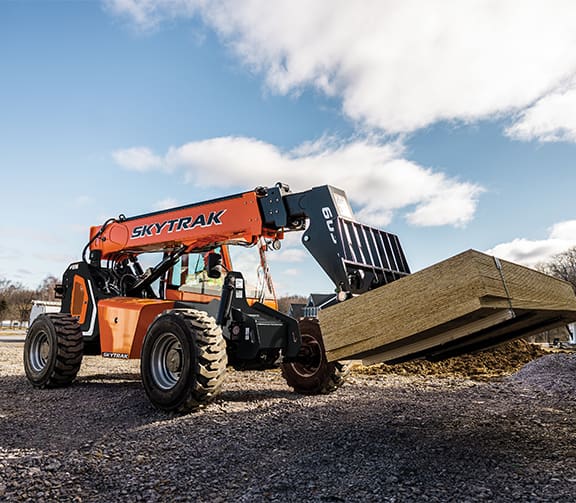

General material handling applications using carriages, forks, work platforms, and lifting hooks.
